RISC Platform
RP-107

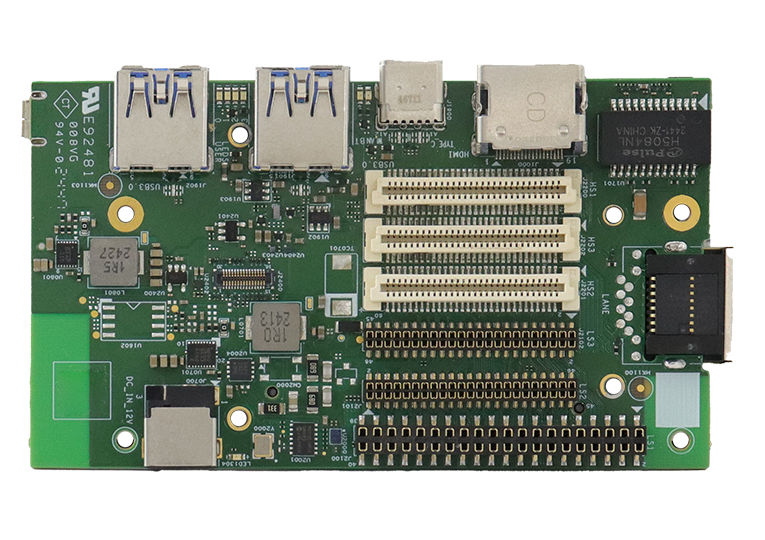

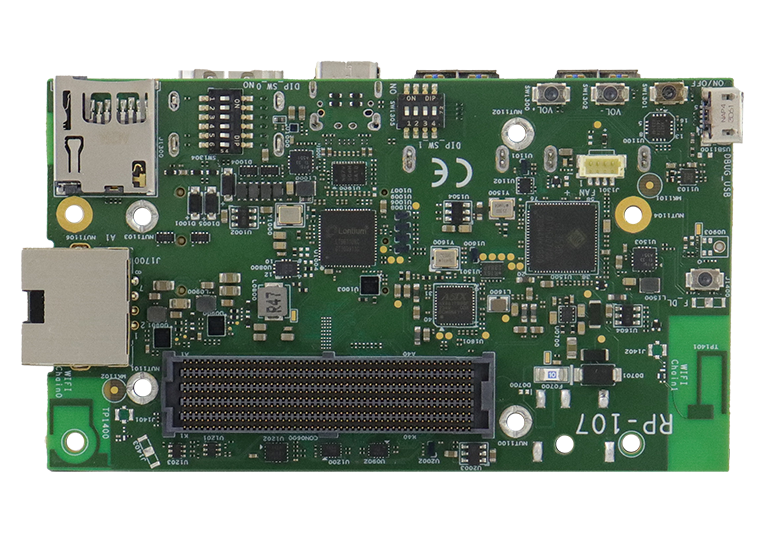

Carrier Board for RM-QCS6490-S SOM Module
- 1x UART debug port, UART to USB
- 2x USB Type-A port, only as host
- 1x Micro USB port, sharing DP/ DM with USB Type-C connector, adb / download / host / device
- 1x USB Type-C port, adb / download / host / device
- 1x HDMI 2.0
- 1x RJ-45
- 1x DC-in jack (+12V)
| Form Factor | Carrier Board for RM-QCS6490-S (SOM) |
| Edge I/O | 1x RJ-45 2x USB 3.0 Type-A port, only as host 1x DC-in jack (+12V) 1x UART debug port, UART to USB 1x USB Type-A port, only as host 1x Micro USB port, sharing DP/DM with USB Type-C connector, adb/download/host/device 1x USB Type-C port, adb/download/host/device 1x HDMI 2.0 |
| Internal I/O | 1x SD card slot 1x MIPI Camera interface 3x RGB LED from PMIC with independent brightness control 1x Low-speed connector to low-speed expansion board |
| Jumpers, Switches & Buttons | 1x DIP switches for board function control (including display, camera, USB) 1x 6-pin switch 1x Force USB boot button 1x Volume up button 1x Volume down button 1x Power on button |
| Power Input | +12V DC-in |
| Dimensions | 90mm x 50mm |
| Environment | Humidity: 0% to 90% RH at 60° C (non-condensing) |
| Operating Temperature | -40°C ~ +70°C (-40°F ~ 158°F) |
| OS Support | N/A |
| Certification | CE/FCC Class-B |
| RP-107 | Carrier Board for RM-QCS6490-S Module, +12V DC-in jack |
| DATASHEETS | RP-107 |
| CATALOGS | RISC-Based Embedded Solutions (Vol.25.05) |
