Form Factor | Carrier Board Compliant with SMARC™ 2.1 |

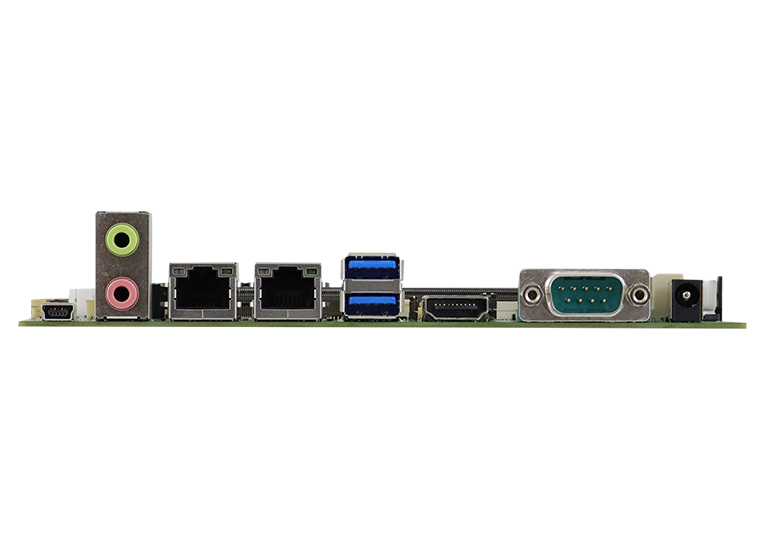

Edge I/O | 1x 19V~24V DC-in Jack 2x RJ45 Gigabit LAN (one for RM-N8 only) 2x USB3.0 1x OTG Micro USB2.0 2x HDMI TX (one for RM-N8 only) 1x HDMI RX (for RM-N8 only) 1x Headphone & Mic 1x COM (RS232/422/485 by switch) 2x SD slot (one for RM-N8 only) |

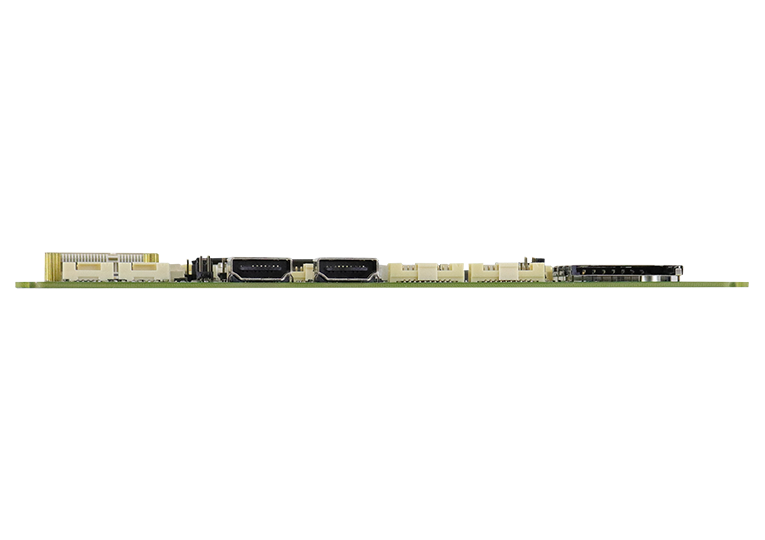

Internal I/O | 1x 19V~24V DC-in header 1x 12V Fan header 4x CAN bus 2.0b (three for RM-N8 only) 3x 18/24-bit dual channel LVDS (two for RM-N8 only) 4x LCD backlight 2x MIPI-CSI2 (one for RM-N8/RM-N8M only) 2x MIPI-DSI (one for RM-N8 only) 2x USB 3.0 12x GPIOs 2x RS232 (RX/TX only) 2x I2C 2x SATA III and power (one for RM-N8 only) 1x I2S 1x QSPI 1x Full-size Mini PCI-E 1x SIM socket 1x M.2 E-Key (2230) 1x Speaker out (R/L) 1x RTC battery 1x 4-wire UART |
Jumpers, Switches & Buttons | 1x Boot select switch 1x I/O and display select switch 1x Power button 1x Reset button 1x LID button 1x Sleep button 4x Backlight power (3V3/5V/12V) jumper 3x LCD power 3V3/5V jumper |
Power Input | N/A |
Dimensions | 170mm x 170mm (6.7" x 6.7") |
Environment | Humidity: 0 % to 90 % RH at 60° C (non-condensing) Shock: Non-Operating: 1G, 15 mins (x-, y-, z-axis) Vibration: Non-operating: 3 Hz to 500 Hz, 15 mins |
Operating Temperature | -40°C ~ +85°C (-40°F ~ 185°F) |
OS Support | Depends on CPU Module |
Certification | CE/FCC Class-B |

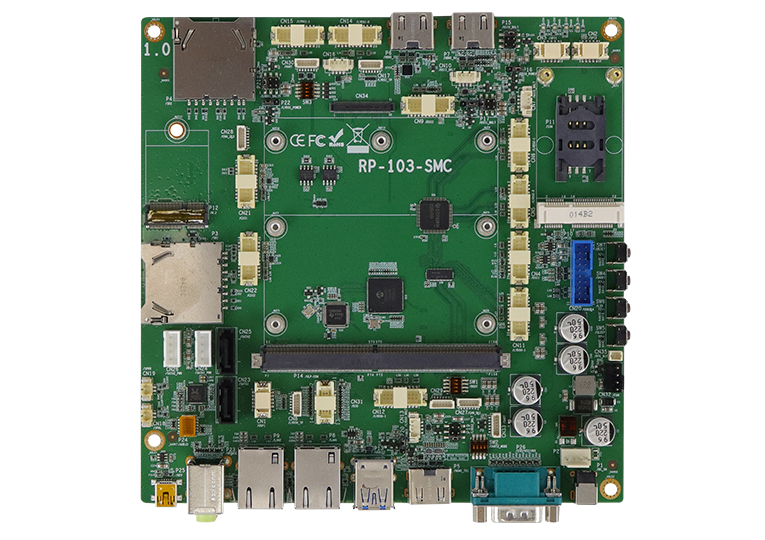

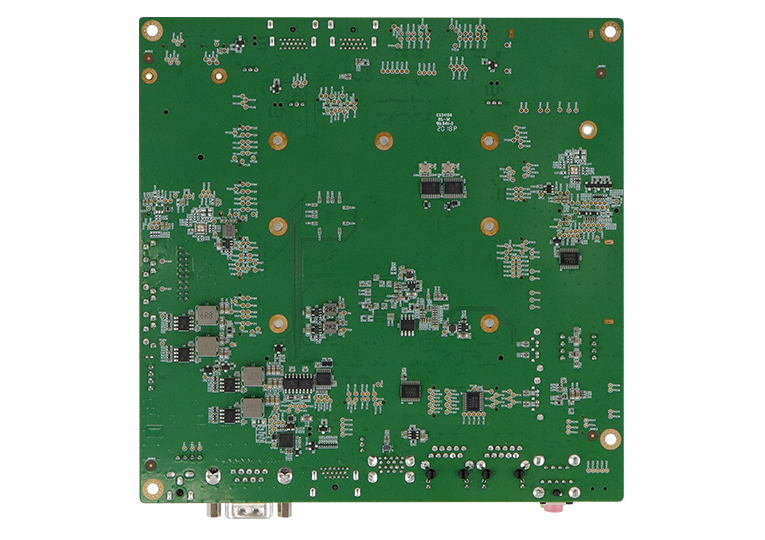

RP-103-SMC | Carrier Board for SMARC™ 2.1 Modules, 19V~24V DC-in jack, 1x RJ45 LAN, 1x OTG Micro USB2.0, 1x Headphone & Mic, 1x 12V Fan header, 1x CAN bus 2.0b, 1x Full-size mini PCI-E, 1x LCD backlight, 4x USB 3.0, 12x GPIOs, 2x RS232 (RX/TX only), 1x I2C, 1x I2S(Audio), 1x SIM socket, 1x M.2 E-Key (2230),1x Speaker out (R/L),1x RTC battery, 18/24-bit Dual-Channel LVDS, 1x HDMI 2.0 1x COM (RS232/422/485) or 4-Wire UART, 1x QSPI,1x MIPI-CSI, 1x MIPI-DSI, 1x SATA III and power |
DATASHEETS | RP-103-SMC |
CATALOGS | RISC-Based Embedded Solutions (Vol.24.03) |
USER'S MANUALS | RP-103-SMC V0.6 |
