RISC Platform

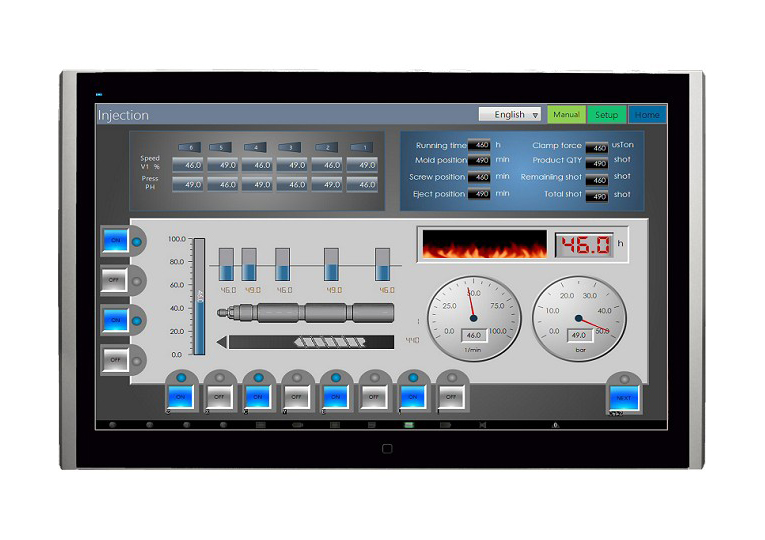

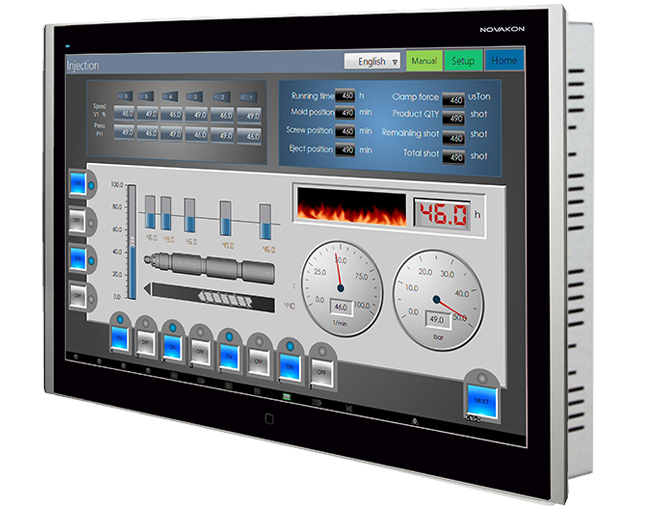

Industrial HMI with TI ARM® Cortex™ A8, Sitara™ AM3352 (1GHz) Processor

  • ARM Cortex A8 (1GHz)
  • 1366x768 (WXGA) TFT, 500 cd/m2, 50,000 hours
  • DC 24V±20%
  • Aluminum IP65 front bezel and steel chassis, fan-less design
  • Panel or VESA 100mm x 100mm mount
  • ESD Protection : Level 4 (Contact Discharge 8KV,
  • Air-Gap Discharge 15KV), Class A
  • Suitable for industrial applications
Display type 15.6" TFT
Resolution 1366 x 768
Display area 344.2mm x 193.5mm
Color depth 16.7M
Backlight type LED
Brightness 500 cd/m²
Backlight lifetime 50,000 hours
Viewing angle (H°/V°) 160/160
Contrast 600:1
Touch panel 5-wire resistive type
CPU ARM Cortex-A8 (1GHz)
Flash memory 4G eMMC
DRAM 512M Bytes
FRAM (non-volatile) 32K Bytes
COM1 RS232/422/485
COM2 RS232/422/485
COM3 RS232/485 or CAN bus (option)
Ethernet 1x 10/100 Mbit or 2x 10/100 Mbit (option)
USB 1x Host, 1x Device
Memory card SD card
Power supply voltag DC 24V±20%, Isolated Power
Power consumption 28W
Operation temperature 0 ~ 50°C
Storage temperature -20 ~ 60°C
Humidity 10% ~ 90% (non-condensing) @40°C
Waterproof (front) IP65
ESD Protection Level 4 (Contact Discharge 8KV, Air-Gap Discharge 15KV), Class A
Dimension 408.8mm(W) x 260.92mm(H) x 50.6mm(D)
Cut-out 395.5mm(W) x 247.62mm(H)
Weight(Net) 3.1Kgs
IPR-P15F-N 15.6”, 1366x768 pixel, TI ARM ® Cortex ™ A8, Sitara ™ AM3352 (1GHz), eMMC 4G, SDRAM 512M, COM1 (RS232/RS422/RS485), COM2 (RS232/RS422/RS485), COM3 (RS232/RS485), USB (1 Host/1 Device), Ethernet, SD Card, 24V ± 20% DC
