RISC Platform

ISR500

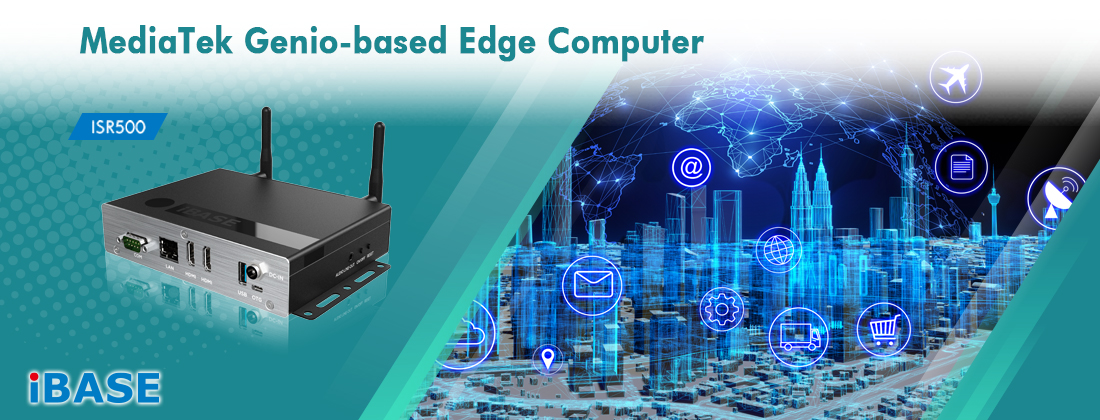

Rugged Edge Computer with MediaTek Genio 700 (MT8390) or MediaTek Genio 510 (MT8370) Processor

  • MediaTek Genio 700 (MT8390) 2.2GHz or MediaTek Genio 510 (MT8370) 2.0GHz processor
  • Onboard 4GB LPDDR4 with 4000MT/s
  • Embedded I/O for COM, GPIO, USB, HDMI, Ethernet
  • Supports M.2 E-Key (2230) for WiFi6 2T2R + BT 5.2 connectivity
  • Ruggedized and fanless design
  • NEW
  • Fanless
  • RISC Based
System Mainboard IBR500 3.5-inch SBC
Processor MediaTek Genio 700 (MT8390) : 2x A78 2.2GHz L2 256KB, 6x A55 2.0GHz L2 128KB, shared 2MB L3 cache
MediaTek Genio 510 (MT8370) : 2x A78 2.0GHz L2 256KB, 4x A55 2.0GHz L2 128KB, shared 2MB L3 cache
System Memory Onboard 4GB LPDDR4 with 4000MT/s (default)
LAN Connector 1x RJ45 GbE LAN
Display 1x HDMI (4K60) + 1x HDMI (FHD60)
1x MIPI-DSI
1x eDP
Front I/O 1x COM port
1x LAN port
2x HDMI
1x On/Off button
1x USB
1x USB OTG
1x DC IN power jack
1x Audio Line-in and Line-out (6-pin header)
Rear I/O 2x Antenna holes
Side I/O 1x SW Set button
1x Factory reset button
1x Audio Line-Out
Expansion Slots 1x M.2 B-Key (3052) w/ SIM socket (for 5G)
1x M.2 E-Key (2230) w/ SDIO, UART (for Wireless)
1x Mini PCI-E w/ USB 2.0, SIM, PCM (for 4G/LTE)
Storage 128GB eMMC 5.1 Flash for O.S. and 8MB SPI NOR
Flash for board information
Watchdog 256 Levels, 0~128 secs
Fanless Yes
Construction SGCC
Chassis Color Black
Mounting DIN rail, wall mount
Dimensions (WxDxH ) 155mm x 100mm x 36mm
Operating Temperature -40°C~ 60°C
Relative Humidity 10%~90% (non-condensing)
OS Support Yocto 5.15
Android 13
Certification CE/ FCC Class-B
ISR500 MediaTek Genio 700 / MT8390: 2x A78 2.2GHz L2 256KB, 6x A55 2.0GHz L2 128KB, shared 2MB L3 cache, 4GB LPDDR4, 128GB eMMC
