RISC Platform

ISR301

Rugged Edge Computer with NXP i.MX 8M - ARM Cortex-A53 Quad Processor

  • NXP i.MX 8M - ARM Cortex-A53 Quad processor
  • 3GB LPDDR4, 16GB eMMC & SD socket for expansion
  • Embedded I/O for COM, GPIO, USB, HDMI, Ethernet
  • Supports M.2 E-Key (2230) and Mini PCI-E with SIM socket for wireless/4G/LTE connectivity
  • Ruggedized and fanless design
  • Fanless

The ISR301 is a ruggedized compact computing system built for both industrial and commercial applications including factory automation, machine vision, edge computing, POS and digital signage. It is powered by a quad-core NXP Cortex™ A53 i.MX 8M processor in 1.3GHz frequency. The i.MX 8M processor offers unprecedented media processing capabilities, allowing the ISR301 to deliver 4K immersive multimedia content in signage for transportation hubs, shopping malls, hotels and event venues.

Ruggedized Compact Industrial PC with NXP i.MX 8M Processor

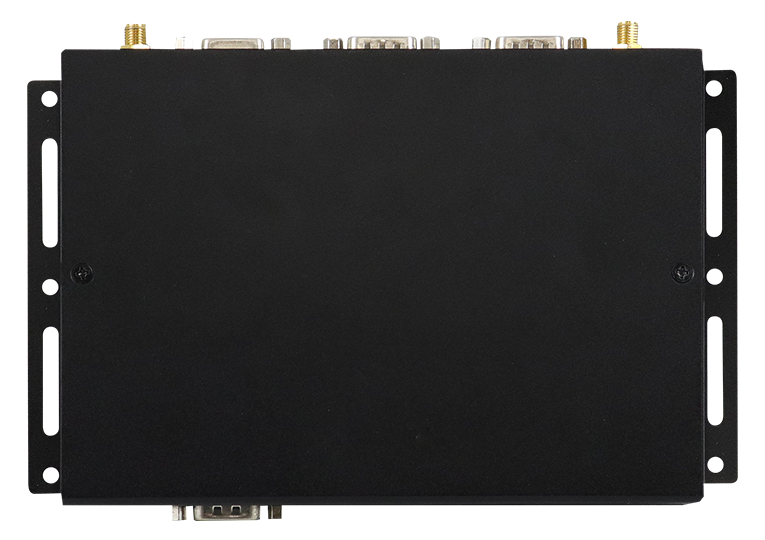

The ISR301's industrial-grade design ensures a 24/7 operation in a wide operating temperature range between -10°C and 60°C. Additionally, the fanless mini box PC with its side brackets makes it easy to securely fit in any space-constrained environments. Measuring 172mm x 162mm x 36mm (WxDxH), it has 3GB LPDDR4 system memory, 16GB eMMC flash memory, and rich connectivity via the front panel with 1x GbE RJ45, 2x USB 3.0, 1x USB OTG, 1x HDMI and 1x serial port, as well two serial ports and GPIO at the rear side. Other features include a 12V~24VDC power input and expansions slots for M.2 Key-E modules and mPCIe cards.


To help customers reduce time to market and development costs, IBASE provides Board Support Package (BSP) for Android 9 and Yocto Linux v2.5 operating systems.

System Mainboard IBR210-Q316I 3.5-inch SBC
Processor NXP Cortex™-A53 i.MX 8M Quad processor
System Memory 3GB LPDDR4 on board
LAN Connector 1x RJ45 GbE LAN
Display 1x HDMI 2.0a, supports up to 4K resolution

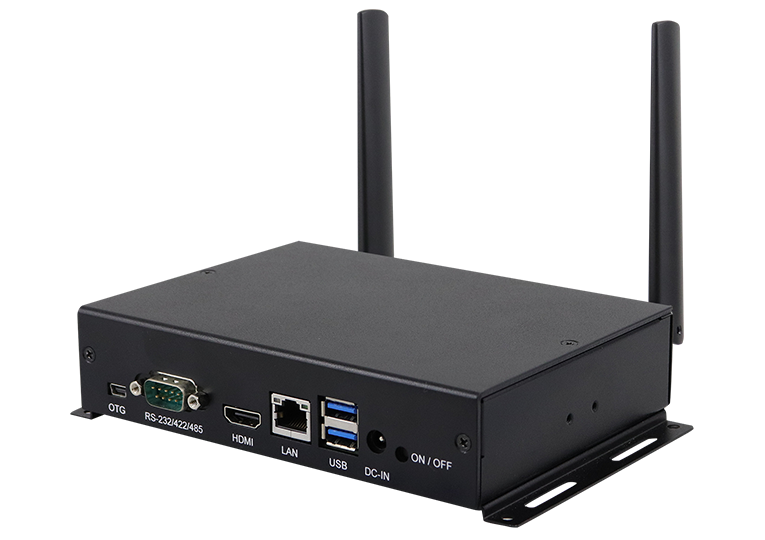

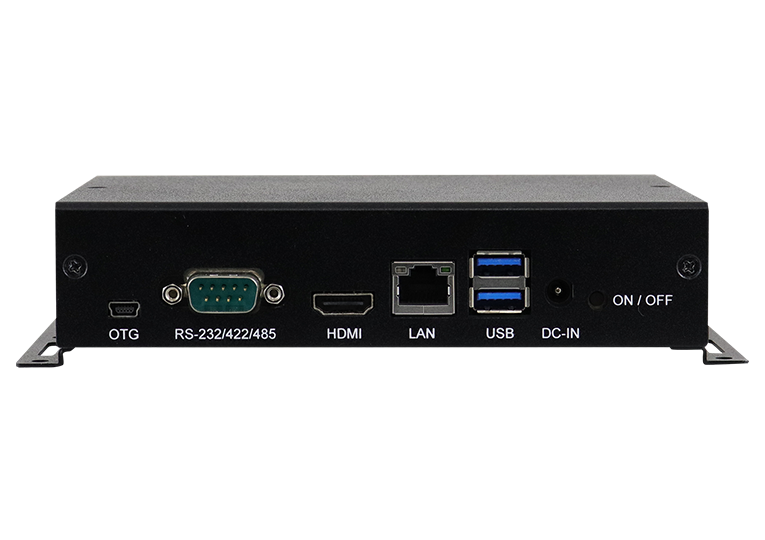

Front I/O 1x HDMI Type-A, up to 4K
2x USB 3.0 Type-A
1x RJ45 GbE LAN
1x RS232 /422/485 (DB9)
1x Mini-USB OTG
1x 12V~24V DC-in jack
1x On/Off button

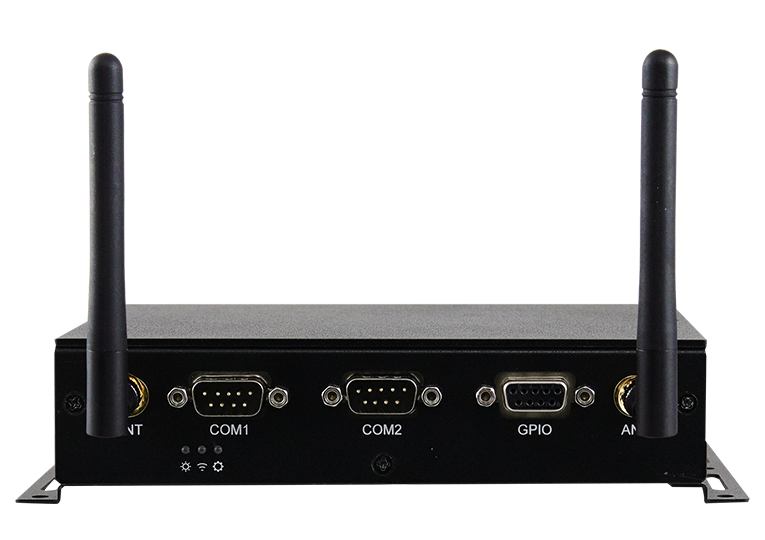

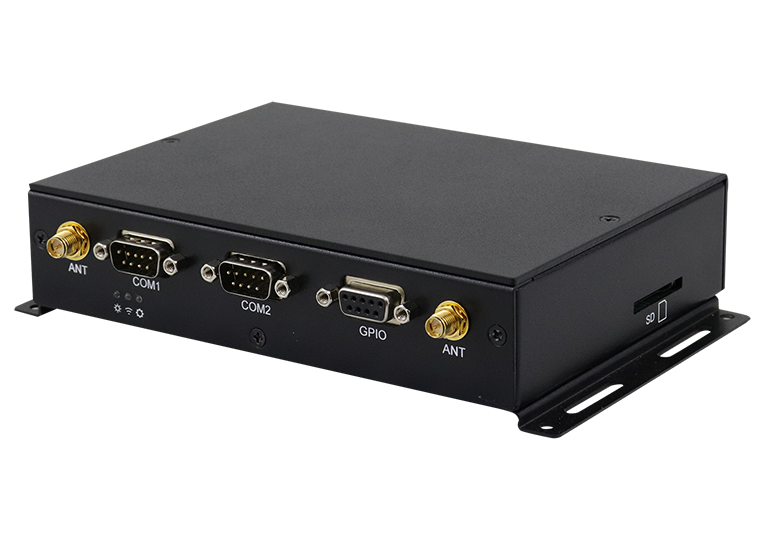

Rear I/O 2x RS232 (DB9)
8x GPIO
2x Antenna hole (reserved)
3x LED indicators
Side I/O 1x SD socket (UHS-I SDR-104, 104MB/s max.)
Expansion Slots 1x M.2 E-Key (2230) w/ USB, SDIO, UART, PCI-E
1x Mini PCI-E (PCI-E and USB) w/ SIM socket
Storage 16GB eMMC on board (default)
Watchdog 256 levels, 0~128 seconds
Fanless Yes
Construction SGCC
Chassis Color Black
Mounting VESA 75 / 100, DIN rail, wall mount
Dimensions (WxDxH ) 172mm (W) x 162mm (D) x 36mm (H)
Operating Temperature -10°C~ +60°C (14°F ~ 140°F)
Relative Humidity 10%~90% (non-condensing)
OS Support Yocto v2.5
Android 9
UBUNTU 18.04 evaluation
Other OS (by request)
Certification CE/ FCC Class-B
ISR301-Q316I ARM-based IOT Gateway, NXP Cortex™ -A53, i.MX 8M Quad 1.3GHz processor, 3GB LPDDR4, 16GB eMMC, HDMI, RS-234/422/285, USB 3.0, M.2 E-Key(2230) & Mini PCI-E w/ SIM socket
