RISC Platform


Ruggedized Edge Computer with NXP ARM® Cortex-A9 i.MX 6Dual-Lite 1GHz Processor

  • With NXP Cortex™-A9, i.MX 6Dual-Lite1GHz processor
  • 1GB DDR3, 4GB eMMC, Micro SD socket for expansion
  • Embedded I/O for COM, GPIO, USB, USB-OTG, Ethernet
  • M.2 Key-E (2230) for wireless connectivity
  • Ruggedized and fanless design
  • Fanless
  • Wide Temperature
System Mainboard IBR115 2.5-inch SBC
Processor NXP Cortex™-A9 i.MX 6Dual-Lite, 1GHz
System Memory 1GB DDR3 on board
LAN Connector 1x RJ45 GbE LAN
Display 1x HDMI 1.4 (FHD)

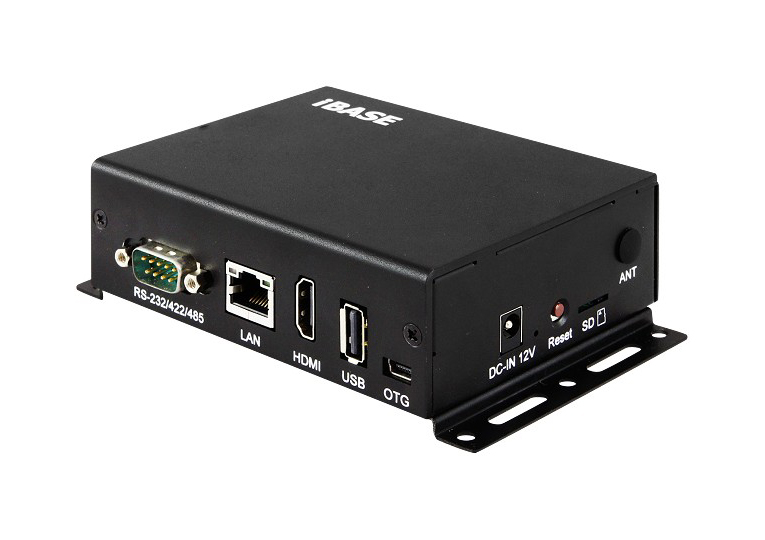

Front I/O 1x HDMI Type-A, up to FHD
1x USB 2.0 Type-A
1x RJ45 GbE LAN
1x RS232/422/485 (DB9 connector)
1x Mini-USB OTG

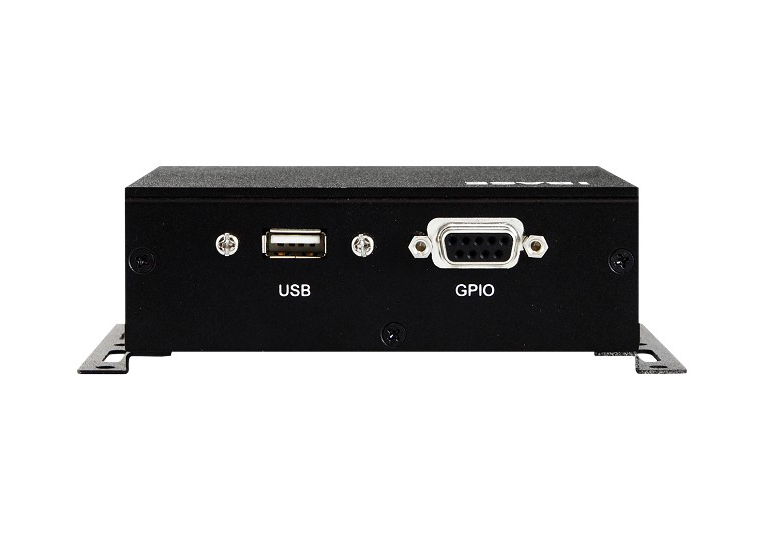

Rear I/O 1x USB 2.0 Type-A
Side I/O 1x Reset button
1x 12V DC-in Jack
1x Micro SD socket (UHS-I SDR-104, 104MB/s max.)
1x Antenna hole (RP SMA Jack)
Expansion Slots 1x M.2 Key-E (2230) w/ USB, SDIO, UART, PCI-E
Storage 4GB eMMC on board (optional 8/16/32/64 GB)
Watchdog 256 Levels, 0~128 secs
Fanless Yes
Construction SGCC
Chassis Color Black

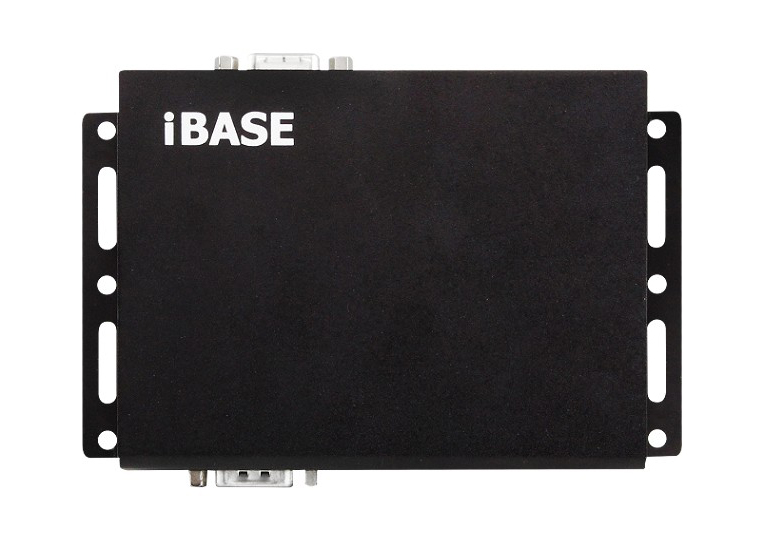

Mounting VESA 75 / DIN rail / wall mount
Dimensions (WxDxH ) 122mm x 102mm x 36 mm (4.81" x 4.02" x 1.42")
Operating Temperature 0°C ~ 60°C (32°F ~ 140°F)
Relative Humidity 10%~90% (non-condensing)
OS Support Yocto v2.1
Android 6.0.1
Certification CE/ FCC Class B
ISR101 ARM-based IOT Gateway, NXP Cortex™-A9, i.MX 6Dual-Lite 1GHz, 1GB DDR3, 4GB eMMC, HDMI, RS-234/422/485, USB2.0, M.2 Key-E(2230)
