Panel PC


IBASE IoT Energy Management Platform

  • 15” open-frame panel PC with Novakon iFACE Designer software
  • Powered by Intel® Pentium® QC N4200 Processor with IP65 front panel protection
  • 4-in-1 management systems including: freezers, air conditioning, lighting system and power
  • Works as a backend facility for monitoring and managing parameters in intelligent retail environments
  • Optimizes overall power consumption and avoid down-time
  • Trend chart display and log report export of historical data
  • Alarm notification of equipment/device status through email/LINE App
  • Supports Modbus RTU/TCP/ASCII, OPC UA, Restful API, MQTT; Mitsubishi, Siemens, Rockwell, Omron, CODESYS... PLC drivers
  • Supports Charts, Alarm, Macro, Data Log, Recipe, Scheduler, Report, VNC, OpenVPN, FTP, functions
  • intel RRK

The IoT Energy Management Platform is an integrated and proven solution that works as a backend facility for monitoring and managing parameters in smart retail environments. The platform leverages the Intel® Pentium® QC N4200-based IBASE OFP-151-PC-NVK open-frame 15-inch panel PC and Novakon iFACE Designer software as a SCADA (Supervisory Control and Data Acquisition System) management solution. It displays real-time status of equipment such as freezer, air conditioning, lighting system and power meter, and serves as a communication bridge between sensors and the cloud to instantly transmit equipment operating status, event and alarm messages through email or LINE App in order to optimize overall power consumption and avoid down-time.

OFP-151-PC-NVK open-frame 15-inch panel PC

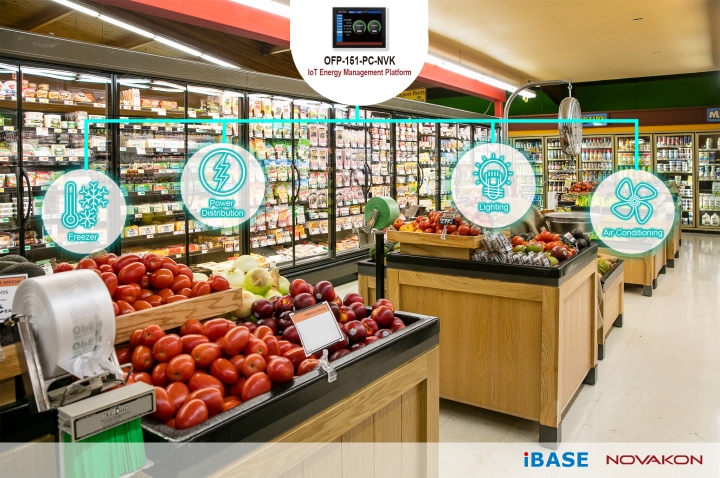

The IoT Energy Management Platform integrates four intelligent management systems (as listed below) for the retail environment to optimize energy consumption.

  • Freezer - Operating status & trend, dynamic group selection, smart defrost control
  • Air conditioning - Operating status & trend, dynamic group selection, scheduler
  • Lighting - Operating status & trend, scheduler
  • Power - Instant power consumption, cumulative daily power usage, power metrics, and power demand

The platform features modularized functional blocks for easy customization across all venues in the retail industry. The upgradeable OFP-151-PC-NVK panel PC comes with easy to mount, open-frame modular design with optional colored frames. It supports IP65 front panel protection against dust and water and is built with industrial-grade components to ensure reliable performance with fanless operation in temperatures of up to 50°C.

Installed with the Novakon iFACE Designer, a comprehensive object-oriented UI/UX graphics editing tool that utilizes numerous industrial automation standard protocols, mainstream brand name PLC drivers and universal IoT cloud protocols, the platform can provide easy connectivity among diversified industrial equipment and devices, such as sensors, power meters, controller, PLCs, IO modules, and IoT cloud platform.

Display Size 15
Max. Resolution 1024 x 768
Luminance (cd/m2) 420
Contrast 1:600
Max. Color 16.2M
View Angle (H/V) 160/160
Backlight Lifetime(hrs) 30000
Touch Type Projected capacitive
Touch Interface USB
Light Transmission (%) 89
Point of touch 10
USB 3.0/ 3.1 4
USB 2.0 0
RS-232/422/485 Selectable in BIOS 1 (RJ50 type)
RS-232 Optional
LAN 2x GbE
Additional Graphics 1x HDMI
1x DP
Audio None
Digital I/O Optional
Power Connector 1x 3-pin terminal block
Power Button 1x 2-pin terminal block for remote
Dimensions (mm) 375.2 x 289.6 x 60.9
Net Weight (kgs) 5
Processor Intel® Pentium® QC N4200
Memory Max. 8GB DDR4, default 4GB
Thermal Design Fanless
Membrane Control None
Built-in Speaker/MIC None
Internal Expansion Bus 1x mini PCI-E for half-size mSATA
1x M.2 B-key
Expansion Slot None
Wireless Optional
HDD 1x 2.5” HDD space, default 64GB SSD
Removable None
Power Input Range 9V~36V DC
Chassis Material SGCC
Color (Front/Back) Raw SGCC
IP Rating Front side with IP65
Mounting Open frame design
Operating Temperature -10°C~50°C
Storage Temperature -20°C~70°C
Storage Humidity 10%~90% @40°C (non-condensing)
Certification Based on chassis design
Supported Operating Systems Windows 10, 64-bit, Linux Kernel 4+
OFP-151-PC-N42 15” open frame panel PC, projected capacitive touch screen, Intel® Pentium® QC N4200 processor, 4GB DDR4 memory, 64GB SSD, without power adaptor, iFace Designer® HMI / SCADA Software Runtime License
