Panel PC

IKS2700 Series

27" Interactive Self-Service Kiosk

  • Modular design for easy maintenance
  • With printer, NFC, scanner, PIN pad, integrated camera

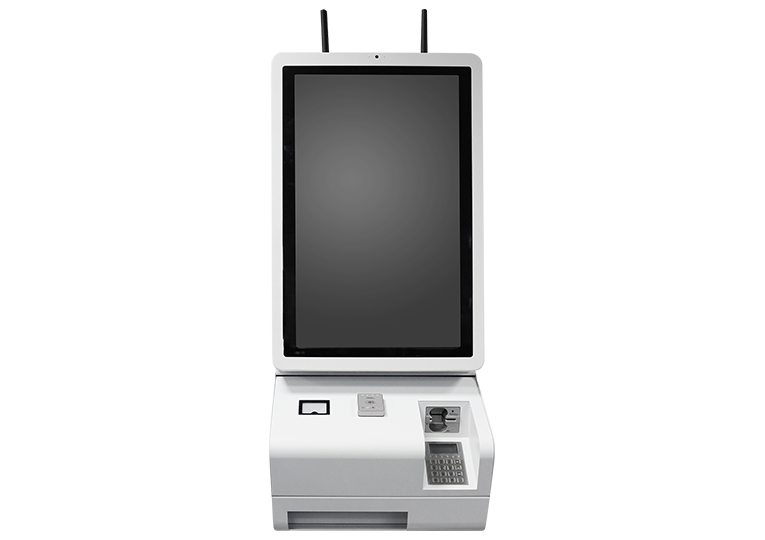

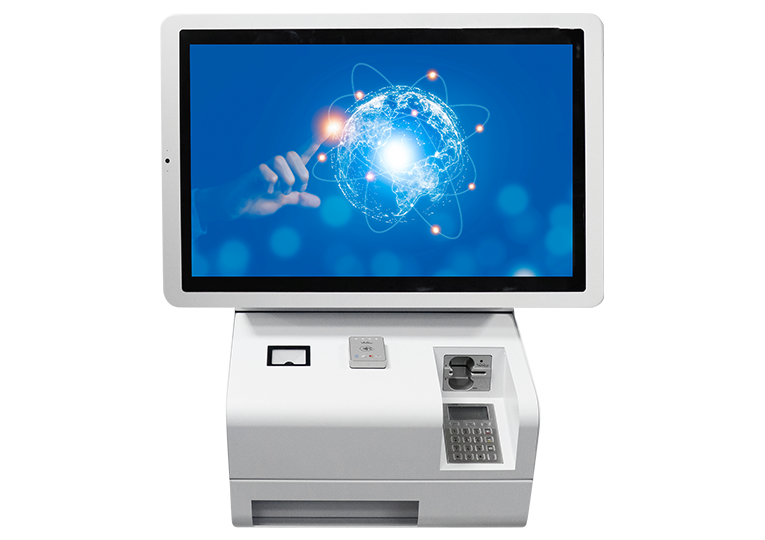

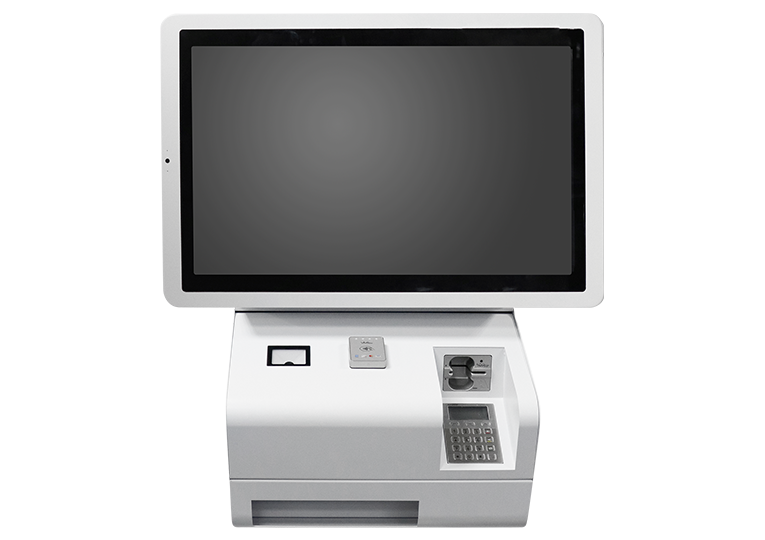

  • Supports both portrait and landscape display modes
  • Custom modifications to the color, shape, and surface treatment

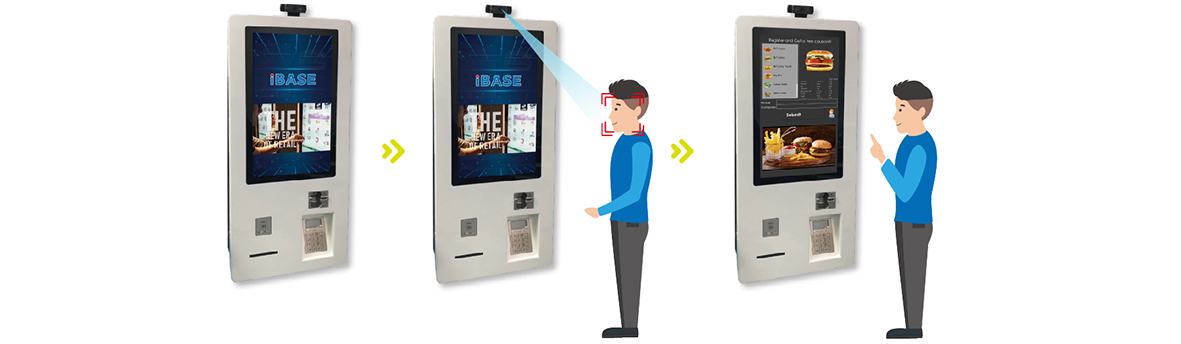

The IKS-2100 is a AI-enabled self-service kiosk powered by 7th Gen Intel® Core™ i7-7600U processors. Using Intel OpenVINO™ based facial recognition functionality, the artificial intelligence enabled self-ordering kiosks identifies the gender and age of approaching customers and displays customized information in real time. The unit has a touchscreen and serves as express checkout kiosks with optional 2D barcode scanner and receipt printer. It runs under Microsoft Windows 10 (x64).

IKS Series
System Mainboard IKS2700I:IB919AF-8665
IKS2700A:IB918F-1605
CPU IKS2700I:Intel® Core™ i7-8665UE (1.7GHz/4.4GHz)
IKS2700A:AMD Ryzen™ V1605B QC APU (2.0GHz~3.6GHz)
Memory 2x DDR4 SO-DIMM, up to 32 GB, default 4GB
Rear Panel External I/O N/A
Storage IKS2700I:2x 2.5” SATAIII space (default 2x 64GB)
IKS2700A:1x 2.5” SATAIII space (default 64GGB), 1x M.2 M2280 (default 64GB)
Camera N/A
Speaker N/A
Expansion Slots IKS2700I:1x M.2 M2280 socket, 1x M.2 E2230 socket reserved for optional WiFi
IKS2700A:1x M.2 E2230 socket reserved for optional WiFi
Power Supply 100V~240V AC
LCD Panel Panel Size: 27” TFT-LCD
Max. Resolution: 1920 x 1080
Luminance (cd/m2): 250
Max. Color: 16.7M
View Angle (H°/V°): 178/178
Backlight Lifetime (hrs): 30,000
Touch Screen Touch Type: Projected capacitive touch
Touch Interface: USB
Light Transmission (%): 85
Build-in Default Printer: 2” or 3” thermal printer w/ auto cutter
Scanner: 1D/2D barcode scanner
Camera: 2M camera with MIC
Speaker: 2x 2W
Build-in Options WIFI: WiFi / Bluetooth module
EMV payment device: With PCI-certified PIN pad
NFC Reader: ISO/IEC 14443A Mifare
Construction Aluminum
Chassis Color White
IP Rating Front side IP4X
Mounting VEAS 400x200/200x200
Stand-Pole (option)
Dimensions 1065 x 490 x 288 mm (portrait display mode)
720 x 835 x 288 mm (landscape display mode)
Weight 40kgs
Operating Temperature 5°C~50°C
Storage Temperature -20°C~70°C
Relative Humidity 10%~90% @40°C (non-condensing)
Vibration IEC60068-2-64 ed2.0 2008-04
Shock MIL-STD-810G 516.6
Certification Meet CE/FCC Class-A +LVD
Operating Systems Windows 10 IoT
IKS2700I 27” 1920x1080 IBASE Kiosk System, Intel® i7 8665UE processor, 4GB DDR4 memory, 2x 64GB 2.5” SSD, thermal printer, NFC
reader, barcode scanner, PIN Pad, integrated camera, projected capacitive touch screen, pre-installed Windows 10 IoT, 100V~240V AC power input
IKS2700A 27” 1920x1080 IBASE Kiosk System, AMD Ryzen™ V1605B QC APU, 4GB DDR4 memory, 1x 64GB 2.5” SSD, 1x 64G M2280 M.2, thermal printer, NFC reader, barcode scanner, PIN Pad, integrated camera, projected capacitive touch screen, pre-installed
Windows 10 IoT, 100V~240V AC power input
