Panel PC
IDOOH-215-PC

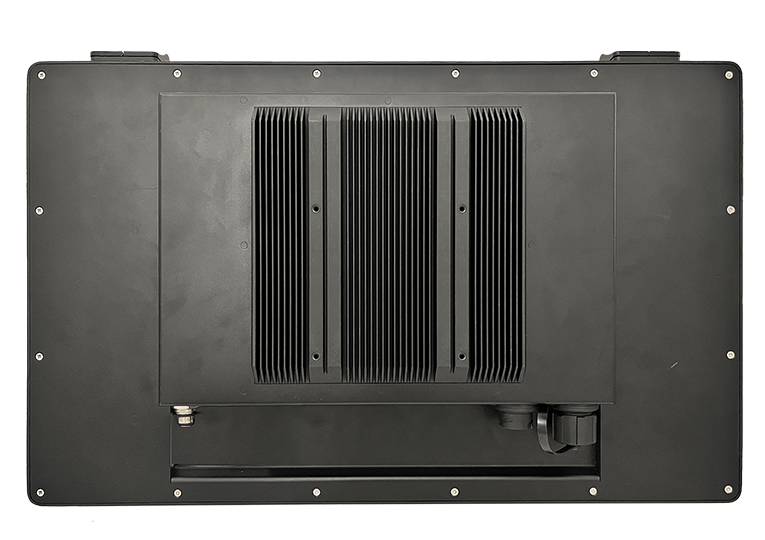

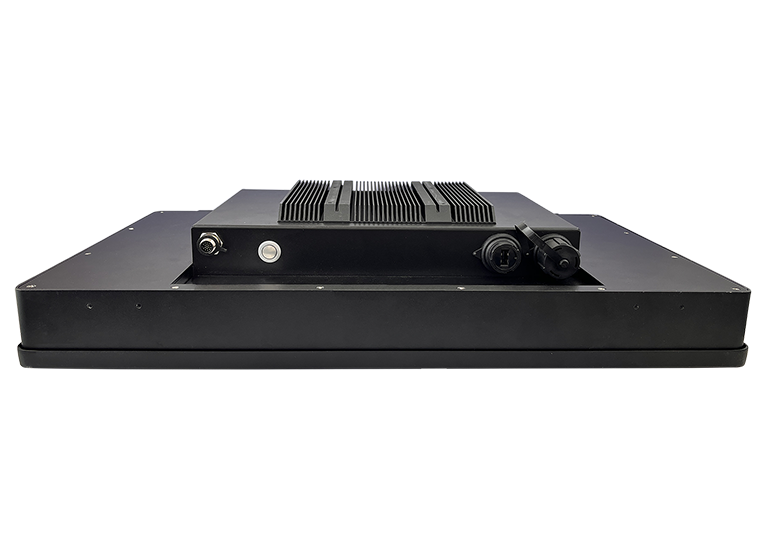

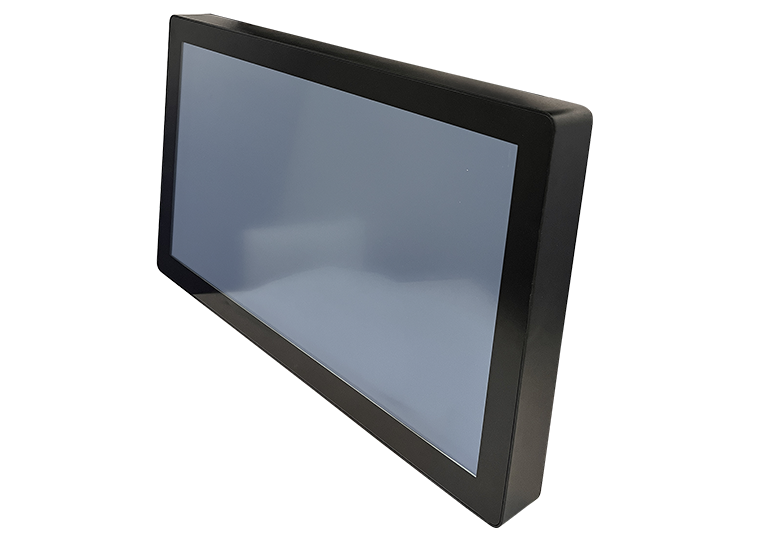

21.5" Outdoor Sunlight Readable Panel PC with AMD Ryzen™ Embedded V1605B Processor
- 21.5" true-flat FHD LCD panel with projected capacitive touchscreen
- Sunlight readable

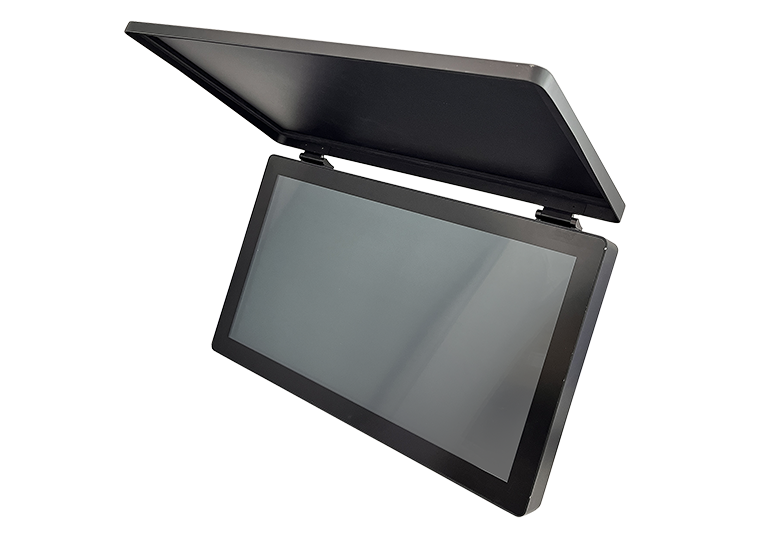

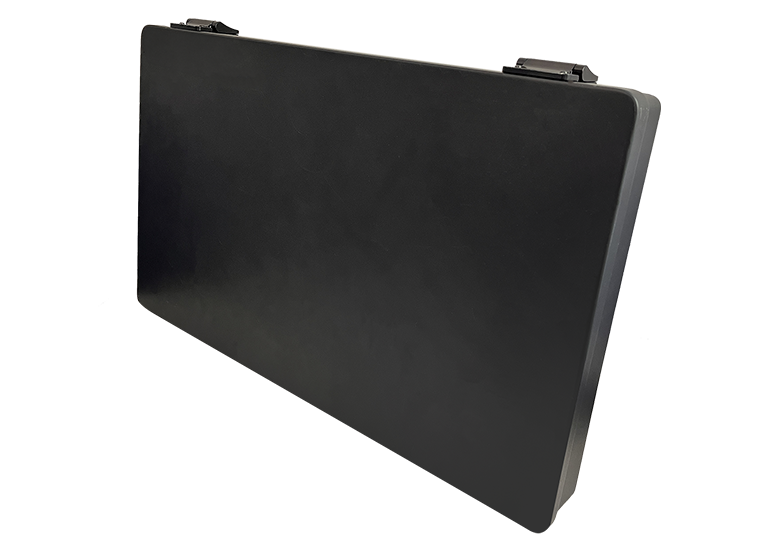

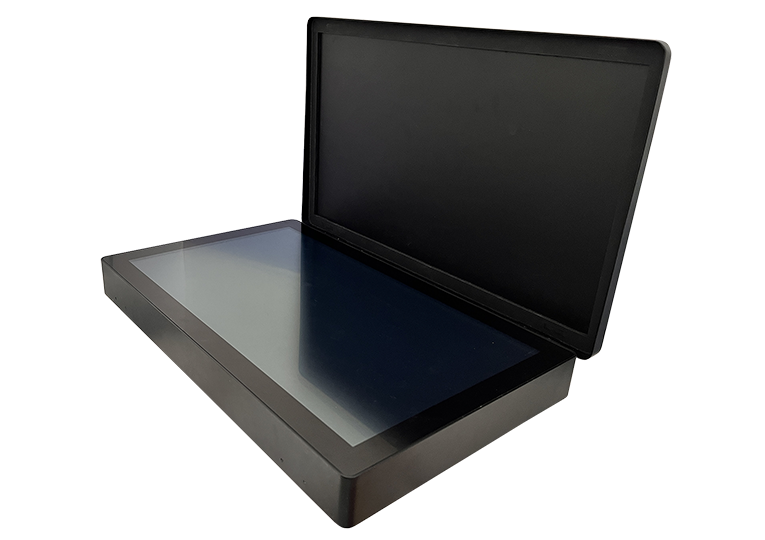

- Protection front side lid design (Panel Cover)
- Fully IP65 waterproof protection
- Vandal-proof IK09 with lid
- M12 Waterproof connector
- Automatic air flow speed and system temperature balance system
| Display Size | 21.5” TFT-LCD |
| Max. Resolution | 1920 x 1080 |
| Luminance (cd/m2) | Up to 1300nits, before touch screen |
| Contrast | 3000:1 |
| Max. Color | 16.7M |
| View Angle (H/V) | 178/178 |
| Backlight Lifetime(hrs) | 50,000hrs |
| Touch Type | Projected Capacitive Touch |
| Touch Interface | USB |
| Light Transmission (%) | >70% |
| Point of touch | 10 |
| USB 3.0/ 3.1 | None |
| USB 2.0 | 1x USB 2.0 Type A water-proof screw base and cap |
| RS-232/422/485 Selectable in BIOS | None |
| RS-232 | None |
| LAN | 1x M12 17P connector, integrated with LAN port |
| Additional Graphics | 1x HDMI with water-proof screw base and cap |
| Audio | None |
| Digital I/O | None |
| Power Connector | AC inlet |
| Power Button | IP67 push button |
| Dimensions (mm) | 543 x 349.2 x105 (w/ Lid) 535 x 329 x 98.5 (w/o Lid) |
| Net Weight (kgs) | 8.1(w/ Lid) |
| Processor | AMD Ryzen™ Embedded V1605B (Quad-Core @ 3.6GHz) |
| Memory | 2x DDR4 SO-DIMM, up to 32GB, default DDR4 8GB (4GBx2) |
| Thermal Design | Fan |
| Membrane Control | None |
| Built-in Speaker/MIC | None |
| Internal Expansion Bus | 1x M.2 (M-Key, type:2280, NVMe) |
| Expansion Slot | 1x M.2 (E-Key, type:2230) |
| Wireless | None |
| HDD | 1x 2.5” SATA |
| Removable | None |
| Power Input Range | 90V ~ 240V AC |
| Chassis Material | Aluminum chassis |
| Color (Front/Back) | Black/Black |
| IP Rating | IP65 waterproof protection |
| Mounting | VESA 100x100mm |
| Operating Temperature | -5°C~45°C |
| Storage Temperature | -20°C~80°C |
| Storage Humidity | 10%~90% @40°C (non-condensing) |
| Certification | CE/FCC Class-B |
| Supported Operating Systems | Windows 10 IoT core/ Linux 4.X+ kernel |
| IDOOH-215-PC | 21.5” 1,300 nits 21.5" Panel PC, AC Adaptor 19V 120W, 220CM M12 Cable for DC-IN and RJ45 AMD Ryzen™ Embedded V1605B Processor 2.0Ghz, projected touch, DDR4 8GB, 64GB 3DTLC SATA3 SSD |
| DATASHEETS | IDOOH-215-PC |
