Panel PC
BYTEM-121-PC

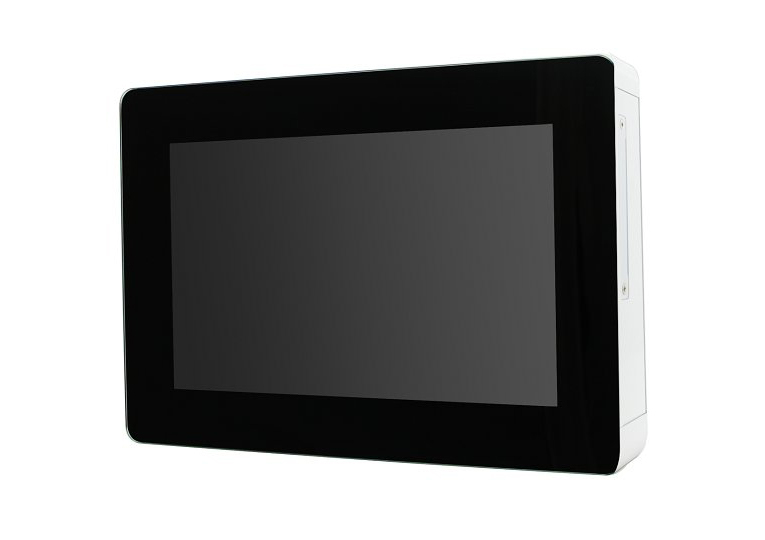

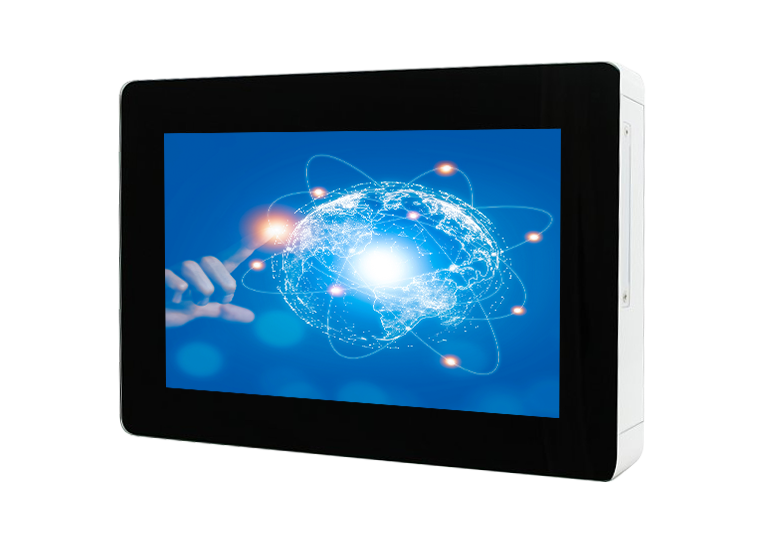

All-in-One 12.1" Panel PC with Intel® Atom® Processor E3845
- Supports Intel® Atom® Processor
- Very low power consumption
- Fanless design
- 9V~30V DC wide-range power input
- Flat panel design with projected capacitive touch
- IP65 front-panel waterproof protection
- Easily accessible 2.5" HDD storage
- Compact size
Display Size | 12.1” TFT-LCD |
Max. Resolution | 1024 x 768 |
Luminance (cd/m2) | 350 |
Contrast | 800:1 |
Max. Color | 16.7M |
View Angle (H/V) | 160/160 |
Backlight Lifetime(hrs) | 30000 |
Touch Type | Projected capacitive |
Touch Interface | USB |
Light Transmission (%) | 85 |
Point of touch | 2 |

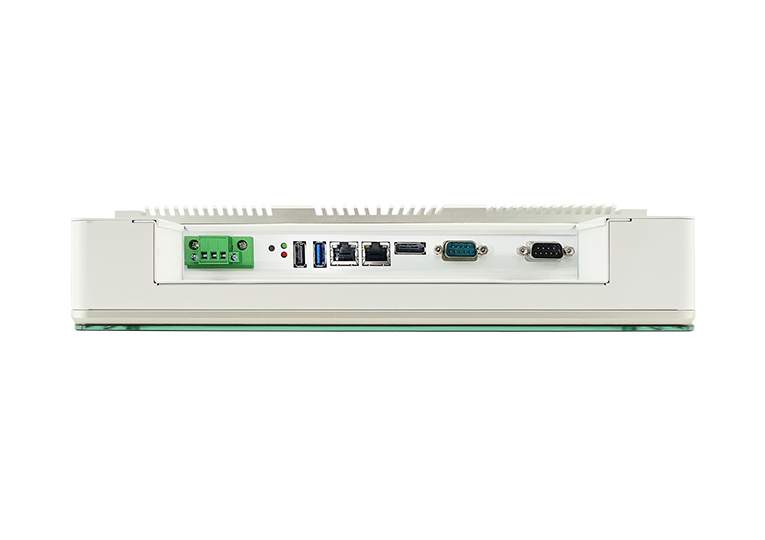

USB 3.0/ 3.1 | 1 |
USB 2.0 | 1 |
RS-232/422/485 Selectable in BIOS | 1 |
RS-232 | 1 |
LAN | 2x GbE |
Additional Graphics | DP |
Audio | None |
Digital I/O | None |
Power Connector | 3-pin terminal block |
Power Button | Reset button |
Dimensions (mm) | 317 x 255 x 59.6 |
Net Weight (kgs) | 4.3 |
Processor | Intel® Atom® Processor E3845 (Quad-Core @ 1.91GHz) |
Memory | 2x DDR3L SO-DIMM, up to 8GB, default DDR3L 4GB (4GBx1) |
Thermal Design | Fanless |
Membrane Control | None |
Built-in Speaker/MIC | None |
Internal Expansion Bus | 1x mPCI-E(x1) w/ USB signal [half-size] 1x mSATA/mPCI-E(x1) w/ USB signal and mSATA supports [full-size] |
Expansion Slot | None |
Wireless | Optional Wi-Fi/BT |
HDD | 1x 2.5” SATA |
Removable | None |
Power Input Range | 9~30V DC |
Chassis Material | Aluminum front bezel and white steel back cover with aluminum heat-sink |
Color (Front/Back) | Black / white |
IP Rating | IP65 front bezel |
Mounting | VESA 75x75 mm |
Operating Temperature | 0°C~ 40°C (with HDD/CFast) 0°C~ 50°C (with SSD) |
Storage Temperature | -20°C~60°C |
Storage Humidity | 10%~90% (non-condensing) |
Certification | CE/FCC Class-B |
Supported Operating Systems | Windows 8 32/64-bit, Windows 7 Pro for Embedded 64-bit, WES7 64-bit |
BYTEM-121-PC | 12.1” Flat Panel Design Panel PC with IB897, Intel® Atom® Processor E3845 1.91GHz, 4GB DDR3L SO-DIMM, 64G SSD, projected capacitive touch, w/o power adaptor |
Power adaptor (option) | AC 90V~240V input, 12V DC output 84W power adaptor, IBASE P/N: A005PS084W0050000P |
DATASHEETS | BYTEM-W071-PC /BYTEM-W072-PC/ BYTEM-101-PC / BYTEM-121-PC |
USER'S MANUALS | BYTEM-W071-PC/BYTEM-101-PC/BYTEM-121-PC V1.0 |
