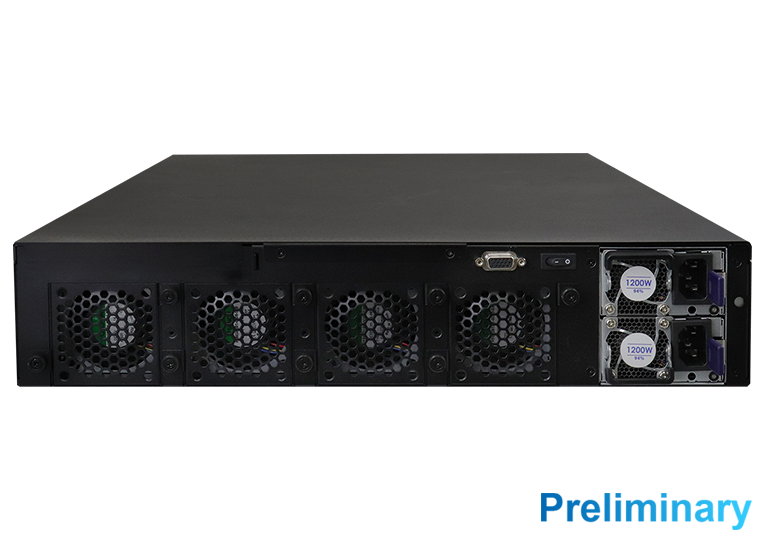

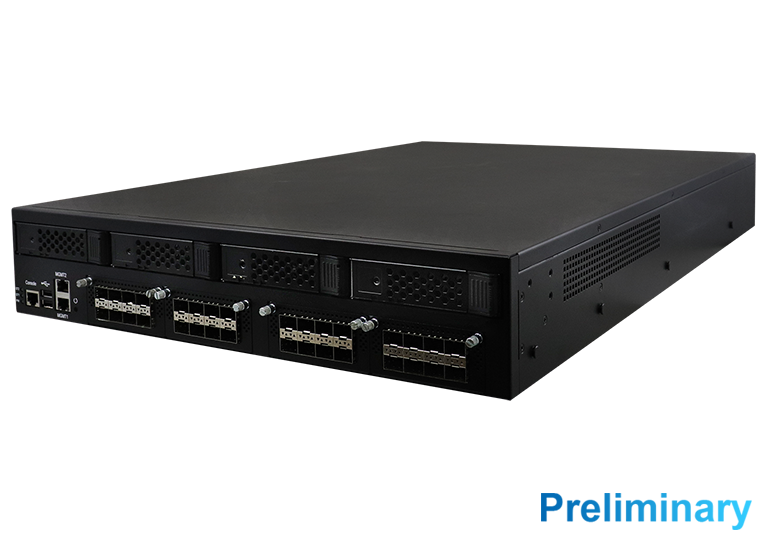

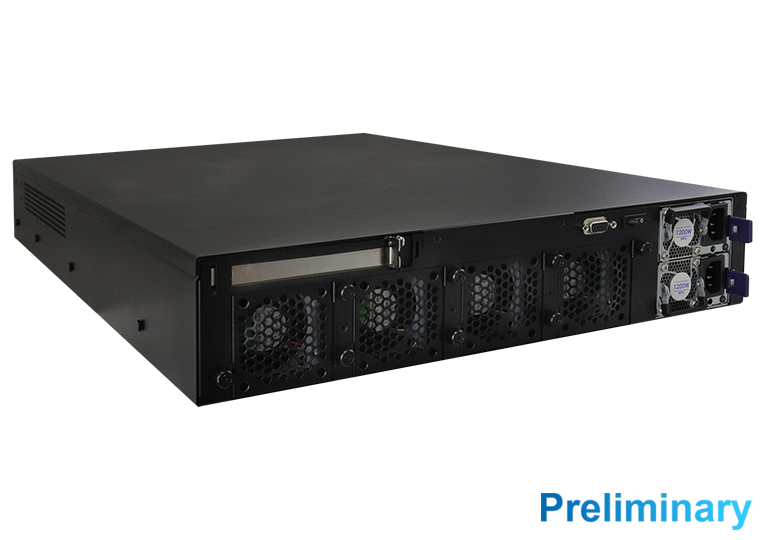

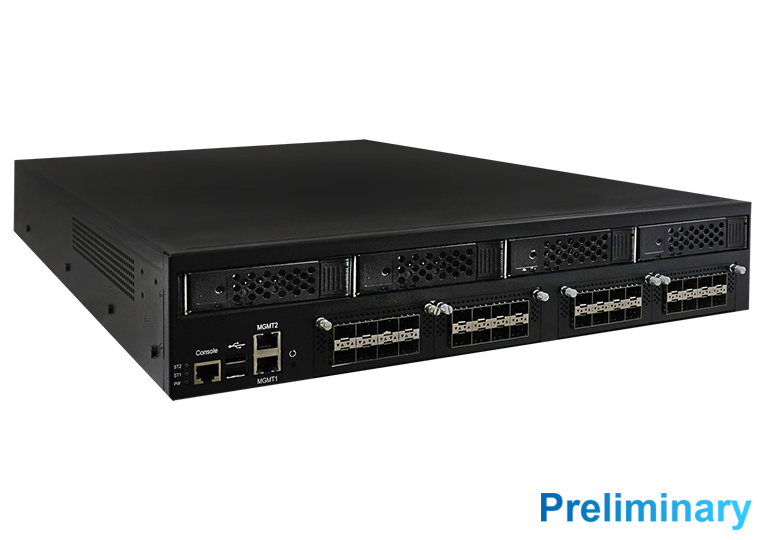

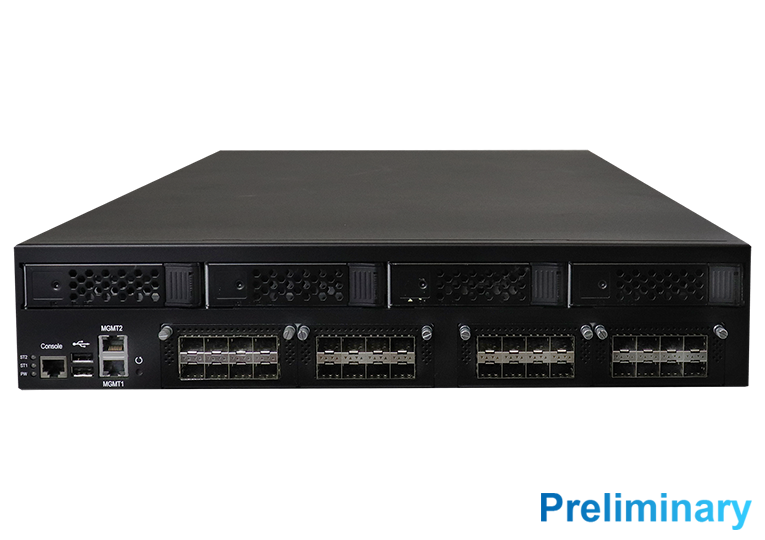

Network Appliance

INA7602

Performance 2U Network Appliance with AMD EPYC 9004 & up to 64 Ports

  • AMD EPYC™ 9004 Series
  • 12x DDR5 RDIMM; Max. 384GB
  • Up to 8x IBN Module or 4x 3.5’’ HDD with 4x IBN Module
  • 2x 2.5” Internal HDD
  • 1x PCI-E FH/FL
  • Supports Broadcom RAID controller card 9560-16i
CPU AMD EYPC™ 9004 Series (96 Cores, 2.4GHz)
Chipset N/A
Memory 12x DDR5 RDIMM 4800MHz, Max. 384GB
Display SKU A: N/A
SKU B: 1x LCM
1x VGA (via optional IDN101 module)
Ethernet 1x Intel® I210
1x Intel® I226
NIC module slots: Max. 8x IBN cards, Max. 64 GbE
Bypass Via IBN module SKU
Expansion 1x PCI-E 16x slot (4 lane)
SKU A: 4x NIC Module Slot
SKU B: 8x NIC Module Slot
IPMI Optional
Storage 1x M.2 Slot (2242 or 2280)
1x SATA DOM
SKU 1 – 4x 3.5’’ HDD
SKU 2 – 2x 2.5’’ HDD internal drive bay
TPM TPM 2.0
I/O 3x LED (Power / HDD / Status)
1x RJ45 console
2x Management port
2x USB 3.0
Power Supply Full range 1200W 1+1 Redundant power supply
Dimensions 438 mm (W) x 660 mm (D) x 88.5 mm (H)
Weight 21 Kg
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -20°C ~ 70°C (-4°F ~ 158°F)
Operating Humidity 5 ~ 90%
Certification CE/FCC
INA7602-SHQ 2U Rackmount Appliance, MBN902 AMD EYPC™ 9004, 12x DDR5 RDIMM, 1200W Redundant PSU, CPU cooler 4x 3.5’’ external HDD, 4x IBN expansion slot, Barebone without RAM/HDD/Drive Bay Kit*
INA7602-NIC 2U Rackmount Appliance, MBN902 AMD EYPC™ 9004, 12x DDR5 RDIMM, 1200W Redundant PSU, CPU cooler, 2x 2.5’’ internal HDD, 8x IBN expansion slot, Barebone without RAM/HDD/Drive Bay Kit*
