Network Appliance

INA7302

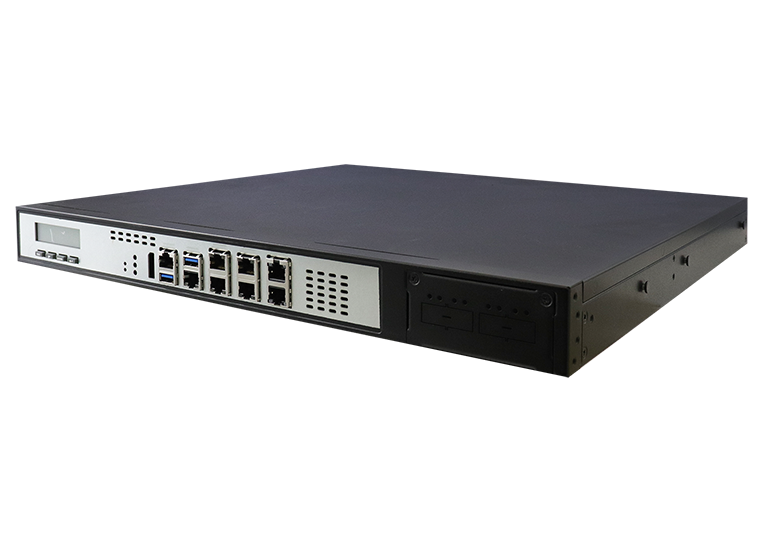

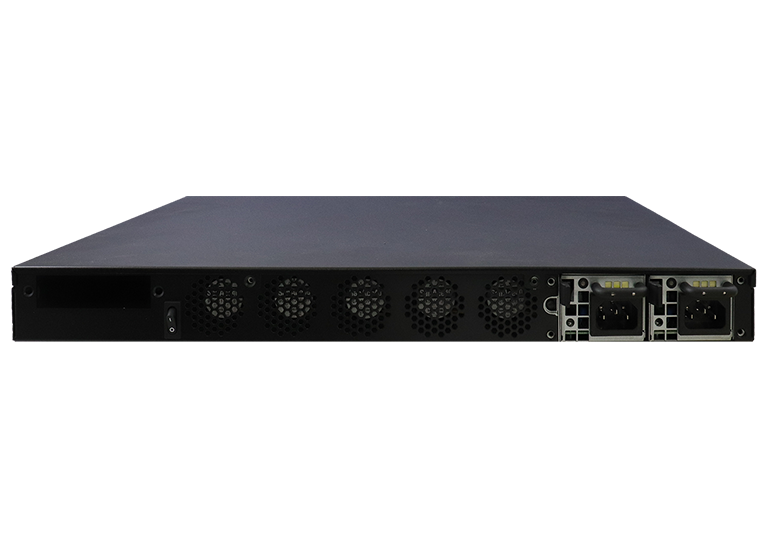

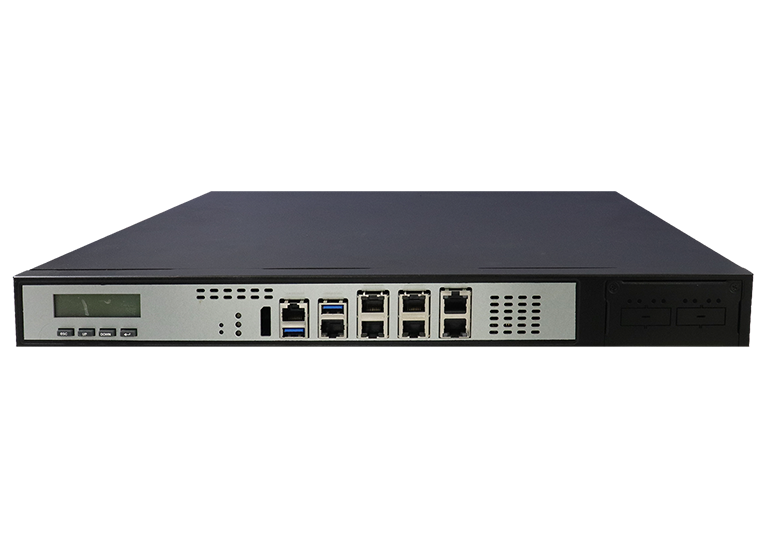

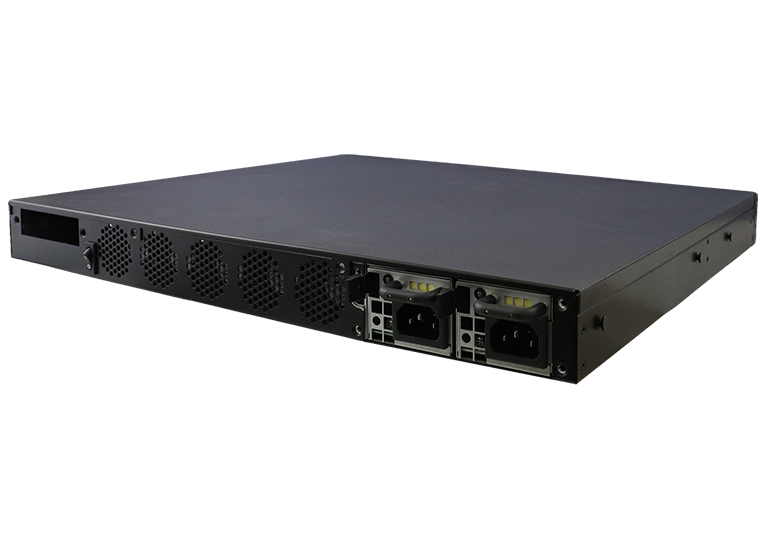

Performance 1U Network Appliance with AMD Ryzen™ 7000 series & up to 14 GbE Ports

  • AMD Ryzen™ 7000 series with B650 PCH
  • 2x DDR5 ECC UDIMM, Max. 128GB
  • 1x 2.5GbE RJ45 ports on board
  • 4x 1.0GbE RJ45 ports on board
  • 2x 10GbE RJ45 ports on board
  • Optional NIC slot
  • 1x PCI-E (x8/x16) expansion slot
  • 700W 1+1 redundant power supplies
  • NEW
CPU AMD Ryzen™ 7000 series
AM5 LGA1718
Chipset AMD B650 PCH
Memory 2x DDR5 ECC UDIMMs up to 5600 MT/s, Max. 128GB
Display 1x Display Port
1x LCM
Ethernet 1x 2.5GbE RJ45 (Intel® I210V)
4x 1GbE RJ45 (Intel® I350-AM4)
2x 10GbE RJ45 (Intel® E610-XAT2)
1x IBN cards
1x HLHF PCIE card
Bypass Via IBN module SKU
Expansion 1x PCI-E x16 expansion slot#1 (Slot#1 usage can
support Gen5x16, Duo slot usage will render both slots to PCI-E Gen5x8 )
1x PCI-E x8 expansion slot#2
2x M.2 (PCI-E Only)
IPMI Optional module, compliant with IPMI 2.0
Storage HDD/SSD: 1x 2.5” Internal
2x M.2 NVME (2242/2280)
1x SATA DOM
TPM TPM 2.0
I/O 1x LCM
3x LED (Power / HDD / Status)
1x RJ45 console
2x USB 3.0
1x MGMT port
Power Supply Full-range 600W 1+1 redundant power supply
Dimensions 438(W) x 450(D) x 44.5(H)mm
Weight N/A
Operating Temperature 0°C~ 40°C (32°F~104°F)
Storage Temperature -20° ~ 70°C (-4°F~158°F)
Operating Humidity 5% ~ 90%
Certification CE/FCC
