Network Appliance


Enterprise 1U Network Appliance with Intel® Xeon® Processor D-2100 Series & up to 25 GbE Ports

  • Verification of Intel® Select Solutions for uCPE with Ubuntu
  • Intel® Xeon® Processor D-2100 Series
  • 4x DDR4 RDIMMs; Max. 128 GB
  • 1x Intel® I210-AT GbE
  • 4x NIC modules; Max. 24 GbE ports
  • Optional IPMI module
  • 1x M.2 slot & optional PCI-E x8 expansion slot (4-lane)
  • Intel select solution

The FWA8600 is a 1U rackmount network computing appliance based on the Intel Xeon D-2100 processor product family and with up to 25 GbE ports. This highly scalable system is designed for managing data driven workloads and enabling robust levels of performance in enterprise network security, Unified Threat Management and WAN optimization applications.

The FWA8600 supports up to 128GB RDIMM with four DDR4-2666 DIMM sockets and one Intel I210-AT Ethernet controller. The device comes with network interface card (NIC) slots to accommodate up to three IBN cards with 8x GbE ports each and one IBN-P401Q card for a maximum of 25 GbE ports. For flexible I/O connectivity and expansion features, it offers a PCIe x8 slot, an M.2 expansion slot to interface with SATA 3.0 and PCIe x4 bus for high data throughput, as well as two USB 3.0, and an RJ45 serial console with LCM display for easy operation. LAN bypass is available in certain configuration.

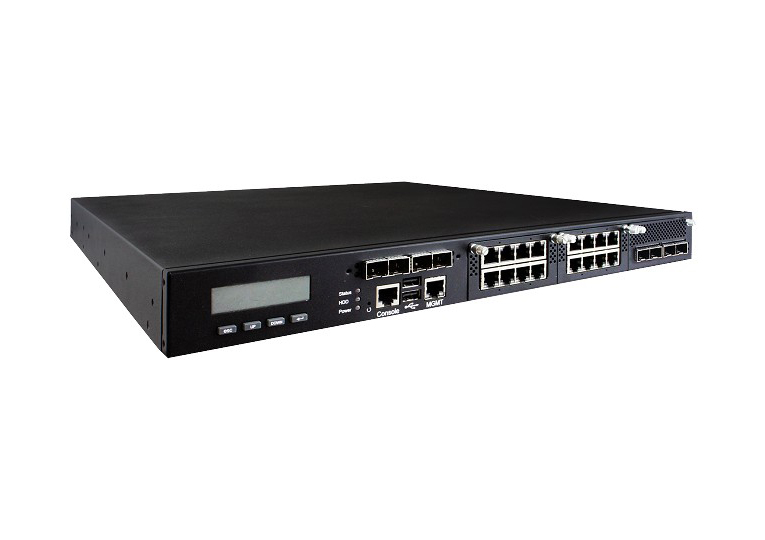

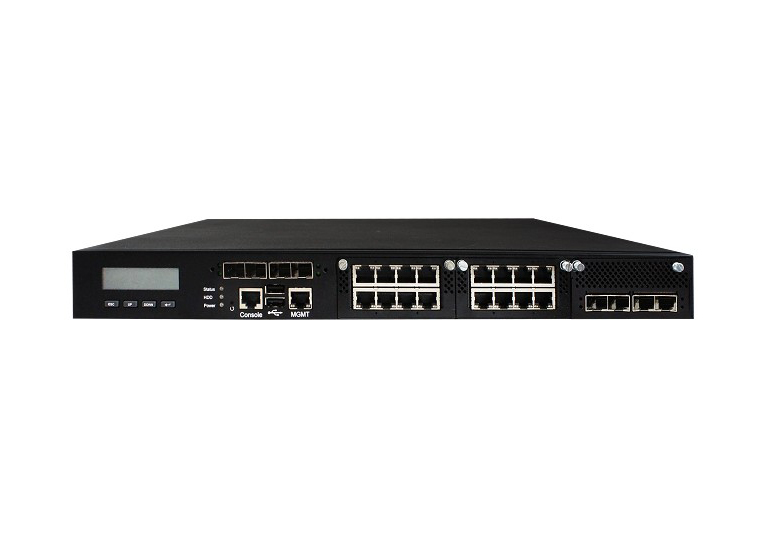

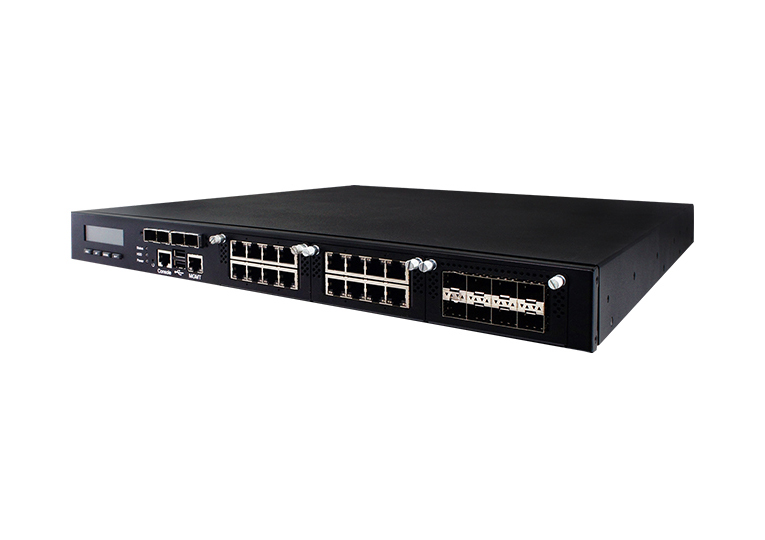

FWA8600 1U rackmount network computing appliance

The FWA8600 features Intelligent Platform Management Interface (IPMI) 2.0 with the IBASE IDN100 module to allow users to remotely manage and monitor systems even without an operating system. As an ideal platform for cloud computing and data centers, it also supports Trusted Platform Module (TPM 2.0) to provide hardware-based security data that encrypts data and protects authentication credentials from hackers.  Furthermore, IBASE has verified the solution as an Intel Select Solution for uCPE that integrates the Ubuntu operating system and Intel Xeon D processor. These verified designs will benefit CSPs, telecom equipment manufacturers (TEMs), internet service vendors (ISVs), and enterprises in implementing uCPE and SD-WANs technologies with enhanced network performance and flexibility.

CPU Intel® Xeon® Processor D-2100 (BGA2518)
Chipset N/A
Memory 4x DDR4 DIMMs up to 2666MHz, Max. 128GB RDIMM
Display 1x VGA (via optional IDN100 module)
Ethernet On-board: 1x Intel® I210-AT GbE
NIC module slots: 3x IBN cards (3rd slot max. 4-port) & 1x IBN-P401Q, Max. 24 GbE
Bypass Depending on IBN modules SKU
Expansion 1x PCI-E x8 slot (4-lane) on rear panel
IPMI Optional module, compatible with IPMI 2.0
Storage 1x or 2x 2.5" SATA Drive bay
1x M.2 slot (M-key 2280, PCI-E x4 & SATA signal)
I/O 3x LED (Power / HDD / Status)
1x Factory default button (GPIO)
1x RJ45 console
2x USB 2.0
1x MGMT (Share with IPMI NC-SI port)

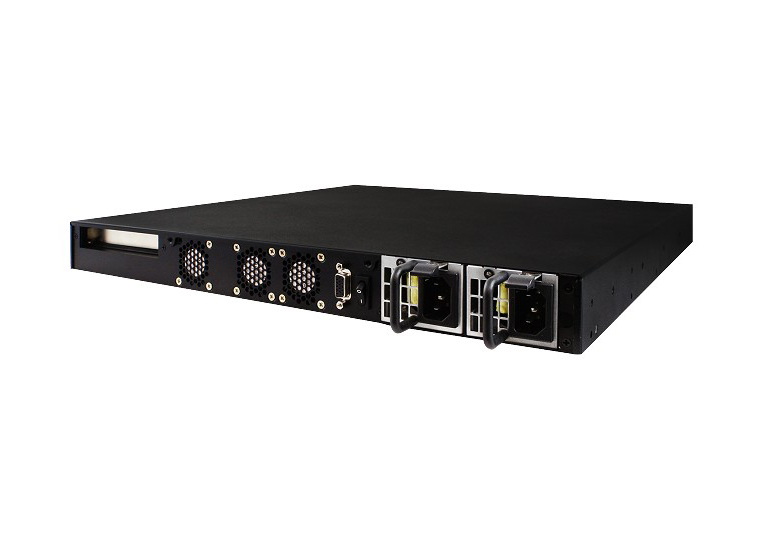

Power Supply Full range 250W ATX power supply or 300W 1+1 Redundant power supply
Dimensions 438 mm (W) x 451 mm (D) x 44 mm (H)
17.24" (W) x 17.76" (D) x 1.73" (H)
Weight 10.0 kg (22.05 lbs)
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -20°C ~ 70°C (-4°F ~ 158°F)
Operating Humidity 5% ~ 90%
Certification CE/FCC
FWA8600 1U Rackmount Appliance, MBN803 Intel® Xeon® Processor D-2100, 4x DDR4 DIMMs,Total Max. 25 GbE Ports, 250W PSU, CPU cooler, optional IPMI, 1x PCI-E x4 slot, Barebone without RAM/HDD/Drive Bay Kit/IBN Card
* For a complete system, IBN modules & some components must be ordered.
FWA8600-RPSU 1U Rackmount Appliance, MBN803 Intel® Xeon® Processor D-21XX, 4x DDR4 DIMMs, Max. 25 GbE Ports, 300W RPSU, CPU cooler, optional IPMI, 1x PCI-E x4 slot, Barebone without RAM/HDD/Drive Bay Kit/IBN Card
* For a complete system, IBN modules & some components must be ordered.
