Intelligent Transportation
MPPC1001PC

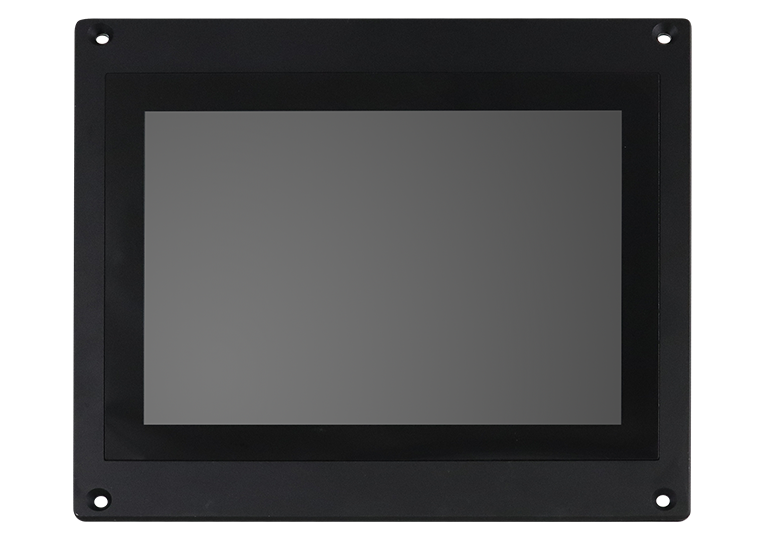

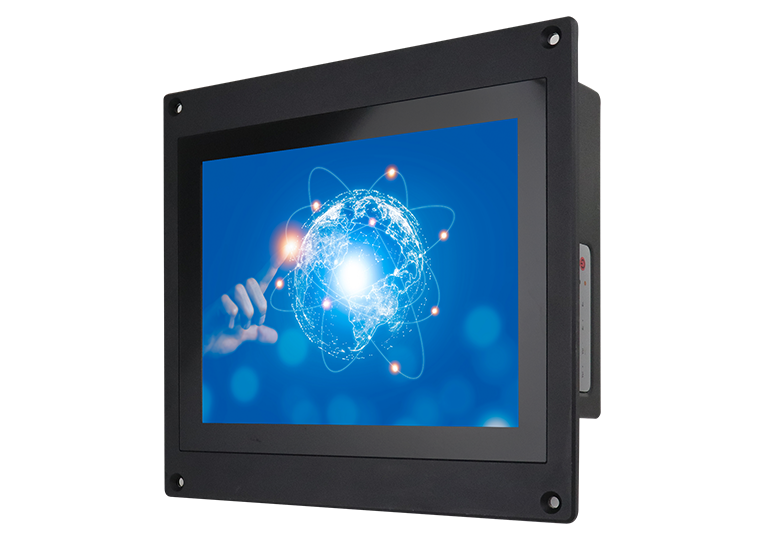

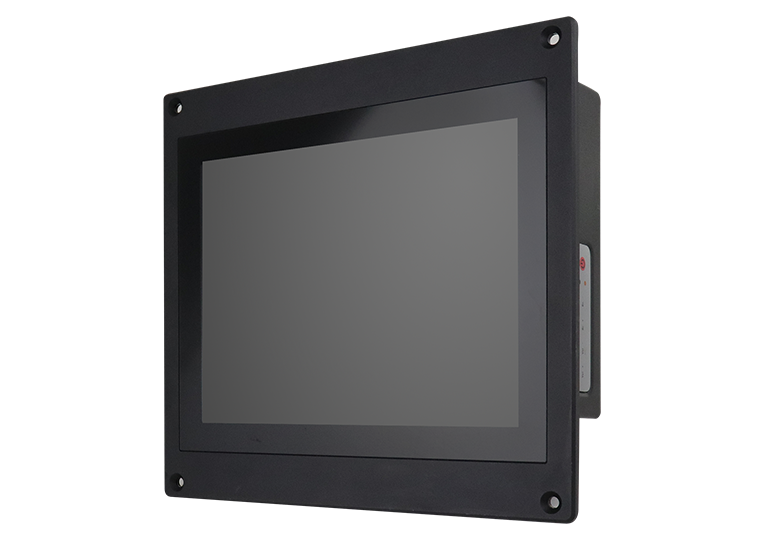

EN50155 Certified Fanless 10.4” Railway Panel PC with Intel® Atom® x7-E3950 processor
- Intel® Atom® x7-E3950 Processor
- EN50155 (2021) & EN45545-2 certified
- Fully IP65 waterproof protection
- Supports ultra-long-life LCD panel, M12 connectors
- Flat bezel design, projected capacitive 10.4" touch screen
- Optional wireless communication
- Supports 24V DC or 72/110V DC power input
- Auto dimming adjustable
| CPU Type | Intel® Atom® x7-E3950 Processor 1.6GHz, up to 2.0GHz |
| Memory | Max DDR3L 8GB, Default 4GB |
| Display Size | 10.4” |
| Max. Resolution | 1024x768 |
| Luminance (cd/m2) | 500 |
| Contrast | 1000:1 |
| Max. Color | 16.2M |
| View Angle (H°/V°) | 176/176 |
| Backlight Lifetime(hrs) | 50,000 |
| Touch Type | Projected capacitive |
| Touch Interface | USB |
| Light Transmission (%) | 89 |
| Point of touch | 10 |

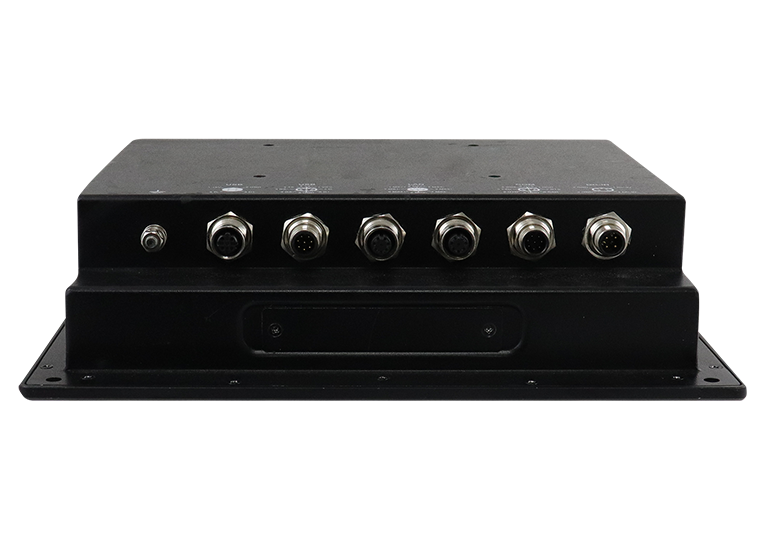

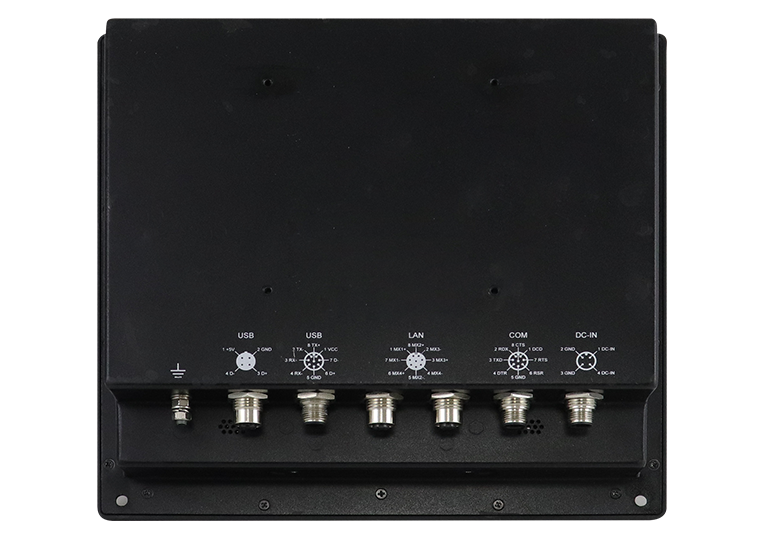

| I/O Interface | 2x M12 A-code 8P GbE 1x M12 A-code 8P USB 3.0 1x M12 D-code 4P USB 2.0 1x M12 A-code 8P for RS-232/422/485 1x M12 A-code 4P DC-input |
| Power Button | Membrane key |
| Power Input Range | DC24V or DC 72V/ 110V |
| Membrane Control | Brightness up/down, volume up/down, power on/off |
| Audio | 2x speaker, optional |
| Internal Expansion | 1x miniPCI-E (Full size) 1x miniPCI-E (Half size) |
| Wireless | Optional, Via miniPCI-E device |
| Storage | 1x 2.5” HDD space, default 64GB SSD |
| Thermal Design | Fanless |
| Construction | Aluminums |
| Chassis Color (Front/ Back) | Black/Black |
| IP Rating | IP65 |
| Mounting | VESA 100x100/Rack mount |
| Dimensions | 275mm(W) x 256mm(D) x 63mm(H) 10.8”(W) x 6.14”(D) x 2.48”(H) |
| Net Weight | 4.3 kgs |
| Operating Temperature | -30°C ~70°C (-22°F ~ 158°F) with SSD, not including add-on cards |
| Storage Temperature | -40°C ~ 85°C (-40°F ~185°F) |
| Storage Humidity | 10%~90% @40°C (non-condensing) |
| Certified | EN50155:2017, EN45545-2 CE/FCC class-A |
| Operating Systems | Windows 10 64bit/ Linux Kernel 4.X |
| MPPC1001PC | 10.4” EN50155 Certified Panel PC with IB818F-I50, Intel® Atom® x7-E3950 Processor, 4GB DDR3L memory, 64G SSD Storage, M12 connectors, DC 24V power input, no adaptor |
| MPPC1001PCH | 10.4” EN50155 Certified Panel PC with IB818F-I50, Intel® Atom® x7-E3950 Processor, 4GB DDR3L memory, 64G SSD Storage, M12 connectors, DC 72/110V power input, no adaptor |
| DATASHEETS | MPPC1001PC |
| CATALOGS | Intelligent Transportation Solutions (Vol.24.06) |
| USER'S MANUALS | MPPC1001PC V1.0 |
| DRIVERS - SYSTEMS | MPPC1001PC Driver DVD |
