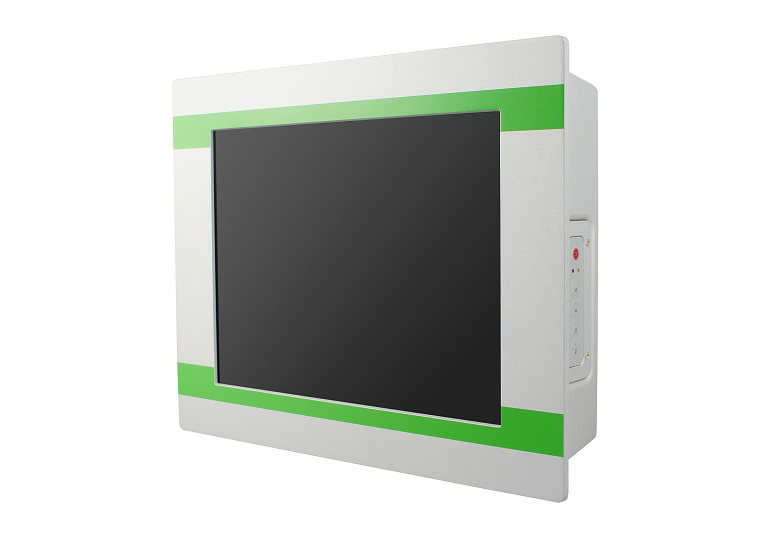

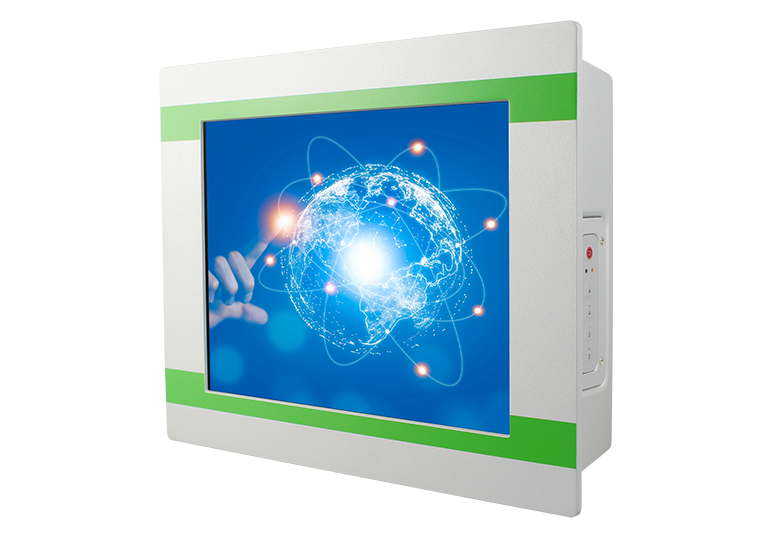

EN50155 Certified Transportation 12.1" Touch Panel PC with Intel® Atom® Processor E3845

  • EN50155 certified
  • Optical bonding
  • Front bezel IP65 and full IP54 protection

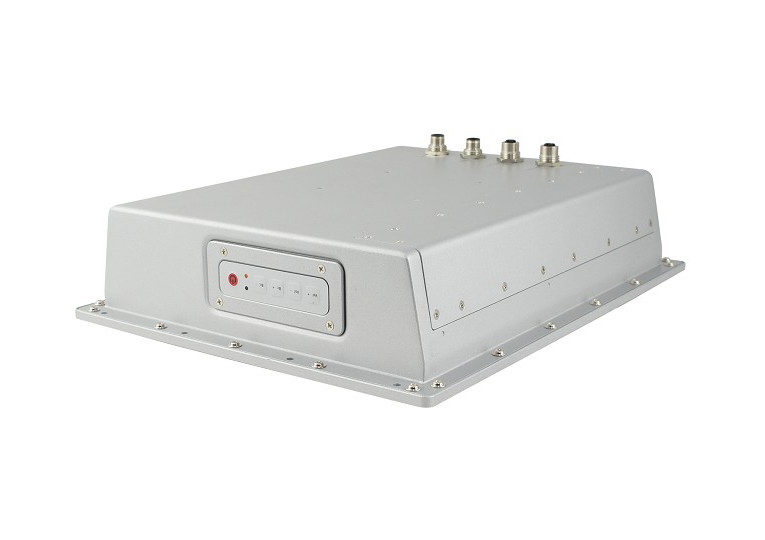

  • Movable and programmable membrane keypad
  • 24V DC power input with M12 connector, 48V DC, 72V DC or 110V DC as options

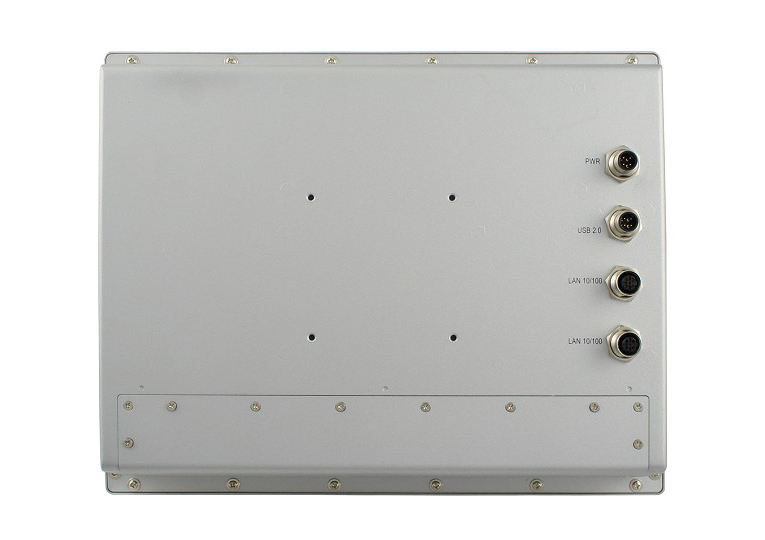

  • Two M12 LAN ports and one M12 USB port

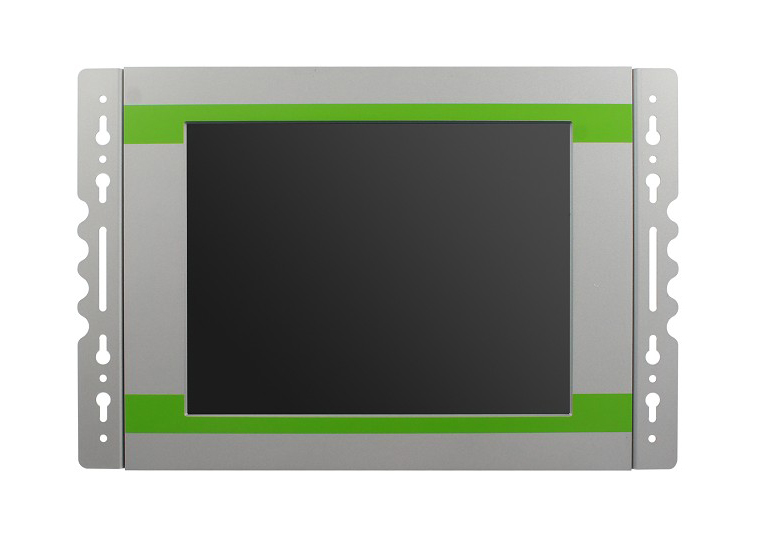

  • Additional rack mount kit
  • Fanless
  • F Panel IP65
  • EN50155

The BYTEM-123-PC is based on the quad-core Intel® Atom® processor E3845 and EN50155 certified for railway applications. It provides high computing performance and low power consumption, silently operating at temperatures from -40°C to 75°C. Meeting EN50155 standards, the units support input voltages including 24V (default) as well as 72V and 110V (options). Their front panels have IP65 protection to make them dust tight and wash-down capable, and also IP54 rating for the whole unit. To enhance functionality and performance of the BYTEM-103-PC, IBASE has included two-finger multi-touch screen to enable users with greater control of the user interface. Onboard I/O and expansion capabilities support M12 connectors for power input and 10/100M Ethernet communication, two USB 3.0, one USB 2.0, Gigabit Ethernet controllers for system and software installation or maintenance. The systems also support VESA mounting and an optional rack mounting kit for fitting into different kinds of installations.

BYTEM-123-PC Railway Applications
CPU Type Intel® Atom® Processor E3845 (Quad-Core 1.91GHz)
Memory 2x DDR3L SO-DIMM, up to 8GB, default DDR3L 4GB (4GBx1)
Display Size 12.1” TFT-LCD
Max. Resolution 1024 x 768
Luminance (cd/m2) 500
Contrast 1000:1
Max. Color 16.7M
View Angle (H°/V°) 178/178
Backlight Lifetime(hrs) 30000
Touch Type Projected capacitive
Touch Interface USB
Light Transmission (%) 86
Point of touch 10

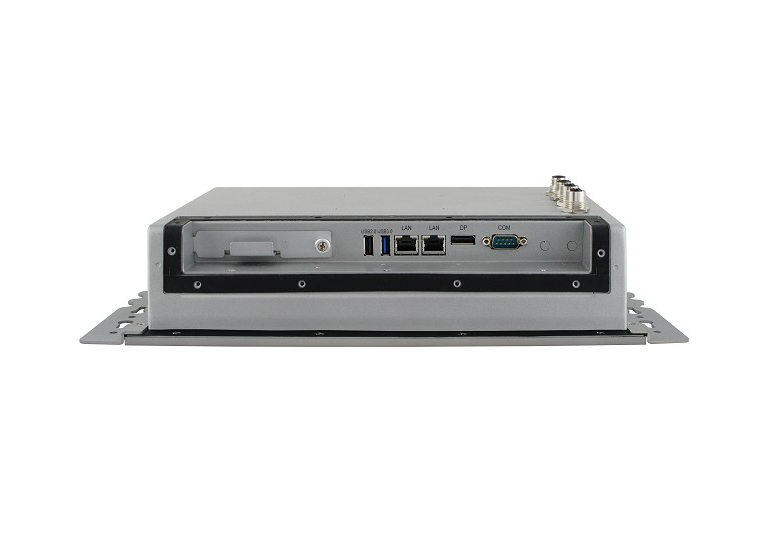

I/O Interface 1x USB 3.0
2x USB 2.0 (1x Type A and 1x M12 A-code 4P
1x COM port for RS-232/422/485
2x GbE LAN ports,
2x 10/100 LAN with M12 connector
1x Display port
1x M12 A-code 4P DC-input
Power Button Reset button
Power Input Range 24V DC (default) power input, Optional, 72V DC & 110V DC
Membrane Control Brightness up/down and Volume up/down/power button
Audio 2x Speakers
Internal Expansion 1x mPCI-E(x1) w/ USB signal [half-size]
1x mSATA/mPCI-E(x1) w/ USB signal and mSATA supports [full-size]
Wireless Optional Wi-Fi/BT
Storage 1x 2.5” SATA
Thermal Design Fanless
Construction Aluminum front bezel and back cover
Chassis Color (Front/ Back) Silver/Silver
IP Rating IP65 front bezel/ IP54 for whole unit with I/O cover
Mounting Wall mount and VESA 75x75 mm
Dimensions 335 (W) x 267 (D) x 72.1 (H) mm
13.18” (W) x 10.5” (D) x 2.83” (H)
Net Weight 3.6 kgs
Operating Temperature -30°C~70°C (-22 ~158 °F) (EN50155-TX)
Storage Temperature -40°C ~ 85°C (-40 ~185 °F)
Storage Humidity 10%~90% (non-condensing)
Certified EN50155: 2017, EN45545-2
CE/FCC Class-B
Operating Systems Windows 10 32/64-bit, Windows 7 32/64-bit, Linux 3.x/4.x
BYTEM-123-PC 12.1” (1024 x 768) Panel PC with IB897, Intel® Atom® Processor E3845 1.91GHz, 4GB DDR3L SO-DIMM, 64G SSD, projected capacitive touch, w/o power adaptor
Power adaptor (optional) AC 100V~240V input, 24V DC output 90W power adaptor, IBASE P/N: A005PS090W0100600P


Model Chipset Video Audio Network Others

Intel INF

Windows 7 & 8

Realtek ALC269

Windows 7 & 8

Intel LAN

Windows 7 & 8

Intel USB 3.0

Windows 7

Intel TXE Driver

Windows 7 & 8
