MPT-500R

EN50155/EN45545 Certified Intel® Atom® x6000RE Processor Railway Computer System with M12 Connection and Dual WWAN

  • Intel® Atom® x6425RE/x6212RE processors
  • EN50155 (2021) / EN45545-2 certified
  • Fanless and ruggedized design
  • Robust M12 connection for one 2.5G LAN, dual GbE LAN with PoE, dual USB
  • Isolated USB1.1, Isolated RS485 ports
  • SIM socket with dual WWAN support
  • Optional isolated CANbus thru Mini PCI-E card
  • Wide-range operating temperature from -30°C to +70°C
  • 5G
  • PoE
  • Fanless
  • Wide Temperature
  • EN50155
  • EN45545

The MPT-500R is an intelligent railway gateway computer supporting the new Intel® Atom® x6000E Series processors (codenamed Elkhart Lake).Certified with EU EN45545-2 fire protection and EN50155 standards covering equipment used on rolling stock applications such as Passenger Information System (PIS), surveillance systems and vehicle monitoring systems, the MPT-500R series is built to withstand up to 3Grms/3~500Hz vibration resistance and operating temperature of -30°C to +70°C.


MPT-500R  Low-power Railway Gateway Computer with Intel Atom x6000E Processors

The MPT-500R low-power, compact railway gateway system comes with 4GB/8GB LPDDR4 3200 memory on board, 64G MLC SSD storage with high reliability, and an option between 24V and 72/110V DC input to meet various power requirements. Featuring robust M12 USB, Ethernet and power input connectors, it ensures fail-safe connection and fault-free data transmission suitable for deployments in harsh industrial environments. It has two PoE ports that provide power to IP cameras and runs artificial intelligence identification. Measuring 210 x 138 x 96.8 mm (WxDxH), the unit supports a host of useful connectivity functions including HDMI, RS485, two SIM sockets with 4G/5G WWAN operation, 2280 M.2 M-key for PCI-E SSD and an mPCI-E full/half-size socket.


The rugged MPT-500R comes with a choice of Intel Atom x6212RE 1.2GHz or x6425RE 1.90GHz processor and runs with Windows 10, Windows 10 IoT Enterprise and Linux closed/open-source operating systems. Constructed with aluminum housing featuring passive cooling fins for long-term and stable operation, the model has received a Taiwan Excellence Award 2022 recognition.

System Mainboard MBT-501R
CPU Type Intel® Atom® x6212RE/ x6425RE Processor
Processor Speed Intel® Atom® x6212RE: 1.2GHz
Intel® Atom® x6425RE: 1.90GHz
Memory 4GB/8GB LPDDR4 3200 on board
Front panel I/O 1x Recessed access tact-switch for system power
4x light-pipe for four status LED
1x USB type-C with DP
6x LED with each port for network status
2x USB3.2 Gen.1 type-A
2x external accessible SIM socket

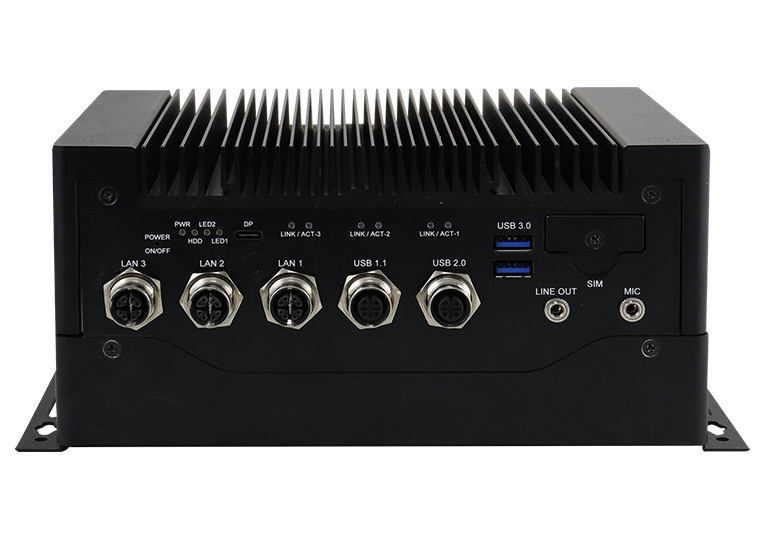

3x M12 8-pin X-code for LAN (Two GbE LAN come with PoE
and one 2.5G LAN)
1x M12 4-pin A-code for USB 1.1
1x M12 4-pin A-code for USB 2.0
1x 3.5mm audio connector for line output
1x 3.5mm audio connector for MIC input

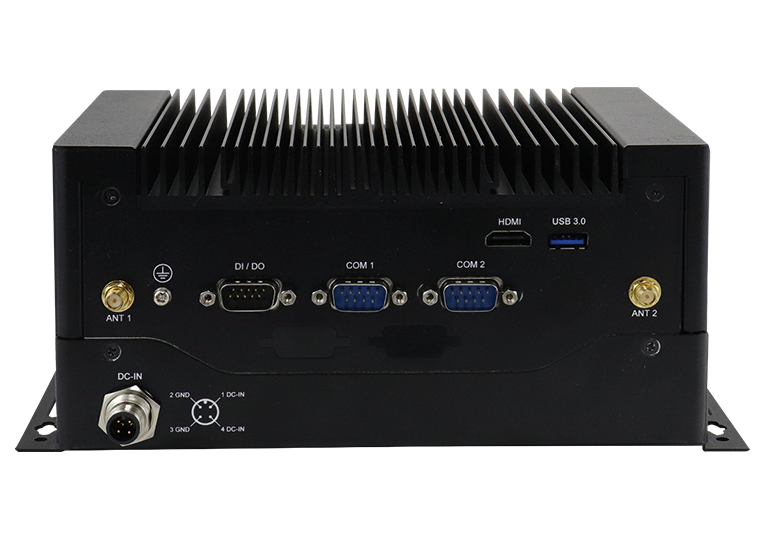

Rear Panel External I/O 1x HDMI type-A
1x USB3.2 Gen.2 type-A

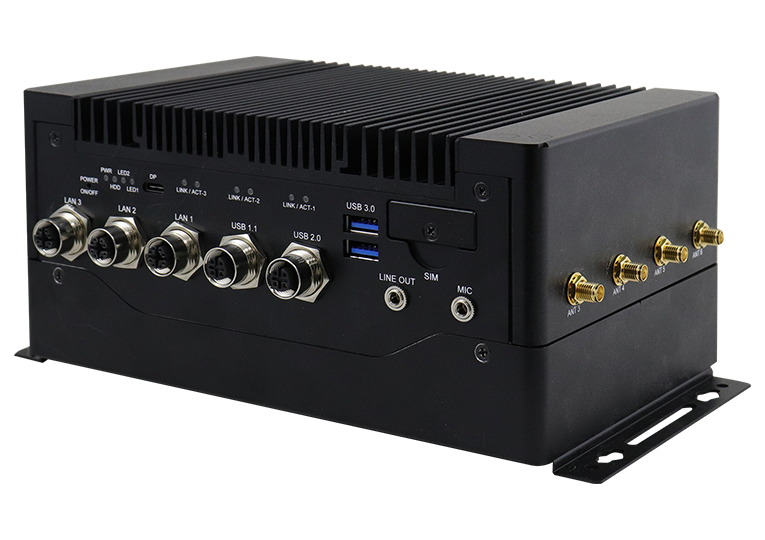

2x SMA antenna holes with cap
1x M3 screw hole for grounding connection
1x DSUB15 for 4x DO/4x DI and ground
1x DSUB9 for RS-232/485
1x DSUB9 for 2x RS485 isolated
1x M12 4-pin A-code for power input
Storage 1x 2280 M.2 M-key (PCI-E M.2 SSD)
1x 2.5" device bay for SSD or HDD. Default 2.5" 64G SSD
Expansion slots 1x mPCI-E full/half socket (PCI-E, USB 2.0) (Supports SIM2)
1x 3042/52 M.2 B-key (4G/5G) (Supports SIM1)
Power Supply 24V DC or 72V DC/110V DC
Construction Aluminum
Chassis Color Black
Mounting Side mounting
Dimensions 240 (W) x 138 (D) x 93 (H) mm
9.4” (W) x 5.4” (D) x 3.7” (H)
Operating Temperature SSD w/o PCI-E Card: -40°C ~70°C, up to 85°C for 10 minutes
SSD w/ PCI-E Card: -40°C ~55°C, up to 70°C for 10 minutes
HDD: -25°C ~55°C, up to 70°C for 10 minutes
Storage Temperature -40°C ~ 85°C (-40°F~185°F)
Relative Humidity 10 ~ 95% @ 45°C, (non-condensing)
Vibration Function: 1m/S2, 5Hz~150Hz (EN 61373)
Lifetime: 7.9m/S2, 5Hz~150Hz (EN 61373)
Shock 50 m/S2, 30 msec (EN61373)
Certified EN50155: 2021
CE (EN62368/ EN55032/ EN55035)/ FCC Class-A
EN45545-2
MPT-500R MPT-500R with MBT-501RX25, Intel® Atom® x6425RE processor, w/ 4GB RAM, 64G MLC SSD, 24V DC input
MPT-500RH MPT-500RH with MBT-501RX25, Intel® Atom® x6425RE processor, w/ 4GB RAM, 64G MLC SSD, 72/110V DC input
MPT-500RHA MPT-500RHA with MBT-501RX25A, Intel® Atom® x6425RE processor, w/ 8GB RAM, 64G MLC SSD, 72/110V DC input
MPT-500RE MPT-500RE with MBT-501RX12, Intel® Atom® X6212RE processor, w/ 4GB RAM, 64G MLC SSD, 24V DC input

By becoming an IBASE member, you can have access to the test reports, certifications, 2D/3D drawings and MTBF reports from our member site. Not a member? Join Now!
