Intelligent Transportation
MPT-3100V
E-Mark Certified In-Vehicle Computer System with Intel® Atom® x7000RE Series Processor, WWAN Redundancy
- Robust M12 & FAKRA connectors with rich I/O interface
- Dual SIM sockets support WWAN redundancy
- Onboard isolated CAN 2.0A / 2.0B / CAN-FD
- Removable 2.5” device bay for SSD storage
- Rich I/O interfaces for wireless, SSD, GPS, WWAN and add-on card expansion
- Ignition power control
- Wide-range voltage GPIO interface
- 1x USB Type-C with graphics output for quick setting and diagnostics
- Fanless and ruggedized design
Certified by E-Mark, the MPT-3100V is purpose-built for intelligent AIoV applications, enabling seamless interoperability within public transportation systems. It is powered by the energy-efficient Intel® Atom® x7000RE series processor and integrates the Hailo-8 AI accelerator chip, delivering superior in-vehicle AI-driven image processing.
The compact system supports 2.5 Gbps Ethernet and features two PoE ports, allowing camera-powered AI identification. Additionally, it offers expandable slots for 5G, 4G/LTE, or WiFi modules, enabling dual wireless broadband backup and a dual Nano SIM card design to ensure uninterrupted connectivity across different regions. Designed for harsh outdoor environments, it operates within a wide temperature range of -40°C to +70°C and supports 9-36V DC input with ignition power control, making it an ideal solution for mass transit vehicles and fleet management applications.
The MPT-3100V empowers vehicles with real-time video and data analysis, seamlessly transmitting critical insights to the cloud for rapid remote monitoring and control. A key feature of the system is its E-Fuse power protection and supercapacitor-based battery design, which prevents system failures by automatically resetting during overcurrent events. The self-recharging supercapacitors eliminate the need for battery replacement, reducing maintenance costs.
| System Mainboard | MBT-3101V |
| CPU Type | Intel® Atom® x7433RE Processor |
| Processor Speed | Up to 2.7GHz |
| Memory | 1x DDR5-4800 SO-DIMM socket Up to 16GB |

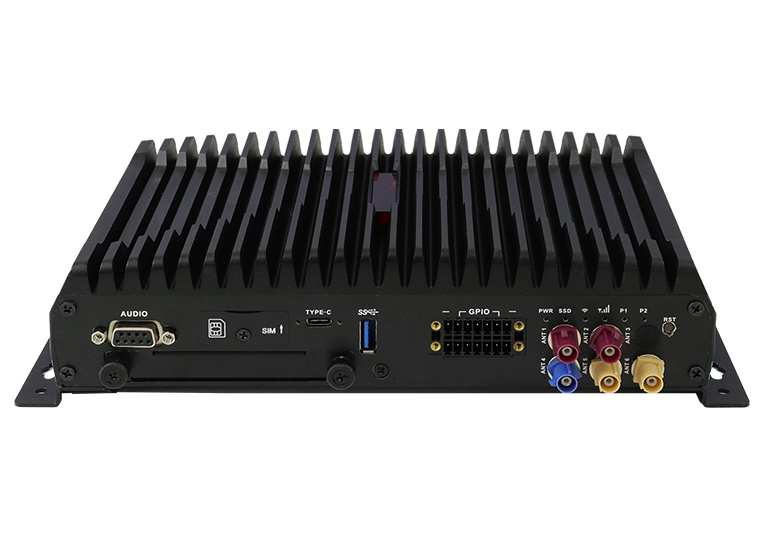

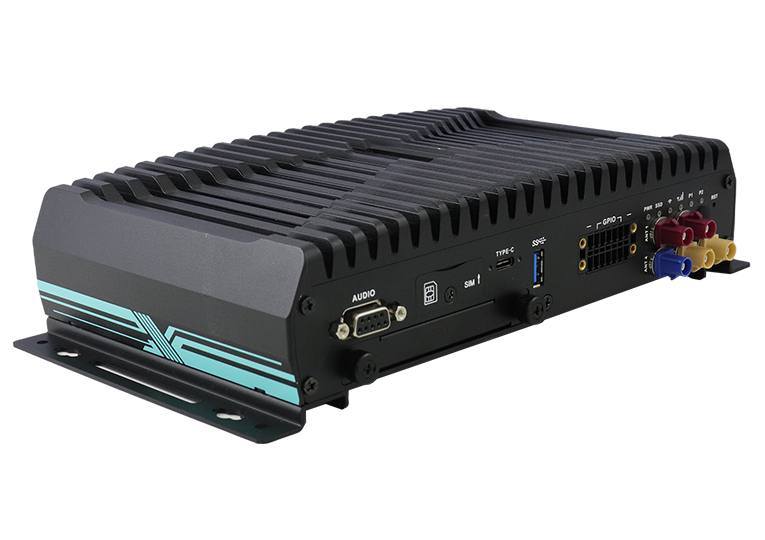

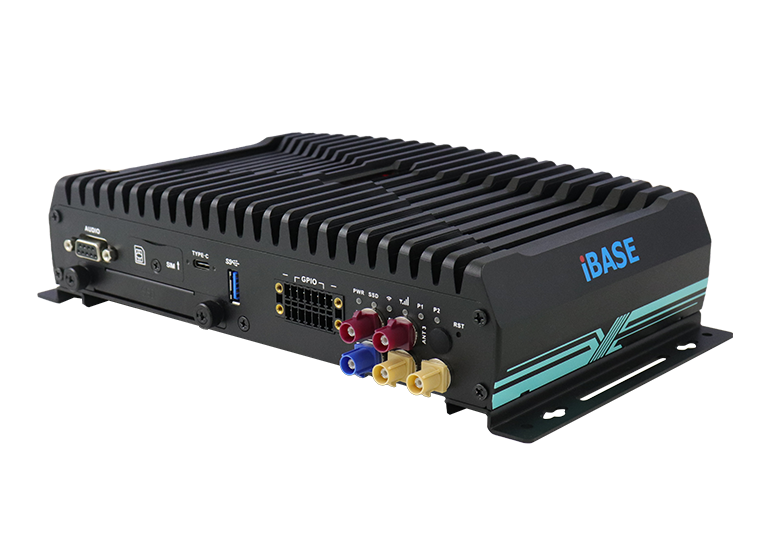

| Front panel I/O | 1x USB3.2 Gen2 stack Type-A connector 2x external accessible SIM socket 1x USB TYPE-C connector with screw-lock 1x Removable 2.5" SSD device bay 1x DB9 female connector for Line-out & MIC-in 1x reset button 1x 14-pin terminal block 6-in & 6-out digital I/O with 24V input and output 2x FAKRA I-code plug Beige color connector for wifi / Bluetooth 1x FAKRA C-code plug Blue color connector for GPS 2x FAKRA D-code plug Violet color connector for 4G/5G 4x light-pipe for status LED Indicators |

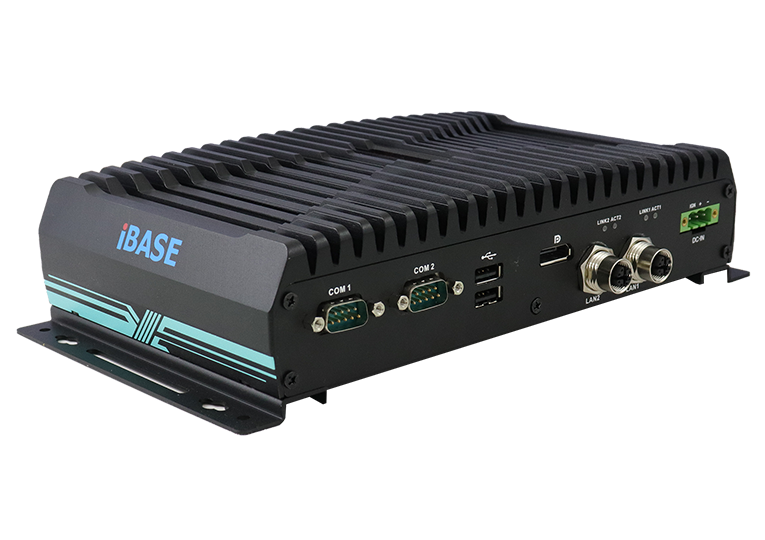

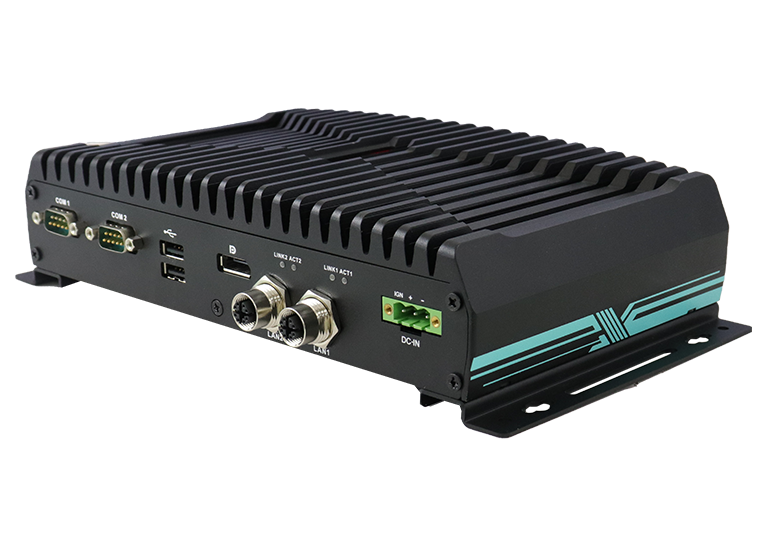

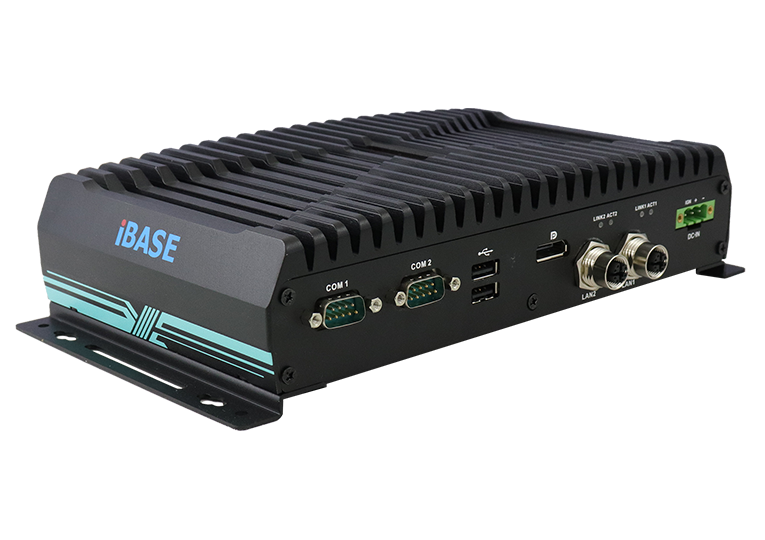

| Rear Panel External I/O | 2x M12 X-code 8P female for GbE LAN1/LAN2 1x terminal block 3 pins for DC-input 1x VGA connector for graphic output (optional) 1x DisplayPort output 1x DB9F connector for 2 x Can FD bus connection (works with extra CAN module) 2x DB9M for COM#1 / COM#2 2x USB 2.0 Type-A connector 2x light-pipe for LAN status LED Indicators |
| Storage | 1x M.2 2280 M-Key socket for SSD (SATA III signal) 1x 2,5" removable device bay for SSD |
| Expansion slots | 1x M.2 2230 E-Key socket for WLAN & BT connection (PCI-E + USB2.0 + SMBus) 1x M.2 3042/52 B-Key socket for WWAN (4G/5G) connection (USB3.2 Gen.1 + SMBus) 1x M.2 2280 M-Key socket for SSD device (SATA III) 1x Mini PCI-E full-sized socket for MVB/CAN FD module (PCI-E + USB2.0 + SMBus) 1x Mini PCIe half-sized socket for GPS module (USB2.0 only) |
| Power Supply | DC-input 9V ~ 36V |
| Construction | Aluminum |
| Chassis Color | Black |
| Mounting | wall mount |
| Dimensions | 250 (W) x 150 (D) x 55 (H) mm 9.84” (W) x 5.9” (D) x 2.16” (H) |
| Operating Temperature | -40°C ~70°C (-40°F~158°F) (w/o FAN & SSD) -20°C ~55°C (-4°F~131°F) (w/ PCI-E card) |
| Storage Temperature | -40°C ~ 85°C (-40°F~185°F) |
| Relative Humidity | 10 ~ 95% RH @45°C (non-condensing) |
| Vibration | Operating/Non-operating (SSD): 2,26 Grms (5~500 Hz) / MIL-STD-810G composite wheeled condition (Z-axis only) |
| Shock | Operating: Sawtooth: 20G, 11msec (Z-axis) /MIL-STD-810G Non-operating: Sawtooth: 40G, 11 msec (Z-axis) /MIL-STD810G |
| Certified | E-Mark-24 CE (EN 62368-1 / EN55032 / EN55035), FCC Class-B |
| MPT-3100V | MPT-3100V with MBT-3101, Intel® Atom® x7433RE Processor w/ 1x 8GB DDR5-4800, 1x SSD bay, No PSU, No storage (RoHS) |
| MPT-3100V-AI | MPT-3100V with MBT-3101, Intel® Atom® x7433RE Processor w/ 1x 8GB DDR5-4800, w/ Hailo AI accelerator, 1x SSD bay, No PSU, No storage (RoHS) |
| DATASHEETS | MPT-3100V |
| CATALOGS | Intelligent Transportation Solutions (Vol.24.06) |
| DRIVERS - SYSTEMS | MPT-3100V Driver DVD |
