Intelligent System
CSB200-818
Fanless System with IBASE IB818 3.5-inch Single Board Computer
- Fanless system with IBASE IB818 3.5” Single Board Computer
- Supports Intel® Atom® Processors E3940/ E3930 & Pentium® N4200/ Celeron® N3350 Series
- Wide-range operating temperature from -30°C to 65°C
- 12V(-10%) ~ 24V(+10%) DC wide-range power input
- Wall mount kit included
The CSB200-818 is a slim fanless system that is fully operable under harsh conditions, with a wide-range operating temperature. Suitable for 24/7 deployments such as in industrial automation and intelligent transportation applications, this compact system comes with a 12V-24V DC terminal block power input and an optional 60W power adaptor.
The robust embedded CSB200-818 houses a 3.5-inch single board computer powered by an Intel® Atom® processor E3930, N4200 or N3350 and is equipped with 4GB (default) of DDR3L-1866 system memory that is upgradeable to 8GB. It offers versatile wired and wireless connectivity with the two onboard RJ45 Gigabit Ethernet ports and dual mini PCIe slots for optional WiFi, Bluetooth and LTE interface cards.
"IBASE has designed the CSB200-818 for customers requiring system reliability, efficient power consumption, longevity and low total cost of ownership. It has a rich set of interface connectivity options and a heat-dissipating enclosure with a flexible storage design for easy installation and maintenance,” said Wilson Lin, Director of IBASE Product Planning Department. Onboard rear I/O interface includes four high-speed USB 3.0, HDMI, four COM ports and two RJ45 connectors. Other features provided are wall-mount mounting and two wireless antennas.
To support an operating temperature range of -30°C to +65°C, the CSB200-818 is configured with an Intel® Atom® processor E3930 and 64GB industrial-grade SSD. With an N-Series (N4200/N3350) CPU and 500GB of SATA HDD, it operates between -10°C to +45°C. Both temperature conditions require sufficient airflow.
System Mainboard | IB818 (F-1 Stepping) |
CPU Type | Intel® Atom® Processors E3940/ E3930 & Pentium® N4200/ Celeron® N3350 Series |
System Speed | Up to 2.5GHz |
Memory | 1x 4GB DDR3L-1866 SO-DIMM, Max. 8GB |

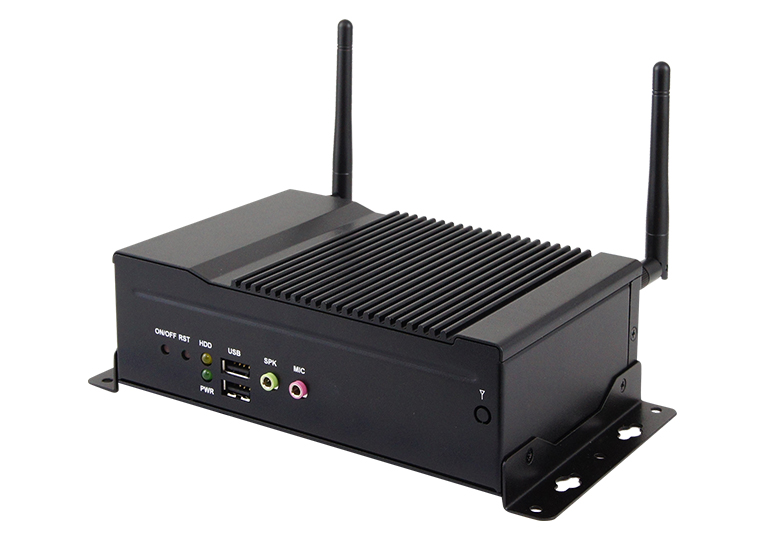

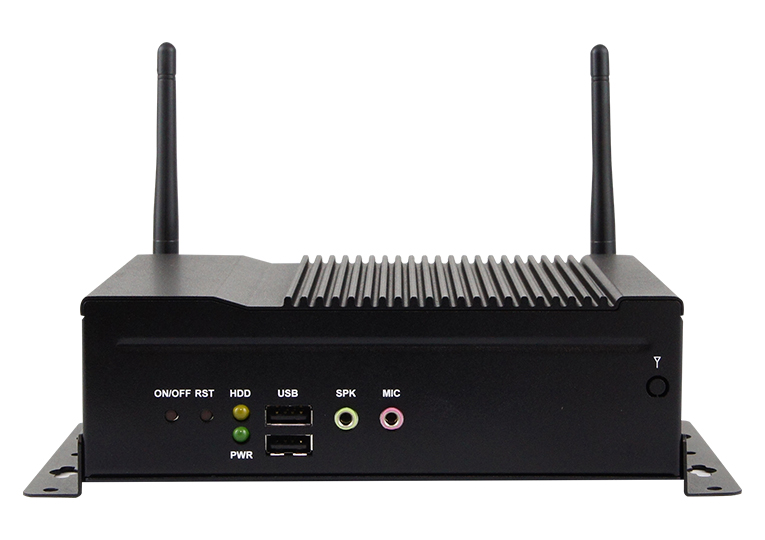

Front Panel External I/O | 1x Power LED 1x HDD LED 1x Power button 1x Reset button 2x USB 2.0 ports 1x Line-out, 1x Mic-in |

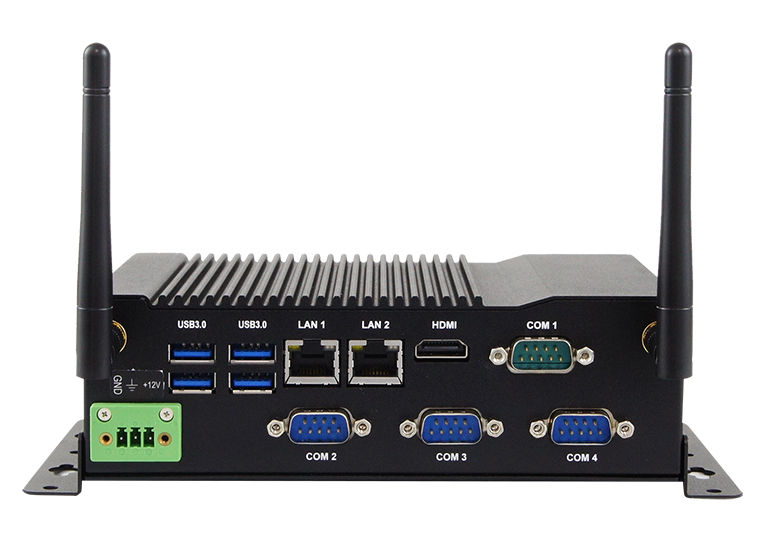

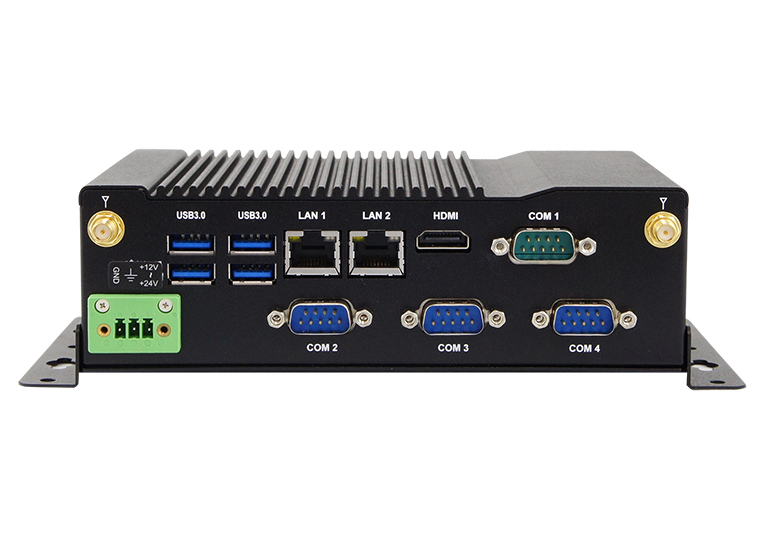

Rear Panel External I/O | 4x USB 3.0 port 1x HDMI 1x RS232/422/485 port for COM#1 3x RS232 ports for COM#2/COM#3/ COM#4 2x RJ45 Gigabit Ethernet port 1x 3-pin DC-in terminal block for 12V(-10%)~24V(+10%) |
Expansion Slots | 1x Full-size Mini PCI-E socket (USB 2.0 + SATA) 1x Half-size Mini PCI-E socket (USB 2.0) |
Storage | 1x 2.5" HDD or SSD (removable) |
Construction | Aluminum & steel |
Chassis Color | Black |

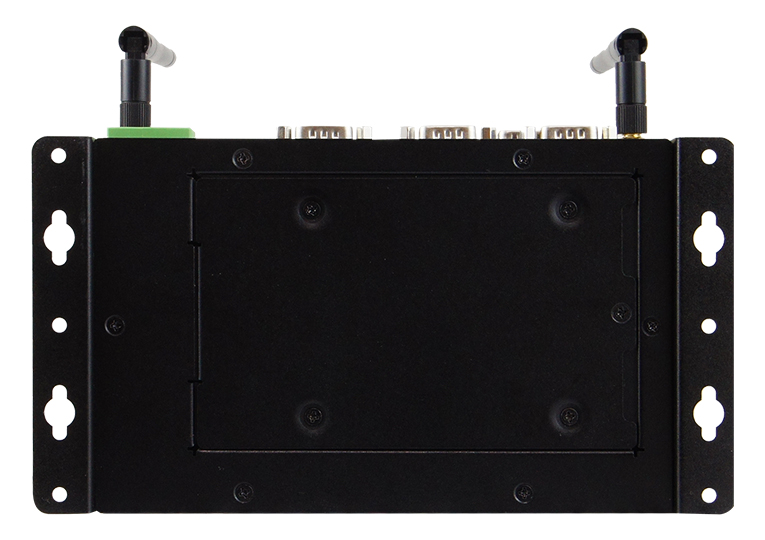

Mounting | Desktop or wall mount (wall mount kit included) |
Dimensions | 172mm (W) x 111.6mm (D) x 53mm (H) 6.77" (W) x 4.39" (D) x 2.09" (H) |
Weight | 1.1kg |
Operating Temperature | For E3940 CPU:-30°C~65°C (22°F~149°F) (With SSD) *With air flow For N-Series CPU:-10°C ~45°C(14°C~113°C) (With HDD) *With air flow |
Storage Temperature | -40°C ~ 85°C (-40°F~185°F) |
Relative Humidity | 5~90% @ 45°C, (non-condensing) |
Vibration | Operating: 1.0 grms / 5~500Hz / random operation (with IEC 60068-2-64) Non-Operating: 2.0 grms / 5~500Hz / random operation (with IEC 60068-2-64) |
Shock | Operating : 20G / 11ms Non-operating : 40G / 11ms |
Certification | CE / LVD / FCC Class B |
CSB200-818-I40 | Fanless system w/ Intel® Atom® E3940, 4x COM, 1x 4GB DDR3L industrial-grade memory, 1x 2.5” 64GB MLC industrial-grade SSD, w/o 60W power adaptor |
CSB200-818-I30 | Fanless system w/ Intel® Atom® E3930, 4x COM, 1x 4GB DDR3L industrial-grade memory, 1x 2.5” 64GB MLC industrial-grade SSD, w/o 60W power adaptor |
CSB200-818-420 | Fanless system w/ Intel® Atom® N4200, 4x COM, 1x 4GB DDR3L memory, 1x 2.5” 500 GB SATA HDD, w/o 60W power adaptor |
CSB200-818-335 | Fanless system w/ Intel® Atom® N3350, 4x COM, 1x 4GB DDR3L memory, 1x 2.5” 500GB SATA HDD, w/o 60W power adaptor |
60W power adaptor | 60W (12V@5A) power adaptor, DC-jack or bare wire type Compatible with IEC62368-1/EN62368-1 |
