Intelligent System

ASB200-838

Slim System with IBASE IB838 3.5” Single Board Computer

  • Fanless system with IBASE IB838 3.5’’ Single Board Computer
  • Onboard Intel® N-series Processor
  • Supports 2x M.2 sockets (B-Key/ E-Key)
  • 9V ~ 36V DC Wide-Range power input
  • 1x DDR5 SO-DIMM, Max.16 GB
  • 3x USB 3.2 + 1x USB Type-C, 2x Intel® 2.5 Gigabit LAN
  • 2x DisplayPort, External Digital I/O, support fTPM
  • Wall mount kit included
  • NEW
  • 5G
  • Fanless
  • Wide-range power input
System Mainboard IB838F
CPU Type Intel® N-Series
System Speed Up to 1.25GHz
Memory 1x DDR5-4800 SO-DIMM, Max.16GB

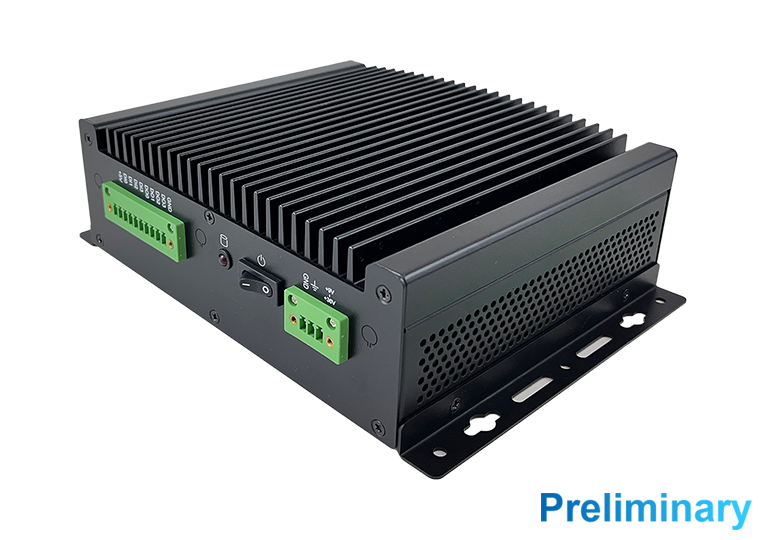

Front Panel External I/O 1x Power button
1x Digital I/O (4-in/4-out)
1x HDD LED
1x 3-pin DC-in terminal block for 12V(-10%) ~ 24V(+10%)

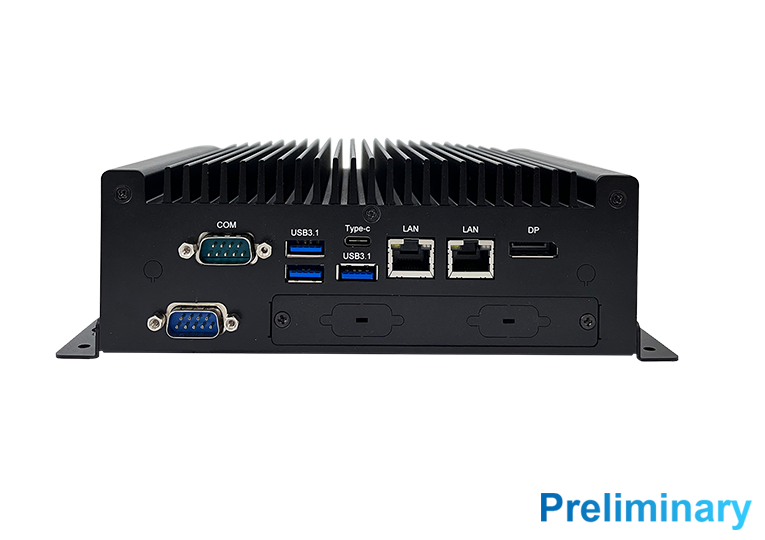

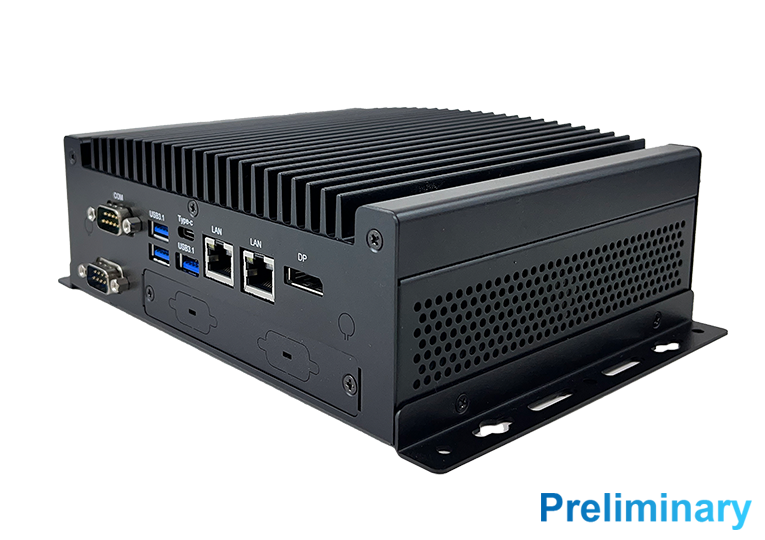

Rear Panel External I/O 3x USB 3.2
1x USB Type-C
1x DisplayPort
1x DB9 for COM#1
1x DB9 for COM#2
2x 2.5G LAN
Expansion Slots 2x M.2 sockets (B-Key/ E-Key)
Storage 1x 2.5’’ HDD or SSD
Construction Aluminum & steel
Chassis Color Black
Mounting Desktop or wall mount (wall mount kit included)
Optional VESA mount kit
Dimensions 180mm (W) x 150mm (D) x 72mm (H)
7.08” (W) x 5.9” (D) x 2.83” (H)
Weight TBD
Operating Temperature 0°C~45°C (32°F~113°F) *with airflow 0.9m/s
Storage Temperature -20°C ~80°C (-4°F~176°F)
Relative Humidity 5%~90%@45°C (non-condensing)
Vibration Operating: 3Grms / 5~500Hz
Shock Operating : 20G / 11ms
Non-operating : 40G / 11ms
Certification CE/LVD/FCC Class B
ASB200-838-i3M Fanless chassis with IB838-i3 w/ Intel® Atom i3-N305, 4x COM, 1x DDR5 memory slot, 1x 2.5’’ SSD slot, desktop stand & mounting bracket, w/o memory/ SSD/ 90W power adaptor and VESA mount bracket
