Intelligent System


Fanless System with IBASE MI988F Mini-ITX Motherboard

  • AMD Ryzen™ Embedded V1807B on board
  • Dual-channel memory, up to 32GB DDR4
  • Supports HDMI & DisplayPort
  • 2x Gigabit Ethernet, 4x USB 3.1, 4x COM
  • Wall mount kit included, optional VESA mount kit
  • 1x Mini PCI-E socket, 1x M.2 (M-key)
  • Wide-range power input
  • IEC 62368-1 EN 62368-1
  • IP30
  • AMD Ryzen Embedded

The CMI300-988 is a slim Mini-ITX system with an onboard AMD Ryzen™ Embedded V1807B processor that combines the processing power of the advanced AMD "Zen" CPU and "Vega" graphics architecture in a single chip. Measuring 200 x 200 x 62mm, the CMI300-988 is designed for retail, automation or smart office environments.

 CMI300-988 Mini-ITX System

Aside from delivering new levels of graphics processing efficiency and superior compute performance, the CMI300-988 combines high-speed connectivity with flexible I/O and high reliability to perform a variety of tasks in 0°C to 45°C operating environments while ensuring silent operation. The embedded box pc adopts an IP30-rated aluminum and steel enclosure, and supports wall mounting as well VESA mounting for easy installation and maintenance. Rear I/O provides essential connections with an HDMI and DisplayPort, two Gigabit Ethernet, four USB 3.1, four serial ports, audio jacks and a 3-pin terminal block for 12V~24V DC input.

The standard system configuration contains 128GB of SSD storage, 4GB of DDR 4 memory, expandable to 32GB, and an 84W power adaptor. Expansion ports consist of a Mini PCI-E and an M.2 (M Key:2280) socket. Three reserved antenna holes are available for optional wireless connectivity.

System Mainboard MI988F
CPU Type AMD Ryzen™ Embedded V1000 Series
System Speed Up to 3.8GHz
Memory 2x 4GB DDR4 SO-DIMM, Max. 32GB

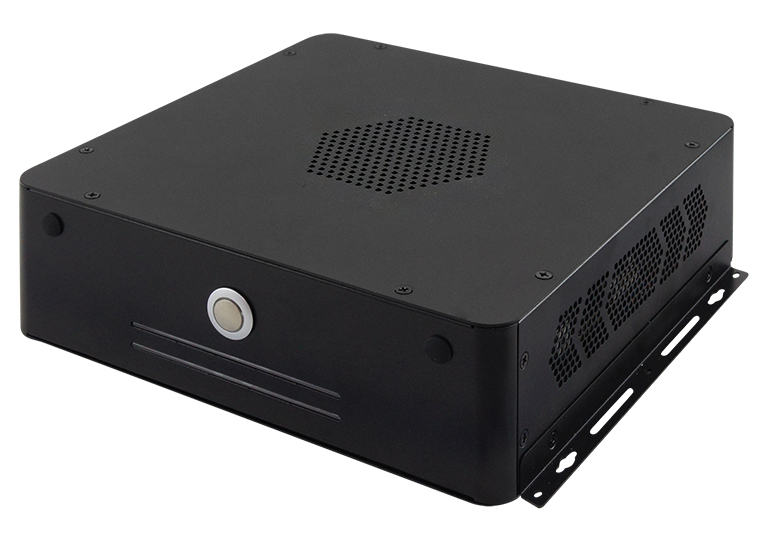

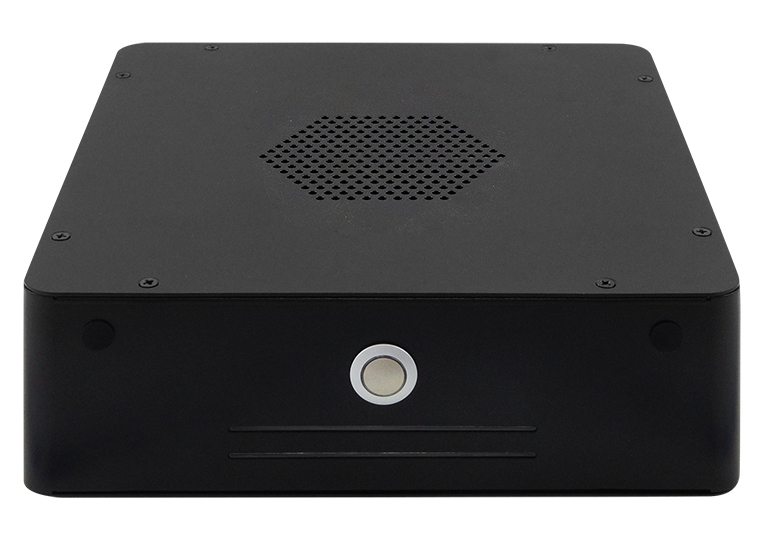

Front-side Panel I/O 2x Antenna hole reserved Power button

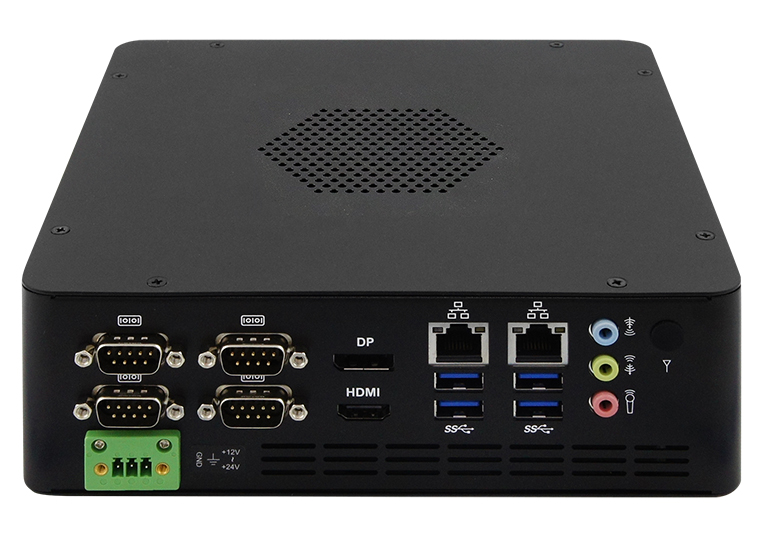

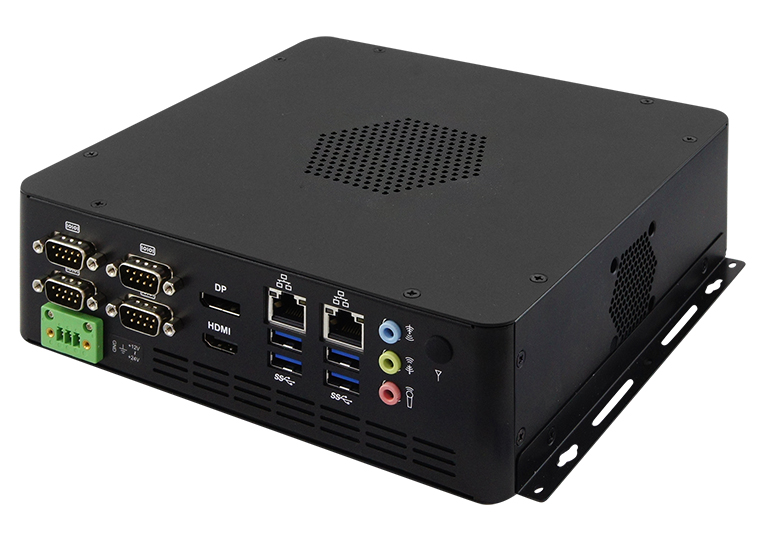

Rear-side Panel I/O 2x RS232/422/485 for COM#1~#2
2x RS232 for COM#3~#4
4x USB 3.1 ports
2x RJ-45 Gigabit Ethernet port
1x HDMI+DisplayPort
1x Audio port for [Line-in / Line-out / Mic-in]
1x Antenna hole reserved
Storage Interface 1x 2.5" SSD
Expansion Slots 1x Mini PCI-E socket, 1x M.2 (M Key:2280)
Power Supply 84W power adaptor
Construction Aluminum & steel
Chassis Color Black
Mounting Type Desktop or wall mount bracket
Optional VESA mount kit
Dimensions 200mm (W) x 200mm (D) x 62mm (H)
7.87" (W) x 7.87" (D) x 2.44" (H)
Weight 1.8kg
Operating Temperature 0°C~45°C (32°F~113°F)
Storage Temperature -20°C~80°C (-4°F~176°F)
Relative Humidity 5%~90%@45°C (non-condensing)
Vibration Operating: 0.25Grms / 5~500Hz
Non-operating: 1Grms / 5~500Hz
Certification CE/FCC Class A
CMI300-988-1807 Embedded System with MI988F-1807 (AMD V1807B 3.35/3.8GHz on board), w/ 128GB 2.5'' SSD, 1x 4GB DDR4 memory, 84W power adaptor (RoHS2) Compatible with IEC62368-1/EN62368-1
CMI300-988-1605 Embedded System with MI988F-1605 (AMD V1605B 2.0/3.6GHz on board), w/ 128GB 2.5'' SSD, 1x 4GB DDR4 memory, 84W power adaptor (RoHS2) Compatible with IEC62368-1/EN62368-1
