Intelligent System


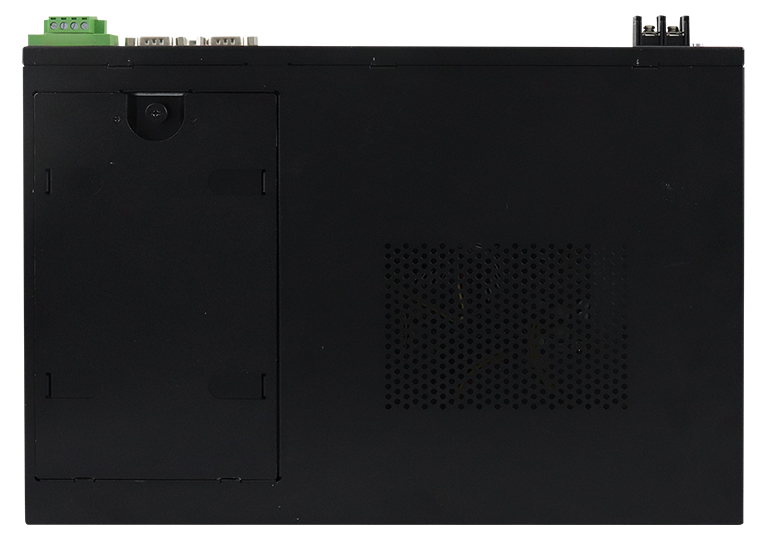

Expandable System with IBASE MI991AF Mini-ITX Motherboard

  • 6th Gen Intel® Core™ i7/i5/i3 / Pentium® / Celeron® DT Processors
  • Dual-channel memory, up to 32GB DDR4
  • 4x DB9, 1x GPIO
  • Supports DVI-D, HDMI and DisplayPort
  • Removable 2.5" storage (supports RAID 0/1)
  • Supports Intel® iAMT(11.0) and TPM(1.2)
  • 15 years life time
  • iSMART
System Mainboard MI991AF
CPU Type 6th Generation Intel® Core™ i7/i5/i3 / Pentium® / Celeron® desktop processors
PCH Intel® Q170
System Speed i7-6700 (3.4GHz ~4.0 GHz)
Memory 2x 8G DDR4-2400 SO-DIMM, Max.32GB
Front-side Panel I/O N/A

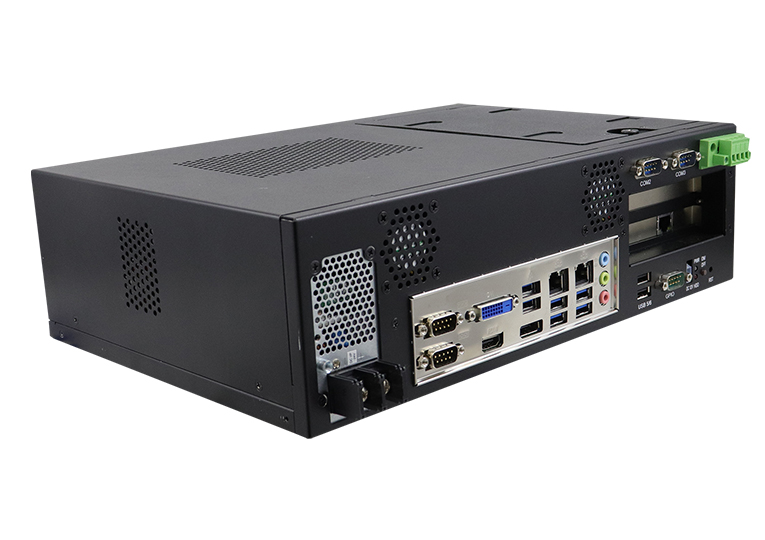

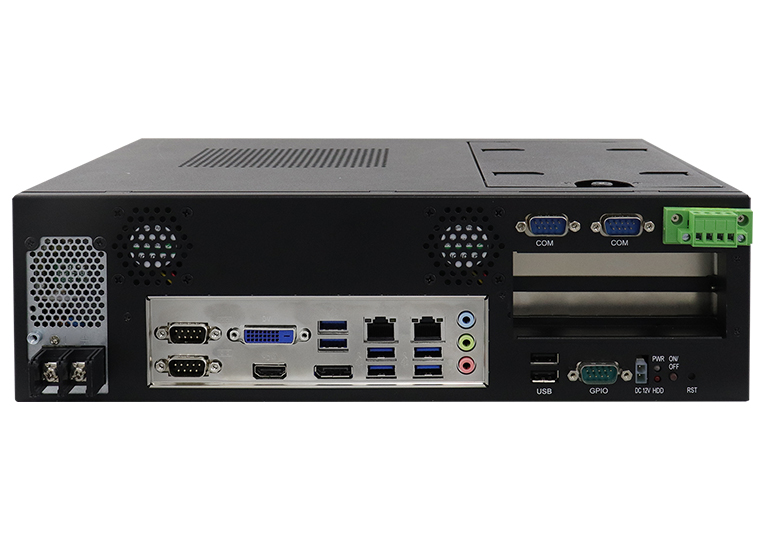

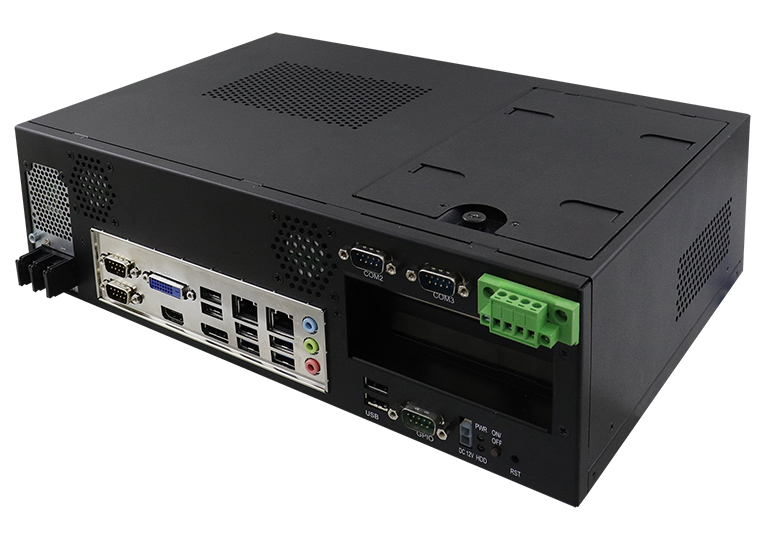

Rear-side Panel I/O 1x 2-pin DC input for 24V(±10%)
1x 2-pin DC output for 12V(±10%)
1x Power on/off button
1x Reset button
1x Power LED, 1x HDD LED
1x DB9 (for GPIO 4-in & 4-out)
3x RS232 for COM#2~4 (2-ports thru pin header)
1x RS232/422/485 for COM#1
6x USB 3.0 ,2x USB 2.0
2x System fans
2x RJ45, 1x Audio port for Line-in/Line-out/Mic-in
1x SPK Out (6W output) thru ID107 (optional)
1x DVI-D, 1x HDMI, 1x DisplayPort
Storage Interface 2x 2.5" SATA HDD or SSD
Expansion Slots 1x PCI-E (x16) expansion slot
Add-on card dimensions: up to 106mm x 200mm
Power Supply Industrial 250W DC switching power supply
Input Voltage: Direct 24V(±10%) DC, 18A
Construction SECC
Chassis Color Black
Mounting Type Wall mount & Dekstop
Dimensions 345mm (W) x 240mm (D) x 100mm (H)
13.5" (W) x 9.44" (D) x 3.93" (H)
Weight 4.4 kg
Operating Temperature 0°C~45°C (32°F~113°F)
Storage Temperature -20°C~80°C (-4°F~176°F)
Relative Humidity 5% ~ 90% @45C (Non-condensing)
Vibration Non-Operating : 1.0 grms / 5~500Hz / random
Operating : 0.25 grms / 5~500Hz / random
Certification CE / LVD / FCC Class-B (Pre-scan only)
CMI202-991M Chassis with MI991AF + IP118 riser card, w/o CPU, HDD, memory, w/ 250W PSU, 2.5" HDD holder, 1x PCI-E(x16) expansion slots (RoHS22)
