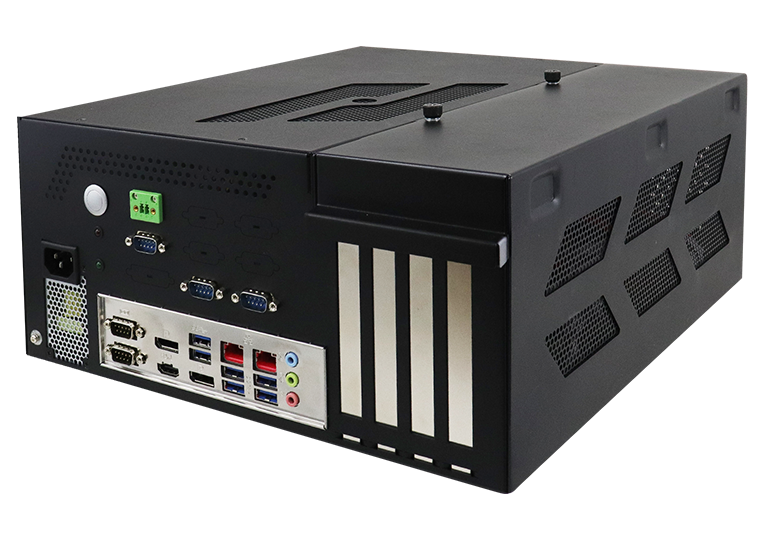

CMB108
High Performance Expandable Industrial Computer Powered by 13th/12th Gen Intel® Core™ i9/i7/i5/i3 DT processors
- Supports 13th/12th Gen Intel® Core™ DT processors (TDP 65W)
- Supports discrete GPU cards with reserved expansion slots
- Multiple expansion slots : 1x PCI-E(x16) [PCI-E Gen.5], 1x PCI-E(x4) [PCI-E Gen. 4], 1x PCI-E(x4) [PCI-E Gen.3]
- 500W 1U Flex ATX power supply [Default]
- 2-pin remote boot extension design
- Supports multi-display interfaces [HDMI, DisplayPort, DVI-D] and 2.5GbE ports , USB 3.0 ports
- 4 set of 2.5" storage devices (supports RAID 0/1)
- 2x M-Key (2280) for NVMe, 1x E-Key (2230) for WiFi/BT, support CNVi, 1x B-Key (3052) for 5G
- fTPM, DIO, iAMT(16.1), Watchdog timer
The CMB108 is a high-performance industrial computer engineered to meet the demanding needs of various industrial applications, leveraging the power of 13th/12th Gen Intel® Core™ i9/i7/i5/i3 DT processors (TDP 65W). It is also equipped with two DDR5-4800/5600 U-DIMM slots, supporting a maximum of 64GB, to ensure high-speed memory performance.
The CMB108 supports discrete GPU cards to provide enhanced graphics performance crucial for high-end applications. It features multiple expansion slots, including 1x PCI-E(x16) [PCI-E Gen.5], 1x PCI-E(x4) [PCI-E Gen.4], and 1x PCI-E(x4) [PCI-E Gen.3], allowing for significant expansion possibilities. Measuring 362(W) x 350(D) x 156(H)mm, this robust system is equipped with a 500W 1U Flex ATX power supply, ensuring reliable and uninterrupted performance in various industrial settings.
In addition to its powerful processing and expansion capabilities, the CMB108 boasts a range of connectivity and storage options. It supports multi-display interfaces including HDMI, DisplayPort, and DVI-D, along with 2.5GbE ports and USB 3.0 ports, enabling flexible and high-speed data transfers. The unit accommodates up to 4 sets of 2.5" storage devices with RAID 0/1 support, 2x M-Key (2280) slots for NVMe, 1x E-Key (2230) for WiFi/BT (supporting CNVi), and 1x B-Key (3052) for 5G connectivity, addressing the growing demand for fast and efficient data processing and storage. The CMB108 is further enhanced with features such as fTPM, DIO, iAMT(16.1), and a watchdog timer, alongside a 2-pin remote boot extension design.
System Mainboard | MB998 Series MicroATX motherboards |
CPU Type | 13th/12th Gen Intel® Core™ DT processors (TDP 65W) |
System Speed | Up to 5.60 GHz (W680R supports ECC by CPU SKUs) |
Memory | 2x DDR5 UDIMM, Max. 64GB |

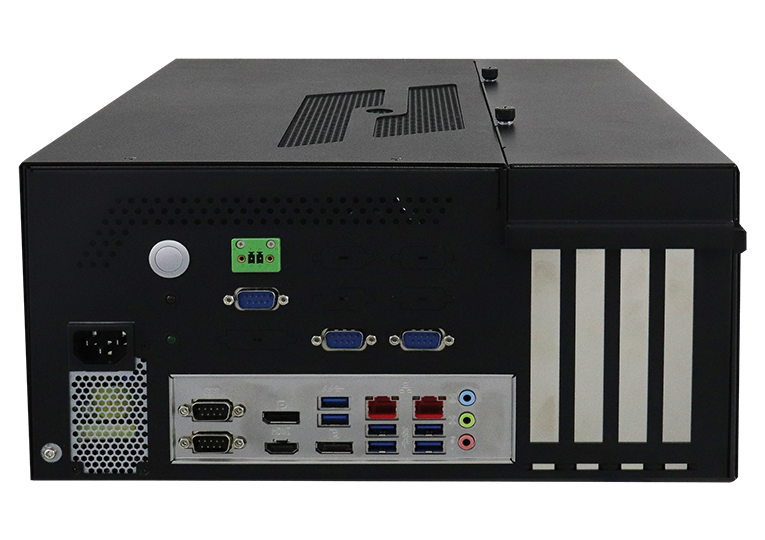

Front Panel External I/O | Power button 2-pin remote boot extension design Detachable side cover for GFX Card 4x Slots 2x DisplayPort + HDMI + DVI-D [Optional] 6x USB3.0 ports ; 2x RJ45 for 2.5GbE 2x RS232/422/485, 2x RS232 |
Rear Panel External I/O | Pluggable cooling-fan |
Expansion Slots | 1x PCI-E(x16) [Gen.5], 1x PCI-E(x4) [Gen.4], 1x PCI-E(x4) [Gen.3] |
Storage | 4x 2.5” SATA (supports RAID 0/1)+ 2x M.2 M-Key (2280) storage |
Construction | SECC |
Chassis Color | Black |
Mounting | Desktop & wall mount |
Dimensions | 362.4mm(W) x 350.0mm(D) x 156.0mm(H) |
Weight | Depends on the configuration of power supply and motherboard related components |
Operating Temperature | 0°C~45°C (32°F~113°F) (for 65W CPU) @60°C, non-condensing |
Storage Temperature | -20°C~80°C (-4°F~176°F), @60°C, non-condensing |
Relative Humidity | 10~95%, non-condensing @60°C |
Vibration | With SSD: 1Grms, IEC 60068-2-64, random, 5Hz~500Hz |
Shock | With SSD: Operating 20G, IEC 60068-2-27, half-sine, 11 ms duration With SSD Non-Operating 40G, IEC 60068-2-27, half-sine, 11 ms duration With SSD |
Certification | CE / FCC Class A / LVD |
CMB108M | (CMB), Chassis with MicroATX 13th/12th motherboard w/o CPU, memory, storage, support Intel® i9/i7/i5/i3 / Pentium® / Celeron® processors, up to 5.4GHz |
