Intelligent System

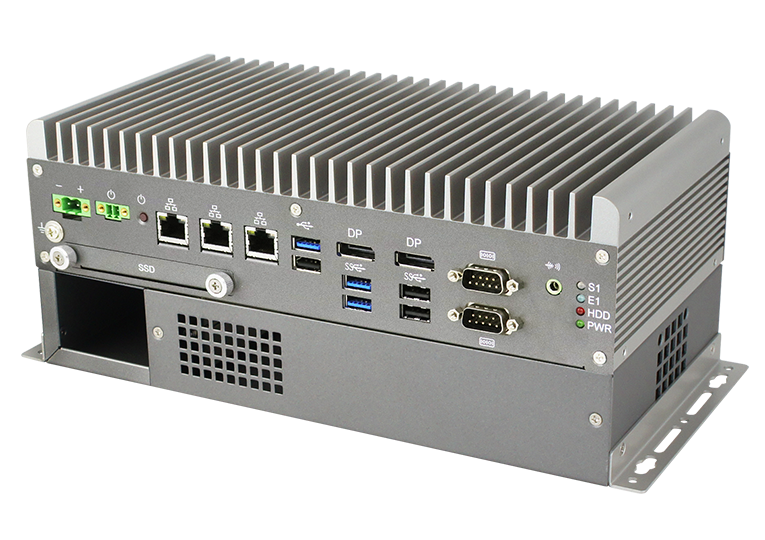

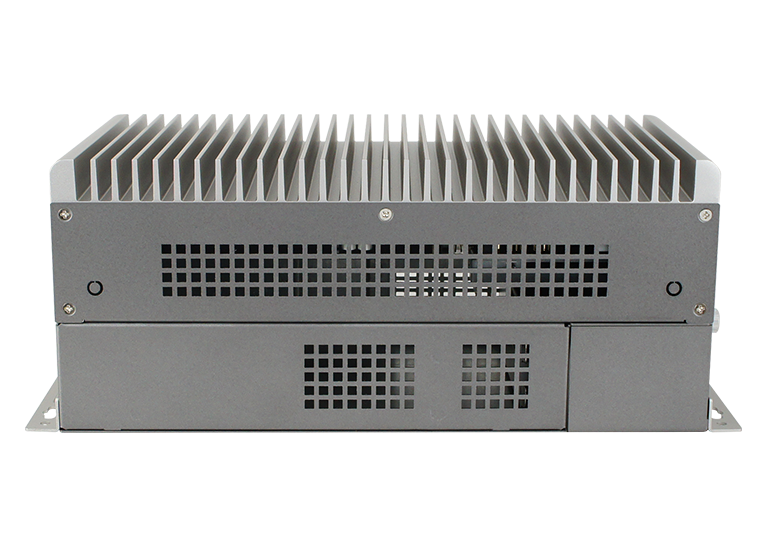

AMS322
Compact Expandable Fanless System with 11th Gen Intel® Core™ i7/i5/i3 Processors
- Compact fanless system with for IBASE MBE320 proprietary board
- 11th Gen Intel® Core™ i7/i5/i3 Processors
- Front removable drive bay for HDD/SSD
- 1x PCI-E (x8) + 1x PCI-E (x4) expansion slot
- Over/Under/Reverse voltage protection
- Supports DIN-rail mount & wall mount
- TPM 2.0
| System Mainboard | MBE320 with Intel® CPU onboard |
| CPU Type | 11th Gen Intel® Core™ i7/i5/i3 Processors |
| System Speed | Up to 4.4GHz |
| Memory | 2x DDR4 SO-DIMM, Max. 64GB |
| Front Panel External I/O | 2x Antenna hole for WLAN/4G/5G module |

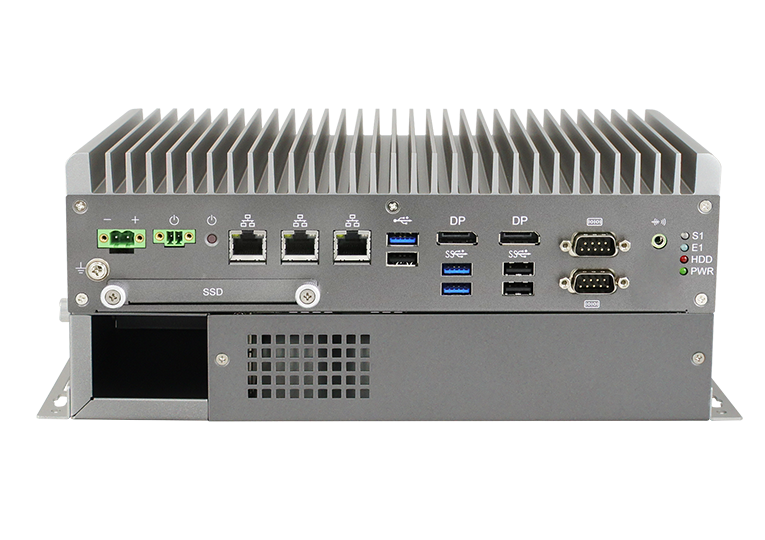

| Rear Panel External I/O | 1x 2-pin DC-in terminal block for 24V (±10%) 1x 2-pin terminal block for remote power button 1x Power Button 3x RJ45 2.5G Ethernet port 2x DisplayPort connector 3x USB 3.1 ports 3x USB 2.0 ports 1x RS232/422/485 port for COM#1 1x RS232 port for COM#2 1x Audio jack for Line-out 1x Red LED for HDD/SSD, 1x Green LED for Power 1x Blue LED & 1 x White LED programmable |
| Expansion Slots | 1x M.2 2042 E-key (USB 2.0 & PCI-E) 1x M.2 3052 B-key (USB 2.0 & 3.0) 2x PCI-E (x4) slot |
| Storage | 1x 2.5'' HDD/SSD (external-accessible) |
| Construction | Aluminum & steel |
| Chassis Color | Silver & Gray |
| Mounting | Desktop or wall mounting (wall mount kit included) Side mounting DIN-rail mounting (optional) |
| Dimensions | 275mm (W) x 140mm (D) x 117mm (H) 10.83” (W) x 5.51” (D) x 4.61” (H) |
| Weight | 3.5kg |
| Operating Temperature | -10°C to 60°C (14°F~140°F) *with air flow -10°C to 50°C (14°F to 122°F) without air flow |
| Storage Temperature | -20°C to 80°C (-4°F to 176°F) |
| Relative Humidity | 5~90% @ 45°C, (non-condensing) |
| Vibration | Non-Operating: 1.0 grms / 5~500Hz / random operation Operatiing:0.25 grms / 5~500Hz / random operation |
| Shock | Operating: 20 g / 11 ms Non-operating: 40 g / 11 ms |
| Certification | CE / LVD / FCC Class B |
| AMS322-i7M | Fanless System with MBE320-i7, w/ Intel® Core™ i7- 1185G7E Processor, 2x COM, 1x IP302 Riser card for 2x PCI-E (x4) expansion slots, without memory /storage /power adaptor |
| AMS322-i5M | Fanless System with MBE320-i5, w/ Intel® Core™ i5- 1145G7E Processor, 2x COM, 1x IP302 Riser card for 2x PCI-E (x4) expansion slots, without memory /storage /power adaptor |
| AMS322-i3M | Fanless System with MBE320-i3, w/ Intel® Core™ i3- 1115G4E Processor, 2x COM, 1x IP302 Riser card for 2x PCI-E (x4) expansion slots, without memory /storage /power adaptor |
| Optional Accessories | 180W (24V @7.5A) power adaptor, bare wire type, IEC62368-1/EN62368-1 compatible WiFi/BT antenna kit 5G/4G/LTE antenna kit GPS antenna kit DIN rail bracket |
| DATASHEETS | AMS322 |
| CATALOGS | Intelligent Systems (Vol.05) |
| DRIVERS - SYSTEMS | AMS322 Driver DVD |
