Intelligent System
AMS310
Compact Expandable Fanless System with 10th Gen Intel® Core™ i7/i5/i3 Desktop Processors (35W TDP)
- Compact fanless system with for IBASE MB310 customized board
- 10th Gen Intel® Core™ i7/i5/i3 Processors (35W TDP)
- Front removable drive bay for HDD/SSD
- 2x COM, 6x USB, 2x 2.5G LAN, 1x HDMI, 2x DisplayPort
- Over/Under/Reverse voltage protection
- Supports DIN-rail mount & wall mount
- TPM 2.0
The AMS310 is a embedded computer featuring high performance yet low power consumption and an operating temperature range from -10ºC to 60ºC. The fanless PC is most suitable for customers looking for a robust computing platform for machine automation, industrial and harsh environment applications.

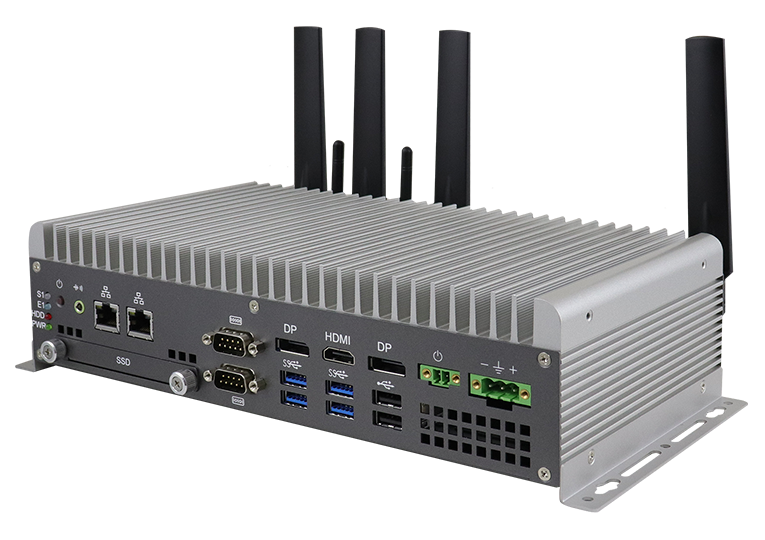

Built with a reliable passive finned heat sink that provides an efficient and effective transfer of heat away from components, the AMS310 box PC houses the IBASE MB310 customized board with Intel Q470E PCH to support 10th Gen Intel® Core™ i7/i5/i3 desktop processors (35W TDP). It allows connection of up to six antennas, offering industrial-grade connectivity using M.2 2030 E-Key and 3052 B-Key for WLAN/4G/5G connections.

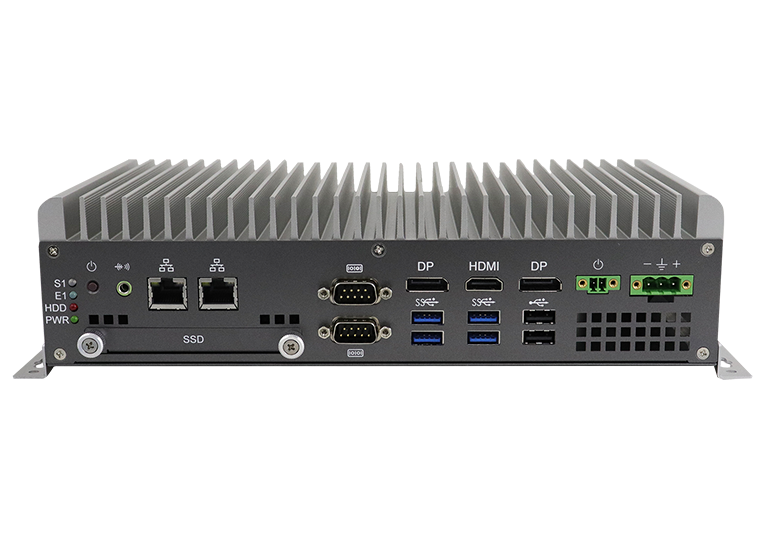

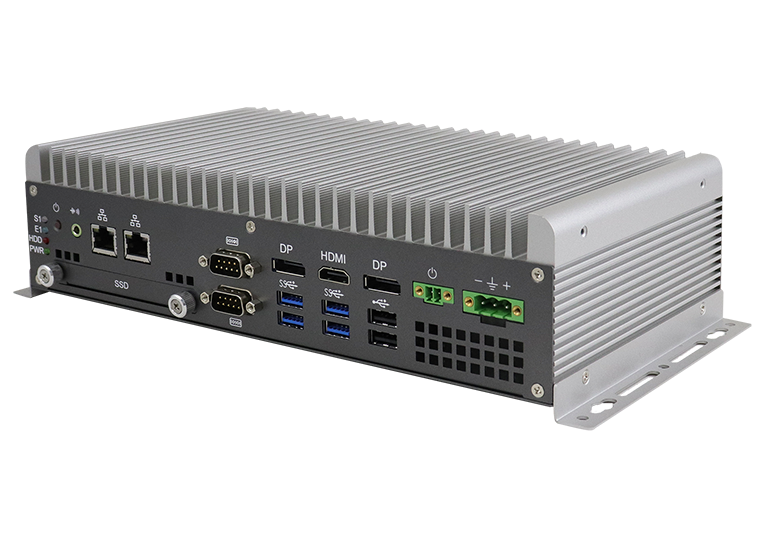

The AMS310 compact platform measures 275x150x70mm and accommodates up to 64GB DDR4 system memory. The rear panel provides connectors for HDMI, DP, line-out, 6x USB, 2x COM, 2x RJ45 for 2.5G LAN, and 24V DC-in power. System storage is supported by an externally accessible 2.5” drive bay and an M.2 M-keyed socket for fast NVMe SSDs. Other features include TPM 2.0 security, over/under/reverse voltage protection and multiple OS support.
The expanded model AMS312 shares the same footprint with a height of 117mm and comes with additional expansion for PCI-E(x8) and PCI-E(x4) slots.
| System Mainboard | MB310 with Intel® Q470E PCH |
| CPU Type | 10th Gen Intel® Core™ i7/i5/i3 desktop Processors (35W TDP) |
| System Speed | Up to 4.5GHz |
| Memory | 2x DDR4-2933/2666 SO-DIMM, Max. 64GB |
| Front Panel External I/O | 6x Antenna hole for WLAN/4G/5G module |
| Rear Panel External I/O | 1x HDMI connector 2x DisplayPort connector 1x Audio jack for Line-out 4x USB 3.0, 2x USB 2.0 ports (1x software programmable) 1x Red HDD LED, 1x green power LED, 2x Error LED by programming 1x 2 pins terminal block connector for remote access 1x Power button 1x RS232/422/485 port for COM#1 1x RS232 port for COM#2 2x RJ45 2.5G Ethernet port 1x 3-pin DC-in terminal block for 24V(±10%) |
| Expansion Slots | 1x M.2 2242 E-key (USB 2.0 & PCI-E) 1x M.2 3052 B-key (USB 3.0 & USB 2.0) |
| Storage | 1x 2.5'' HDD/SSD (external-accessible) 1x M.2 2080 M-key (SATA & PCI-E(4x)) |
| Construction | Aluminum & steel |
| Chassis Color | Silver & Gray |
| Mounting | Desktop or wall mounting (wall mount kit included) Side mounting DIN-rail mounting (optional) |
| Dimensions | 275mm (W) x 150mm (D) x 70mm (H) 10.83” (W) x 5.91” (D) x 2.76” (H) |
| Weight | 2.75kg |
| Operating Temperature | -10°C to 60°C (14°F~140°F) *with air flow -10°C to 50°C (14°F to 122°F) without air flow |
| Storage Temperature | -20°C to 80°C (-4°F to 176°F) |
| Relative Humidity | 5~90% @ 45°C, (non-condensing) |
| Vibration | Non-Operating: 1.0 grms / 5~500Hz / random operation Operatiing:0.25 grms / 5~500Hz / random operation |
| Shock | Operating: 20 g / 11 ms Non-operating: 40 g / 11 ms |
| Certification | CE / LVD / FCC Class-B (TBD) |
| AMS310M | Fanless System with MB310, w/o CPU/ memory/ storage/ Power adaptor Supporting vPro & iAMT 11.0, desktop or wall mounting brackets (RoHS2), w/o power adaptor |
| 180W power adaptor (optional) | 180W (24V @7.5A) power adaptor, bare wire type Compatible with IEC62368-1/EN62368-1 |
| Optional Accessories | WiFi / Bluetooth antenna kit LTE / 5G antenna kit GPS antenna kit |
| DATASHEETS | AMS310 |
| CATALOGS | Intelligent Systems (Vol.05) |
| USER'S MANUALS | AMS310 V1.0 |
| DRIVERS - SYSTEMS | AMS310 Driver DVD |
