Intelligent System

AMS300

Compact Expandable Fanless System with 7th/6th Gen Intel® Core™ i7/i5/i3 Desktop Processors (35W TDP)

  • Compact fanless system with IBASE MB300 customized board
  • 7th/6th Gen Intel® Core™ i7/i5/i3 Processors (35W TDP)
  • 2MB MRAM module (optional)
  • Front removable drive bay for HDD/SSD (supports RAID 0/1)
  • Over/Under/Reverse voltage protection
  • iSMART, iAMT (11.6)
  • 15 years life time
  • iSMART
  • Fanless
  • IEC 62368-1 EN 62368-1
  • Microsoft Azure Certified-IoT

The AMS300 is a compact, yet expandable fanless system designed for industrial control and measurement processes in smart factory automation applications. It is powered by 7th/6th Gen Intel® Core™ i7/i5/i3 processors and comes integrated with 8GB memory as well as 64GB of industrial-grade SSD storage. An optional 2MB MRAM expansion module is available to store data even without power. The AMS300 is built with two module compartments for PCI-E/PCI cards and Fieldbus modules, giving flexibility to customers to configure the various I/O required. The unit also features high vibration and shock resistance crucial for deployment in harsh conditions and all interfaces situated on one side for easy assembly and expansion.

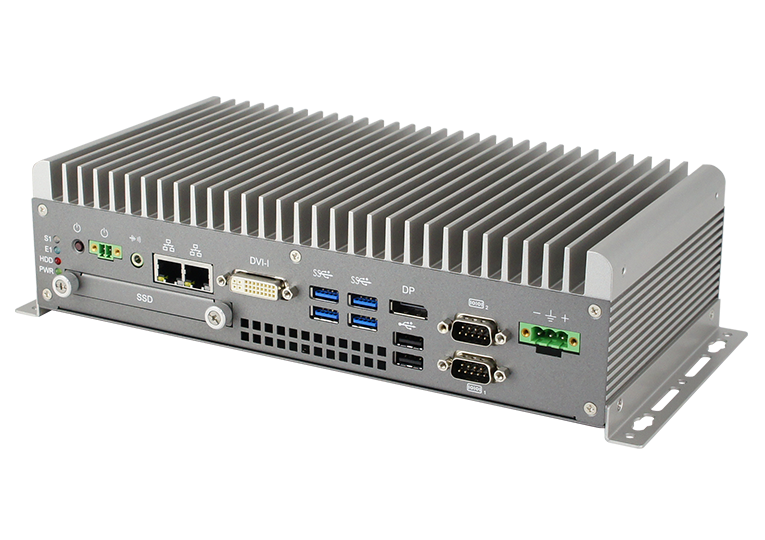

AMS300 Compact Expandable Fanless System

Built with a passive finned heat sink, the rugged AMS300 boasts of superb thermal performance while reliably operating at a temperature range of -10°C to 60°C. It adopts wall, side and DIN-rail mounting to securely fit in space-constrained and industrial environments. Advanced features include iAMT (11.6) for remote management and repair of systems and IBASE’s owned iSMART technology that enables energy-efficient systems with various power-saving functions. AMS300 offers extensive I/O connectivity including a drive bay with RAID 0/1 support, a 24V DC terminal block, 4x USB 3.0 which can be used as machine vision camera interface, 2x USB 2.0, 2x COM, 2x Gigabit Ethernet and video outputs for DVI-I and DisplayPort interface.


To meet customer specific requirements, the AMS301, an AMS300 variant model, houses an extension module with an IP301 card with 3x mPCIe slots that can be installed with optional PROFINET and PROFIBUS Fieldbus modules. The AMS302, on the other hand, has an IP302 expansion card with interface for USB, COM, PCI-E(x8) and PCI-E(x4) devices.

System Mainboard MB300 with Intel® Q170 PCH
CPU Type 7th/6th Gen Intel® Core™ i7/i5/i3 desktop Processors (35W TDP)
System Speed Up to 3.4GHz
Memory 2x DDR4-2133 SO-DIMM, Max. 32GB
Front Panel External I/O 2x Antenna hole for WLAN module

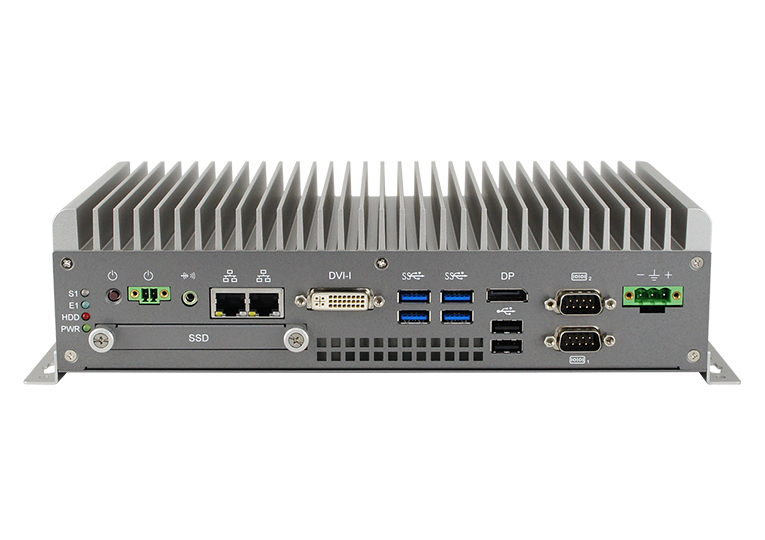

Rear Panel External I/O 1x DVI-I + 1x DisplayPort connector
1x Audio jack for Line-out
4x USB 3.0 ports, 2x USB 2.0 ports
1x Red HDD LED, 1x green power LED
2x Error LED by programming
1x Power button
1x 2-pin terminal block for external power button
1x RS232/422/485 port for COM#1
1x RS232 port for COM#2
2x RJ45 Gigabit Ethernet port
1x 3-pin DC-in terminal block for 24V(±10%)
Expansion Slots 1x Mini PCI-E socket (full-size)
Storage 2x 2.5" HDD/SSD (1x internal & 1x external-accessible) + 1x mSATA socket
Construction Aluminum & steel
Chassis Color Silver & Gray
Mounting Desktop or wall mounting (wall mount kit included)

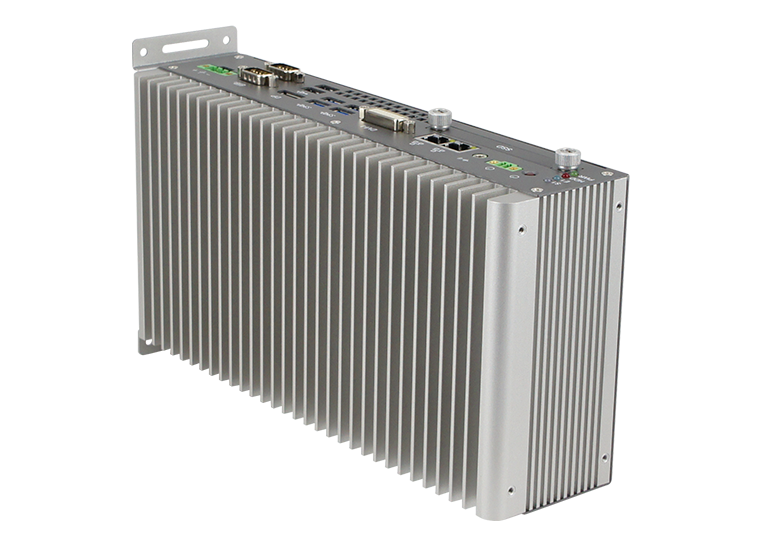

Side mounting

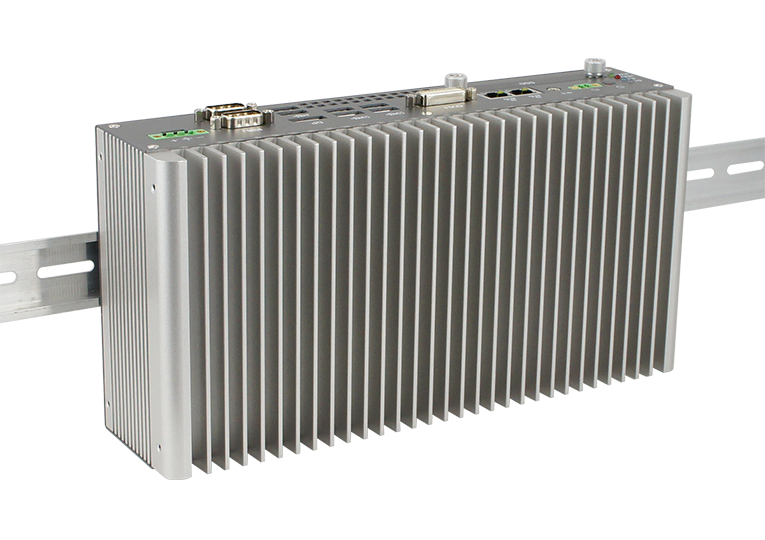

DIN-rail mounting (optional)
Dimensions 275mm (W) x 140mm (D) x 70mm (H)
10.83" (W) x 5.51" (D) x 2.76" (H)
Weight 2.7kg
Operating Temperature -10°C to 60°C (14°F~140°F) *with air flow
-10°C to 50°C (14°F to 122°F) without air flow
Storage Temperature -20°C to 80°C (-4°F to 176°F)
Relative Humidity 5~90% @ 45°C, (non-condensing)
Vibration Operating: 3 grms / 5~500Hz / random operation (storage is mSATA)
Shock Operating: 20 g / 11 ms
Non-operating: 40 g / 11 ms
Certification CE / LVD / FCC Class-B
AMS300 Fanless System with MB300, w/ Intel® Core™ i7/i5/i3 desktop Processor, 2x COM, 2x 4GB memory, 1x 2.5” 64GB MLC industrial-grade SSD, w/o power adaptor
180W power adaptor (Optional) 180W (24V @7.5A) power adaptor, bare wire type
Compatible with IEC62368-1/EN62368-1
2nd storage BRK (Optional) Storage ACC Kit including screws and cable (SC2AMS300--A10100R)
Optional Accessories WiFi/BT antenna kit
4G/LTE antenna kit (Must have M2MU2-S)
GPS antenna kit (Must have M2MU2-S)
