Intelligent System

AMI242

Expandable Fanless & Ventless System with 14th /13th Gen Intel® Core™ i9/i7/i5/i3 desktop processors (35W TDP)

  • Fanless system with iBASE MBE240 proprietary board
  • 14th/13th Gen Intel® Core™ desktop processors
  • Support DDR5-5600 memory, up to 64GB Max. (ECC can be optional)
  • 2x Intel® 2.5G LAN, 2x Intel® GbE (Support 802.3 at PoE++), 3x M.2 sockets (M-Key/B-Key/E-Key)
  • Support PCI Express Generation 5 for 1x PCI-E(16x) expansion slot
  • Support Over/Under/Reverse voltage protection
  • Dual SIM slots support WWAN redundancy, iAMT (16.1), dTPM(2.0)
  • 2x 2.5” Storage (Support RAID 0/1)
  • NEW
  • Fanless
  • Wide Temperature
  • IP40
System Mainboard MBE240AF with Intel Q670E PCH (Non-ECC memory)
MBE240AF-R with Intel® R680E PCH (Support ECC memory)
CPU Type 14th/ 13th Intel® core i9/i7/i5/i3 desktop processors (35W TDP)
System Speed Up to 5.0GHz
Memory 2x DDR5-5600 SO-DIMM, Max. 64GB

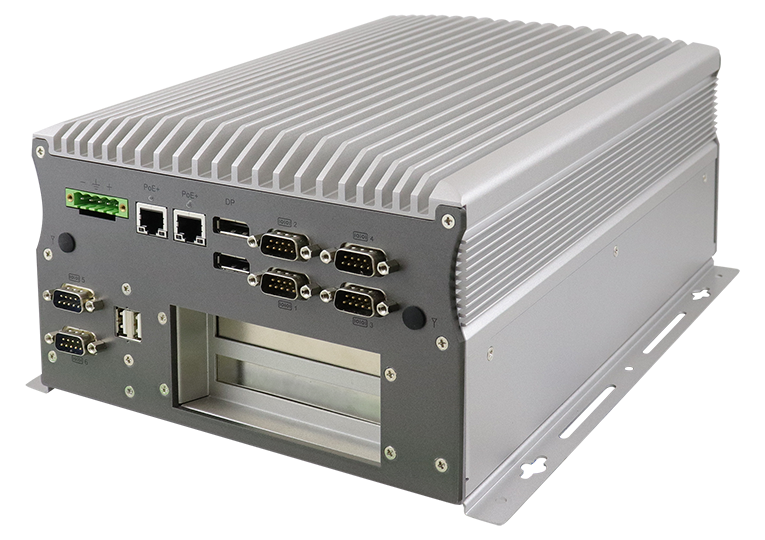

Front Panel External I/O 2x RS232/422/485 port for COM#1~COM#2
2x RS232 ports for COM#3~COM#4
2x RS232 ports for COM#5~COM#6 (from IP218)
2x DisplayPort
2x RJ-45 GbE port (Supports 802.3at PoE++)
1x 5-pins DC-in terminal block type for +24V
2x Antenna holes
2x USB 2.0 from IP218
2x expansion slots

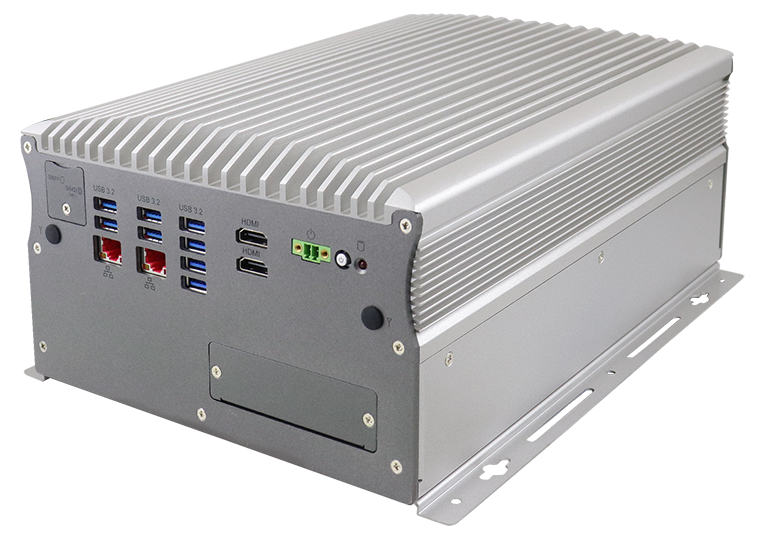

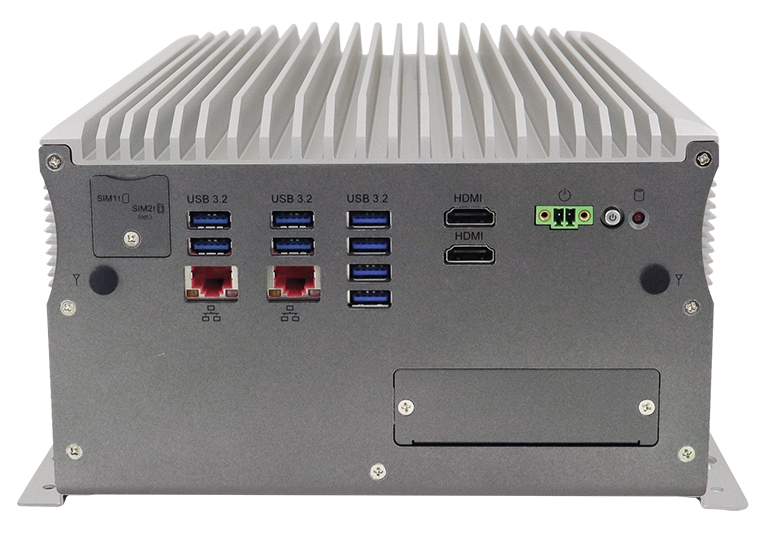

Rear Panel External I/O 2x HDMI
8x USB 3.2 ports
2x Antenna holes
2x RJ-45 2.5G port
1x RED HDD/SSD LED
1x Power button with Green LED indicator
1x 2-pin terminal block for On/Off
2x SIM card slots
Expansion Slots 1x PCI-E (16x) expansion slot for Gen.5 device
1x M.2 B-Key 3052 (LTE/5G/4G)
1x M.2 E-Key 2230 (WIFI/BT)
1x M.2 M-Key 2280 (NVMe / SATA SSD)
Storage 2x 2.5” storage
Construction Aluminum @ Gray
Chassis Color Silver & Gray
Mounting Desktop & wall mount
Dimensions 210mm(W)0 x 285mm(D) x 129mm(H
Others Power Requirement +24V DC-in
Windows 10 /11, Ubuntu
Weight 4.9 kg
Operating Temperature -20 °C ~ +70 °C (-4°F~158°F) [with 35W CPU and DDR5 memory]
Storage Temperature -20°C~+80°C (-4°F~176°F)
Relative Humidity 5%~90%@45°C (non-condensing)
Vibration Operating: 3.0 Grms / 5~500Hz
Shock Operating: 20G/11 ms Duration
Certification CE, FCC & LVD
AMI242AFM (AMI) Aluminum Chassis with MBE240 (Q670E PCH), Fanless Design w/o CPU/memory/SSD/Power adaptor, Support iAMT (16.1), mounting brackets, 1x expansion slot (IP218 riser card) (RoHS2)
AMI242AFM-R (AMI) Aluminum Chassis with MBE240 (R680E PCH), Fanless Design w/o CPU/ECC memory/SSD/Power adaptor, Support iAMT (16.1), mounting brackets, 1x expansion slot (IP218 riser card) (RoHS2)
