Compact Expandable Fanless System with 7th/6th Gen Intel® Core™ i7/i5/i3 Desktop Processors (35W TDP)

  • Fanless system with IBASE MB220 customized board
  • 7th/6th Gen Intel ® Core™ i7/i5/i3 Processors (35W TDP)
  • Supports three independent display outputs
  • Flexible expansion slot system
  • Dual SIM slots support WWAN redundancy
  • 2x 2.5" HDD/SSD (Supports RAID 0/1)
  • 12V(-10%) ~ 24V(+10%) DC wide-range voltage input
  • Over/Under/Reverse voltage protection
  • iSMART, iAMT (11.6), (TPM 2.0)
  • 15 years life time
  • iSMART
  • Fanless
  • IEC 62368-1 EN 62368-1
  • IP40

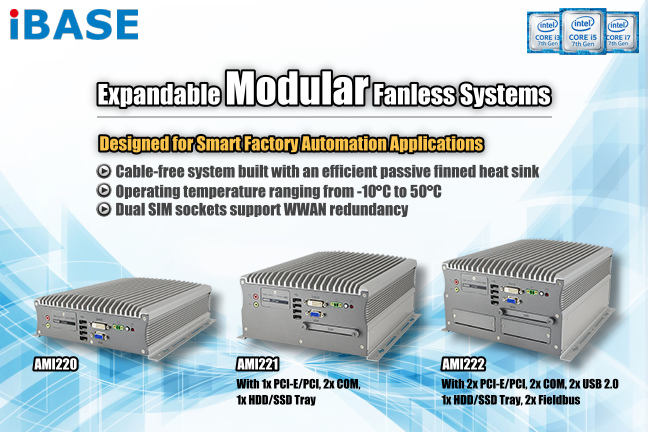

The AMI222 is an expandable modular fanless system supporting the 7th/6th Gen Intel® Core™ i7/i5/i3 desktop processors designed for industrial-grade solutions in smart factory automation and retail applications.

It is an innovative fanless and cable-free system built with an efficient passive finned heat sink and an industrial-grade motherboard that has a rich I/O interface and a power supply with over-voltage, low voltage and anti-plug protection. The AMI222 comes with modular expansion slots to accommodate diverse PCI-E, PCI or Fieldbus cards, which can be arbitrarily changed to increase system assembly flexibility and create the ideal solution according to customer specification needs. The systems are based on the Intel® Q170 and the H110 chipsets and powered by Intel® Core processors with speeds up to 3.4GHz. These platforms feature 8GB of DDR4-2133 system memory expandable to 32GB, triple independent displays via its DVI/VGA/DP interface and 2x Gigabit LAN with option to add a third GbE.

 AMI222 Compact Expandable Fanless System

The rugged AMI222 is suitable for demanding applications in harsh environments. It has an operating temperature range of -10°C to 50°C with enhanced passive cooling for maximum thermal performance. It also supports 12V to 24V wide-range voltage input and a cable-less design for added durability and reliability. The redundant dual SIM sockets provide a more reliable WWAN connection for critical applications. Standard features include 8x USB, 4x COM, a wall-mount kit, a 64GB industrial-grade SSD storage and a 2nd storage option for RAID (0/1) function.

System Mainboard MB220AF-1 with Intel® Q170 PCH
MB220EF-1 with Intel® H110 PCH
CPU Type 7th/6th Gen Intel® Core™ i7/i5/i3 desktop processors (35W TDP)
System Speed Up to 3.4GHz
Memory 2x 2GB DDR4-2400 SO-DIMM, Max. 32GB

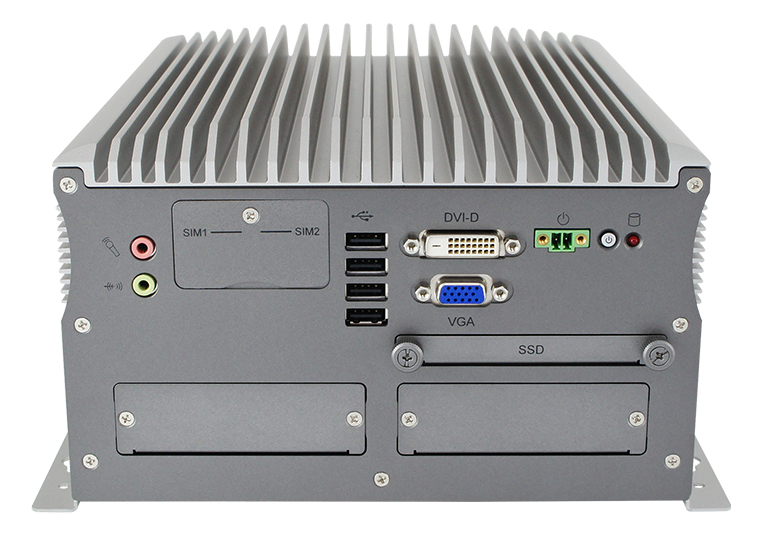

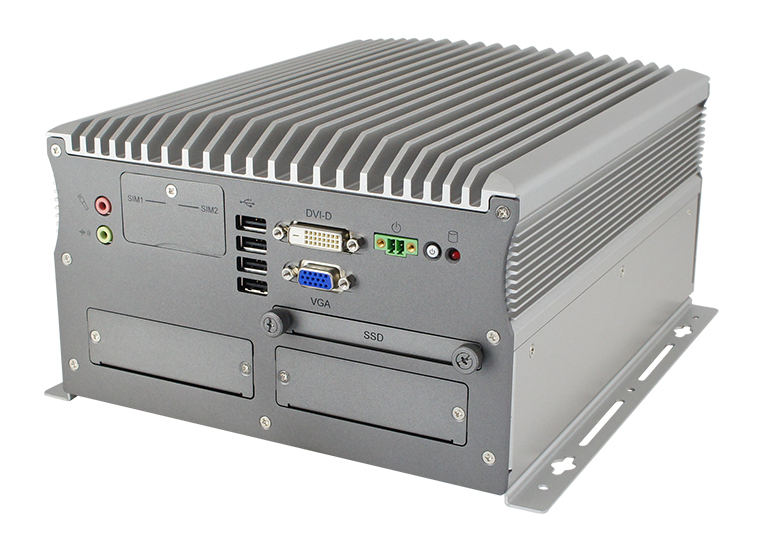

Front Panel External I/O 1x DVI-D + 1x VGA
1x Audio jack for MIC-in / Line-out
4x USB 2.0 ports
1x Red HDD LED
1x Power button with green LED indicator
2x SIM card slots
1x 2-pin terminal block for external power button
1x Front removable drive bay for SSD

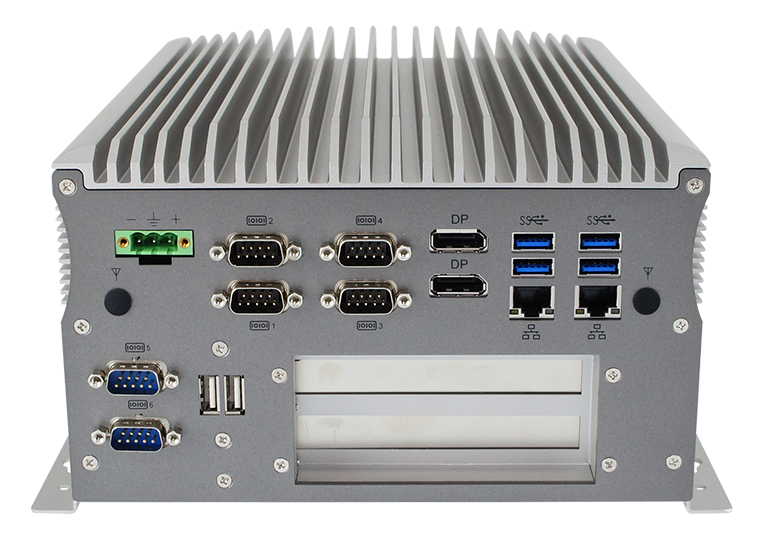

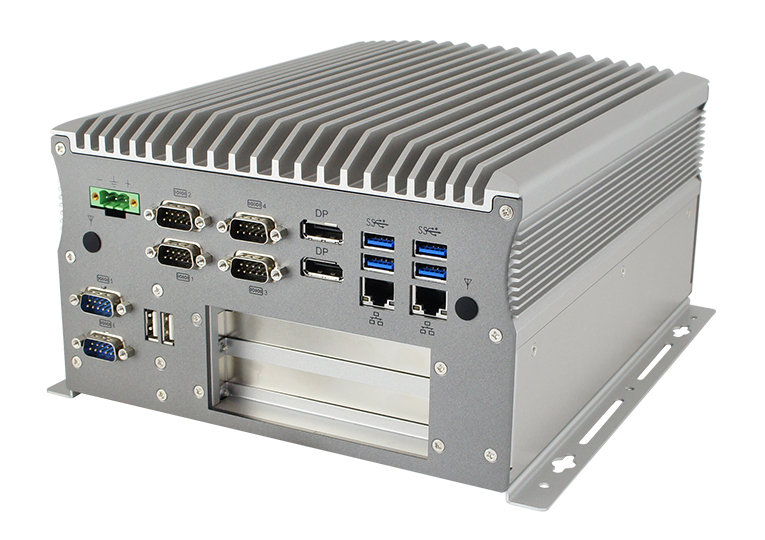

Rear Panel External I/O 1x RS232/RS422/485 port for COM#1
5x RS232 port for COM#2/COM#2~6
2x DisplayPort connector
1x RJ45 Gigabit Ethernet port + 2x USB 3.0 port
1x RJ45 Gigabit Ethernet port + 2x USB 3.0 port
1x 3-pin DC-in terminal block for 12V(-10%)~24V(+10%)
2x USB 2.0 port (AMI222AF only)
2x Antenna holes
2x Expansion slots
Expansion Slots 2x Mini PCI-E sockets
Storage 2x 2.5" HDD/SSD (1x internal & 1x external-accessible)
2x mSATA (AMI222AF only) & 1x mSATA (AMI222EF only)
RAID 0,1,5,10 supported (AF version only)
Construction Aluminum & steel
Chassis Color Silver & Gray
Mounting Desktop or wall mount (wall mount kit included)
Dimensions 210mm (W) x 265mm (D) x 128.6mm (H)
8.27" (W) x 10.43" (D) x 5.06" (H)
Weight 4.3kg
Operating Temperature -10°C to 50°C (14°F~122°F)
Storage Temperature -20°C ~ 80°C (-4°F~176°F)
Relative Humidity 5~90% @ 45°C, (non-condensing)
Vibration Non-Operating: 1.0 grms / 5~500Hz / random operation
Operatiing: 0.25 grms / 5~500Hz / random operation
Shock Operating: 20G/ 11ms
Non-Operating: 40G/ 11ms (MIL-STD-810G)
Certification CE / LVD / FCC Class-B
AMI222AF Fanless box system with MB220AF, w/ Intel® Core™ i7/i5/i3 desktop Processor, 6x COM (from IP211 / IP212), 2x 4GB memory, 1x 2.5” 64GB MLC industrialgrade SSD, w/o power adaptor, optional riser card
AMI222EF Fanless box system with MB220EF, w/ Intel® Core™ i7/i5/i3 desktop Processor, 6x COM (from IP211 / IP212), 2x 4GB memoy, 1x 2.5” 64GB MLC industrialgrade SSD, w/o power adaptor, optional riser card
IP211 Riser Card Kit (optional) IP211 (ZM05IP211---0B1000P) w/ COM cable (2x C501PK1H009302A00P) for AMI222/AMI232
IP212 Riser Card Kit (optional) IP212 (ZM05IP212---0A1000R) w/ COM cable (2x C501PK1H009302A00P) for AMI222/AMI232
IP213 Riser Card Kit (optional) IP213 (ZM05IP213---0A1000R) w/o COM cable for AMI222/AMI232
150W power adaptor (Optional) 150W (12V @12.5A) power adaptor, bare wire type
Compatible with IEC62368-1/EN62368-1
Optional Accessories GPS antenna kit


Model Chipset Video Audio Network Others

Intel(R) Chipset Software Installation Utility

Windows 7 & 8 & 10

Intel(R) HD Graphics

Windows 7 & 8 (32bit)

Realtek High Definition Audio

Windows 7 & 10

Intel(R) PRO LAN Network

Windows 7 (32bit)

Intel(R) USB 3.0

Windows 7


Windows 7

Note: In Windows 7 OS, a patch kmdf-1.11-win7(KB2685811) should be installed before install ME Intel(R) ME 11.x

Windows 7 & 8
