Intelligent System
AMI220
Compact Fanless & Ventless System with 7th/6th Gen Intel® Core™ i7/i5/i3 Desktop Processors (35W TDP)
- Fanless system supports IBASE MB220 proprietary board
- 7th/6th Gen Intel ® Core™ i7/i5/i3 Processors (35W TDP)
- Supports three independent display outputs
- Flexible expansion slot system
- Dual SIM slot supports WWAN redundancy
- 12V(-10%) ~ 24V(+10%) DC wide-range voltage input
- Over/Under/Reverse voltage protection
- iSMART, iAMT (11.6), TPM (2.0)
The AMI220 is an expandable modular fanless system supporting the 7th/6th Gen Intel® Core™ i7/i5/i3 desktop processors designed for industrial-grade solutions in smart factory automation and retail applications.
It is an innovative fanless and cable-free system built with an efficient passive finned heat sink and an industrial-grade motherboard that has a rich I/O interface and a power supply with over-voltage, low voltage and anti-plug protection. The AMI220 comes with modular expansion slots to accommodate diverse PCI-E, PCI or Fieldbus cards, which can be arbitrarily changed to increase system assembly flexibility and create the ideal solution according to customer specification needs. The systems are based on the Intel® Q170 and the H110 chipsets and powered by Intel® Core processors with speeds up to 3.4GHz. These platforms feature 8GB of DDR4-2133 system memory expandable to 32GB, triple independent displays via its DVI/VGA/DP interface and 2x Gigabit LAN with option to add a third GbE.
The rugged AMI220 series is suitable for demanding applications in harsh environments. It has an operating temperature range of -10°C to 50°C with enhanced passive cooling for maximum thermal performance. It also supports 12V to 24V wide-range voltage input and a cable-less design for added durability and reliability. The redundant dual SIM sockets provide a more reliable WWAN connection for critical applications. Standard features include 8x USB, 4x COM, a wall-mount kit, a 64GB industrial-grade SSD storage and a 2nd storage option for RAID (0/1) function.
| System Mainboard | MB220AF-1 with Intel® Q170 PCH MB220EF-1 with Intel® H110 PCH |
| CPU Type | 7th/6th Gen Intel® Core™ i7/i5/i3 desktop processors (35W TDP) |
| System Speed | Up to 3.4GHz |
| Memory | 2x 2GB DDR4-2400 SO-DIMM, Max. 32GB |

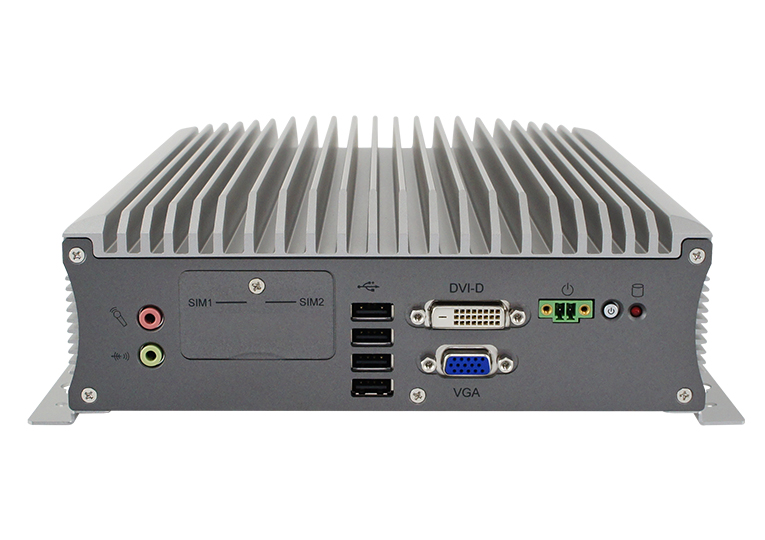

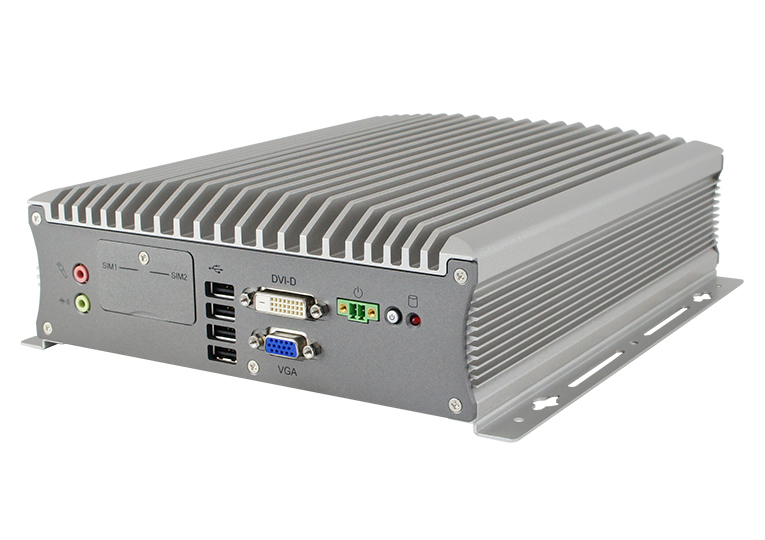

| Front Panel External I/O | 1x DVI-D + 1x VGA 1x Audio jack for MIC-in / Line-out 4x USB 2.0 ports 1x Red HDD LED 1x Power button with green LED indicator 2x SIM card slots 1x 2-pin terminal block for external power button |

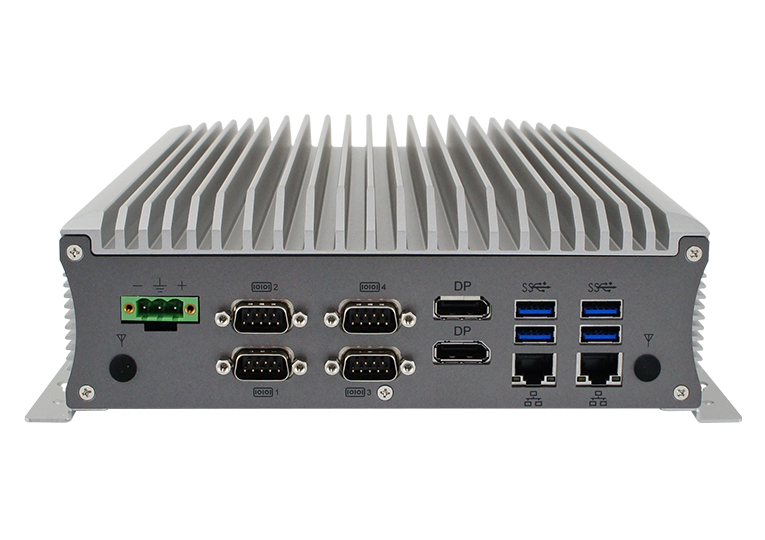

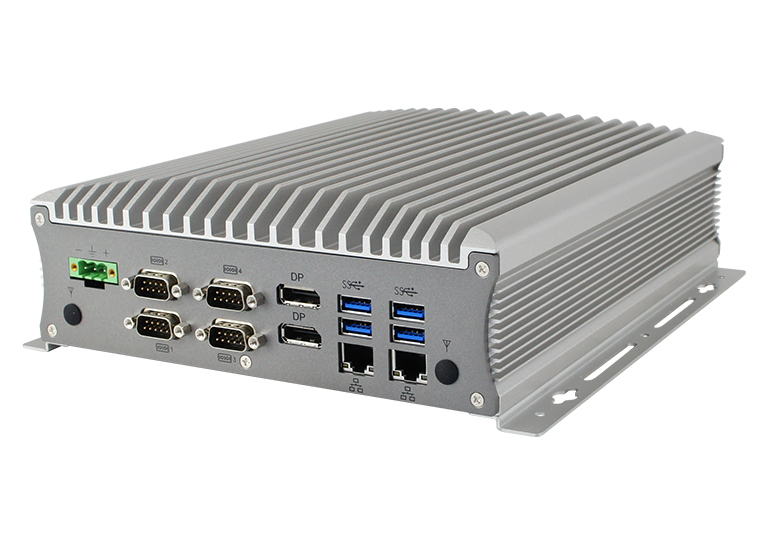

| Rear Panel External I/O | 1x RS232/RS422/485 port for COM#1 3x RS232 port for COM#2/COM#3/COM#4 2x DisplayPort connector 1x RJ45 Gigabit Ethernet port + 2x USB 3.0 ports 1x RJ45 Gigabit Ethernet port + 2x USB 3.0 ports 1x 3 pin DC-in terminal block for 12V(-10%) ~ 24V(+10%) 2x Antenna holes |
| Expansion Slots | N/A |
| Storage | 1x 2.5" HDD/SSD 2x mSATA (AMI220AF only) & 1x mSATA (AMI220EF only) RAID 0,1,5,10 supported (AF version only) |
| Construction | Aluminum & steel |
| Chassis Color | Silver & Gray |
| Mounting | Desktop or wall mount (wall mount kit included) |
| Dimensions | 210mm (W) x 265mm (D) x 77mm (H) 8.27" (W) x 10.43" (D) x 3.03" (H) |
| Weight | 3.6kg |
| Operating Temperature | -10°C to 50°C (14°F~122°F) |
| Storage Temperature | -20°C ~ 80°C (-4°F~176°F) |
| Relative Humidity | 5~90% @ 45°C, (non-condensing) |
| Vibration | Non-Operating: 1.0 grms / 5~500Hz / random operation Operatiing: 0.25 grms / 5~500Hz / random operation |
| Shock | Operating: 20G/ 11ms Non-Operating: 40G/ 11ms (MIL-STD-810G) |
| Certification | CE / LVD /FCC Class-B / CCC |
| AMI220AF | Fanless box system with MB220AF, w/ Intel® Core™ i7/i5/i3 desktop Processor, 4x COM, 2x 4GB memory, 1x 2.5” 64GB MLC industrial-grade SSD, w/o power adaptor |
| AMI220EF | Fanless box system with MB220EF, w/ Intel® Core™ i7/i5/i3 desktop Processor, 4x COM, 2x 4GB memory, 1x 2.5” 64GB MLC industrial-grade SSD, w/o power adaptor |
| 150W power adaptor (optional) | 150W (12V @12.5A) power adaptor, bare wire type Compatible with IEC62368-1/EN62368-1 |
| Optional Accessories | GPS antenna kit |
| DATASHEETS | AMI220 |
| CATALOGS | Intelligent Systems (Vol.05) |
| USER'S MANUALS | AMI220/AMI221/AMI222 V1.2 |
| DRIVERS - SYSTEMS | AMI220/AMI221/AMI222 Driver DVD |
