Intelligent System
EC3000
Edge AI Computer with NVIDIA® Jetson Orin NX / Nano series
- NVIDIA® Jetson Orin NX and Nano series module
- 1x GbE LAN
- 1x Micro USB supports OS flash
- 2x USB 3.2 Gen2 Type-A
- 2x USB 2.0 Type-A
- 2x COM/DIO/CANBus, 1x HDMI
- 1x M.2 3042/3052 B-key for 4G/5G/M.2 2242 B+M-key NVMe SSD
- 1x M.2 2230 E-key WiFi/BT/NVMe SSD
- Wide power input range +12V to +24V DC
- Supports Ubuntu 22.04 OS
| System Mainboard | NVIDIA® Jetson Orin NX 8GB/Orin Nano 4GB SOM + carrier board |
| CPU Type | 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 |
| System Speed | EC3000-NX-8: 2.0 GHz EC3000-NANO-4: 1.5 GHz |
| Memory | NVIDIA® Jetson Orin NX: 8GB 128-bit LPDDR5 102.4 GB/s NVIDIA® Jetson Orin Nano: 8GB 128-bit LPDDR5 102 GB/s NVIDIA® Jetson Orin Nano: 4GB 64-bit LPDDR5 51 GB/s |

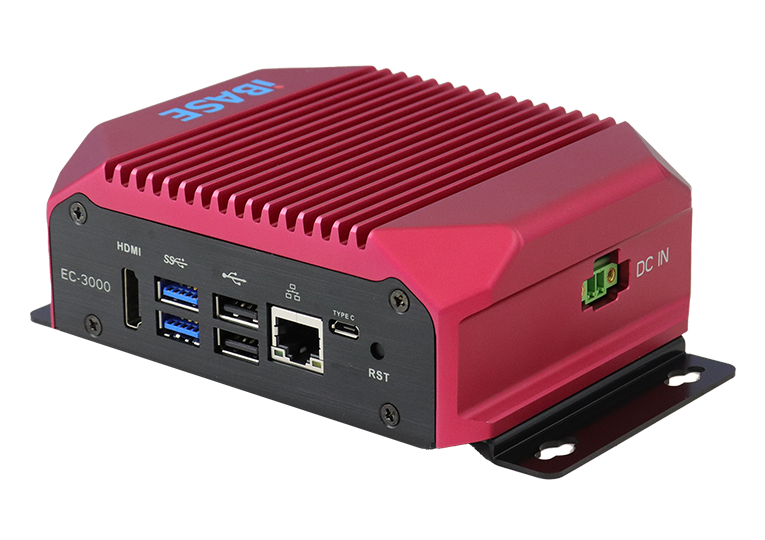

| Front Panel External I/O | 1x Gigabit Ethernet (10/100/1000), RJ45 with LED 1x HDMI Type-A 2x USB 3.2 Gen2 Type-A 2x USB 2.0 Type-A 1x Micro USB connector supports Recovery Mode and OTG 1x Power LED 1x Recovery button |

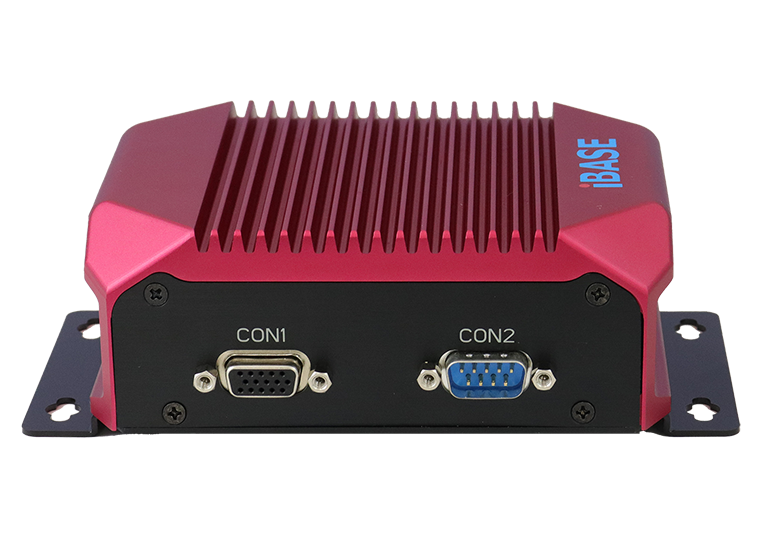

| Rear Panel External I/O | 1x DB9 connector for RS-232/485 and CanBus 1x DB15 connector for RS-232/422/485 and DIO x8 2x Antenna 1x 12-24V DC input with 2 pins terminal block |
| Expansion Slot | 1x M.2 3042/3052 B-key (4G/5G/M.2 2242 B+M Key storage) 1x M.2 E-Key (2230) (WiFi/BT/Storage) |
| Storage | 1x M.2 2242 B+M Key NVMe or M.2 2230 E-Key NVMe |
| Construction | Aluminum & steel |
| Chassis Color | Black & Red |
| Mounting | wall mount |
| Weight | 0.8kg |
| Dimensions | 130mm (W) x 102mm (D) x 47.5mm (H) |
| Operating Temperature | -15°C~55°C (-5°F~131°F) |
| Relative Humidity | 5%~95% (non-condensing) |
| Vibration | Operatiing: 1 grms / 3~500Hz / random operation |
| Shock | Operating: 20 g / 11 ms Non-operating: 40 g / 11 ms |
| Certification | CE/FCC Class B |
| EC3000-NX-8 | NVIDIA Jetson Orin NX 8GB, 1 x HDMI, 1x GbE, 5x USB, M.2 B+M/E Key, 12V to 24V DC input, -15°C ~ + 55°C operating temperature, with power adaptor, with RTC battery |
| EC3000-NANO-8 | NVIDIA® Jetson Orin Nano 8GB, 1x HDMI, 1x GbE, 5x USB, M.2 B+M/E Key, 12V to 24V DC input, -15°C ~ + 55°C operating temperature, with power adapter, with RTC battery |
| EC3000-NANO-4 | NVIDIA Jetson Orin Nano 4GB, 1 x HDMI, 1x GbE, 5x USB, M.2 B+M/E Key, 12V to 24V DC input, -15°C ~ + 55°C operating temperature, with power adaptor, with RTC battery |
| DATASHEETS | EC3000 |
| CATALOGS | Intelligent Systems (Vol.25.01) |
