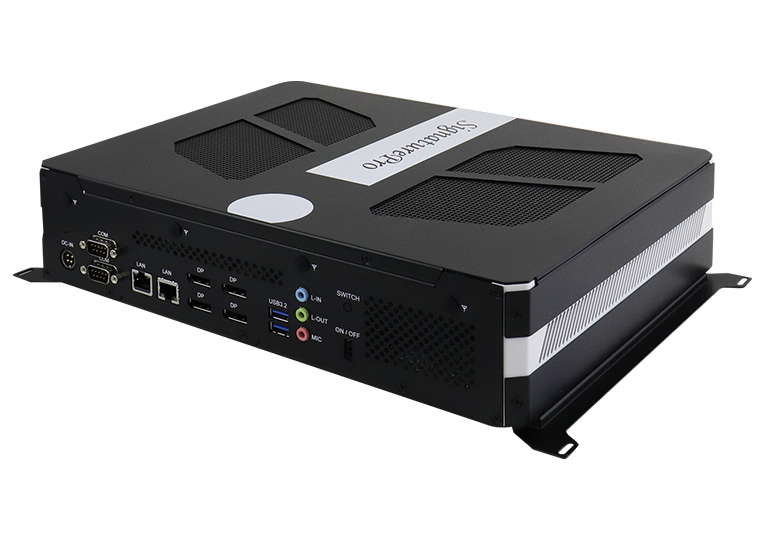

Intelligent System

SI-624-AI

Edge AI Computer with 13th/12th Gen Intel® Core™ processors & NVIDIA Ampere Architecture MXM GPU cards

  • iSMART intelligent energy-saving & Observer remote monitoring technologies
  • 13th/12th Gen Intel® Core™ i7/i5/i3 Pentium® / Celeron® QC/DCprocessors
  • NVIDIA Ampere Architecture MXM GPU cards (Type A/B, up to 115W)
  • 4x DDR4-3200 U-DIMM, Max. 128GB
  • 1x HDMI 1.4 for console, 4x DisplayPort
  • 1x M.2 E-Key (2230) for Wi-Fi, Bluetooth or capture card options
  • 1x M.2 B-Key (3052), for 5G options
  • 2x M.2 NVMe SSD drive bay
  • Supports OOB function via I210 LAN port (option)
  • Supports TPM 2.0
  • Compact and rugged design
  • 5G
  • AI Solution
  • iSMART
  • iCONTROL
  • Observer
  • 2024 Taiwan Excellence

The SI-624-AI is an edge AI computer which won the Embedded Computing Design’s Embedded World 2023 Best in Show Award in Germany. It is designed to meet the demands of high-speed multiple tasks for AI deep learning. Powered by the 13th/12th Gen Intel® Core™ CPU and incorporating the NVIDIA Ampere Architecture MXM GPU, this cutting-edge system delivers image processing capabilities that enable real-time analysis of visual data, enhancing automation, quality control, and overall production efficiency for AIoT applications in smart factory, retail, transportation or medical fields. It is suitable for use as a digital signage control system in mission-critical control rooms in transportation networks, smart retail, healthcare, or AI education where remote AI data analysis capabilities are required.


SI-624-AI Industrial AI Computer

 The compact SI-624-AI features four DP++ outputs for simultaneous high-resolution displays in multi-monitor configurations and reliably delivers high-quality live video or AI analytics content with 4x 4K or 2 x 8k display outputs, enabling institutions to connect and communicate with their audiences. It is equipped with iSMART intelligent energy-saving and Observer remote monitoring technologies to reduce energy consumption and minimize downtime.


The system boasts versatile connectivity options with various M.2 slots (B/E/M-Key) for seamless integration of additional functionalities and expansion cards. It also supports OOB (Out-of-Band) management and PDPC (Peripheral Device Power Control) functions to effectively manage devices in case of OS crashes, malfunctions or external device issues. Its TPM 2.0 helps safeguard sensitive information in AI-driven environments.

System Mainboard MBD624
CPU Type 13th/12th Gen Intel® Core™ processors
System Speed Up to Max. 5.0/3.8 Ghz
Memory 4x DDR4-3200 U-DIMM, Max. 128GB, ECC compatible
AI Accelerator NVIDIA Ampere Architecture MXM GPU card/ up to 5888 CUDA cores / 17.66 TFLOPS peak FP32 performance / 184 Tensor Cores
LAN 2x Gigabit LAN
Front Panel External I/O 1x HDMI 1.4 for console
1x HDMI-in for capture card (optional)
2x USB 3.2
1x Power / HDD LED
1x Power button

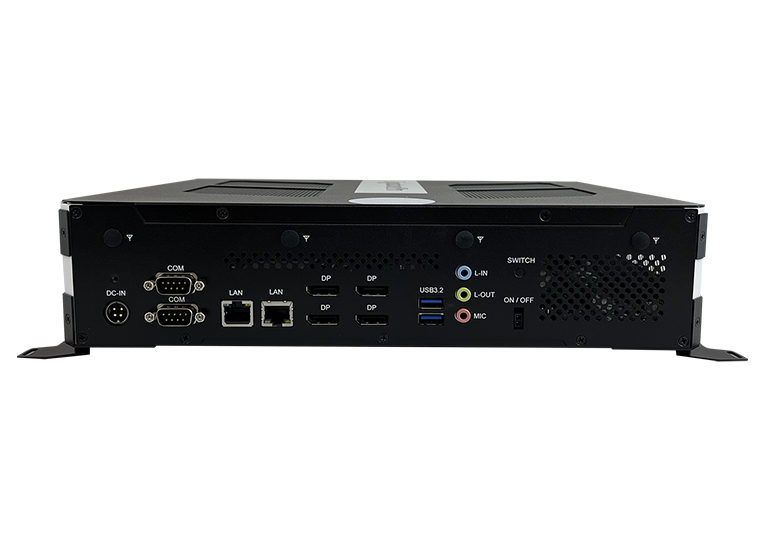

Rear Panel External I/O 4x DisplayPort
2x USB 3.2
2x RJ45 for Gigabit LAN
2x RS-232 serial port
1x Audio connector for Line-in/out/MIC
1x Power jack connector
Expansion Slot 1x M.2 (M-Key, type:2280, supports NVMe with PCI-E(x4) Gen.4 signal only)
1x M.2 (E-Key, type: 2230, 2x PCI-E(x1), USB 2.0; supports CNVi)
1x M.2 (B-Key, type:3052, supports 5G/4G/LTE)
1x UIM/SIM card slot
Storage 1x M.2 M-Key (2280)
Auto Control and Monitoring Watchdog Timer: 256 segments, 0, 1, 2...255 (sec/min)
Power Requirement +19V DC
Power Supply 330W power adaptor
Construction SGCC
Chassis Color Black and white
Mounting Standard system bracket
Weight 3.8kg (8.38lbs)
Dimensions 329.2mm(W) x 210mm(D) x73.1mm(H)
129.6”(W) x 82.6”(D) x 28.7”(H)
Operating Temperature 0°C~ 45°C (32°F~113°F)
Storage Temperature -20°C ~ 80°C (-4°F~176°F)
Relative Humidity 5%~90% @45°C (non-condensing)
Vibration SSD: 5 grms / 5~500Hz / random operation
Shock Operating : 20G / 11ms
Non-operating : 40G / 11ms
Certification CE, FCC class-B, UL & CCC
Operating System Windows10 / Linux
SI-624-AI Edge AI Computer with MBD624 with 13th/12th Gen Intel® Core™ processors, 1x Nvida MXM GPU card, M.2 128GB, 2x 8GB DDR4-3200 U-DIMM and 330W power adaptor
