IB961

13th Gen Intel® Core™ (Raptor Lake-P) 3.5-inch Single Board Computer

  • Onboard 13th Gen Intel® Core™ i7/i5/i3 mobile processors
  • 1x DDR5 SO-DIMM, Max. 32GB
  • Supports 2x DisplayPort (1.2), LVDS and eDP
  • 2x Intel® PCI-E 2.5G LAN
  • 3x USB 2.0, 3x USB 3.2, 2x COM, 2x SATA III
  • 3x M.2 slots (M-Key + E-key + B-key)
  • Supports 5G, digital I/O (4-in/4-out), fTPM & watchdog timer
  • Supports wide-range operating temperature from -40°C to 75°C (Only IB961AF-I7PRE)
  • 5G
  • Wide Temperature
  • Wide-range power input

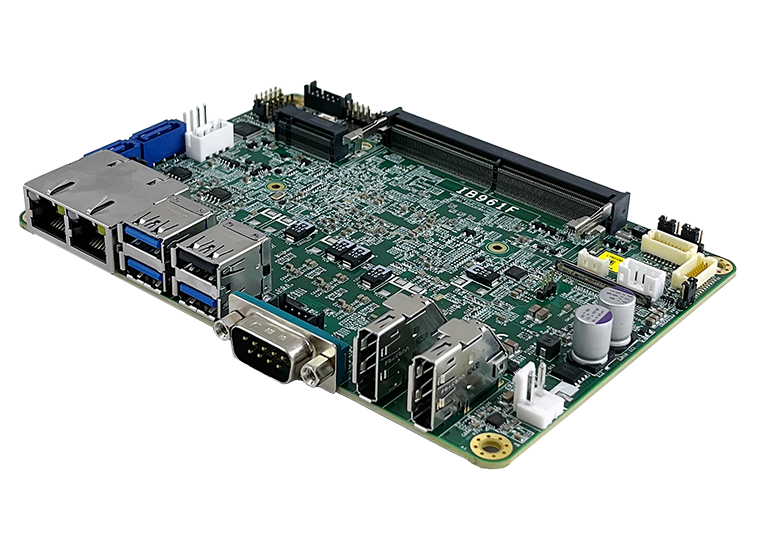

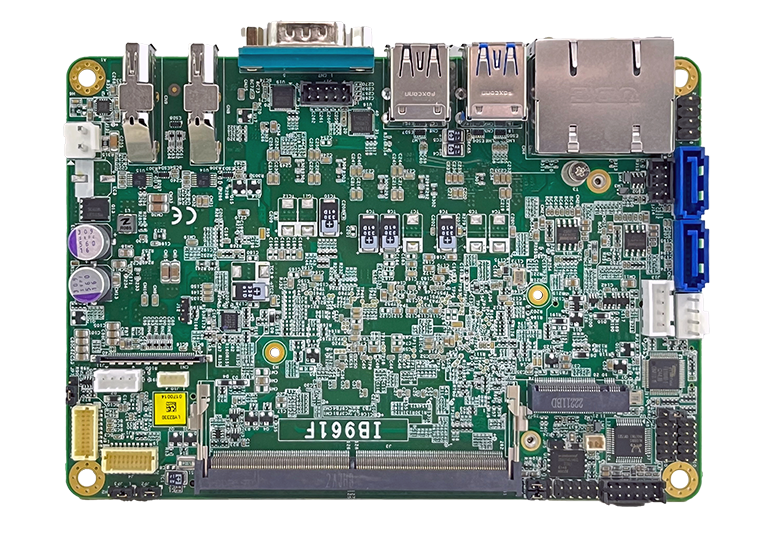

The IB961 3.5" Single Board Computer (SBC) is engineered for peak performance, extensive connectivity, and unmatched versatility. Harnessing the prowess of 13th Gen Intel® Core™ processors, including the i7-1370PE, i5-1340PE, i5-1335UE, and i3-1320PE, the IB961 delivers exceptional computing capabilities across diverse applications. These processors advance performance hybrid architecture with up to 6 Performance-cores (P-core) and up to 8 Efficient-cores (E-core), ensuring unparalleled power for memory-intensive tasks.


IB961 3.5" Single Board Computer (SBC) is engineered for peak performance, extensive connectivity, and unmatched versatility.


This compact SBC offers a rich array of connectivity options, including M.2 (M-Key, E-Key, B-Key) mini type slots, and USB 3.2 ports, enabling 5G communications and ensuring seamless integration with peripherals. Dual Intel LAN support guarantees reliable, high-speed network connectivity. Integrated graphics from 13th Gen Intel Core mobile processors provide stunning visuals through 2x DisplayPort (1.2), eDP, and LVDS outputs. The IB961 signifies a leap forward in embedded computing technology, empowering businesses to enhance efficiency and adaptability across diverse industrial applications.


With dimensions measuring 102mm x 147mm, the compact IB961 seamlessly integrates into space-constrained environments. Its rugged design and comprehensive feature set position it as the preferred choice for industrial automation and edge computing applications.

CPU 13th Gen Intel® Core™ i7-1370PRE
13th Gen Intel® Core™ i7-1370PE
13th Gen Intel® Core™ i5-1340PE
13th Gen Intel® Core™ i5-1335UE
13th Gen Intel® Core™ i3-1320PE
PCH N/A
Memory 1x DDR5 SO-DIMM, Max. 32GB
BIOS AMI
Watchdog Timer 256 levels
H/W Monitor Yes
Storage Device Interface M.2 (M2280 for NVMe)
Mini Type Slots 1x M.2 (M-Key, Type:2280, supports NVMe with PCl-E(4x) signal only)
1x M.2 (E-Key, Type:2230, supports CNVi)
1x M.2 (B-Key, Type:3052, supports 5G/LTE)
Graphics Controller 13th Gen Intel® Core™ mobile processor integrated graphics
Video Output 2x DisplayPort (1.2), eDP & LVDS
Ethernet Intel® I226LM as 1st LAN, I226V as 2nd LAN
I/O Chipset Fintek F81804U-I on board
Serial Port 2x COM port
USB 2.0 3x USB 2.0 (1x Type-A ; 2 via pin headers)
USB 3.X 3x USB 3.2 (3x Type-A)
Serial ATA 2x SATA III
Audio 13th Gen Intel® Core™ P-Series processor built-in HD audio + ALC888S codec
TPM fTPM
Others Digital I/O (4-in/4-out) ; +12V~+24V DC-in
Dimensions (L x W) 102mm x 147mm (4“ x 5.8“)
Power Consumption Intel® Core™ i7-2600 3.4GHz w/ 2x 2GB DDR3-1333
+12V:7.66A
Operating Temperature 0°C~60°C (-4°F~140°F)
-40°C~75°C (-40°F~167°F) for IB961AF-I7PRE
Storage Temperature -40°C~80°C (-40°F~176°F)
Relative Humidity 10% ~ 90% (non-condensing)
IB961AF-I7P Intel® Core™ i7-1370PE 3.5" SBC w/ I226LM + I226V 2.5G LAN, VGA (2x DisplayPort (1.2) + eDP + LVDS), 2x SATA III, 2x COM, 3x M.2 (M2280/ E2230& B3052), DC in (12V~24V), supports iAMT, fTPM, optional Heatsink, w/o cable kit, (RoHS 2)
IB961AF-I5P Intel® Core™ i5-1340PE 3.5" SBC w/ I226LM + I226V 2.5G LAN, VGA (2x DisplayPort (1.2) + eDP + LVDS), 2x SATA III, 2x COM, 3x M.2 (M2280/ E2230& B3052), DC in (12V~24V), supports iAMT, fTPM, optional Heatsink, w/o cable kit, (RoHS 2)
IB961F-I3P Intel® Core™ i3-1320PE 3.5" SBC w/ I226LM + I226V 2.5G LAN, VGA (2x DisplayPort (1.2) + eDP + LVDS), 2x SATA III, 2x COM, 3x M.2 (M2280/ E2230& B3052), DC in (12V~24V), supports fTPM, optional Heatsink, w/o cable kit, (RoHS 2)
IB961AF-I5U Intel® Core™ I5-1335UE 3.5" SBC w/ I226LM + I226V 2.5G LAN, VGA (2x DisplayPort (1.2)+ eDP + LVDS), 2x SATA III, 2x COM, 3x M.2 (M2280/ E2230& B3052), DC in (12V~24V), supports iAMT, fTPM, optional Heatsink, w/o cable kit, (RoHS 2)
IB961AF-I7PRE Intel® Core™ I7-1370PRE 3.5" SBC w/ I226IT 2.5G LAN, VGA (2x DisplayPort(1.2) + eDP + LVDS), 2x SATA III, 2x COM, 3x M.2 (M2280/ E2230& B3052), DC in (12V~24V), Supports iAMT, fTPM, Optional Heatsink, w/o cable kit, (RoHS 2)

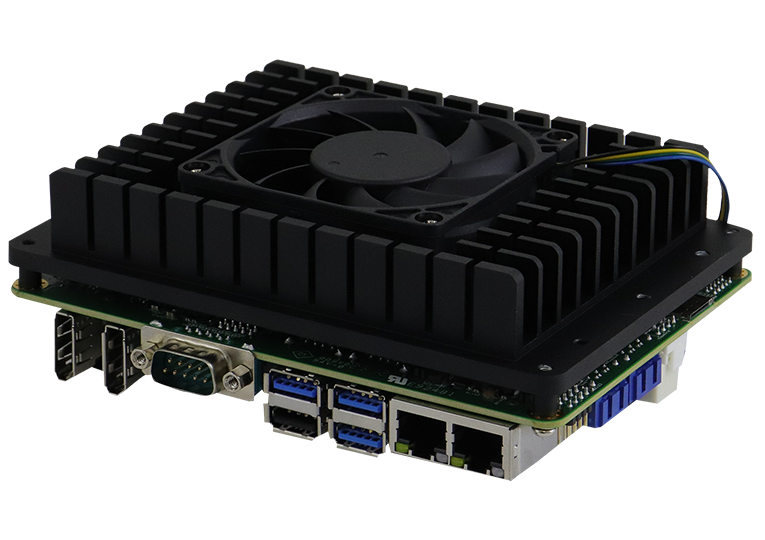

HSIB961-A Heatsink for IB961
HSIB961-B Heatsink for IB961AF-I7PRE

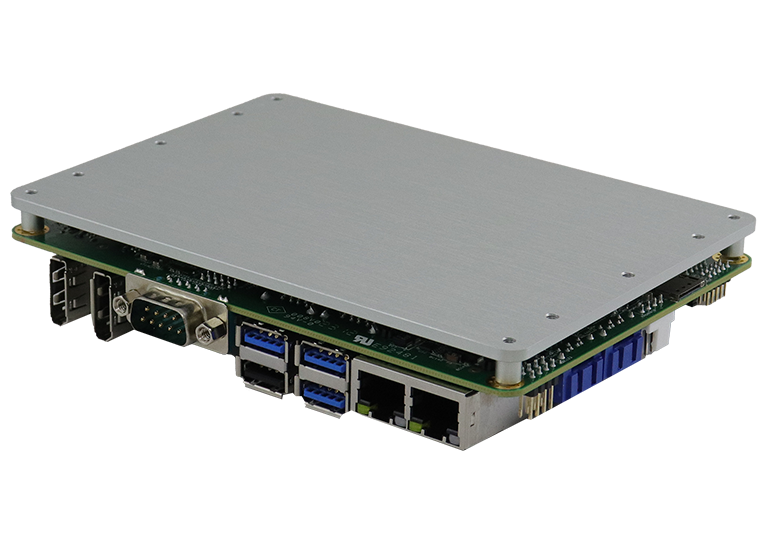

HSIB961-1 Heat spreader for IB961
DATASHEETS IB961
CATALOGS Embedded Computing (Vol.23)
USER'S MANUALS IB961 V1.0c
DRIVERS - BOARDS IB961 Driver DVD
