AMD Ryzen™ Embedded V2000 Series 3.5-inch Single Board Computer

  • AMD Ryzen™ Embedded V2000 on board
  • 2x DDR4 SO-DIMM, Max. 64GB
  • 2x Gigabit LAN
  • Supports 2x DisplayPort (DP connector and Type-C), 1x eDP, 1x 24-bit LVDS dual-channel

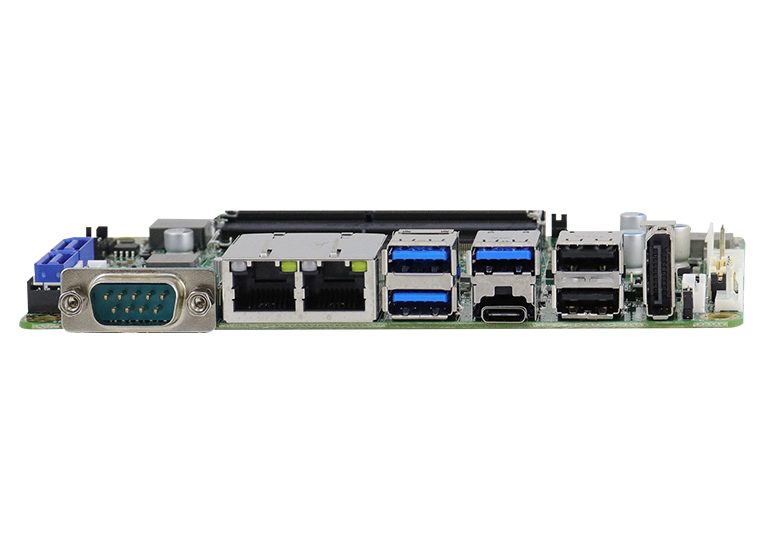

  • 2x USB2.0, 3x USB3.1, 2x SATA III, 2x COM
  • 2x M.2 sockets (M-key/ E-key)
  • Wide-range power input
  • AMD Ryzen Embedded

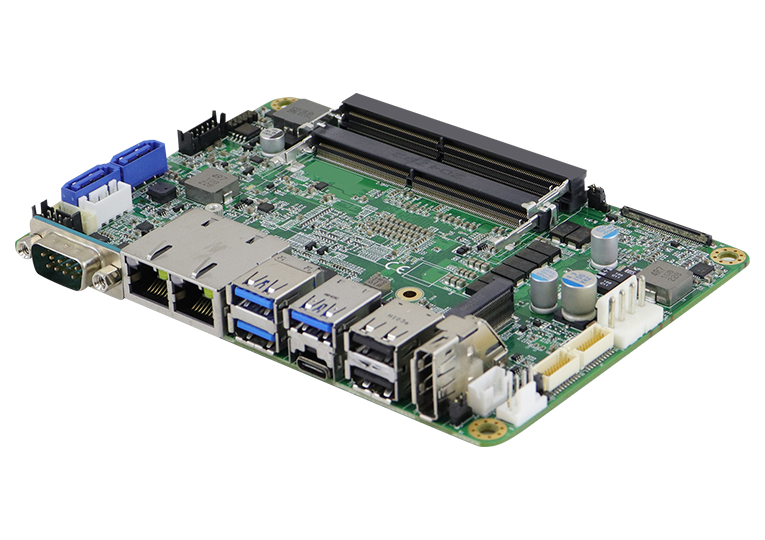

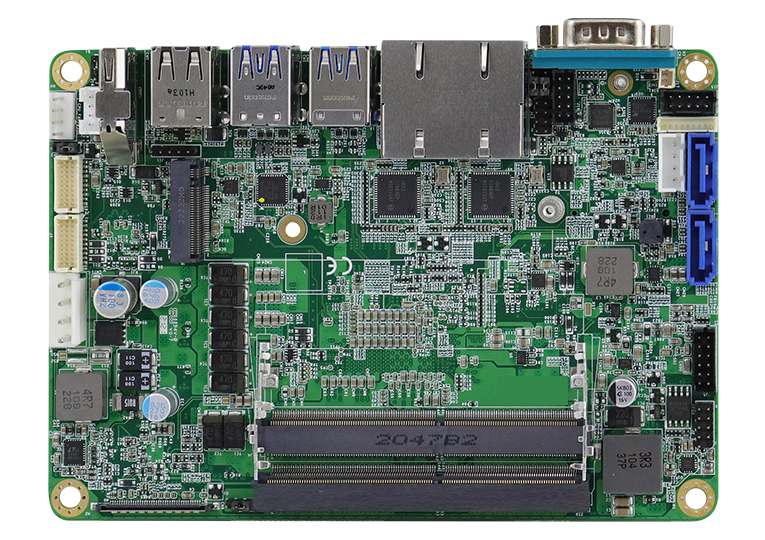

The IB952 3.5-inch SBC is based on AMD Ryzen™ Embedded V2000 processors built with innovative 7nm process technology and featuring up to 8 cores and 16 threads to provide the computing performance and power efficiency for today's IoT market. With the integrated AMD Radeon Vega graphics, the board can support four displays in 4K resolution through the onboard interfaces - dual DisplayPort, an eDP, and a 24-bit LVDS dual-channel interface.

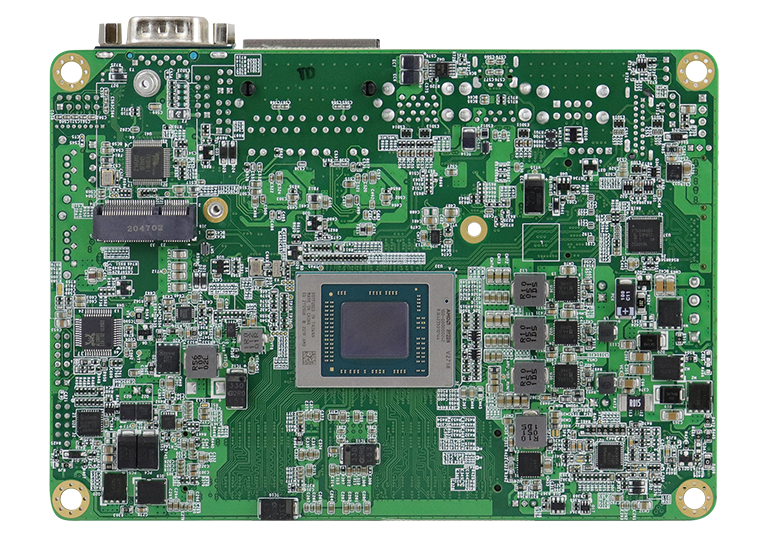

Measuring 102mm x 147mm, the IB952 is packed with features to drive a diverse range of space-limited applications in POS, kiosk, digital signage and factory automation. It comes with two DDR4 SO-DIMM sockets to fit up to 64MB RAM, a wide input voltage range (12V ~ 24V) and two Gigabit Ethernet for high network throughput. The board processor is mounted on the underside to allow the heatsink to occupy the entire footprint, helping designers create system housings with efficient heat dissipation.

IB952 AMD Ryzen™ Embedded V2000 Series 3.5" Disk-Size SBC

Other features include a TPM (Trusted Platform Module) chip for hardware-based security and high-speed peripheral connectivity with two USB 2.0, three USB 3.1, two SATA III, two serial ports, and two M.2 sockets (M-key/E-key). Both Windows 10 and Linux Ubuntu operating systems are supported.

All AMD Ryzen Embedded V2000-Based Solutions from IBASE

CPU AMD Ryzen™ Embedded V2000 on board
Memory DDR4-3200 SO-DIMM, Max. 64GB, supports ECC
Watchdog Timer 256 levels
H/W Monitor Yes
Storage Device Interface 1x M.2 (M-Key)
Mini Type Slots 1x M.2 (M-key, type:2280, NVMe)
1x M.2 (E-key, type:2230)
Graphics Controller AMD Raden™ Vega integrated
Video Output 2x DisplayPort (DP connector & Type-C), 1x 24-bit Dualchannel LVDS, 1x eDP
Ethernet 2x Intel® I211AT or I210AT Gigabit LAN
I/O Chipset Fintek F81964
Serial Port 1x RS232/422/485 (Jumper-less selection)
3x RS232
USB 2.0 2x USB 2.0 on board
USB 3.X 3x USB 3.1 on board
Serial ATA 2x SATA III
Audio Builit-in audio w/ Realtek ALC888S
TPM TPM (2.0)
Others Digital I/O(4-in/ 4-out), EuP/ErP, +12V~+24V DC-in (+/-10%)
Dimensions (L x W) 102mm x 147mm (4" x 5.8")
Power Consumption AMD Ryzen™ Embedded V2748 2.9GHz w/ 2x 16GB DDR4-3200 +12V: 7.61A
AMD Ryzen™ Embedded V2718 1.70GHz w/ 2x 16GB DDR4-3200 +12V: 3.92A
Operating Temperature 0°C~60°C (32°F~140°F)
Storage Temperature -20°C~80°C (-4°F~176°F)
Relative Humidity 95% (non-condensing@60°C)
IB952F-2748 AMD Ryzen™ V2748 Octa APU (2.9GHz~4.15GHz) on board 3.5" SBC w/ dual LAN, 2x DisplayPort (DP+ Type-C), eDP & LVDS (24-bit dual-channel), EuP/ErP, 12V~24V DC-in
IB952F-2718 AMD Ryzen™ V2718 Octa APU (1.7GHz~4.15GHz) on board 3.5" SBC w/ dual LAN, 2x DisplayPort (DP+ Type-C), eDP & LVDS (24-bit dual-channel), EuP/ErP, 12V~24V DC-in

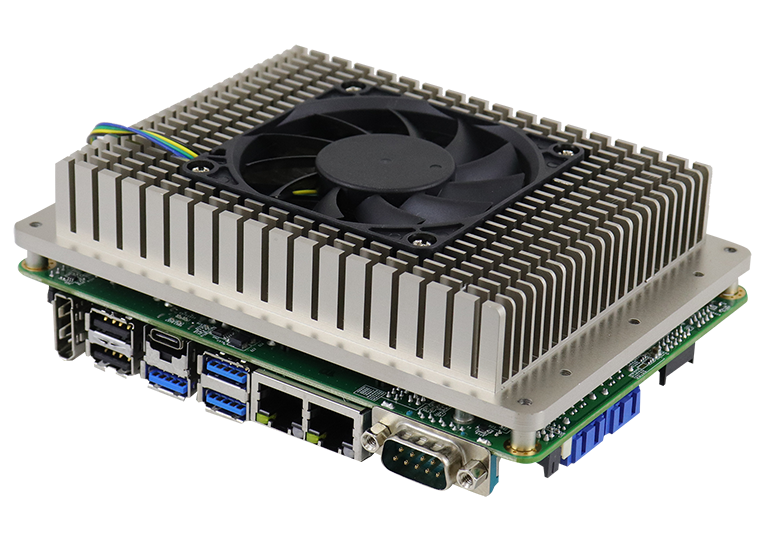

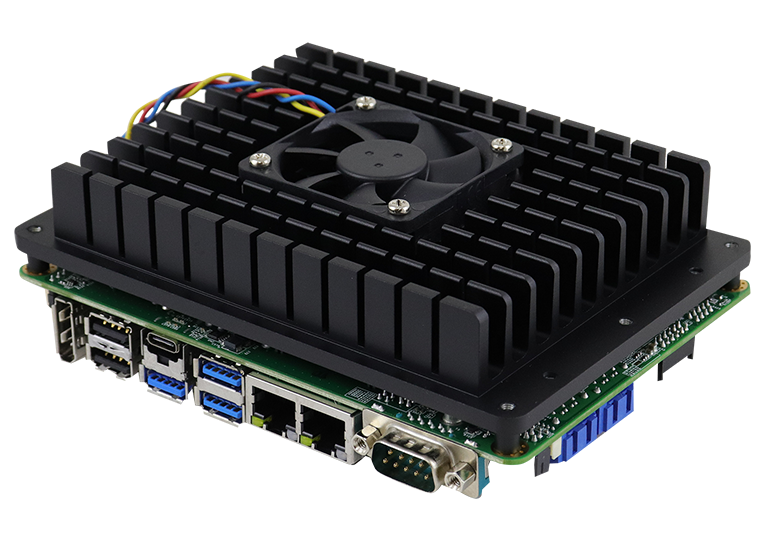

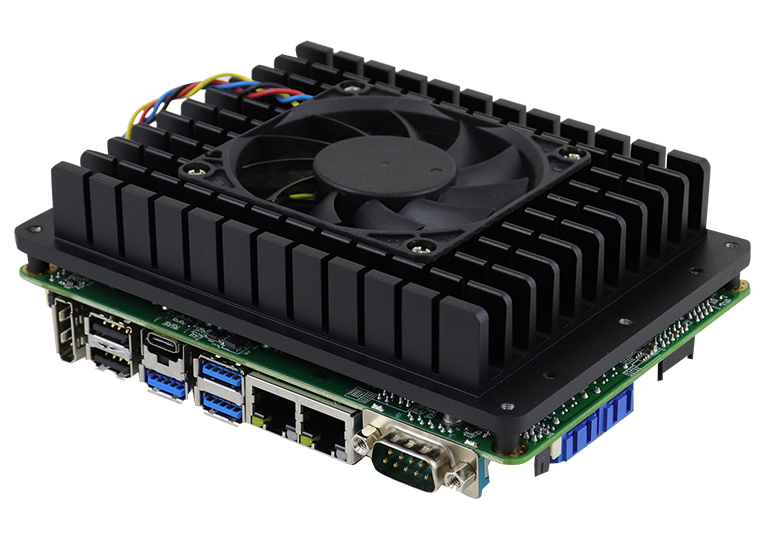

HSIB952-A Heatsink with Fan for IB952F-2718
HSIB952-B Heatsink with Fan for IB952F-2748
HSIB952-1 Heat spreader for IB952
IB92 Cable kit w/ COM, Power, SATA + Power
