AMD Ryzen™ Embedded V1000/R1000 Series 3.5-inch Single Board Computer

  • AMD Ryzen™ Embedded V1000/R1000 Series on board
  • 2x DDR4 SO-DIMM, Max. 32GB
  • 2x PCI-E Gigabit LAN
  • 2x HDMI, 1x eDP, 1x 24-bit LVDS dual-channel
  • 1x USB 2.0, 4x USB3.1, 1x SATA III, 4x COM
  • 2x M.2 sockets (M/ E key)
  • Wide-range power input
  • AMD Ryzen Embedded

The IB918 is an 3.5-inch single board computer based on the AMD Ryzen™ Embedded V1000/R1000 SoC. The IB918 allows system designers to create feature rich systems targeting panel PC, kiosk, POS, medical display and industrial applications.

Generating stunning 4K Ultra High-Definition resolution for sharper images provided by the integrated Vega GPU, IB918 can drive up to four independent displays via two HDMI (2.0a), a 24-bit dual channel LVDS and an eDP graphics output. It has two SO-DIMM sockets supporting fast data transfers with up to 32GB DDR4-2400 memory and ECC for data integrity. Flexible I/O connectivity and expansion ports come in the form of one USB 2.0, four USB 3.1, one SATA III, four COM, a 12V~24V DC input and two M.2 sockets (M/E Key).

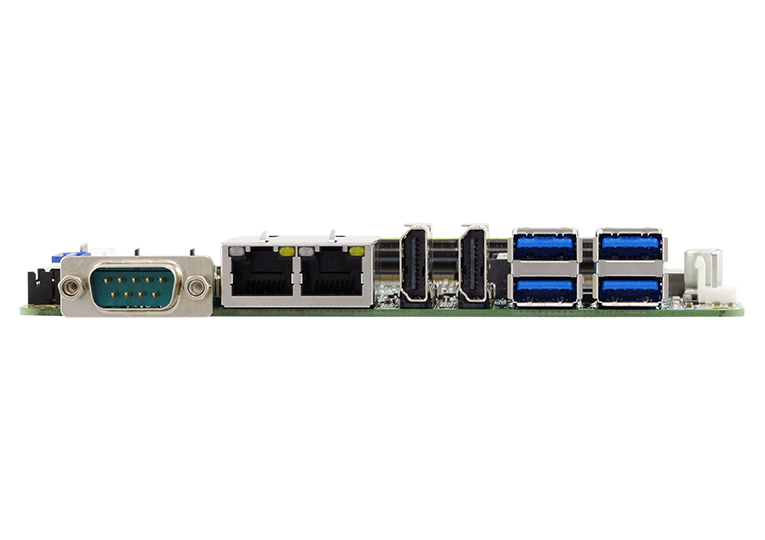

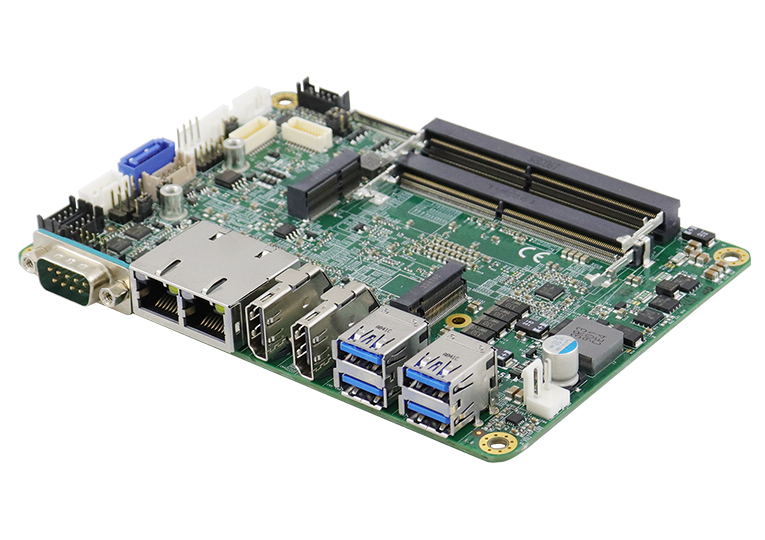

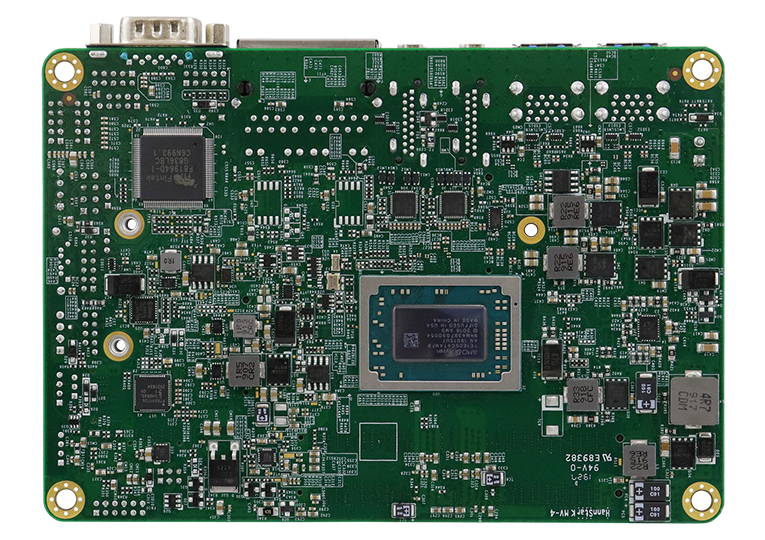

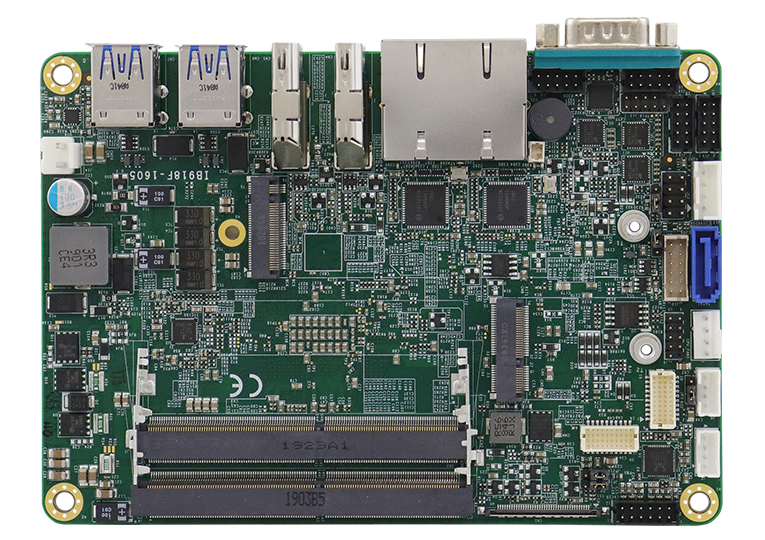

 IB918 3.5-inch Disk-Size SBC based

The compact IB918 board comes with low power consumption AMD Ryzen™ APUs, namely the 64-bit quad-core V1605B (IB918F-1605) and the dual-core V1202B (IB918F-1202), R1606G (IB918F-1606G) and R1505G (IB918F-1505G). The models are equipped with an advanced TPM 2.0 chip, a high level of hardware-based security that enables cryptographic operations for access control and authentication to prevent phishing attacks and authorization value guesses on devices running Windows 10. Measuring 102 x 147mm, the SBC provides an optimal fan and heatsink cooling solution and supports an operating temperature range of 0°C to 60°C.

CPU AMD Ryzen™ Embedded V1000/R1000 Series on board
Memory DDR4-2400 SO-DIMM, Max. 32GB, supports ECC
Watchdog Timer 256 levels
H/W Monitor Yes
Storage Device Interface 1x M.2 (M-Key)
Mini Type Slots 1x M.2 (M-Key, type:2280, NVMe)
1x M.2 (E-Key, type:2230)
Graphics Controller AMD Raden™ Vega integrated
Video Output 2x HDMI(2.0a), 1x 24-bit dual-channel LVDS & eDP
Ethernet 2x Intel® I211AT or I210AT Gigabit LAN
I/O Chipset Fintek F81964D-I
Serial Port 1x RS232/422/485 (Jumperless selection)
3x RS232
USB 2.0 1x USB 2.0 on board
USB 3.X 4x USB 3.1 on board
Serial ATA 1x SATA III
Audio Builit-in audio w/ Realtek ALC269Q-VC3-GR, w/ class-D amplifier
TPM TPM (2.0)
Others Digital I/O(4-in/ 4-out), EuP/ErP, +12V~+24V DC-in (+/-10%)
Dimensions (L x W) 102mm x 147mm (4" x 5.8")
Power Consumption AMD Ryzen™ Embedded V1605B 2.00GHz w/ 2x 16GB DDR4-2400 +12V: 2.55A
AMD Ryzen™ Embedded R1606G 2.6GHz w/ 2x 16GB DDR4-2400 +12V: 2.34A
Operating Temperature 0°C~60°C (32°F~140°F)
Storage Temperature -20°C~80°C (-4°F~176°F)
Relative Humidity 90% (non-condensing@60°C)
IB918F-1605 AMD Ryzen™ V1605B QC APU (2.0GHz~3.6GHz) on board 3.5" SBC w/ dual LAN, 2x HDMI, eDP & LVDS (24-bit dualchannel), EuP/ErP, 12V~24V DC-in
IB918F-1202 AMD Ryzen™ V1202B DC APU (2.3GHz~3.3GHz) on board 3.5" SBC w/ dual LAN, 2x HDMI, eDP & LVDS (24-bit dualchannel), EuP/ErP, 12V~24V DC-in
IB918F-1606G AMD Ryzen™ R1606G DC (2.6GHz~3.5GHz) on board 3.5" SBC w/ dual GbE LAN, 2x HDMI (2.0a), eDP, EuP/Erp, 12V~24V DC-in
IB918F-1505G AMD Ryzen™ R1505G DC (2.4GHz~3.3GHz) on board 3.5" SBC w/ dual GbE LAN, 2x HDMI (2.0a), eDP, EuP/Erp, 12V~24V DC-in
HSIB918-A Heat sink with fan for IB918
HSIB918-1 Heat spreader for IB918
IB90 Cable kit w/ PW87,PK1H,SATA-53A,USB-168 for V1000 series
IB91 Cable kit w/ PW87, PK1H, SATA-53A, USB-172 for R1000 series
