Embedded Computing

IB917

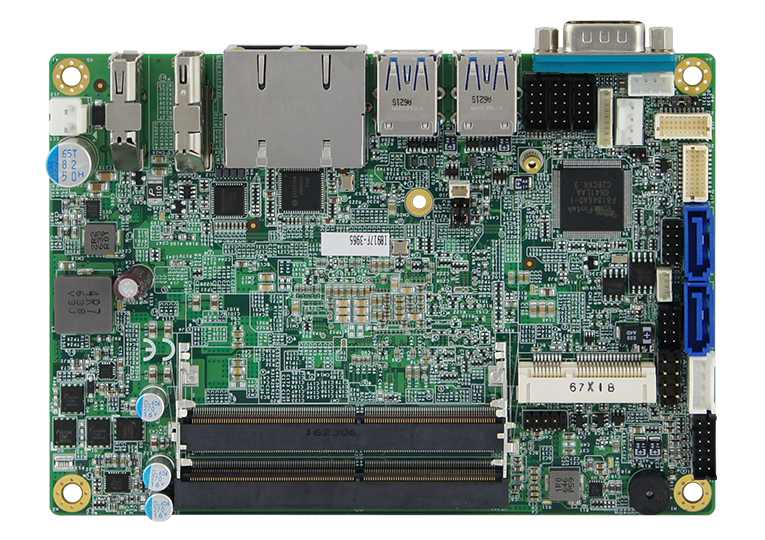

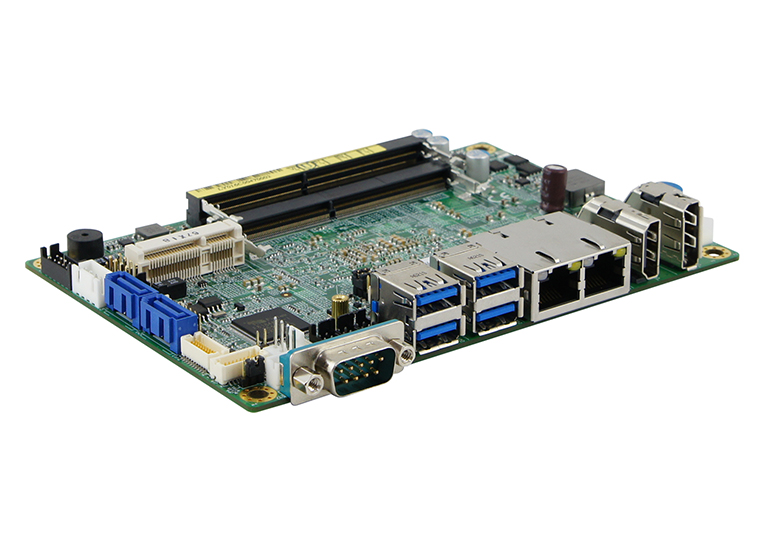

7th Gen Intel® Core™ U-Series 3.5-inch Single Board Computer

  • Onboard 7th Gen Intel® Core™ U-series processor
  • 2x DDR4-2133 SO-DIMM, Max 32GB, Non-ECC
  • Supports DisplayPort, HDMI and 24-bit dual channel LVDS
  • 2x Intel® PCI-E GbE LAN
  • Watchdog timer, Digital I/O, mSATA, iSMART, TPM(2.0)

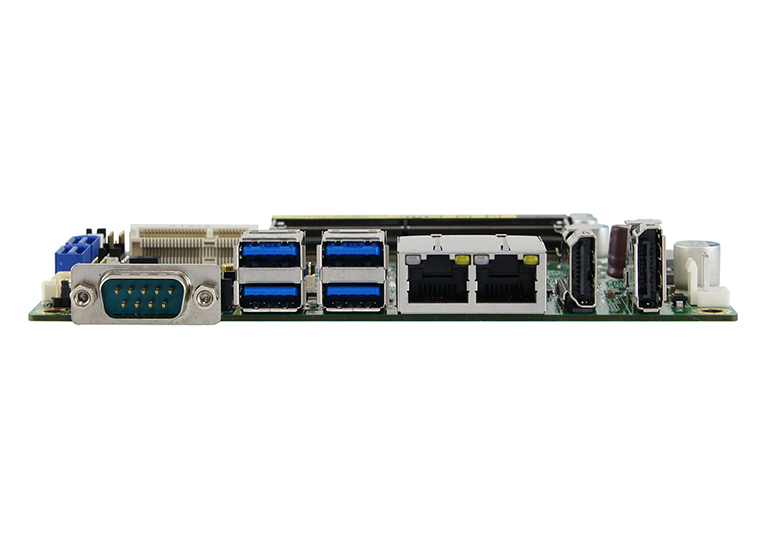

  • 2x USB 2.0, 4x USB 3.0, 4x COM, 2x SATA III
  • 1x Mini PCI-E slot
  • iSMART
  • Wide-range power input

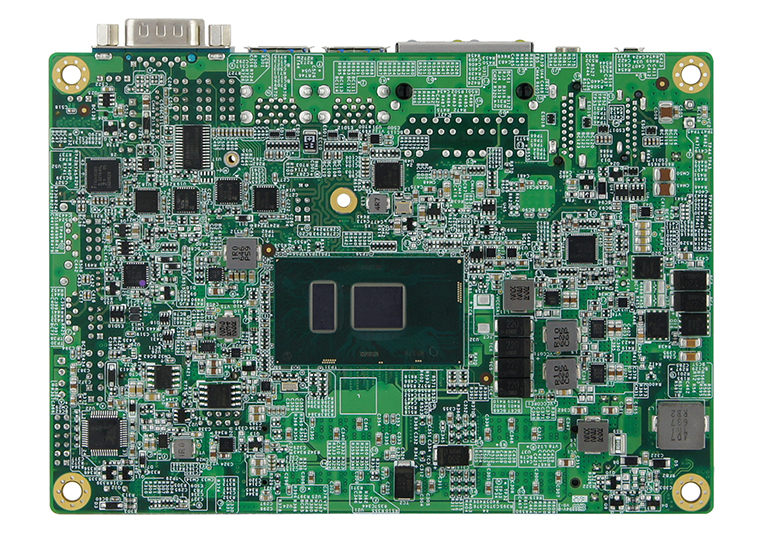

CPU BGA1356 for 7th Gen Intel® Core™ U-Series i7/i5/i3/ Celeron® DC processors, up to 3.4GHz
PCH Integrated in 7th Gen Intel® Core™ U-Series processor
Memory 2x DDR4-2133 SO-DIMM, Max 32GB (Non-ECC)
BIOS AMI
Watchdog Timer 256 levels
H/W Monitor Yes
Storage Device Interface 1x mSATA
Mini Type Slots 1x Mini PCI-E (full-size)
Graphics Controller 7th Gen Intel® Core™ U-Series processor integrated graphics
Video Output Supports DisplayPort, HDMI and 24-bit dual-channel LVDS
Ethernet IB917AF series: Intel® I219LM LAN PHY
IB917F series: Intel® I219V LAN PHY
Intel® I211AT or I210AT Gigabit LAN (as 2nd LAN)
I/O Chipset Fintek F81846AD-I
Serial Port 1x RS-232/422/485 (jumper-less selection), 3x RS232
USB 2.0 2x USB 2.0 via pin header
USB 3.X 4x USB 3.0 on board
Serial ATA 2x SATA III
Audio 7th Gen Intel® Core™ U-Series processor built-in HD audio controller + Realtek ALC888S codec
TPM TPM (2.0)
Others Digital I/O, +9V~ +24V DC-in, iSMART
Dimensions (L x W) 102mm x 147mm (4" x 5.8")
Power Consumption Intel® i7-7600U, 2.8GHz w/ 8GB DDR4-2133+12V: 3.46A
Intel® i3-7100U, 2.4GHz w/ 8GB DDR4-2133+12V: 2.68A
Operating Temperature 0°C~60°C ( 32°F~140°F)
Storage Temperature -20°C~80°C ( -4°F~176°F)
Relative Humidity 90% (non-condensing @60°C)
IB917AF-7600 Intel® Core™ i7-7600U(2.8GHz/3.9GHz), 3.5" SBC w/ dual PCI-E GbE LAN, DP & HDMI, LVDS(24-bit LVDS dual-channel), TPM (2.0), iSMART, mSATA, iAMT(11.6)
IB917AF-7300 Intel® Core™ i5-7300U(2.6GHz/3.5GHz), 3.5" SBC w/ dual PCI-E GbE LAN, DP & HDMI, LVDS (24-bit LVDS dual-channel), TPM (2.0), mSATA, iSMART
IB917F-7100 Intel® Core™ i3-7100U(2.4GHz), 3.5" SBC w/ dual PCI-E GbE LAN, DP & HDMI, LVDS(24-bit LVDS dual-channel), TPM (2.0), mSATA,iSMART
IB917F-3965 (MOQ) Intel® Celeron® 3965U(2.2GHz), 3.5" SBC, w/ dual PCI-E GbE LAN, DP & HDMI, LVDS(24-bit LVDS dual-channel), TPM (2.0), mSATA, iSMART

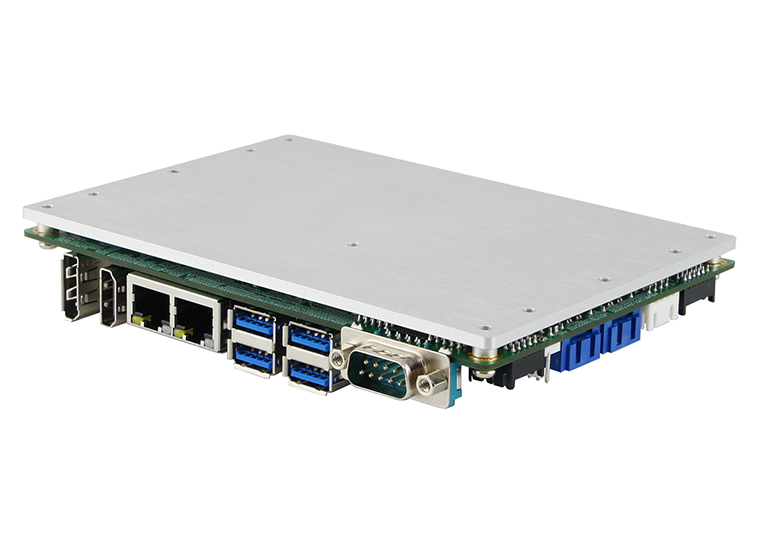

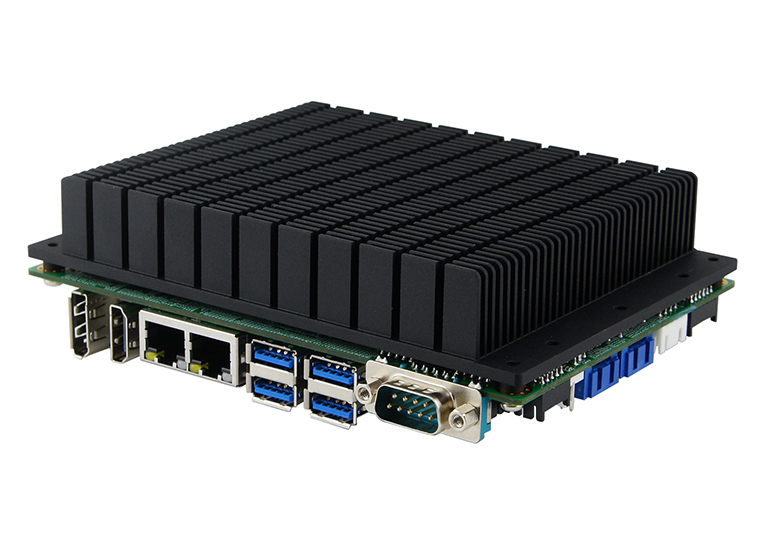

HSIB916-A Heatsink for IB917/IB916
HSIB916-1 Heat spreader for IB917/IB916
IB76A-2 Cable kit w/ USB, COM, Power, SATA + Power cable
DATASHEETS IB917
CATALOGS Embedded Computing (Vol.23)
USER'S MANUALS IB917 V1.3
DRIVERS - BOARDS IB917 Driver DVD
