IB916

7th Gen Intel® Core™ U-Series 3.5-inch Single Board Computer

  • Onboard 7th Gen Intel® Core™ U-series processor
  • 2x DDR4-2133 SO-DIMM, Max 32GB, Non-ECC
  • Supports eDP, DisplayPort and HDMI 1.4
  • 2x Intel® PCI-E GbE LAN
  • Watchdog timer, Digital I/O, mSATA, iSMART, TPM(2.0)
  • 2x USB 2.0, 4x USB 3.0, 4x COM, 2x SATA III
  • 1x Mini PCI-E slot
  • iSMART
  • Wide-range power input

The IB916 3.5-inch SBC is equipped with 7th Gen Intel® Core™ U-series processors that belonging to the ultra-low voltage family. There are currently four models available with processors from the Intel® Celeron® 3965U @2.2GHz to the Intel Core i7-7600U (2.8GHz/3.9GHz), all offering impressive processing and graphics performance, 9V~24V wide power support and scalability.


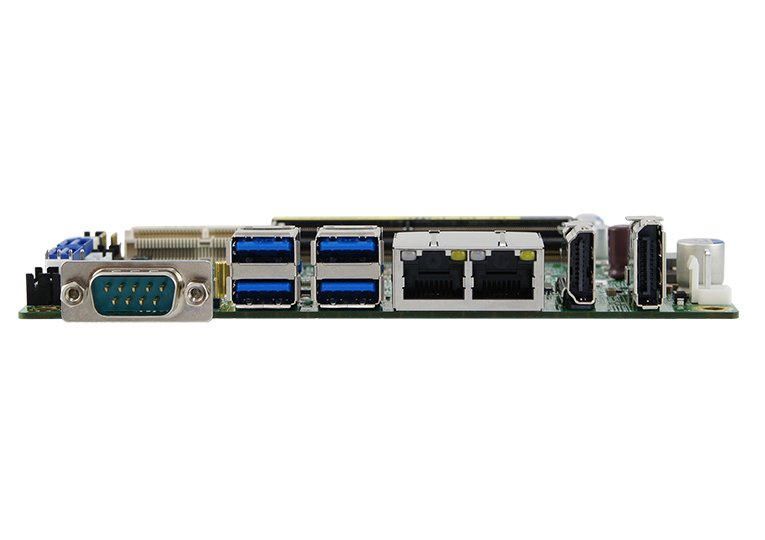

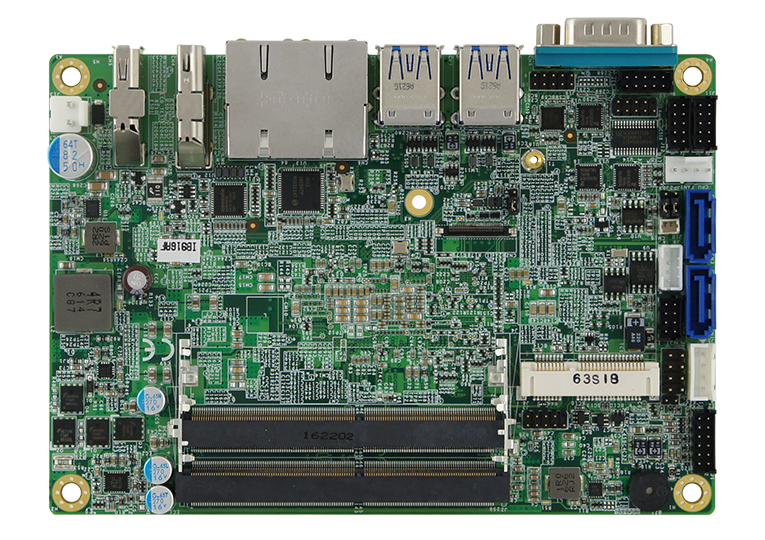

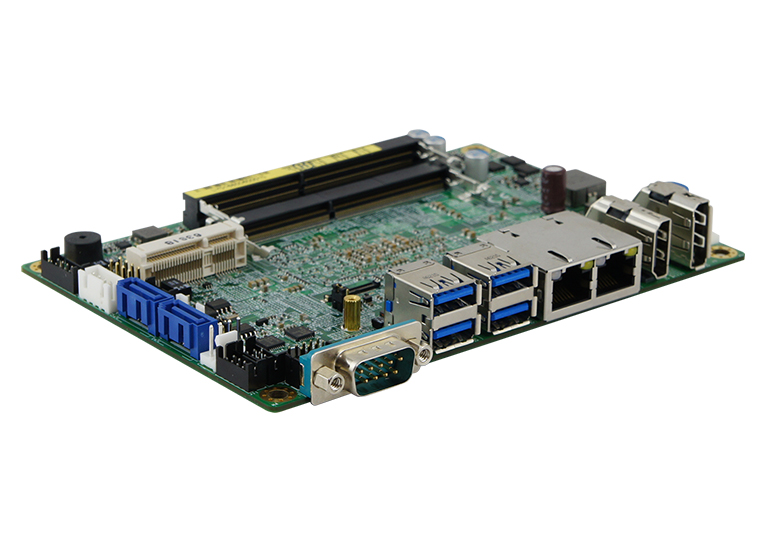

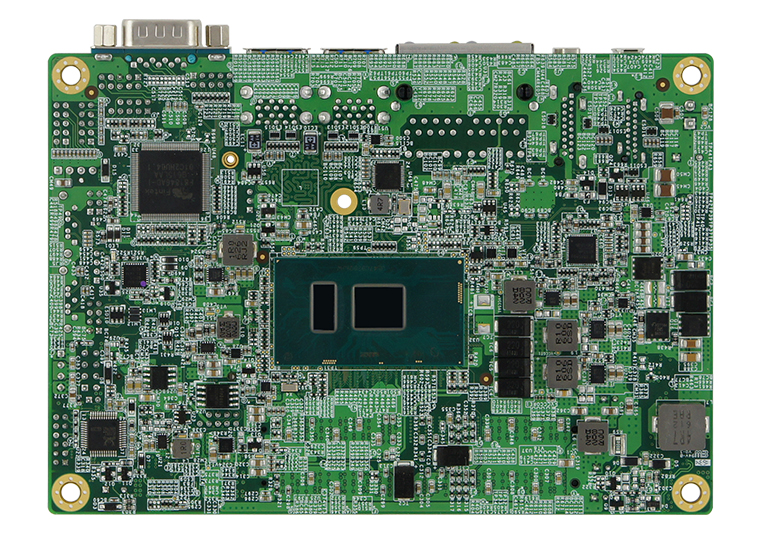

 IB916  3.5-inch Disk Size SBC


The IB916 single board computer is designed for a broad range of applications requiring unparalleled compute and graphics performance at lower power consumption, such as those found in factory automation, kiosk, communications, gaming and digital signage environments. Combining fast time-to-market and long life support, the IB916 includes a rich set of standard features and I/Os including two DDR4 SO-DIMMs for up to 32GB of system memory, dual gigabit Ethernet, display interfaces with eDP, DisplayPort and HDMI, four serial ports, two SATA III, four USB 3.0, and two USB 2.0 ports. The board also comes with other options like heatsink, heat spreader and cable kit. Other important features include digital I/O, IBASE owned iSMART power-saving technology, TPM (2.0) and a Mini PCI-E slot.

CPU BGA1356 for 7th Gen Intel® Core™ U-Series i7/i5/i3/ Celeron® DC processors, up to 3.4GHz
PCH Integrated in 7th Gen Intel® Core™ U-Series processor
Memory 2x DDR4-2133 SO-DIMM, Max 32GB (Non-ECC)
BIOS AMI
Watchdog Timer 256 levels
H/W Monitor Yes
Storage Device Interface 1x mSATA
Mini Type Slots 1x Mini PCI-E (full-size)
Graphics Controller 7th Gen Intel® Core™ U-Series processor integrated graphics
Video Output Supports eDP, DisplayPort and HDMI
Ethernet IB916AF series: Intel® I219LM LAN PHY
IB916F series: Intel® I219V LAN PHY
Intel® I211AT or I210AT Gigabit LAN (as 2nd LAN)
I/O Chipset Fintek F81846AD-I
Serial Port 1x RS232/422/485 (jumper-less selection), 3x RS232
USB 2.0 2x USB 2.0 via pin header
USB 3.X 4x USB 3.0 on board
Serial ATA 2x SATA III
Audio 7th Gen Intel® Core™ U-Series processor built-in HD audio controller + Realtek ALC888S codec
TPM TPM (2.0)
Others Digital I/O, +9V~ +24V DC-in, iSMART
Dimensions (L x W) 102mm x 147mm (4" x 5.8")
Power Consumption Intel® i5-7300U, 2.6GHz w/ 8GB DDR4-2133, +12V: 2.06A
Intel® i3-7100U, 2.4GHz w/ 8GB DDR4-2133, +12V: 2.24A
Operating Temperature 0°C~60°C ( 32°F~140°F)
Storage Temperature -20°C~80°C ( -4°F~176°F)
Relative Humidity 90% (non-condensing @60°C)
IB916AFS-7600 Intel® Core™ i7-7600U(2.8GHz/3.9GHz), 3.5" SBC w/ dual PCI-E GbE LAN, eDP, DP & HDMI, TPM (2.0), iSMART, mSATA, iAMT(11.6)
*(S) means with Realtek ALC888S codec
IB916AFS-7300 Intel® Core™ i5-7300U(2.6GHz/3.5GHz), 3.5" SBC w/ dual PCI-E GbE LAN, eDP, DP & HDMI, TPM (2.0), mSATA, iSMART
*(S) means with Realtek ALC888S codec
IB916FS-7100 Intel® Core™ i3-7100U(2.4GHz), 3.5" SBC w/ dual PCI-E GbE LAN, eDP, DP & HDMI, TPM (2.0), mSATA, iSMART
*(S) means with Realtek ALC888S codec
IB916F-3965 (MOQ) Intel® Celeron® 3965U(2.2GHz), 3.5" SBC w/ dual PCI-E GbE LAN, eDP, DP & HDMI, TPM (2.0), mSATA, iSMART

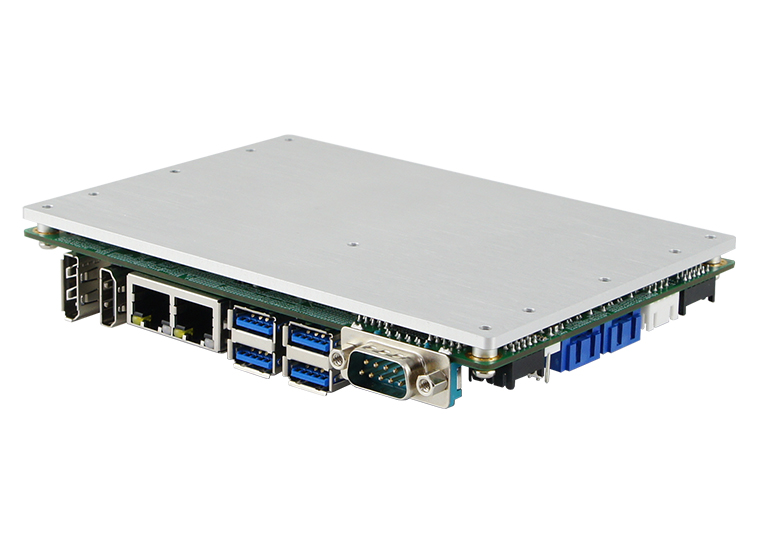

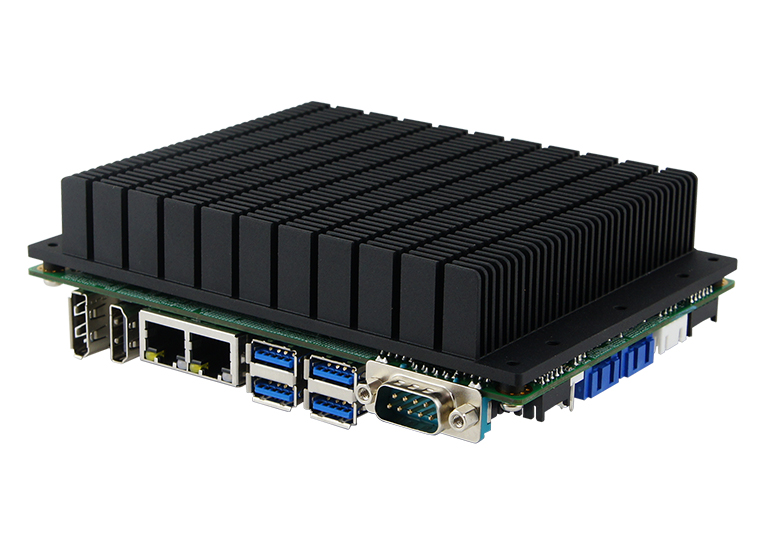

HSIB916-A Heatsink for IB917/IB916
HSIB916-1 Heat spreader for IB917/IB916
IB76A-2 Cable kit w/ USB, COM, Power, SATA + Power cable
