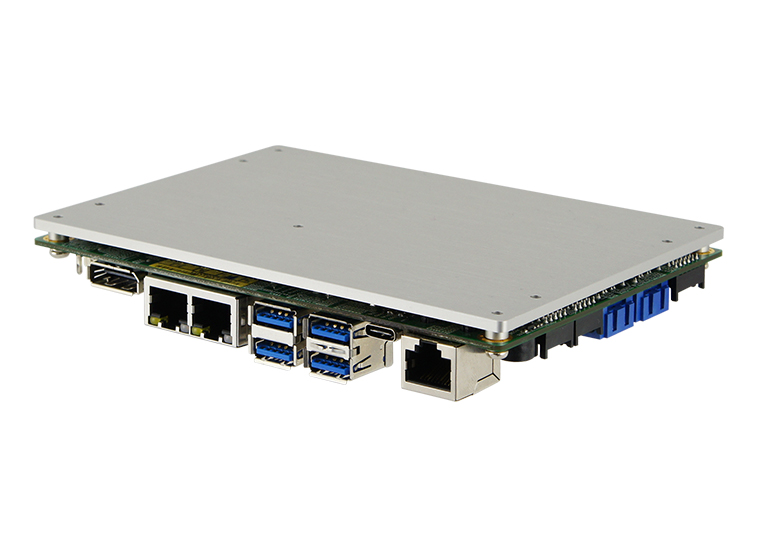

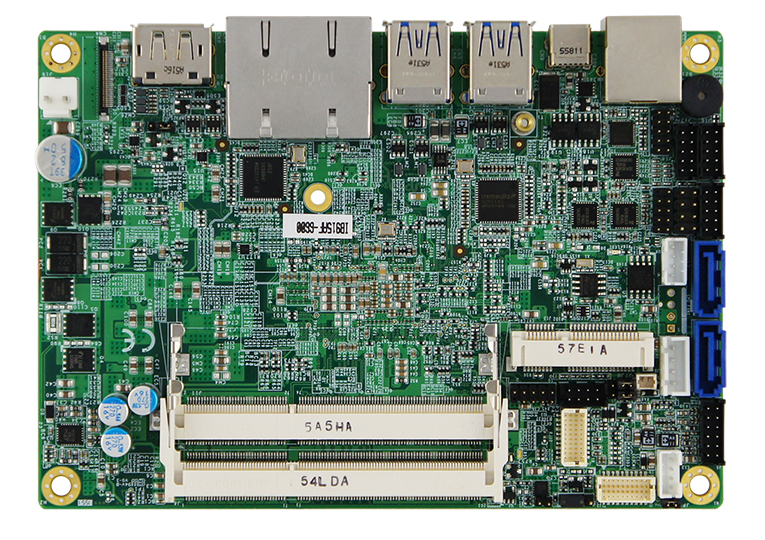

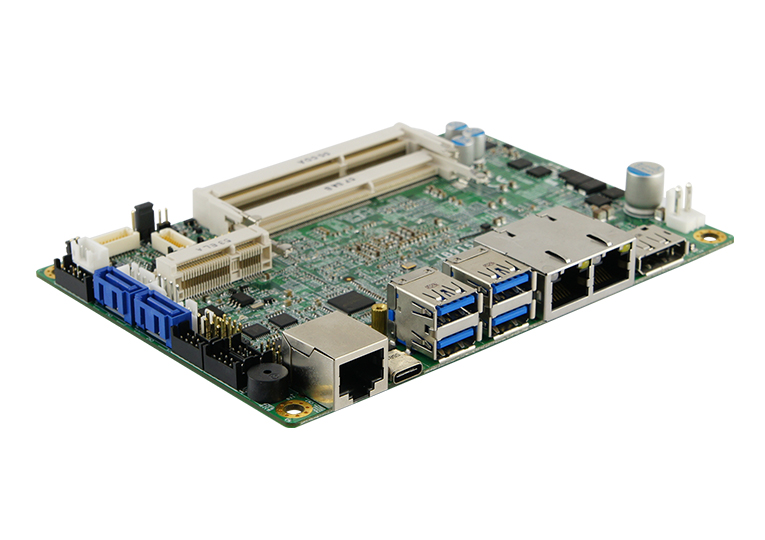

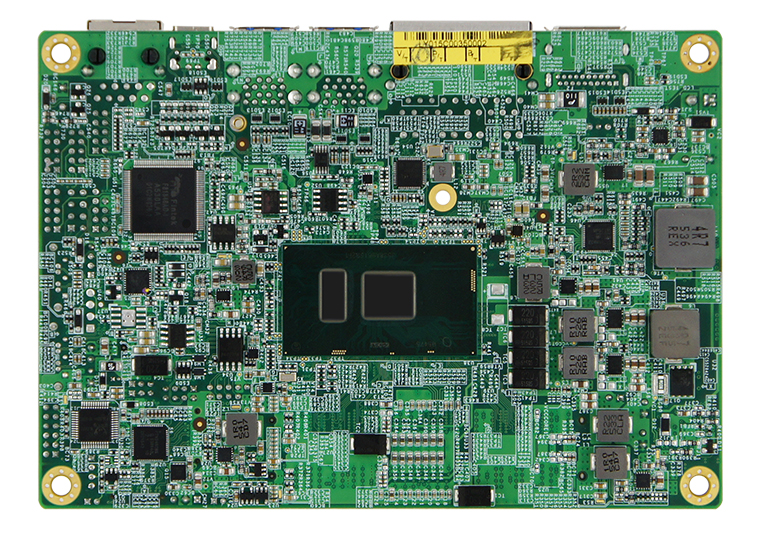

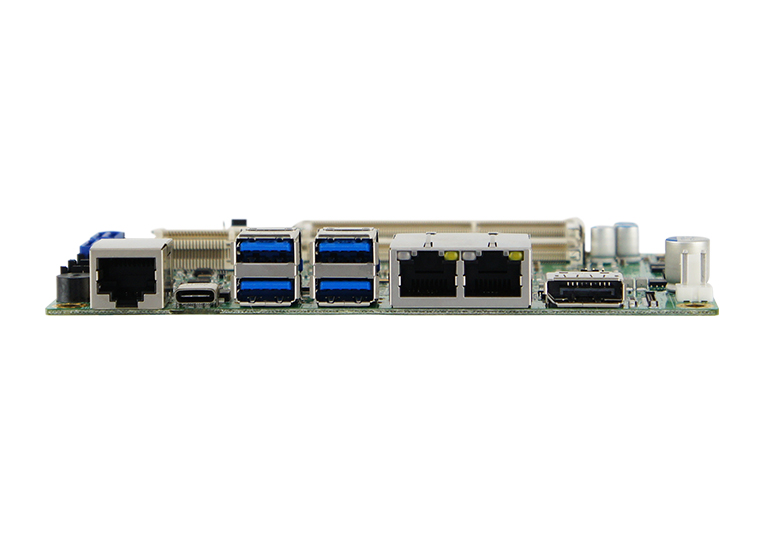

6th Gen Intel® Core™ U-Series 3.5-inch Single Board Computer

  • Onboard 6th Gen Intel® Core™ U-Series processor
  • 2x DDR3L-1600 SO-DIMM, Max. 16GB
  • Supports eDP, DP and 24bit dual-channel LVDS
  • 2x Intel® PCI-E Gigabit LAN
  • Watchdog timer, Digital I/O, mSATA, iSMART
  • 2x USB 2.0, 4x USB 3.0, 1x USB 3.1(Type-C), 4x COM, 2x SATA III
  • 1x Mini PCI-E slot
  • iSMART
  • Wide-range power input

The IB915 3.5-inch single board computer supports 6th Generation Intel® Core™ U-series processors and offers a selection Intel processors manufactured on 14nm process technology namely, the Intel® Core™ i7-6600U running 2.6GHz, the Intel® Core™ i5-6300U processor (2.4GHz) and the Intel® Core™ i3-6100U processor (2.3GHz). The IB915 single board computer is the ideal solution for applications in factory automation, medical, kiosk and networking markets, providing excellent performance and energy efficiency, as well as better 3D graphics than previous-generation counterparts.

The new IB915 offers excellent computing performance with the new integrated Intel HD graphics, it is designed to deliver enhanced video and stunning 3D graphics. Triple display interfaces provided are for eDP, DP and a 24bit dual channel LVDS. The IB915 also supports Intel AMT 11.0 for the remote control function.

Measuring 102mm x 147mm (4" x 5.8"), a maximum system memory size of 16GB is supported on two DDR3L-1600 SO-DIMM sockets. The IB915 comes with two Gigabit high-speed LAN functionality, Watchdog timer, Digital I/O, mSATA and IBASE’s iSMART green technology. Advanced connectivity comes in one USB 3.1 (type C), four USB 3.0 ports, four USB 2.0 ports, two serial ports, 2x SATA III ports and one Mini PCI-E slot.

CPU BGA1356 for 6th Gen Intel® Core™ U-Series i7/i5/i3/ Celeron® DC processors, up to 3.4GHz
PCH Integrated in 6th Gen Intel® Core™ U-Series processor
Memory 2x DDR3L-1600 SO-DIMM, Max 16GB (Non-ECC)
Watchdog Timer 256 levels
H/W Monitor Yes
Storage Device Interface 1x mSATA
Mini Type Slots 1x Mini PCI-E (full-size)
Graphics Controller 6th Gen Intel® Core™ U-Series processor integrated graphics
Video Output Supports eDP, DisplayPort and 24-bit dual-channel LVDS
Ethernet IB915AF: Intel® I219LM LAN PHY
IB915F: Intel® I219V LAN PHY
Intel® I211AT or I210AT Gigabit LAN (as 2nd LAN)
I/O Chipset Fintek F81846AD-I
Serial Port 1x RS232/422/485 (jumper-less selection), 3x RS232
USB 2.0 2x USB2.0 via pin header
USB 3.X 1x USB 3.1(Type-C)
4x USB 3.0 on board
Serial ATA 2x SATA III
Audio 6th Gen Intel® Core™ U-Series processor built-in HD audio controller + Realtek ALC888S codec
Others Digital I/O, +9V~ +24V DC-in, iSMART
Dimensions (L x W) 102mm x 147mm (4" x 5.8")
Power Consumption Intel® Core™ I3-6100U 2.3GHz w/ 2x DDR3L-1600 4GB, +12V: 2.36A
Intel® Core™ I7-6600U 2.6GHz w/ 2x DDR3L-1600 4GB, +12V: 2.27A
Operating Temperature 0°C~60°C (32°F~140°F)
Storage Temperature -20°C~80°C (-4°F~176°F)
Relative Humidity 90% (non-condensing @60°C)
IB915AF-6600 Intel® Core™ i7-6600U(2.6GHz/3.4GHz) 3.5" SBC w/ dual PCI-E GbE LAN, eDP, DP & LVDS (24-bit LVDS dual-channel), mSATA, iSMART, iAMT(11.0)
IB915AF-6300 Intel® Core™ i5-6300U(2.4GHz/3GHz) 3.5" SBC w/ dual PCI-E GbE LAN, eDP, DP & LVDS (24-bit LVDS dual-channel), mSATA, iSMART, iAMT(11.0)
IB915F-6100 Intel® Core™ i3-6100U(2.3GHz) 3.5" SBC w/ dual PCI-E GbE LAN, eDP, DP & LVDS (24-bit LVDS dual-channel), mSATA, iSMART
IB915F-3955 (MOQ) Intel® Celeron® 3955U (2GHz) 3.5" SBC w/ dual PCI-E GbE LAN, eDP, DP & LVDS (24-bit dual-channel LVDS), mSATA, iSMART

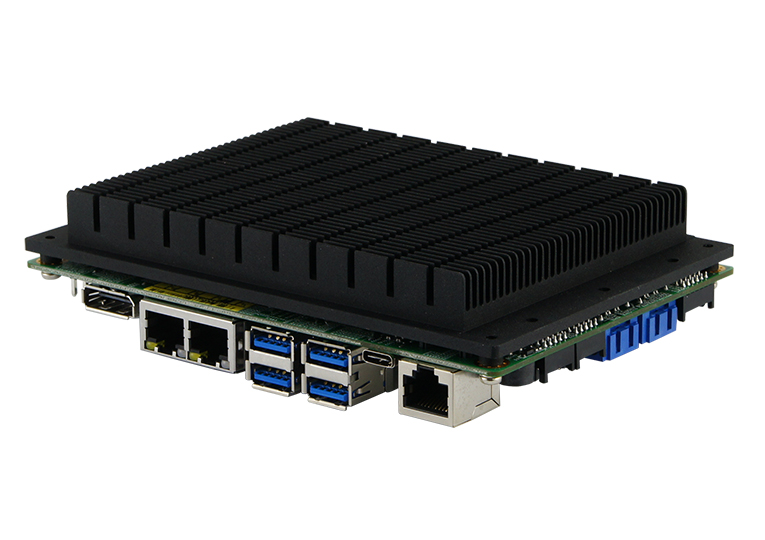

HSIB915-BGA-A Heatsink for IB915
HSIB915-BGA-1 Heat spreader for IB915
IB76A-2 Cable kit w/ USB, COM, Power, SATA + Power cable
