5th Gen Intel® Core™ U-series Processor 3.5-inch Single Board Computer

  • Onboard 5th Gen Intel® Core™ U-series processor
  • 2x DDR3L-1600 SO-DIMM, Max. 16GB
  • Supports DVI-I and 24bit dual channel LVDS
  • 2x Intel® PCI-E GbE LAN
  • Watchdog timer, Digital I/O, mSATA, iSMART
  • 2x USB 3.0, 2x USB 2.0, 2x COM, 2x SATA III
  • 2x Mini PCI-E slot, mSATA
  • iSMART
  • Wide-range power input

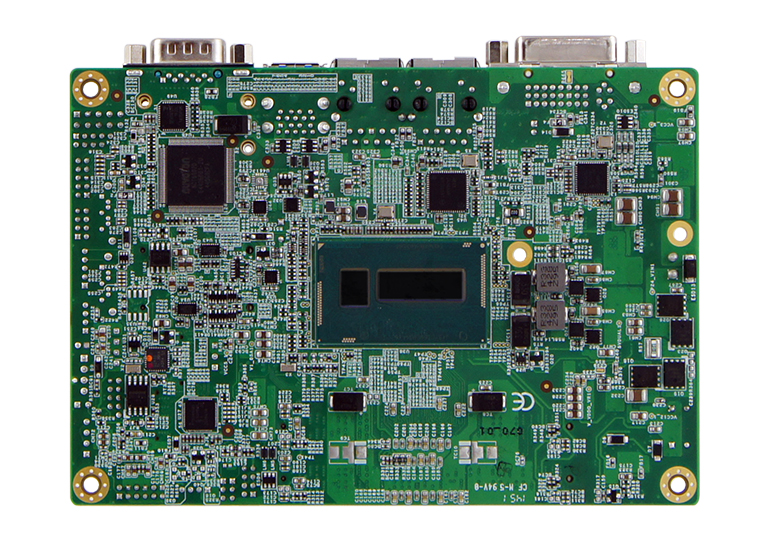

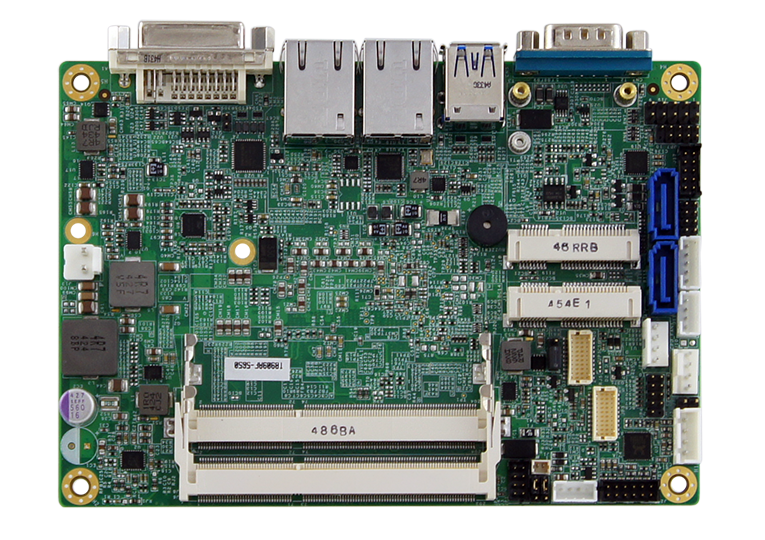

IB909 series is a 3.5-inch disk size with onboard 5th Generation Intel® Core™ i U-series processors. It offers a selection Intel processors manufactured on 14nm process technology namely, the Intel® Core™ i7-5650U running 2.2GHz, the Intel® Core™ i5-5350U processor (1.8GHz) and the Intel® Core™ i3-5010U processor (2.1GHz). The IB909 single board computer is the ideal solution for applications in factory automation, medical, kiosk and networking markets, providing excellent performance and energy efficiency, as well as better 3D graphics than previous-generation counterparts.

The IB909 offers excellent computing performance at low power and uses hyperthreading with 2 logical threads per physical core that improves the performance of multi-threaded applications. With the new integrated Intel HD graphics, it is designed to deliver enhanced video and stunning 3D graphics. Two display interfaces provided are for DVI-I and a24bit dual channel LVDS. The IB909 also supports Intel AMT 10.0 for the remote control function.

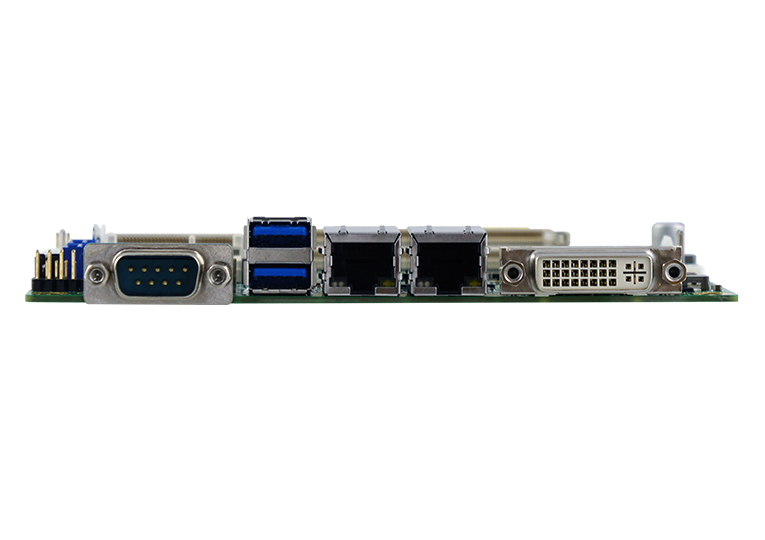

Measuring 102mm x 147mm (4" x 5.8"), a maximum system memory size of 16GB is supported on two DDR3L-1600 SO-DIMM sockets. The IB909 comes with two Gigabit high-speed LAN functionality, Watchdog timer, Digital I/O, mSATA and IBASE’s iSMART green technology. Advanced connectivity comes in two USB 3.0 ports, two USB 2.0 ports, two serial ports, 2x SATA III ports and two Mini PCI-E slots.

CPU Intel® Core™ i7-5650U processor (2.2GHz)
Intel® Core™ i5-5350U processor (1.8GHz)
Intel® Core™ i3-5010U processor (2.1GHz)
PCH Integrated in Intel® 5th Gen Core™i U-Series processor
Memory 2x DDR3L-1600 SO-DIMM, Max 16GB (Non-ECC)
Watchdog Timer 256 levels
H/W Monitor Yes
Storage Device Interface 2x mSATA
Mini Type Slots 2x Mini PCI-E (1x full-size, 1x half-size)
Graphics Controller 5th Gen Intel® Core™ i U-Series processor integrated graphics
Video Output Supports DVI-I and 24-bit dual-channel LVDS
Ethernet IB909AF: Intel® I218LM LAN PHY
IB909F: Intel® I218V LAN PHY
Intel® I211AT PCI-E Gigabit LAN (as 2nd LAN)
I/O Chipset Nuvoton NCT6102D
Serial Port 1x RS232/422/485 (jumper-less selection)
1x RS232
USB 2.0 2x USB 2.0 on via pin header
USB 3.X 2x USB 3.0 on board
Serial ATA 2x SATA III
Audio 5th Gen Intel® Core™ i U-Series processor built-in HD audio controller + Realtek ALC269Q-VC3 w/ class-D speaker amplifier
Others Digital I/O, +9V~ +24V DC-in, iSMART
Dimensions (L x W) 102mm x 147mm (4" x 5.8")
Power Consumption Intel® Core™ i5-5350U 1.80GHz w/ 8GB DDR3L-1600, +12V: 3.84A
Operating Temperature 0°C~60°C (32°F~140°F)
Storage Temperature -20°C~80°C (-4°F~176°F)
Relative Humidity 90% (non-condensing @60°C)
IB909AF-5650 Intel® Core™ i7-5650U(2.2GHz) 3.5" SBC w/ dual PCI-E GbE LAN, DVI-I & LVDS(24-bit LVDS dual-channel), mSATA, iSMART, iAMT(10.0)
IB909AF-5350 Intel® Core™ i5-5350U(1.8GHz) 3.5" SBC w/ dual PCI-E GbE LAN, DVI-I & LVDS(24-bit LVDS dual-channel), mSATA, iSMART, iAMT(10.0)
IB909F-5010 Intel® Core™ i3-5010U(2.1GHz)3.5" SBC w/ dual PCI-E GbE LAN, DVI-I & LVDS(24-bit LVDS dual-channel), mSATA, iSMART
HSIB909 Heatsink for IB909
HSIB908-BGA-2 Heat Spreader for IB909/IB908
IB75 Cable Kit w/ SATA+power cablle, USB, COM, power cable
CATALOGS Embedded Computing (Vol.23)


Model Chipset Video Audio Network Others

Intel Chipset Driver

Windows 7 & 8

Intel Graphics Driver

Windows 7 & 8 (32bit)

Realtek High Definition Audio Driver

Windows 7 & 8

Intel LAN Driver

Windows 7 & 8 (32bit)

Intel iAMT Driver

Windows 7 & 8

Intel USB 3.0 Driver

Windows 7
