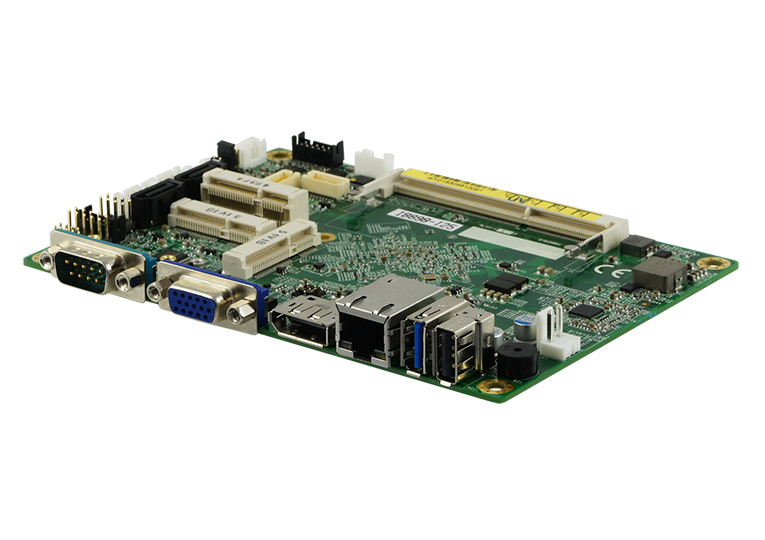

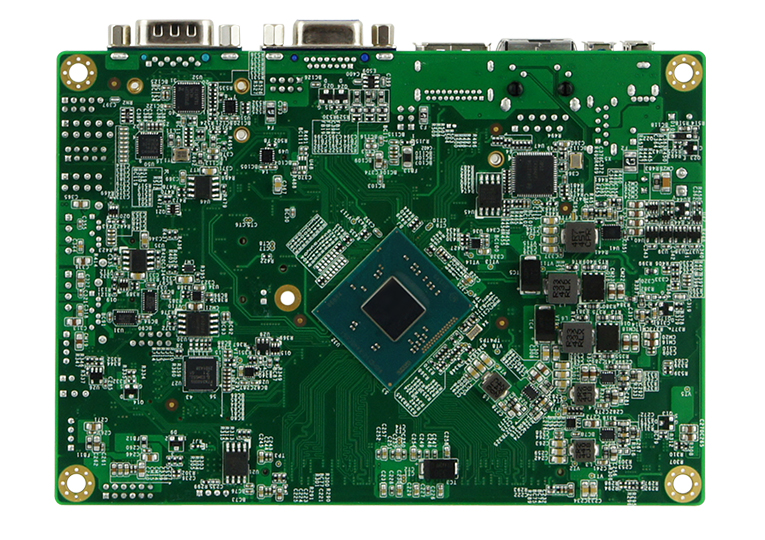

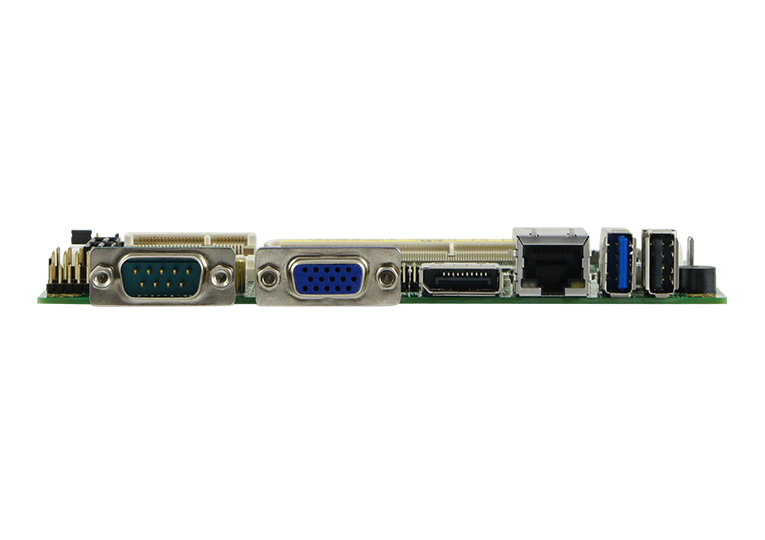

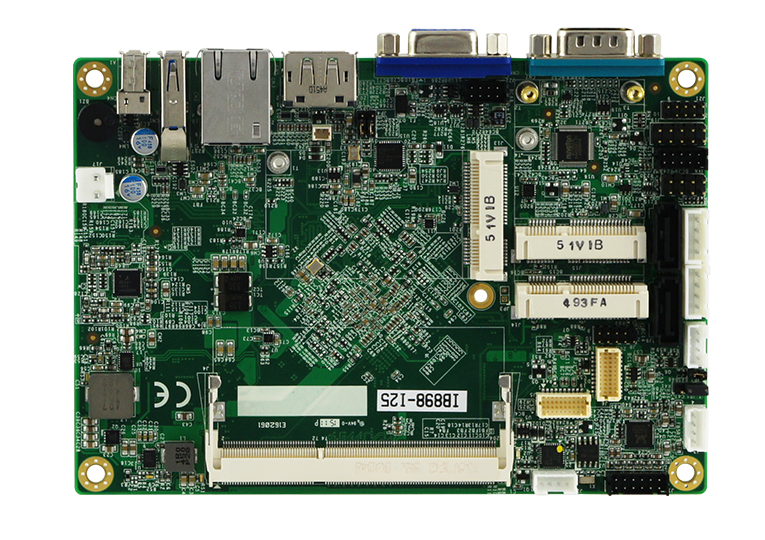

Intel® Atom® Processor E3800 Series 3.5-inch Single Board Computer

  • Onboard Intel® Atom® E3825 DC/ E3815 SC SoC, 1.33GHz/1.46GHz
  • 1x DDR3L-1066 SO-DIMM, Max. 8GB
  • Supports VGA, DisplayPort and 24-bit dual-channel LVDS
  • 1x Intel® I210IT PCI-E Gigabit LAN
  • Watchdog timer, Digital I/O, mSATA, iSMART
  • 3x USB 2.0, 1x USB 3.0, 2x COM, 2x SATA II
  • 3x Mini PCI-E slots (2x full-size, 1x half-size)
  • Wide-range operating temperature
  • Supports wide-range operating temperature from -40°C to 85°C
  • iSMART
  • Wide Temperature
CPU Intel® Atom® DC E3825 (1.33GHz, 1MB cache)
Intel® Atom® SC E3815 (1.46GHz, 512KB cache)
PCH Integratd in Intel® Atom® SoC
Memory 1x DDR3L-1066 SO-DIMM, Max 8GB (Non-ECC)
Watchdog Timer 256 levels
H/W Monitor Yes
Storage Device Interface 1x mSATA
Mini Type Slots 3x Mini PCI-E (2x full-size, 1x half-size)
Graphics Controller Intel® Atom® SoC integrated Gen7 4EUs graphics
Video Output Supports CRT, DisplayPort, and 24-bit dual-channel LVDS
Ethernet 1x Intel® I210IT PCI-E Gigabit LAN
I/O Chipset Nuvoton NCT5523D
Serial Port 1x RS232/422/485 (jumper-less selection)
1x RS232
USB 2.0 1x USB 2.0 on board
2x USB 2.0 via pin header
USB 3.X 1x USB 3.0 on board
Serial ATA 2x SATA II
Audio Intel® Atom® SoC built-in HD Audio controller + Realtek ALC269QHD codec w/ class-D amplifier
Others Digital I/O, +12V DC-In, iSMART Wide-range operating temperature
Dimensions (L x W) 102mm x 147mm (4" x 5.8")
Power Consumption Intel® Atom® E3825 1.33GHz w/ 4GB DDR3L-1600
+12V: 0.65A
Operating Temperature -40°C~85°C (-40°F~185°F)
Storage Temperature -40°C~90°C (-40°F~194°F)
Relative Humidity 90% (non-condensing @60°C)
IB898-I25D1 Intel® Atom® E3825 (1.33GHz) 3.5" SBC w/ PCI-E GbE LAN, CRT, DisplayPort & LVDS (24-bit LVDS dual-channel), mSATA, iSMART, wide temp support
IB898-I15D1 Intel® Atom® E3815 (1.46GHz) 3.5" SBC w/ PCI-E GbE LAN, CRT, DisplayPort & LVDS (24-bit dual-channel LVDS), mSATA, iSMART 3.1, wide temp support

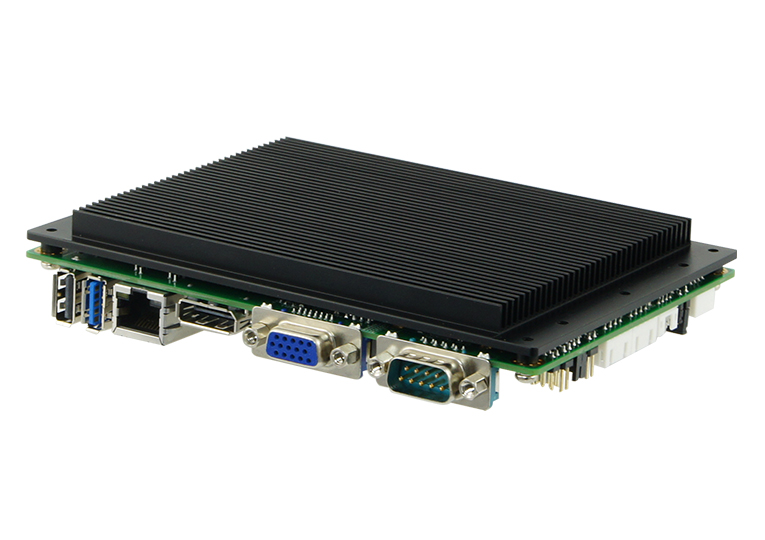

HSIB898-BGA-A Heatsink for IB898

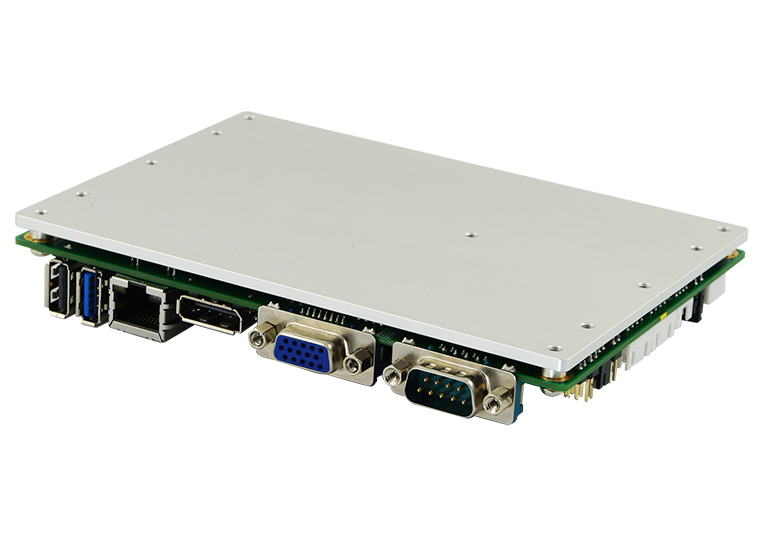

HSIB898-BGA-1 Heat spreader for IB898
IB76A-2 Cable kit w/ USB, COM, Power, SATA + Power cable
CATALOGS Embedded Computing (Vol.23)


Model Chipset Video Audio Network Others
IB898 / IB897

Intel INF

Windows 7 & 8

Realtek ALC269

Windows 7 & 8

Intel LAN

Windows 7 & 8

Intel USB 3.0

Windows 7

Intel TXE Driver

Windows 7 & 8
