IB838

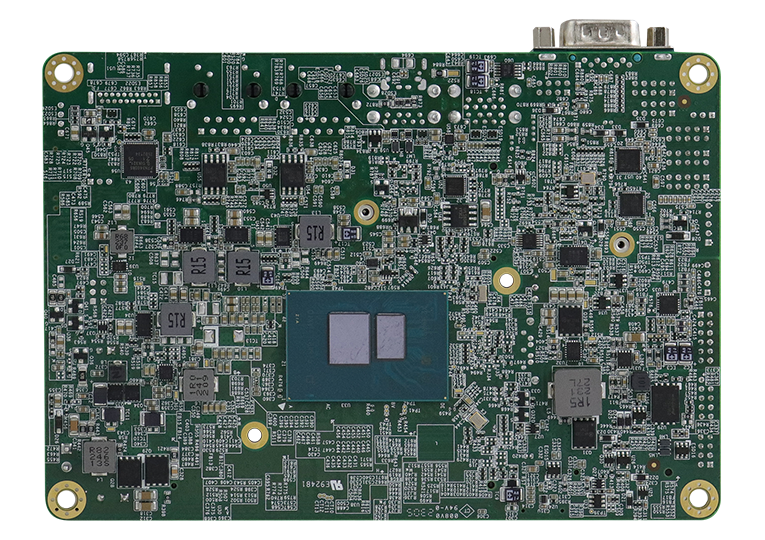

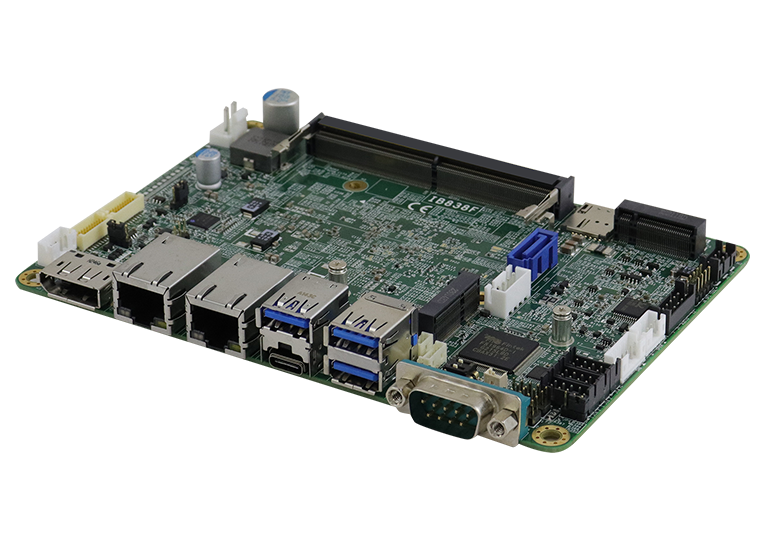

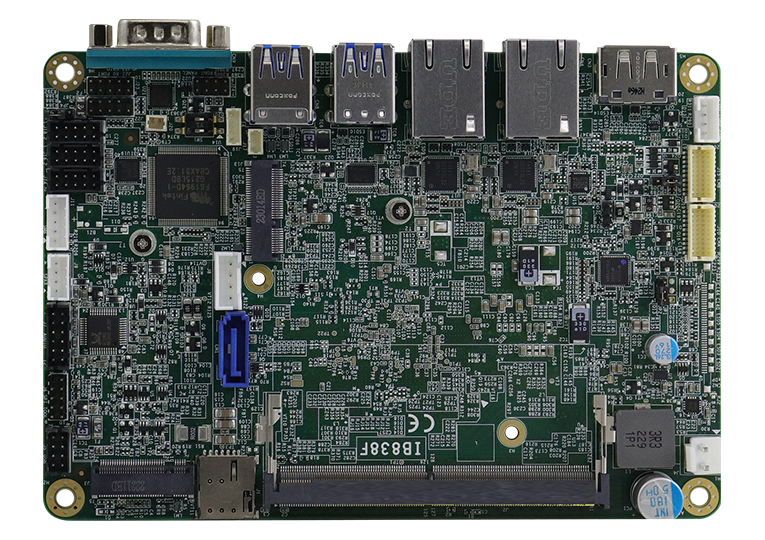

Intel® Core™ i3 N-series Processor 3.5-inch Single Board Computer

Intel® Core™ i3 N-series Processor
1x DDR5 SO-DIMM, Max. 16GB
Supports Type-C & DP++ and eDP or LVDS
2x Intel® PCI-E 2.5G LAN
2x USB 2.0, 4x USB 3.2 (1x Type-C + 3x Type-A), 4x COM, 1x SATA III
2x M.2 sockets (E-key + B-key), supports CNVi
9V~36V wide-range DC input
Supports fTPM, Watchdog timer, Digital I/O

Product Detail
Specification
Ordering Information
Download

The low-power IB838 3.5” single board computer is powered by Intel® Core™ i3 N-series (formerly Alder Lake-N) processor. Combining robust computing performance with advanced features, it is positioned to meet diverse needs across multiple industries, including industrial automation and control, retail displays, transportation, and automotive applications.

IB838 INTRODUCTION VIDEO

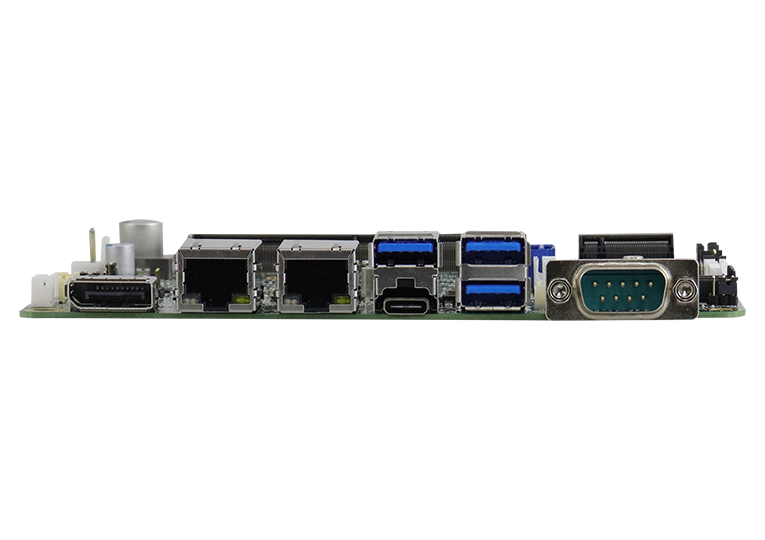

Fortified with intelligent power handling and a 9V~36V DC input range, the IB838 ensures reliability and consistent operations in transportation applications that may encounter variable power conditions. Versatile connectivity makes it ideal for automation processes and data acquisition systems. The SBC offers Type-C, DP++, and eDP or LVDS display options, along with a rich set of I/O interfaces, including two Intel® PCI-E 2.5G LAN ports, two USB 2.0 ports, and four USB 3.2 ports (1x Type-C + 3x Type-A).

With CNVi support, the 5G-ready IB838 comes equipped with a high-speed SATA III port and two M.2 sockets (E-key + B-key), providing ample storage and expansion possibilities. Additionally, it boasts four serial ports and digital I/O, facilitating comprehensive connectivity to diverse devices and peripherals. Enhanced security and functionality are integrated through fTPM (firmware-based Trusted Platform Module) and a Watchdog timer for system stability.

CPU	Intel® Core™ i3 N-series Processor
PCH	N/A
Memory	1x DDR5 SO-DIMM, Max. 16GB
BIOS	AMI
Watchdog Timer	256 levels
H/W Monitor	Yes
Storage Device Interface	M.2(B-Key)
Mini Type Slots	2x M.2 sockets (E-key+B-key)
Graphics Controller	Intel® SoC integrated Gen12 graphics
Video Output	3x Display [DP connector & Type-C & eDP or LVDS]
Ethernet	2x Intel® I226V LAN
I/O Chipset	Fintek F81964D-I on board
Serial Port	1x RS232/422/485 (Jumper-less selection) 3x RS232
USB 2.0	2x USB 2.0 via (pin header)
USB 3.X	1x Type-C+ 3x Type-A
Serial ATA	1x SATA III
Audio	Intel® Core™ i3 Processor N-series & Intel® Processor N-series built-in HD audio + ALC888S codec
TPM	fTPM
Others	Digital I/O (4-in/4-out), EuP/ErP, +9V~+36V DC-in
Dimensions (L x W)	102mm x 147mm (4“ x 5.8“)
Power Consumption	Intel® Core™ i3-N305 1.80 GHz w/ 4800 8GB DDR5 ADATA AD5S48008G-S +12V:2.8A
Operating Temperature	0°C~60°C (32°F~140°F)
Storage Temperature	-40°C~85°C (-40°F ~185°F)
Relative Humidity	10% ~ 90% (non-condensing)

IB838F-N305	Intel® Core i3-N305 SoC on board 3.5" SBC w/ 2x 2.5GbE, DisplayPort + Type-C + LVDS, 4x COM, 2x M.2 (E-key+B-key), 1x SATA III, fTPM, DC-in (9V~36V)
IB838FE-N305	Intel® Core i3-N305 SoC on board 3.5" SBC w/ 2x 2.5GbE, DisplayPort + Type-C + eDP, 4x COM, 2x M.2 (E-key+B-key), 1x SATA III, fTPM, DC-in (9V~36V)
IB838F-N50	Intel® N50 SoC on board 3.5" SBC w/ 2x 2.5GbE, DisplayPort + Type-C + LVDS, 4x COM, 2x M.2 (E-key+Bkey), 1x SATA III, fTPM, DC-in (9V~36V)
IB838FE-N50	Intel® N50 SoC on board 3.5" SBC w/ 2x 2.5GbE, DisplayPort + Type-C + eDP, 4x COM, 2x M.2 (E-key+Bkey), 1x SATA III, fTPM, DC-in (9V~36V)
HSIB838-A	HSIB838-A Heatsink for IB838 series (for N50)

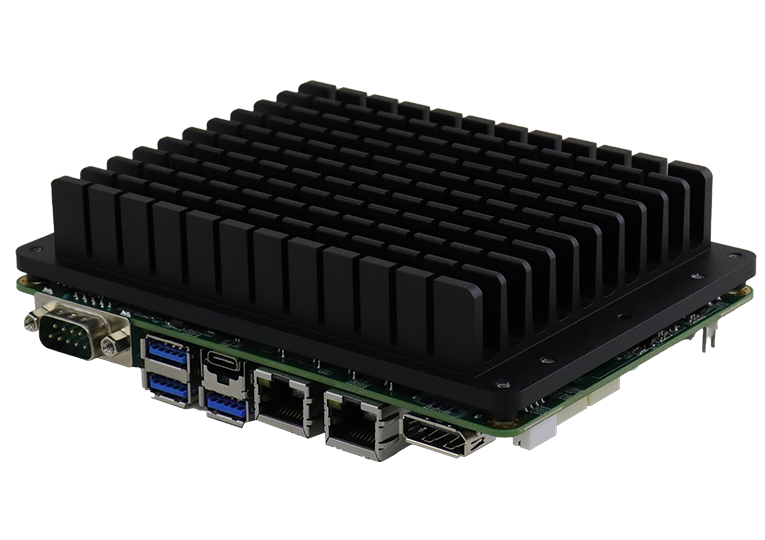

HSIB838-C	Heatsink for IB838 series (for N305)

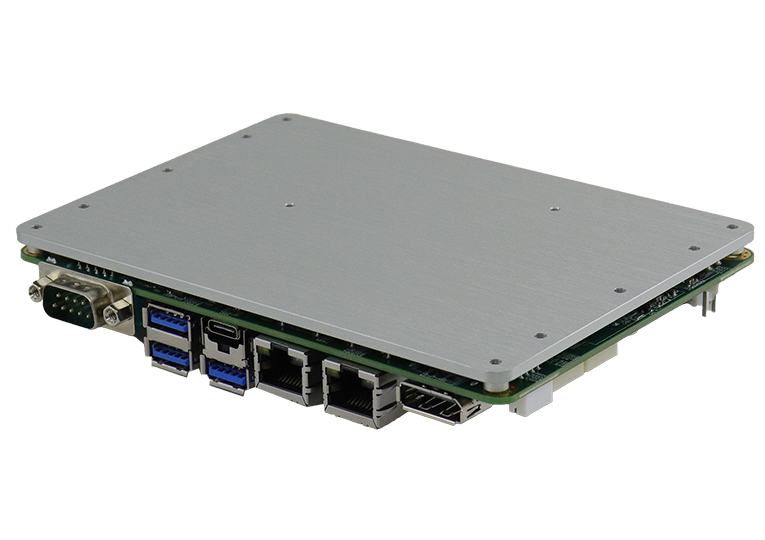

HSIB838-1	Heat spreader for IB838
