Intel® Celeron® N & J Series 3.5-inch Single Board Computer

  • Onboard Intel® Celeron® N & J series processor
  • 1x DDR4-3200 SO-DIMM, Max. 16GB
  • Supports 1x DisplayPort & 2x dual channel LVDS
  • 2x I226V PCI-E 2.5G LAN, 6x COM ports
  • 4x USB 3.1, 2x USB 2.0, 1x SATA III (shared with M/2 B-key)
  • 2x M.2 sockets (E-key & B-key), 1x Mini PCI-E slot (full-size)
  • Watchdog timer, Digital I/O, fTPM, mSATA, 12V only DC-in
  • NEW

The IB837 3.5” single board computer is designed for a wide range of IoT applications, including industrial automation, smart retail, healthcare, smart city and edge AI solutions, combining powerful processing capabilities with extensive connectivity options.

At the heart of the IB837 is the onboard Intel® Celeron® N & J series (formerly Elkhart Lake) processor, offering a good balance of performance and power efficiency. With support for up to 16GB of DDR4-3200 SO-DIMM memory, the SBC ensures smooth multitasking and efficient operation, delivering exceptional performance while consuming minimal power for applications requiring a compact form factor.

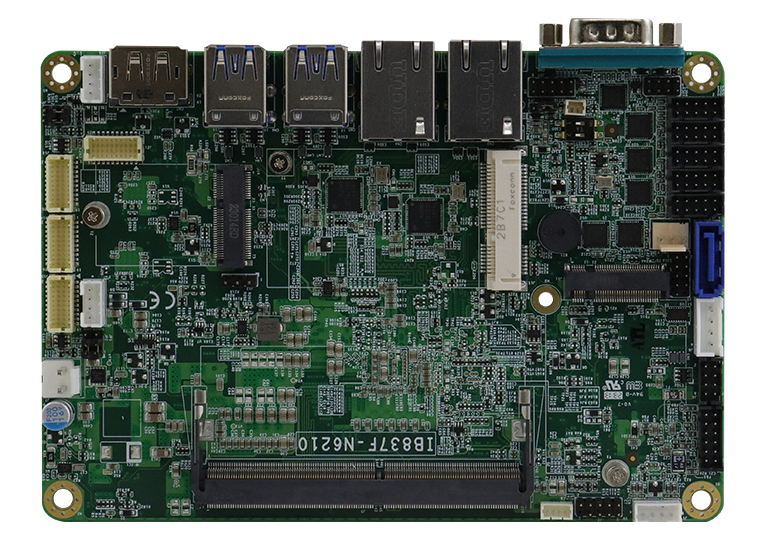

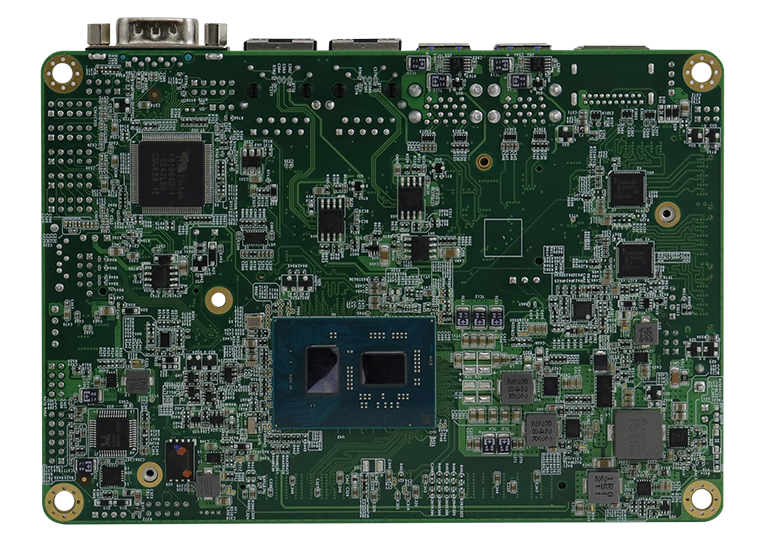

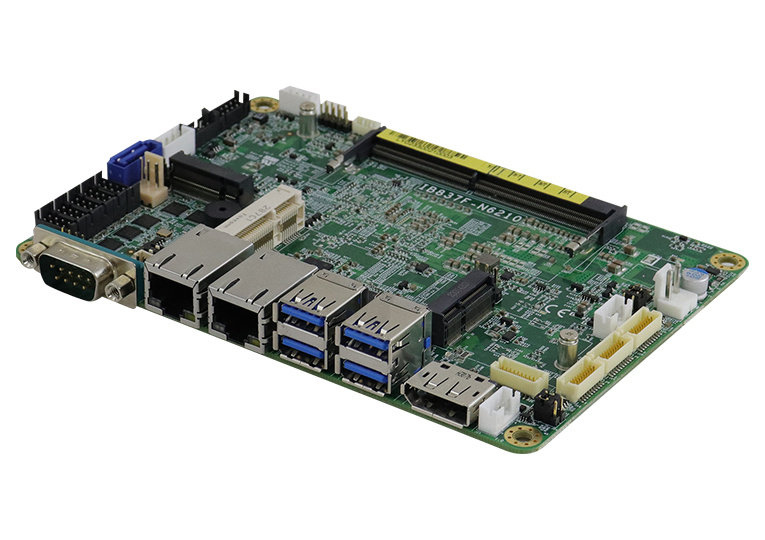

 IB837 3.5" Single Board Computer

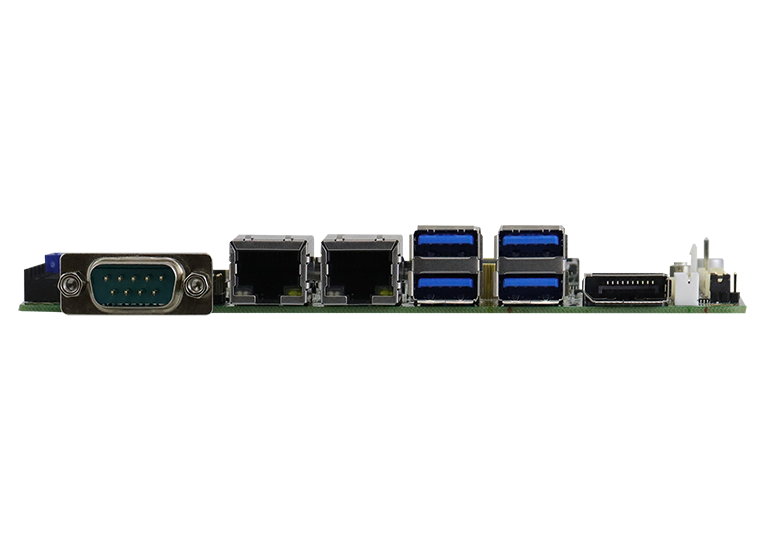

The IB837 is equipped with a comprehensive selection of I/O ports to facilitate seamless integration with various peripherals and devices. It features one DisplayPort and two dual-channel LVDS interfaces, enabling flexible display configurations for enhanced visual experiences. Additionally, the board offers two I226V PCI-E 2.5G LAN, four USB 3.1, two USB 2.0, and one SATA III port, which can be shared with the M.2 B-key slot, allowing for flexible storage options.

It incorporates two M.2 sockets (E-key & B-key) and one full-size Mini PCI-E slot, providing versatile expansion capabilities for wireless communication modules, storage devices, and other expansion cards. The inclusion of essential features such as 12V DC-in power input, extended temperature range, a watchdog timer, digital I/O, fTPM, and mSATA further enhances the functionality of the platform.

CPU Intel® Celeron® QC J6412 (2.0GHz/2.6GHz)
Intel® Celeron® DC N6210 (1.2GHz/2.6GHz)
Memory 1x DDR4 SO-DIMM, Max. 16GB
Watchdog Timer 256 levels
H/W Monitor Yes
Storage Device Interface 1x mSATA
1x M.2 B3042
Mini Type Slots Mini PCI-E [for PCI-E (x1) + USB2.0 +SATA ]
1x M.2 (B-Key, type:3042, SATA)
1x M.2 (E-Key, type:2230, PCI-E x1 + USB2.0)
Graphics Controller Intel® SoC integrated Gen11 Graphics
Video Output 1x DisplayPort, 2x 24-bit dual-channel LVDS
Ethernet 2x Intel® I226V PCI-E Gigabit LAN
I/O Chipset Fintek F81966D-I
Serial Port 1x RS232/422/485 (Jumperless selection) & 5x RS232
USB 2.0 2x USB 2.0 (Pin-header)
USB 3.X 4x USB 3.1 (Type A)
Serial ATA 1x SATA III (shared with M.2 B-key)
Audio Built-in HD with Realtek ALC888S + amplifier
Others Digital I/O (4-in/4-out), +12V DC-in
Dimensions (L x W) 102mm x 147mm (4" x 5.8")
Power Consumption Intel® Celeron® J6412 2.00GHz w/ 8GB DDR4-3200
Operating Temperature 0°C~60°C (32°F ~140°F)
Storage Temperature -20°C~80°C (-4°F ~176°F)
Relative Humidity 95% (non-condensing@60°C)
IB837F-J6412 Intel® Celeron® J6412 (2GHz~2.6GHz) onboard 3.5-inch SBC, w/ 2x 2.5GbE LAN, 1x DisplayPort, 2x LVDS (24-bit LVDS Dual channel), mSATA, M.2, 12V DC-in
IB837F-N6210 Intel® Celeron® N6210 (1.2GHz~2.6GHz) onboard 3.5-inch SBC , w/ 2x 2.5GbE LAN, 1x DisplayPort, 2x LVDS (24-bit LVDS Dual channel), mSATA, M.2, 12V DC-in
HSIB837-A Heatsink for IB837
HSIB837-1 Heat spreader for IB837
