Intel® Atom® x6000 Series / Pentium® / Celeron® 3.5-inch Single Board Computer

  • Onboard Intel® Atom® x6000 Series processor
  • 2x DDR4-3200 SO-DIMM, Max.32GB, supports IBECC
  • Supports 2x DisplayPort (DP and Type-C), eDP or 24-bit dual-channel LVDS
  • 3x Intel® 2.5G LAN
  • 2x USB 2.0, 4x USB 3.1, 2x SATA III
  • 1x M.2 sockets (E-Key), 1x Mini PCI-E slot (Full-size)
  • Watchdog timer, Digital I/O, TPM (2.0), mSATA(Share with SATA port)
  • Wide-range operating temperature from -40°C to 70°C
  • Wide Temperature
  • Wide-range power input
  • Microsoft Azure Certified-IoT

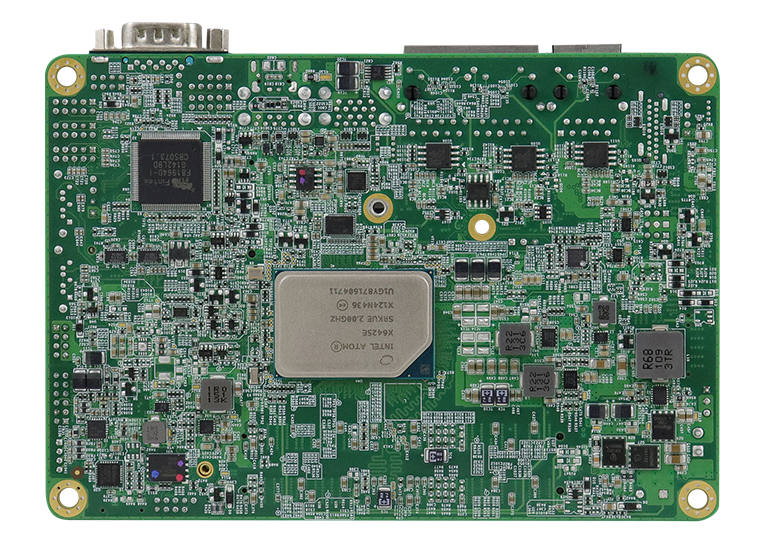

The IB836 is a 3.5" single board computer powered by robust Intel® Atom® x6000 Series (formerly Elkhart Lake) processors to meet the demands of critical real-time computing in applications spanning the retail, transport, industrial automation, and medical sectors.

To support the next generation of IoT solutions, IBASE's IB836 comes with three processor variants with a TDP range of 6W to 12W, a maximum of 3.0GHz burst frequency, up to 50% improved CPU performance and up to two times enhancement in graphics from previous generation. The SBC has two DDR4 memory slots with a 32GB capacity and in-band error-correcting code (IBECC) functionality that corrects single-bit memory errors in standard, non-ECC memory. Three independent displays can be driven with up to 4Kp60 resolutions via two DisplayPort (DP & Type C) and one eDP or LVDS output.

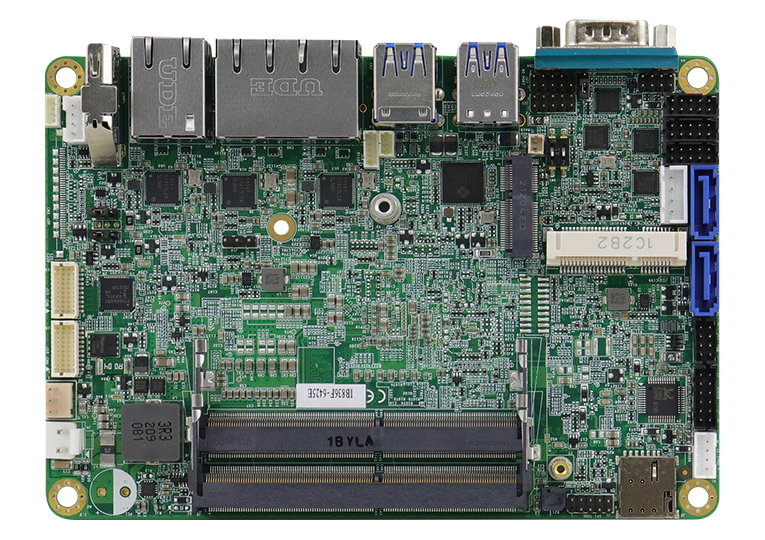

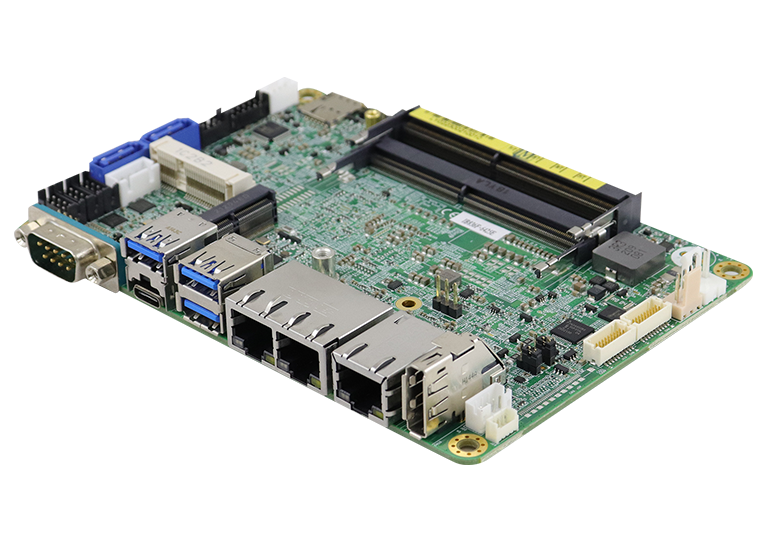

 IB836 3.5-inch single board

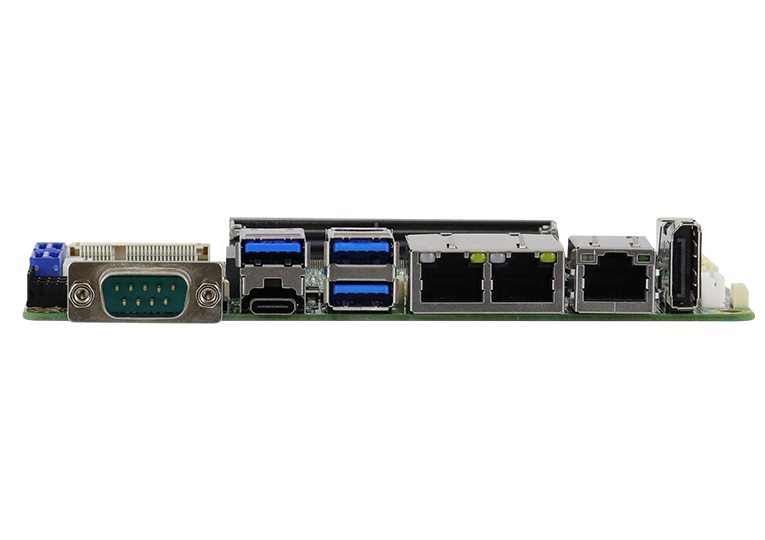

Rich I/O connectivity and expansion capabilities on the IB836 allow connection to numerous peripherals and include 2x USB 2.0, 4x USB 3.1, 2x SATA III, 1x M.2 and 1x mPCIe interface, as well as three Gigabit Ethernet ports for high-speed connections to wired devices.  Measuring 102mm by 147mm, the board operates on a 9V~36V wide range power input and extended temperature range of -20 to +70°C.

IB836 is currently available with Intel Atom x6425E, x6413E or x6211E processor. Other features comprise TPM to enable applications to run securely and EuP/ErP power saving and intelligent scheduler to improve environmental performance.

CPU Intel® Atom® QC x6425E (1.8GHz/3.0GHz)
Intel® Atom® QC x6413E (1.5GHz/3.0GHz)
PCH Integrated in Intel® SoC
Memory DDR4-3200 SO-DIMM, Max. 32GB, (supports IBECC based on CPU)
Watchdog Timer 256 levels
H/W Monitor Yes
Storage Device Interface 1x mSATA (Share with SATA port)
Mini Type Slots 1x M.2 (E-Key, type:2230)
1x Mini PCI-E (full-size)
Graphics Controller Intel® SoC integrated Gen11 Graphics
Video Output 2x DisplayPort (DP connector & Type-C) eDP or 24-bit dual-channel LVDS
Ethernet 3x Intel® I225IT 2.5G LAN for Atom® (x6000)
I/O Chipset Fintek F81964D-I
Serial Port 1x RS232/422/485 (Jumperless selection)
3x RS232
USB 2.0 2x USB 2.0 (Pin-header)
USB 3.X 3x USB 3.1 (Type-A)
1x USB (Type-C)
Serial ATA 2x SATA III
Audio Built-in HD with Realtek ALC888S w/ class-D amplifier
TPM TPM (2.0)
Others Digital I/O (4-in/4-out), EuP/ErP, +9V~+36V DC-in
Dimensions (L x W) 102mm x 147mm (4" x 5.8")
Power Consumption Intel® Atom® x6413E 1.5GHz w/ 2x DD4 3200 16GB +12V: 1.87A
Operating Temperature Atom® x6000: -40°C~70°C(-40°F~158°F)
Storage Temperature -40°C~85°C (-40°F ~185°F)
Relative Humidity 90% (non-condensing@60°C)
IB836F/FE-6425E Intel® Atom® x6425E (1.8GHz~3.0GHz) 3.5" SBC w/ 3x 2.5G LAN, 2x DisplayPort (DP connector & Type-C), eDP or LVDS, mSATA, M.2, EuP/ErP, 9V~36V DC-in, wide temperature support
*model name with“F” is LVDS, “FE” is eDP
IB836F/FE-6413E Intel® Atom® x6413E (1.5GHz~3.0GHz) 3.5" SBC w/ 3x 2.5G LAN, 2x DisplayPort (DP connector & Type-C),
eDP or LVDS, mSATA, M.2, EuP/ErP, 9V~36V DC-in, wide temperature support
*model name with“F” is LVDS, “FE” is eDP

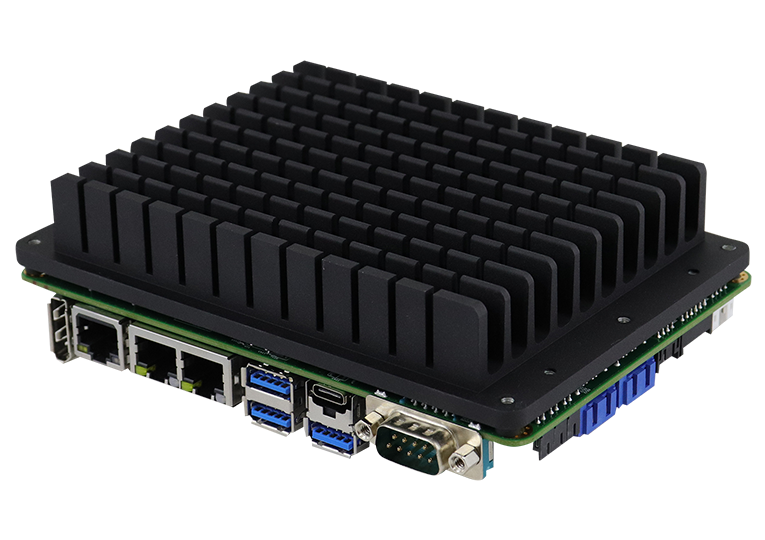

HSIB836-X-B Heatsink for IB836F/FE
HSIB836-X-2 Heat spreader for IB836F/FE
