IB822

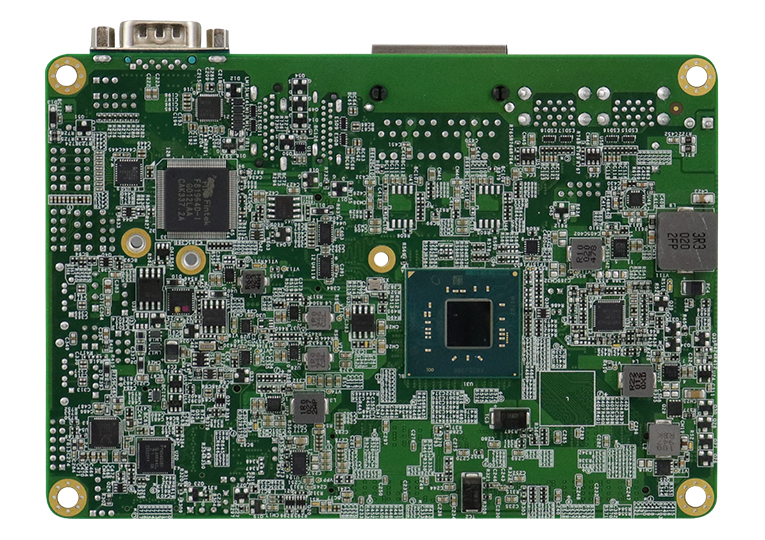

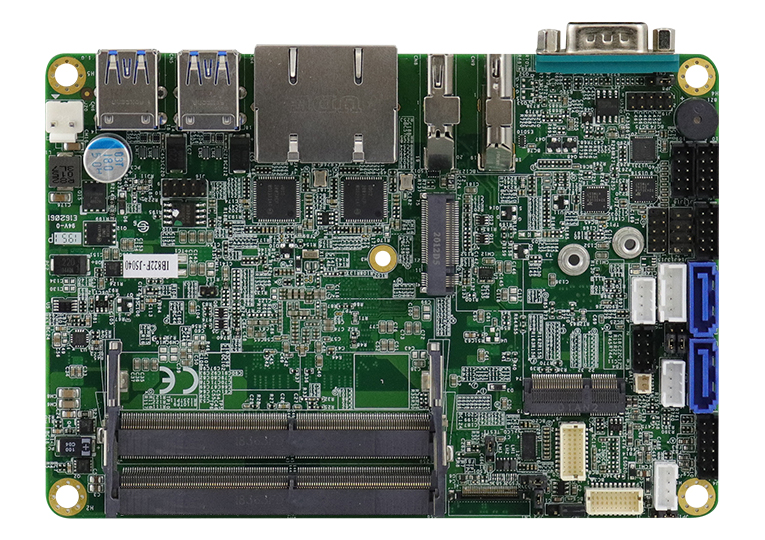

Intel® Pentium® Silver 3.5-inch Single Board Computer

  • Onboard Pentium® Silver SoC
  • 2x DDR4-2400 SO-DIMM sockets, Max, 8GB
  • Supports HDMI(2.0a), DisplayPort and eDP or 18/24-bit dual-channel LVDS
  • Dual Intel® Gigabit LAN
  • 2x M.2 sockets (B/ E key)
  • Digital I/O, iSMART, Watchdog timer
  • iSMART

The IB822 3.5-inch SBC (single board computer) supports Intel’s “Gemini Lake” Pentium® Silver J5005 and Celeron® J4005 processors built with 14nm fabrication, a base clock/burst rate of 1.5GHz/2.8GHz and 2.0GHz/2.7GHz, and integrated Intel® UHD Graphics 605 (18EUs@800MHz) and UHD Graphics 600 (12EUs@750MHz) respectively.


Enabling lower power consumption, the highly compact IB822 offers silent and extremely reliable operation. Its fanless and power-efficient design makes it a durable embedded computer solution. With the 10W TDP (thermal design power), the IB822 is just the perfect fit for low power applications such as kiosk, panel PC and those in factory automation environments.

 IB822  3.5-inch Disk-Size SBC

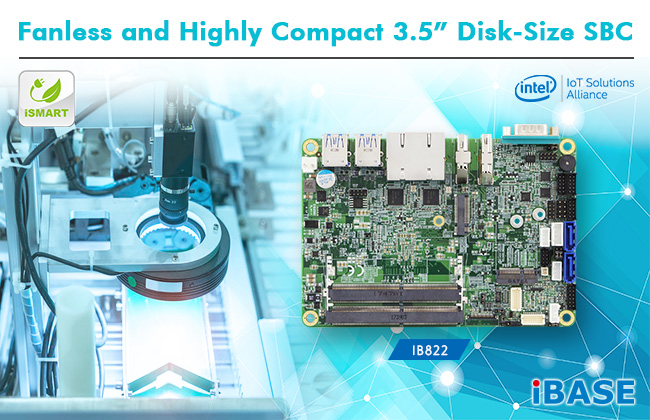

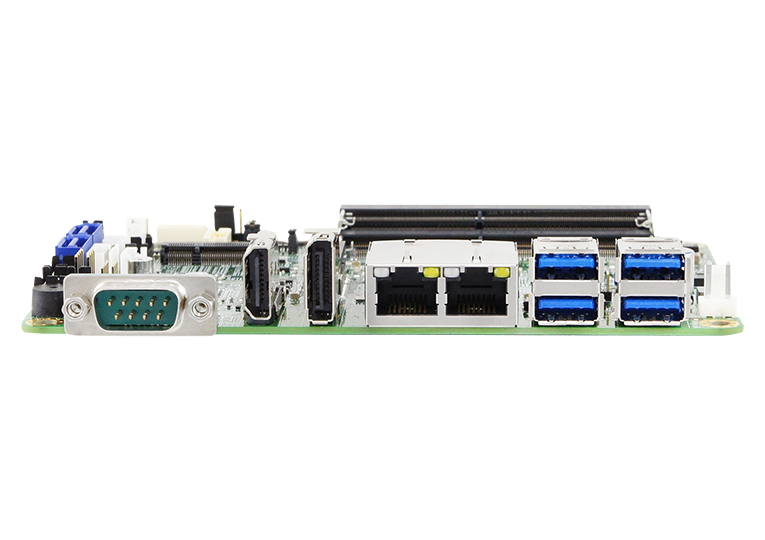

The IB822 includes a rich set of standard features including two DDR4 SO-DIMMs for up to 16GB of DDR4-2400 memory, two Intel® PCI-E Gigabit Ethernet and 12V~24V power input. Providing triple independent display, graphics interfaces include an HDMI (2.0a), a DisplayPort, and eDP or 18/24-bit dual LVDS. Measuring 102mm by 147mm, the board offers comprehensive I/Os with two M.2 sockets for storage, four COM ports, four USB 3.0 ports, and two SATA III ports to ensure usability and interoperability.

CPU Intel® Pentium® Silver J5040 Processor
PCH Integrated in Intel® SoC
Memory 2x DDR4-2400 SO-DIMM sockets, Max, 8GB
BIOS AMI
Watchdog Timer 256 levels
H/W Monitor Yes
Storage Device Interface N/A
Mini Type Slots 1x M.2 (B-key, type: 2242)
1x M.2 (E-key, type: 2230)
Graphics Controller Intel® UHD Graphics 605
Video Output Supports HDMI(2.0a), DisplayPort and eDP or 18/24-bit dual-channel LVDS
Ethernet 2x Intel® I210AT Gigabit LAN
I/O Chipset Fintek F81964D-I
Serial Port 3x RS232
1x RS232/422/485 (jumper-less selection)
USB 2.0 2x USB 2.0
USB 3.X 4x USB 3.0 (5Gb/s)
Serial ATA 2x SATA III
Audio Intel® Pentium® SoC built-in HD Audio controller + Realtek ALC233-VB2-CG Codec w/ class-D speaker amplifier
TPM N/A
Others iSMART 3.5, Digital I/O, 12V~24V (DC-in)
Dimensions (L x W) 102mm x 147mm
Power Consumption Intel® Celeron® J4005 2.0GHz w/ 2x 8GB DDR4-2133
+12V: 1.58A
Operating Temperature 0°C~60°C (32°F~140°F)
Storage Temperature -20°C~80°C (-4°F~176°F)
Relative Humidity 90% (non-condensing @60°C)
IB822F-J5040 Intel® Pentium® Silver J5040 (2.0GHz~3.0GHz) 3.5" SBC w/ dual GbE LAN, HDMI(2.0a), DisplayPort, & eDP or 18/24-bit dual-channel LVDS), 2x M.2, 2V~24V DC-in
IB822-B Heatsink for IB822 series
IB822-1 Heatsink spreader for IB822 series
IB76A-2 Cable kit w/ USB, COM, Power, SATA + Power
