Embedded Computing

IBR215

NXP ARM® Cortex-A53 i.MX8M Plus Quad 1.6GHz Processor 2.5-inch SBC

  • NXP Cortex®-A53, i.MX 8M Plus Quad processor
  • 3GB LPDDR4, 16GB eMMC & SD socket
  • External connectivity for USB, HDMI & Ethernet
  • Supports M.2 B-Key (3052) for 5G module
  • Expansion IO board for wireless, 4G/LTE, LCD, camera, NFC & QR-code functions
  • Ruggedized and fanless design
  • NEW
  • 5G
  • Fanless
  • RISC Based

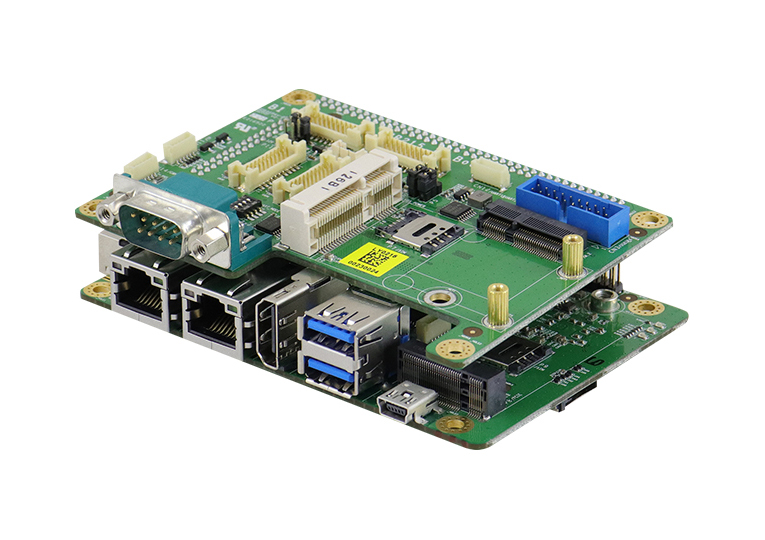

The IBR215 is a 2.5-inch single board computer powered by NXP's quad-core 1.6GHz ARM Cortex®-A53 i.MX 8M Plus processor. Measuring 105 x 72 mm in a compact footprint, the SBC offers impressive computing performance, advanced multimedia, flexible connectivity and a variety of interfaces, making it ideal for industrial automation, smart home and buildings, smart cities and factories, retail environment, machine learning, and industrial IoT applications.

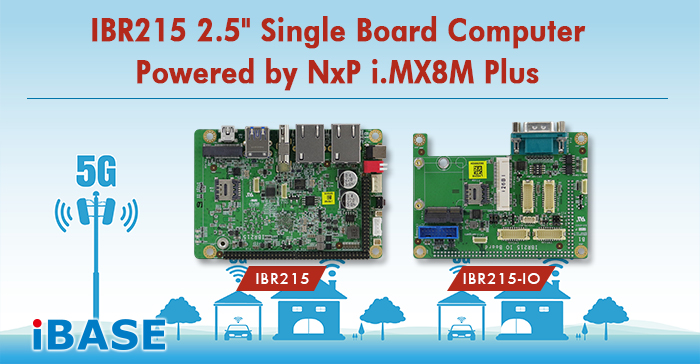

2.5" Single Board Computer with NXP ARM® Cortex®-A53 i.MX 8M Plus Quad 1.6GHz Processor

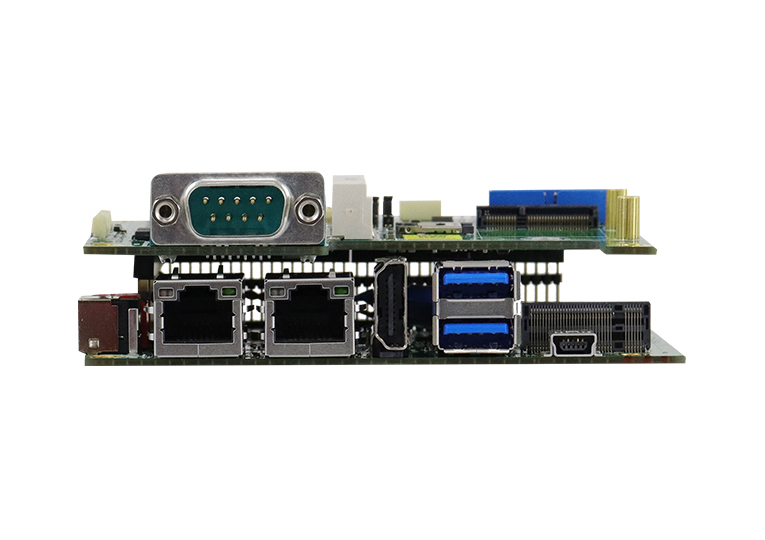

The IBR215 features multiple display interface (HDMI and dual-channel LVDS), a 5G-compatible M.2 3052 socket, 3GB LPDDR4 system memory, up to 64GB eMMC flash memory, external I/O including one HDMI 2.0a, two USB 3.0, two GbE RJ45, one USB OTG, and an SD socket, as well as internal headers for two I2C and DC power. Three 2x20 headers on board connect communication and GPIO signals to the IBR215-IO expansion board to provide interfaces for an M.2 E-key socket, an mPCIe socket, one RS232/422/485 port, two USB 3.0, dual-channel LVDS with backlight control, two CAN bus and two MIPI camera serial interface.


The IBR215 has a wide operating temperature range of -40°C~85°C when built with a heat sink or housing with efficient heat dissipation. IBASE offers both Yocto Linux and Android BSP (Board Support Package) to enable customers to easily develop their applications.

CPU NXP Cortex®-A53 i.MX8M Plus processor
PCH SoC
Memory 3GB DDR4 on board (option: 1/2/4GB)
BIOS N/A
Watchdog Timer 256 levels, 0~128 seconds
H/W Monitor Yes
Storage Device Interface 16GB eMMC on board (up to 128GB)
Mini Type Slots 1x M.2 E-Key(2230)w/ SDIO, UART for wireless
1x Mini PCI-E w/ USB 2.0, SIM, PCM for 4G/LTE
Graphics Controller GC7000UL
OpenGL ES 3.1, Vulkan
Open CL™ 1.2 FP
Vivante GC520L (2D)
Video Output 1x HDMI 1.4a
1x Dual channel LVDS
Ethernet 2x RJ45 GbE LAN
I/O Chipset N/A
Serial Port 1x DB-9 RS232/422/485 port
USB 2.0 1x USB2.0
USB 3.X 2x USB 3.0 Type-A
2x USB 3.0 in 2x10 headers
2x USB 3.0
Serial ATA N/A
Audio internal header (1x line-in, 1x line-out)
TPM N/A
Others OS Support: Yocto v3.0 / Android 11/Other OS (by request)
CE/ FCC Class-B
12V~24V DC-in jack
Dimensions (L x W) IBR215: 105mm x 72mm (4.13” x 2.83”)
IBR215-IO: 100mm x 72mm (3.94” x 2.83”)
Power Consumption NXP i.MX8M Plus Quad,1.6 GHz w/ 3GB DDR4,+12V: 1.79A
Operating Temperature -40°C~ 85°C (with heat sink or through housing design)
-40°C~ 65°C (without heatsink)
Storage Temperature TBD
Relative Humidity 10%~90% (non-condensing)
IBR215-Q316I ARM-based IoT Gateway, NXP Cortex®-A53, i.MX 8M Plus Quad 1.6GHz processor, 3GB LPDDR4, 16GB eMMC
IBR215-IO Expansion Board for IBR215
DATASHEETS IBR215
USER'S MANUALS IBR215 V1.0A
