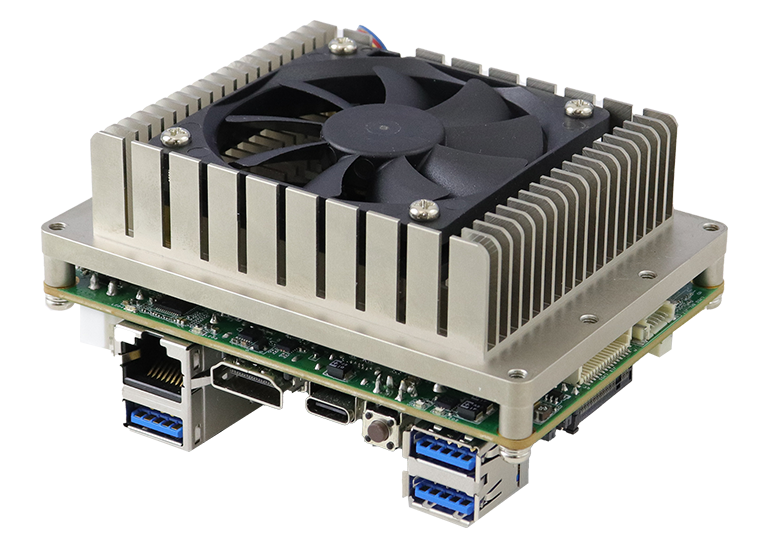

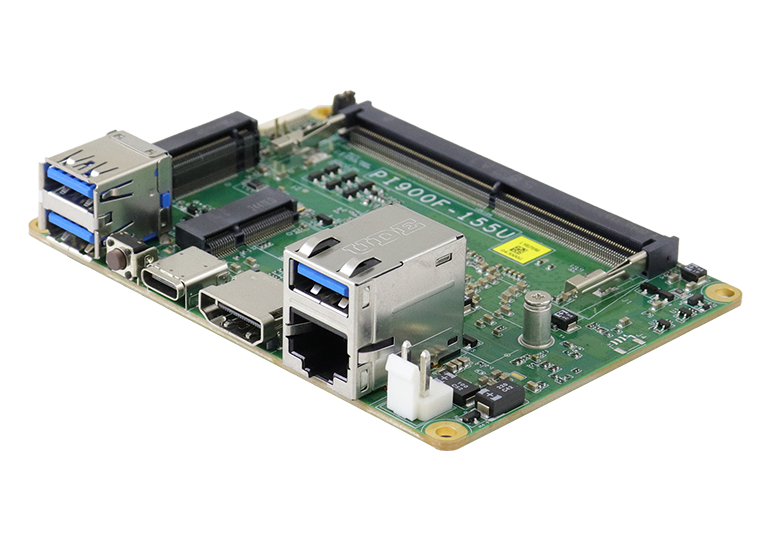

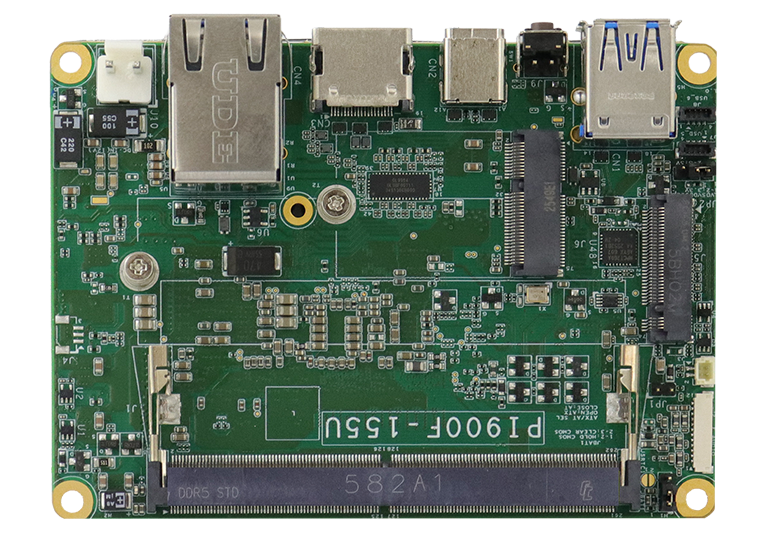

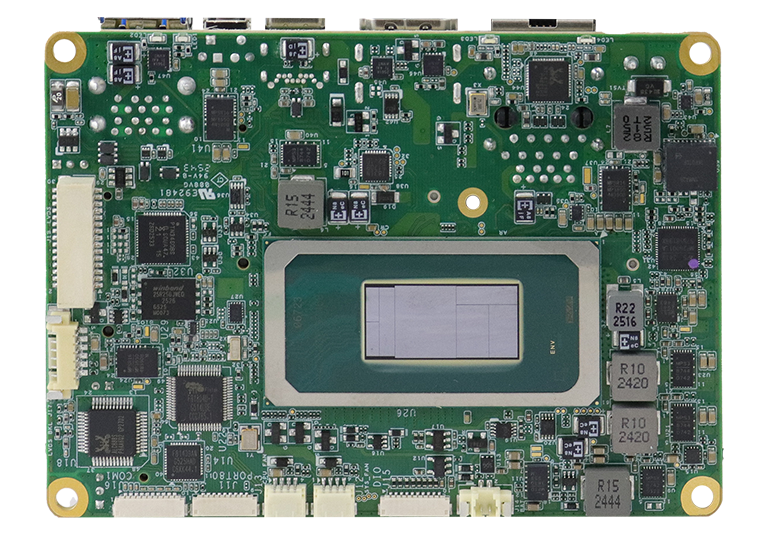

PI900
PICO-ITX Motherboard with Intel® Core™ Ultra 100U Series Processors (Meteor Lake)
- Intel® Core™ Ultra 100U Series Processors (15W TDP)
- 1x DDR5-5600 SO-DIMM, Max. 48GB
- Supports DisplayPort (1.4a), HDMI (2.0), LVDS

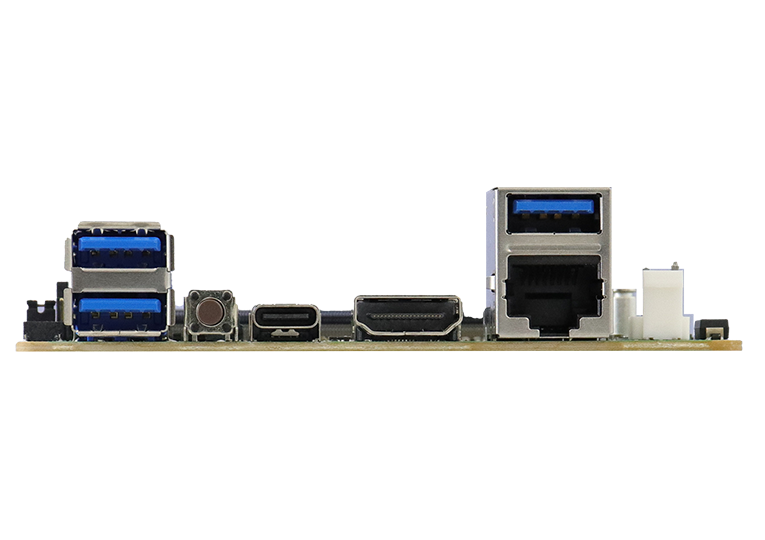

- 3x USB 3.2 (Type-A), 2x USB 2.0 (pin-header), 1x USB 3.2 (Type-C)
- 1x RTL-8125BG-CG PCIe 2.5G LAN, 1x COM
- 2x M.2 slots (M2280+E2230)
- Watchdog Timer, Digital I/O, dTPM, +12V DC input only
| CPU | Intel® Core™ Ultra 100U Series |
| PCH | N/A |
| Memory | 1x DDR5-5600 SO-DIMM, Max. 48GB |
| BIOS | AMI |
| Watchdog Timer | 256 levels |
| H/W Monitor | Yes |
| Storage Device Interface | NVMe |
| Expansion Slots | 1x M.2 (M2280), 1x M.2 (E2230) |
| Mini Type Slots | 1x M.2 (M2280, supports NVMe & SATA) 1x M.2 (E2230, supports WiFi / BT) |
| Graphics Controller | Intel® SoC integrated graphics |
| Video Output | 1x HDMI (2.0) 1x DisplayPort (1.4a) via Type-C 1x LVDS |
| Ethernet | 1x Realtek 8125BG-CG PCIe 2.5GbE LAN port |
| I/O Chip | Fintek F81804U-I |
| Serial Port | 1x RS232/422/485 |
| USB 2.0 | 2x USB 2.0 thru onboard connectors |
| USB 3.X | 3x USB 3.2 @ edge I/O,1x USB 3.2 (Type-C) |
| Serial ATA | via M.2 M-key socket |
| Audio | Realtek Codec ALC888S-VD2-GR |
| TPM | dTPM |
| Others | Digital I/O (4-in/4-out), +12V DC input |
| Dimensions (L X W) | 100mm x 72mm (3.94” x 2.84”) |
| Power Consumption | Intel® Core® Ultra 7 155U / up to 4.80GHz w/ 1x 32GB DDR5 – 5600 +12V :5.93A Intel® Core® Ultra 5 125U / up to 4.30GHz w/ 1x 32GB DDR5 – 5600 DIMM +12V :5.91A |
| Operating Temperature | 0°C~+60°C ( 32°F~+140°F) |
| Storage Temperature | -20°C~+80°C (-4°F~+176°F) |
| Relative Humidity | 10% ~ 90% (non-condensing) |
| PI900AF-125U | PICO-ITX, Intel® Core™ Ultra 7-125U SoC onboard, w/ LVDS, DisplayPort, HDMI, 2.5GbE LAN, 1x COM, 1xSATA III, 2xM.2, dTPM, +12V DC-in, Optional Heatsink & cable kit (RoHS2) |
| PI900AF-155U | PICO-ITX, Intel® Core™ Ultra 7-155U SoC onboard, w/ LVDS, DisplayPort, HDMI, 2.5GbE LAN, 1x COM, 1xSATA III, 2xM.2, dTPM, +12V DC-in, Optional Heatsink & cable kit (RoHS2) |

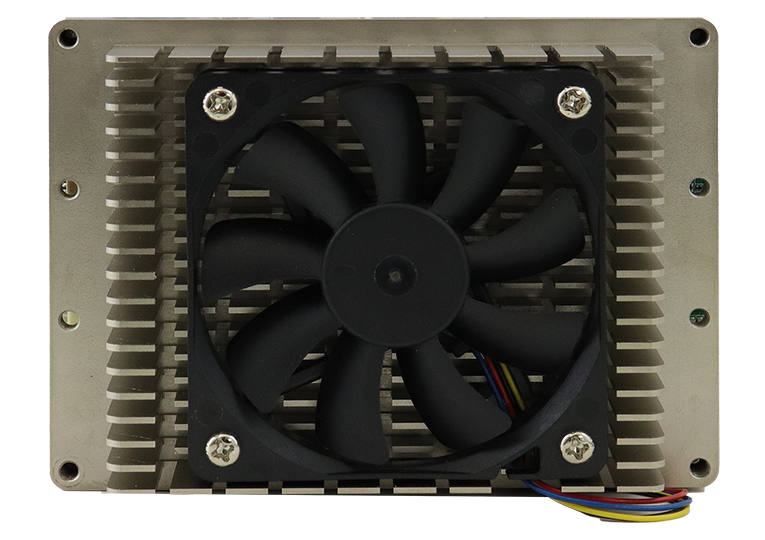

| HSPI900-C | Heatsink with fan for PI900 |
| DATASHEETS | PI900 |
| CATALOGS | Embedded Computing (Vol.25) |
| USER'S MANUALS | PI900 V1.0A (IBASE Server) PI900 V1.0A (Google Drive) |
| DRIVERS - BOARDS | PI900 Driver DVD |
