MI1005

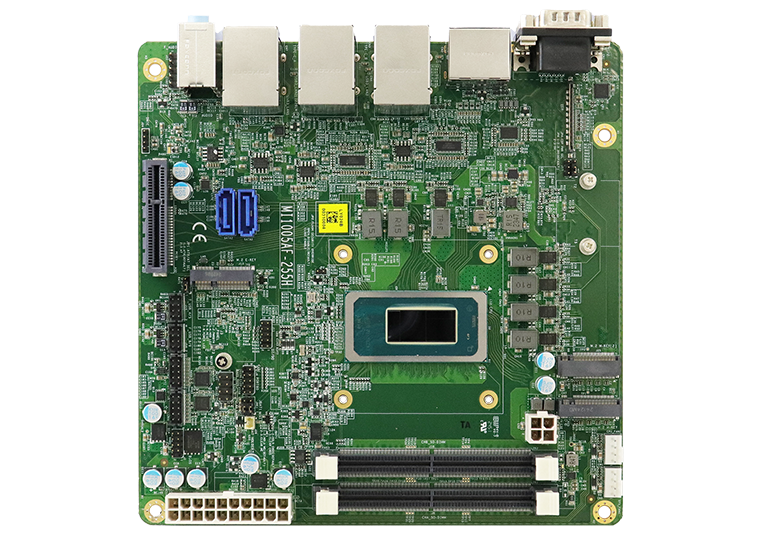

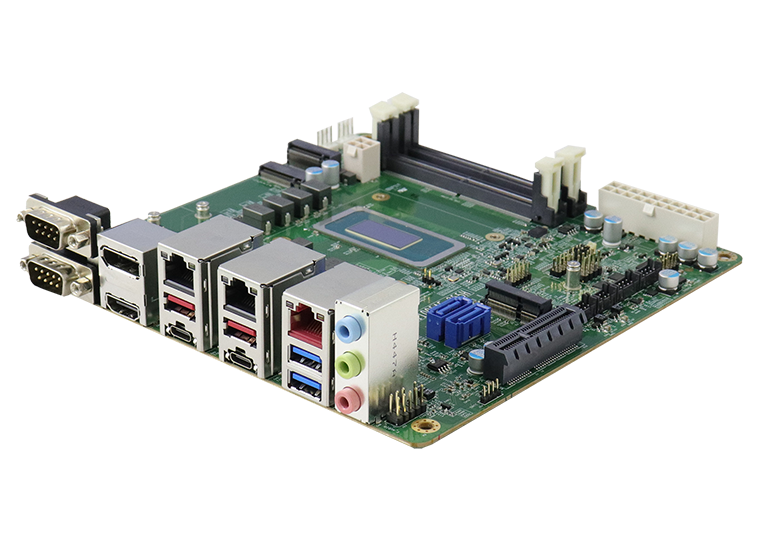

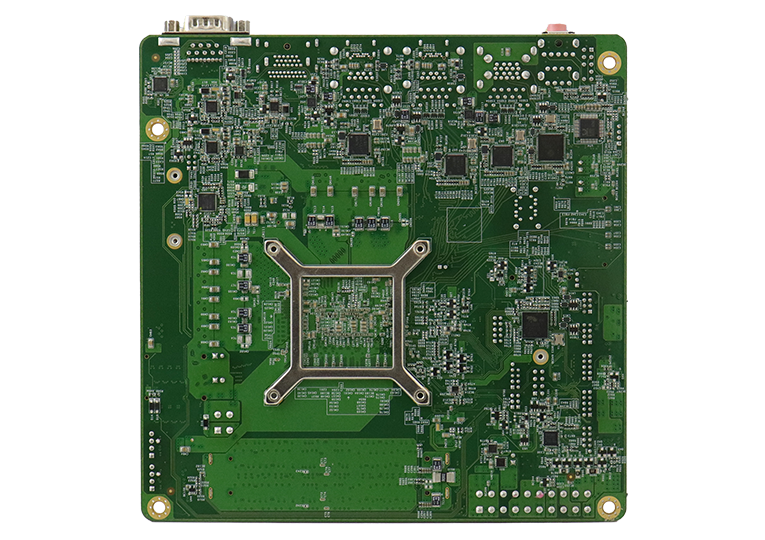

Mini-ITX Motherboard with Intel® Core™ Ultra 200H/200U Series Mobile Processors (Arrow Lake-U/H)

Intel® BGA2049 Core™ Ultra 9/7/5 200 U/H series mobile onboard processors, up to 65W
2x DDR5 cSO-DIMM, Max. 96GB, Non-ECC
Supports eDP(1.4b), 2x Type-C, HDMI (2.1) and DisplayPort(1.4a) (DP++)
LAN 1: Intel® I226LM, supports 2.5G and iAMT, LAN 2 / LAN 3: Intel® I226V, supports 2.5G only

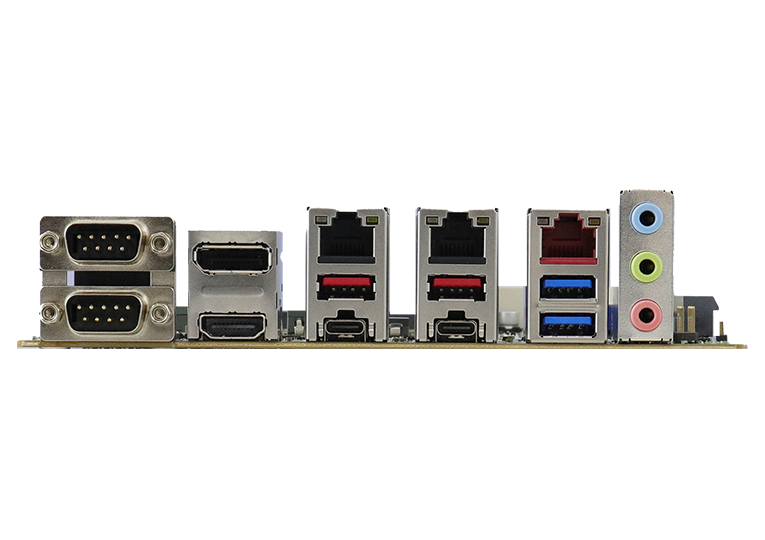

4x USB 3.2 (Type A), 2x USB Type-C, 4x USB 2.0, 4x COM, 2x SATA III
1x PCI-E (x4) [Gen.4.0]; 3x M.2 (E-Key @2230 and 2x M-Key @2280 & 2242)
Watchdog timer, Digital I/O, iAMT(19.0) , fTPM(2.0)

Product Detail
Specification
Ordering Information
Download

The MI1005 is a Mini‑ITX embedded motherboard engineered for advanced industrial IoT, edge AI and compact high‑performance systems. Designed with the cutting‑edge Intel® Core™ Ultra 200H and 200U Series mobile processors (codenamed Arrow Lake‑U/H) onboard, MI1005 delivers industry‑leading compute power and energy efficiency with configurable TDP up to 65 W.

To meet the growing demand for compact, powerful platforms at the edge, the MI1005 leverages Intel’s advanced hybrid architecture, featuring built-in CPU, GPU, and NPU engines that collectively deliver up to 99 TOPS of AI performance. This multi-engine capability enables real-time data processing, vision analytics, and AI inferencing at the edge without the need for discrete accelerators. Whether deployed in AI-enabled kiosks, edge servers, or automated control systems, the MI1005 offers a powerful and energy-efficient solution to accelerate digital transformation at the edge.

Built with industrial-grade reliability, the MI1005 supports up to 96GB of DDR5-6400 cSO-DIMM memory and offers a comprehensive set of interfaces, including three 2.5GbE LAN ports, one PCI-E (x4), triple M.2 (E-Key and M-Key) expansion slots, and versatile display outputs such as HDMI 2.1, DP 1.4a, eDP 1.4b, and dual USB-C. These features make the MI1005 ideal for demanding edge deployments across smart manufacturing, machine vision, intelligent transportation, retail, and automation sectors.

CPU Socket	BGA2049 CPU onboard
CPU	Intel® Core™ Ultra 9/7/5 200 U/H Mobile Processors (Arrow Lake – U/H)
PCH	N/A
Memory	2x DDR5 SO-DIMM sockets, Up to DDR5-6400 cSO-DIMM memory module, Max. 96GB
BIOS	AMI
Watchdog Timer	256 levels
H/W Monitor	Yes
Storage Device Interface	SATA III & NVMe
Expansion Slots	1x PCI-E (x4) [Gen 4]
Mini Type Slots	2x M.2 (M-Key, type:2280 + 2242, PCI-E(4x) Gen.4) 1x M.2 (E-Key, type:2230, USB 2.0 + PCI-E(1x) Gen.4)
Graphics Controller	Intel® Core™ Ultra 9/7/5 200 U/H Mobile Processors integrated graphics
Video Output	1x eDP + HDMI + 2 x DisplayPort (1.4a) (DP++) + 2x Type-C
Ethernet	LAN 1 : Intel® I226LM, Support 2.5G and iAMT LAN 2 / LAN 3: Intel® I226V, support 2.5G only
I/O Chip	Fintek F81966AB-I
Serial Port	4x COM ports: 2x RS232/422/485 + 2x RS232
USB 2.0	4x USB 2.0 via pin-header
USB 3.X	4x USB3.2 Type A (10bps)+ 2x USB Type-C (10 bps) @ edge connector
Serial ATA	2x SATA III
Audio	Built-in HD Audio controller + Realtek ALC888S w/ 7.1 channels
TPM	Supports fTPM

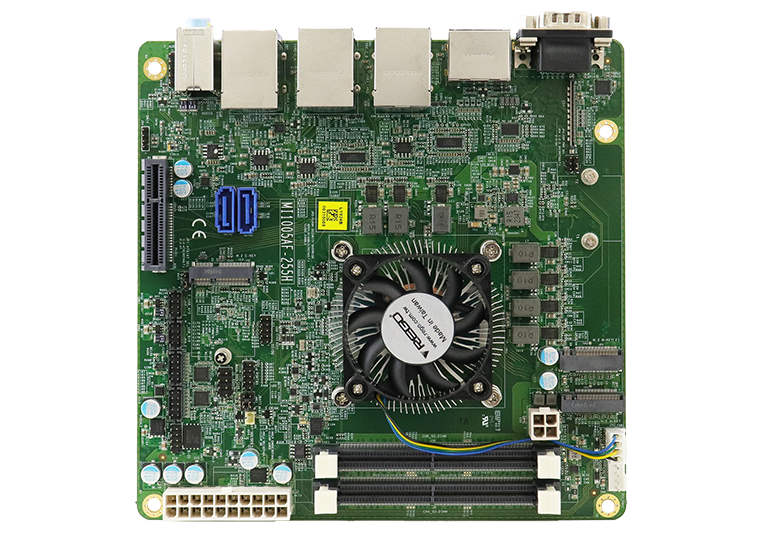

Others	Digital I/O (4-in/4-out) , Watchdog timer, PDPC, CPU cooler
Dimensions (L X W)	170mm x 170mm (6.7“x 6.7“)
Power Consumption	TBD
Operating Temperature	0°C~60°C ( 32°F~140°F)
Storage Temperature	-20°C~80°C (-4°F~176°F)
Relative Humidity	90% (non-condensing @60°C)

MI1005AF-285H	Intel® Core™ Ultra 9 285H CPU onboard MiniITX board w/ eDP, HDMI, 2x DisplayPort, 2x Type-C (for DP & USB 3.2), 3x 2.5GbE, 2x SATA, iAMT (19.0), fTPM (2.0)
MI1005AF-255H	Intel® Core™ Ultra 7 255H CPU onboard MiniITX board w/ eDP, HDMI, 2x DisplayPort, 2x Type-C (for DP & USB 3.2), 3x 2.5GbE, 2x SATA, iAMT (19.0), fTPM (2.0)
MI1005AF-225H	Intel® Core™ Ultra 5 225H CPU onboard MiniITX board w/ eDP, HDMI, 2x DisplayPort, 2x Type-C (for DP & USB 3.2), 3x 2.5GbE, 2x SATA, iAMT (19.0), fTPM (2.0)
