Embedded Computing

MBB1004

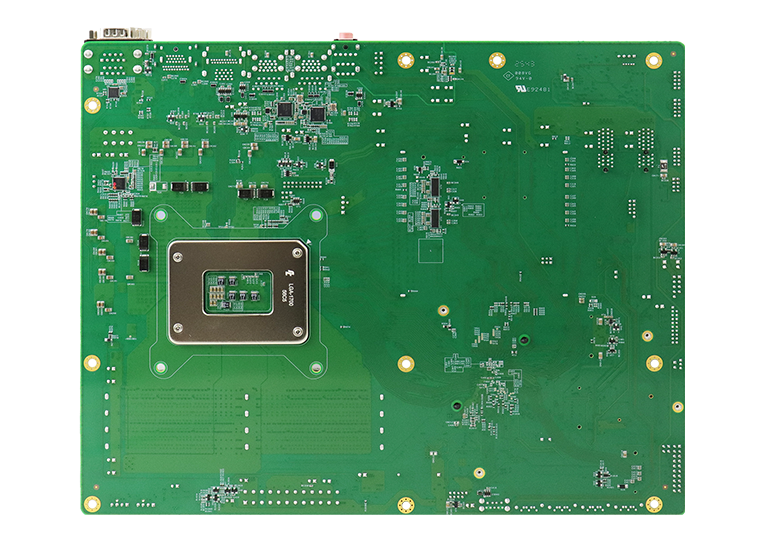

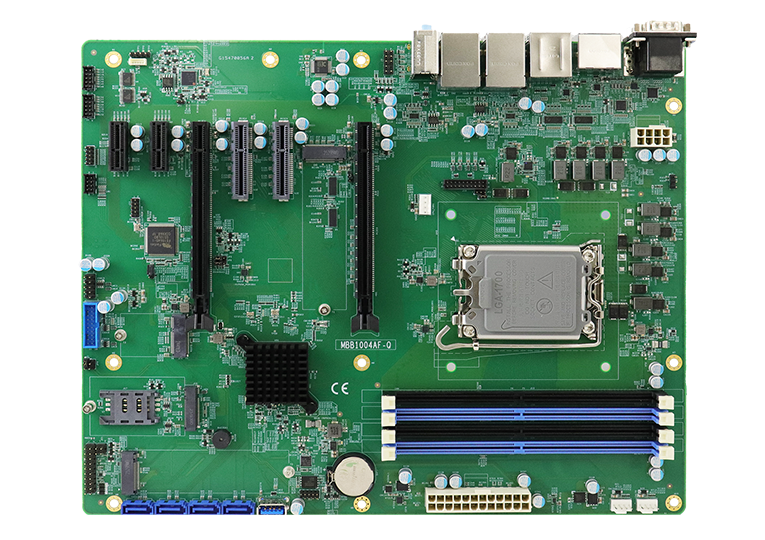

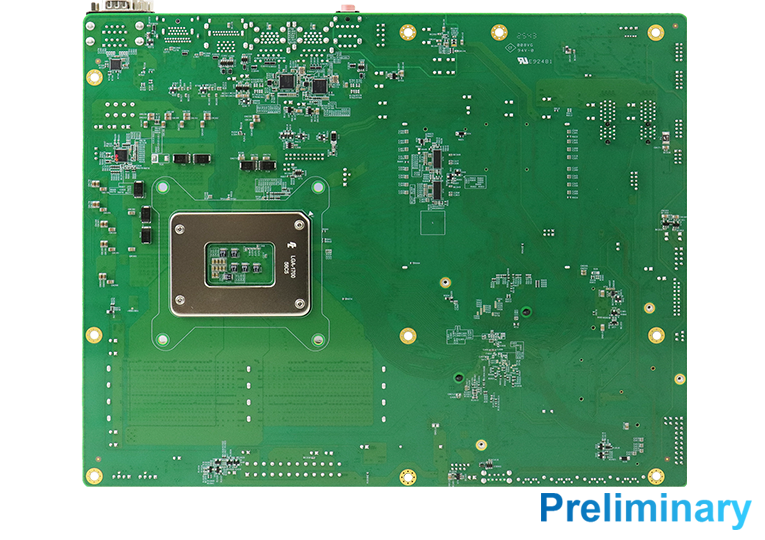

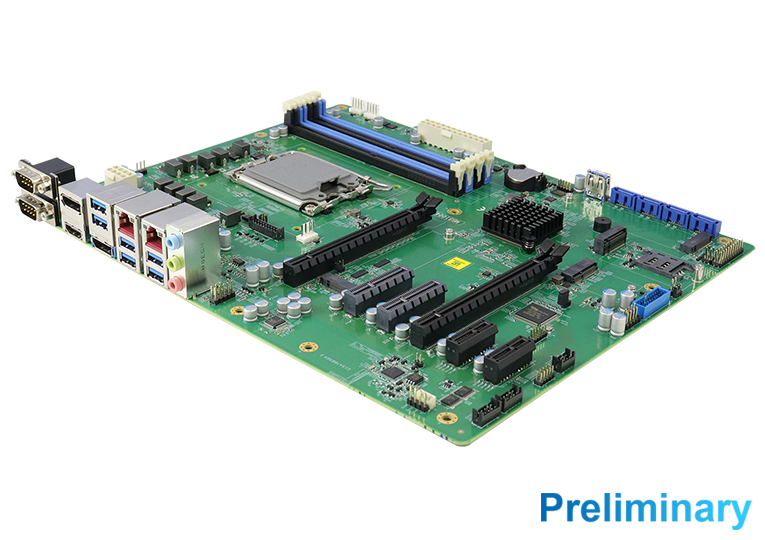

ATX Motherboard with Intel® Core™ 200E / 200PE & 14th/13th/12th Core i LGA1700 Processors

  • Intel® Core™ 200E / 200PE & 14th/13th/12th Core i LGA1700 Processors with Intel R680E/Q670E PCH
  • 4x DDR5 U-DIMM sockets, Max. 192GB
  • Supports 2x DisplayPort (1.4a), HDMI (2.0b), DVI-D
  • LAN 1: Intel® I226LM, supports iAMT
  • LAN 2: Intel® I226V, supports 2.5G only
  • 4x USB 3.2 (Type-A), 3x USB 3.2, 2x USB 2.0, 4x SATA III
  • 2x COM (RS232) +2x COM (RS232/422/485)
  • 2x PCIe(x16) [Gen5.0], 2x PCIe(x4) [Gen4.0], 2x PCIe(x1) [Gen3.0]
  • 4x M.2, including E-Key (2230), B-Key (3052) and 2x M-Key (2280)
  • Watchdog timer, Digital I/O, iSMART (4.0), iAMT (16.1), dTPM (2.0)
  • NEW
  • iSMART
CPU Socket LGA1700
CPU Intel® Core™ 200E / 200PE & 14th/13th/12th Core i LGA1700 Processors
PCH Q670E, R680E
Memory 4x DDR5 U-DIMM sockets, Max. 192GB
BIOS AMI
Watchdog Timer 256 levels
H/W Monitor Yes
Storage Device Interface SATA III & NVMe
Expansion Slots 2x PCIe (x16) [Gen.5.0]; 2x PCIe (x4) [Gen.4.0] ; 2x PCIe (x1) [Gen.3.0]
Mini Type Slots 2x M.2 (M2280, supports NVMe (Gen4)
1x M.2 (E2230, supports CNVi)
1x M.2 (B3052, supports 5G module)
Graphics Controller 12th Gen Intel® Core™ i9/i7/i5/i3 processors integrated
Video Output 2x DisplayPort /DP++ (1.4a)
1x HDMI (2.0)
1x DVI-D
Ethernet LAN 1: Intel® I226LM, supports iAMT
LAN 2: Intel® I226V, supports 2.5G only
I/O Chip Fintek F81964D-I
Serial Port 4x COM ports: 2x RS232/422/485 + 2x RS232
USB 2.0 2x USB 2.0 via pin-header

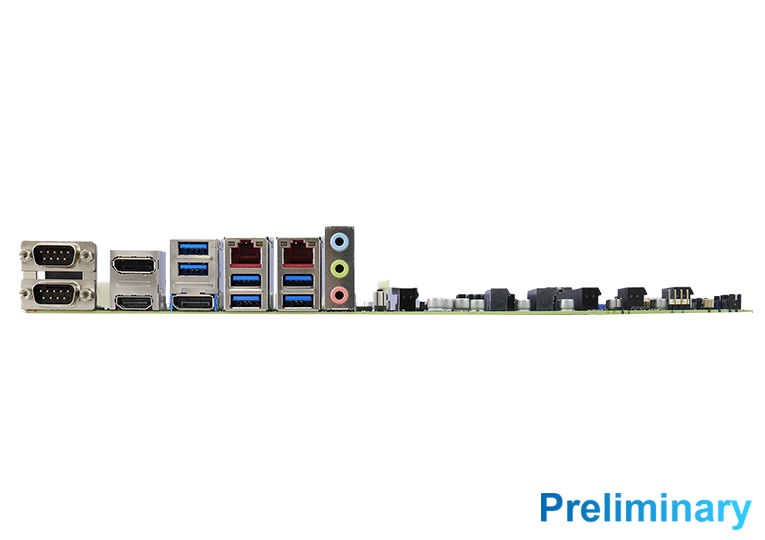

USB 3.X 4x USB 3.2(10 Gbps) @ rear panel
2x USB 3.1 Gen1(5 Gbps) support Type-A @ rear panel
2x USB 3.2 @ onboard box headers
1x USB 3.2 @ onboard vertical connector
Serial ATA 4x SATA III
Audio Built-in HD Audio controller + Realtek ALC888S-VD2-GR w/ 7.1 channels
TPM TPM(2.0)
Others Digital I/O (4-in/4-out), iSMART (4.0), iAMT (16.1), dTPM (2.0), RAID
Dimensions (L X W) 305mm x 244mm (12"x 9.6")
Power Consumption TBD
Operating Temperature 0°C~60°C ( 32°F~140°F)
Storage Temperature -20°C~80°C (-4°F~176°F)
Relative Humidity 90% (non-condensing @60°C)
DATASHEETS MBB1004
