7th/6th Gen Intel® Core™ i7/i5/i3 / Pentium® / Celeron® with Intel® Q170 PCH ATX Motherboard

  • 7th/6th Gen Intel® Core™ i7/i5/i3 / Pentium® / Celeron® QC/DC processors, up to 4.0GHz
  • 4x DDR4 DIMM, Max. 64GB, ECC compatible
  • Intel® processor integrated graphics supports DVI-D, HDMI and DisplayPort
  • Dual Intel® Gigabit LAN
  • 4x USB 2.0, 10x USB 3.0, 6x COM, 6x SATA III
  • 1x PCI-E(x16), 1x PCI-E(x8) [(x4) Link], 1x PCI-E(x4) [(x1) Link], 1x PCI-E(x1), 3x PCI
  • 1x Mini PCI-E
  • Watchdog timer, Digital I/O, iAMT(11.0), TPM(1.2), vPro, iSMART
  • iSMART

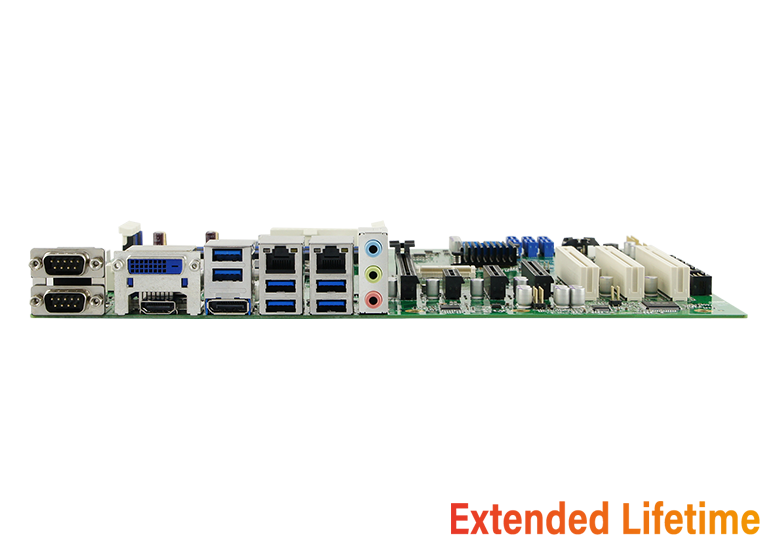

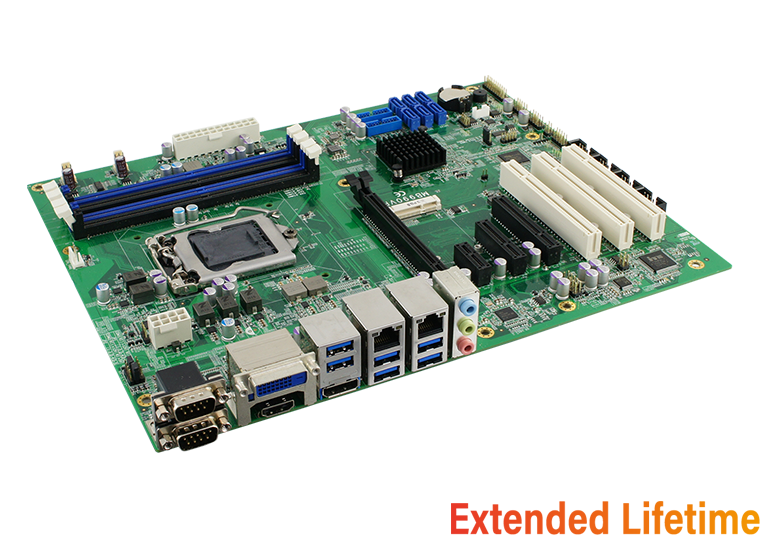

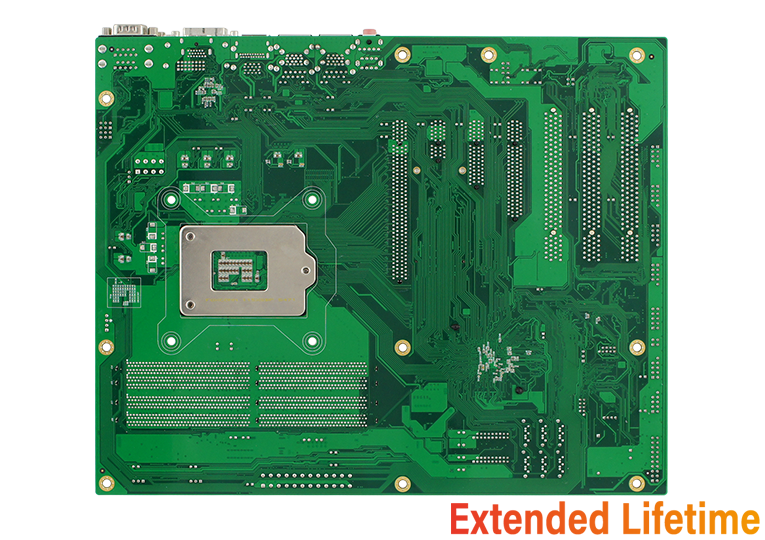

The MB990 ATX motherboard supports Intel's newest 7th/6th Gen Intel® Core™ processors. It features LGA1151 socket for 7th/6th Gen Intel® Core™, Pentium or Celeron processors based on the code-named “Skylake-S” micro-architecture. The motherboard supports four DDR4 DIMM slots for up to 64GB of memory, four USB 2.0, ten USB 3.0, six COM and six SATA III ports, as well as graphics interface for DVI-D, HDMI and DisplayPort displays.

Equipped with a wide variety of expansion options including PCI-E(x16), PCI-E(x8), PCI-E(x4), PCI-E(x1), Mini PCIe and three PCI slots, MB990 is best suited for IoT, industrial, digital signage, medical, retail and factory automation applications. The platform comes with two Gigabit Ethernet controllers and supports digital I/O, RAID, TPM 1.2 and iAMT 11.0. The board also has advanced iSMART environmental features that enable power on/off scheduling, power resume and full power down functions.

CPU Socket LGA1151
CPU 7th/6th Gen Intel® Core™ i7/i5/i3/ Pentium® / Celeron® QC/ DC processors, up to 4.0GHz
PCH Intel® Q170 PCH
Memory 4x DDR4 DIMM, Max. 64GB (supports ECC by CPU SKUs)
Watchdog Timer 256 levels
H/W Monitor Yes
Storage Device Interface N/A
Expansion Slots 1x PCI-E (x16), 1x PCI-E (x8), 1x PCI-E (x4), 1x PCI-E (x1), 3x PCI
Mini Type Slots 1x Mini PCI-E
Graphics Controller 7th/6th Gen Intel® Core™ i7/i5/i3/ Pentium®/ Celeron® QC/ DC processors integrated
Video Output Supports DVI-D, HDMI and DisplayPort
Ethernet MB990VF: Intel® I219LM Gigabit LAN PHY
Intel® I211AT PCI-E Gigabit LAN (as 2nd LAN)
I/O Chip Fintek F81866AD-I
Serial Port 5x RS232, 1x RS232/422/485 (jumper-less selection)
USB 2.0 4x USB 2.0 via pin-header
USB 3.X 10x USB 3.0
6 ports on board
4 ports via pin-header
Serial ATA 6x SATA II
Audio Intel® Q170 PCH built-in HD audio + Realtek ALC888S codec
TPM TPM (1.2)
Others Digital I/O (4-in/4-out), RAID, iAMT (11.0), iSMART
Dimensions (L X W) 305mm x 244mm (12" x 9.6")
Power Consumption Intel® Core™ i7-6700 3.4GHz w/ 4x 4GB DDR4-2133
+12V: 7.12A ; +5V: 1.99A; +5VSB: 0.15A; +3.3V: 0.43A
Operating Temperature 0°C~60°C (32°F~140°F)
Storage Temperature -20°C~80°C (-4°F~176°F)
Relative Humidity 10% ~ 90% (non-condensing)
MB990VFS-A LGA1151 Q170 ATX motherboard w/ DVI-D, HDMI, DisplayPort, dual Gigabit LAN, RAID, iAMT (11.0), TPM (1.2), vPro, iSMART
