IBS-VB

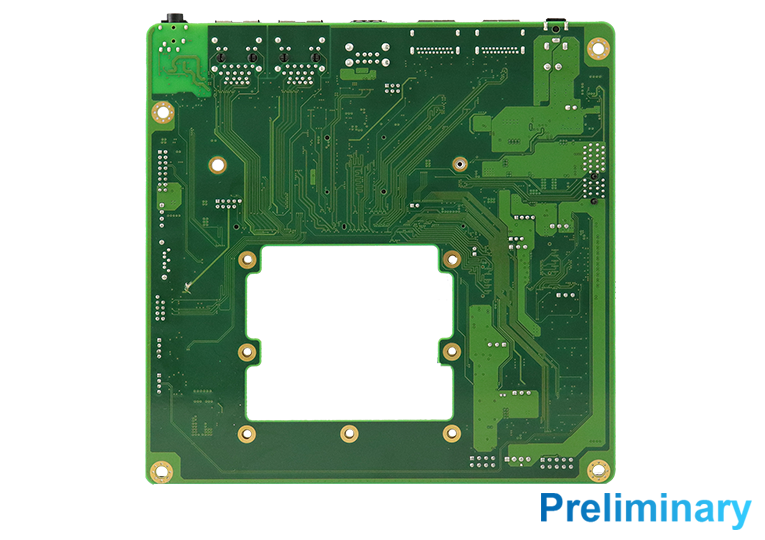

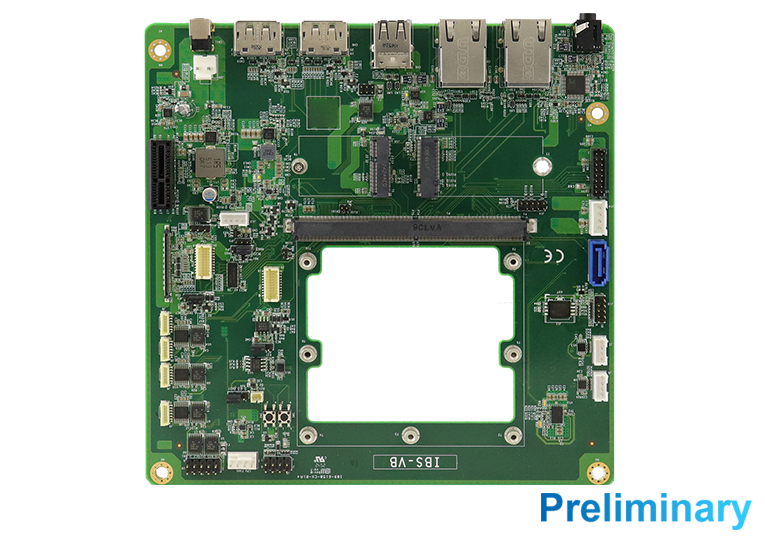

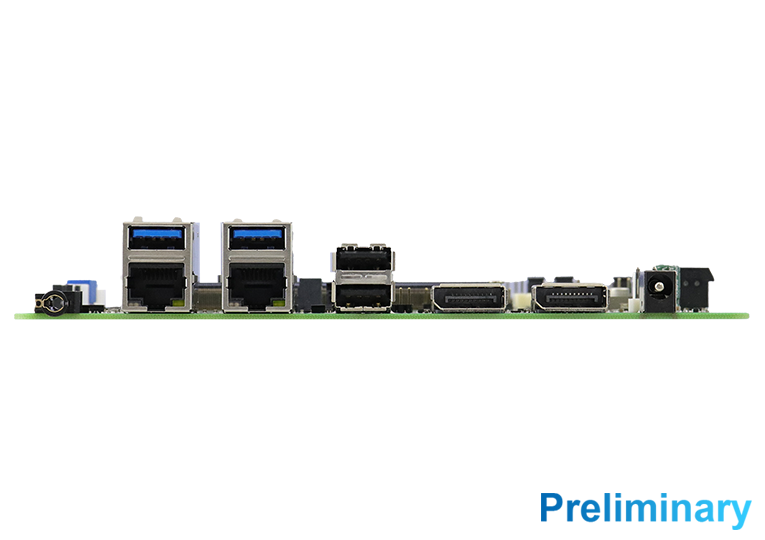

IBS Series SMARC 2.2 CPU Module Carrier Board

  • Carrier Board for IBS Series SMARC 2.2 CPU Module
  • Extensive peripheral I/O support
  • Complete system available for evaluation
  • Wide-range operating temperature (-20°C~70°C)
  • NEW
  • Fanless
  • Wide Temperature
Form Factor Mini-ITX
Module Interface SMARC 2.2 connector
Expansions slots N/A
Mini Type Slots N/A
Video Output 2x DisplayPort
1x LVDS or 1x eDP (By option)
Ethernet 2x RJ45 for 2.5G Lan
I/O Chip N/A
Serial Port 4x 6-pin header for UART 0~3
USB 2.0 2x USB 2.0 Type A
USB 3.0/ 3.1 2x USB 3.2 Type A
Serial ATA 1x SATA III
PCIe 1x PCIe Slot
M.2 1x M.2 E-key for PCIe x1 and USB 2.0
1x M.2 B-key for PCIe x 1 and USB 2.0
Audio 1x 12-Pin header for Audio (HDA)
1x Audio Jack for speaker/Mic (I2S)
Digital I/O 1x 5-pin (x2) header for GPIO
1x 3-pin (x2) header for GPIO
Watchdog 256 levels
KB/MS N/A
Parallel N/A
Dimensions (L X W) 170 mm x 170 mm (6.7“ x 6.7“)
Power DC-in (12V)
DC jack or 2-pin connector for 12V DC power-in
Operating Temperature -20°C~70°C (-4°F~-94°F)
Storage Temperature -40°C~85°C (-40°F~185°F)
Relative Humidity 10% ~ 90% (non-condensing)
