IP419

COM Express Type 6 (R3.0) Carrier Board

  • Supports 4x USB2.0, 3x USB3.0, 2x SATA 3.0
  • 1x PCI-E(1x) slots, 1x M.2 socket
  • 1x eDP or 1x LVDS, 1x DisplayPort, 1x DVI-D
  • 2x LAN connectors
  • Wide Temperature
Form Factor Mini-ITX
Module Interface COM Express Type-6 (R3.0)
Expansions slots 1x PCI-E(x1) slot
1x M.2 socket
Mini Type Slots N/A
Video Output 2x DDI (1x DisplayPort 1x DVI-D)
1x LVDS or 1x eDP (By option)
1x 18/24-bit dual-channel LVDS or 1x eDP (optionl)
Ethernet LAN1: Derived from COM Express CPU module
LAN2: 1x Intel® I210IT
I/O Chip Fintek F81964D-I
Serial Port 4x COM ports
-2x COM ports (from Super I/O)
-2x COM ports (from CPU module,TX/RX)
USB 2.0 Derived from COM Express module
4x USB 2.0, (one port for OTG)
USB 3.0/ 3.1 2x USB 3.0
Serial ATA Derived from COM Express module
2x SATA III
Audio Built-in ALC662 or ALC888S HD audio codec
Digital I/O 4-in/4-out
Watchdog 256 levels
KB/MS N/A
Parallel 1x Parallel port via box header
Dimensions (L X W) 170 mm x 170 mm (6.7" x 6.7")
Power DC-in (12V)
2x 2-pin connector for 12V DC power-in
Operating Temperature -20°C~70°C (-4°F~-94°F)
Storage Temperature -40°C~90°C (-40°F~194°F)
Relative Humidity 10% ~ 90% (non-condensing)

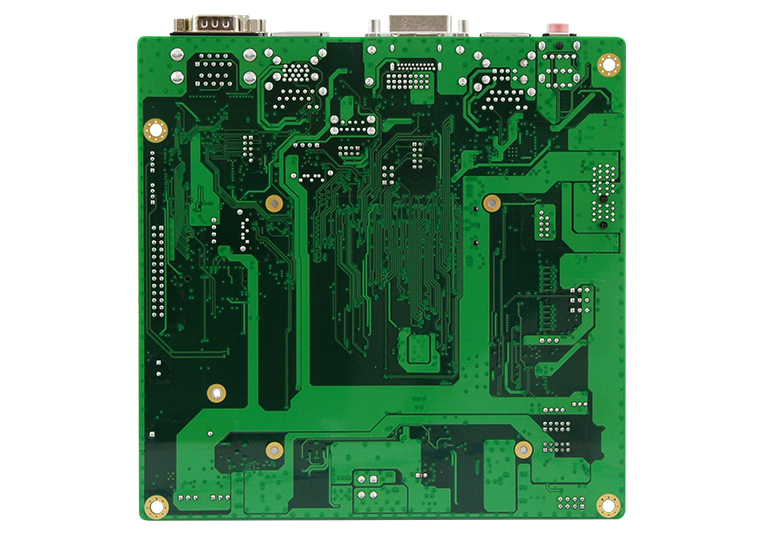

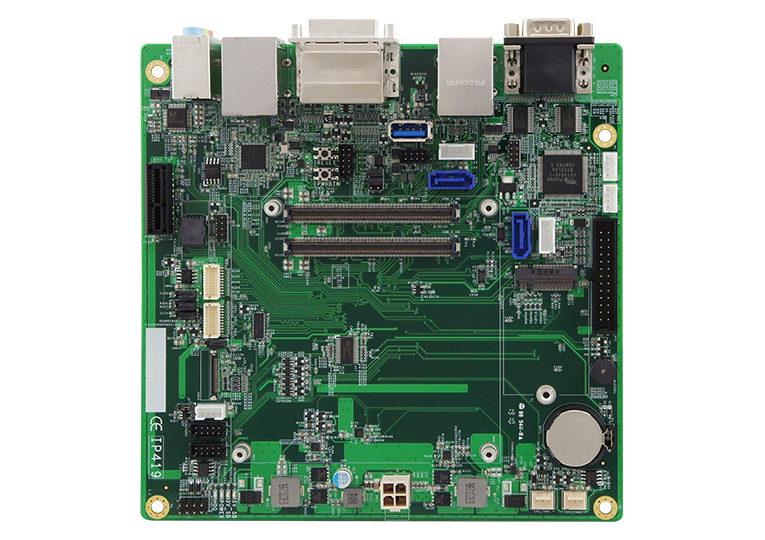

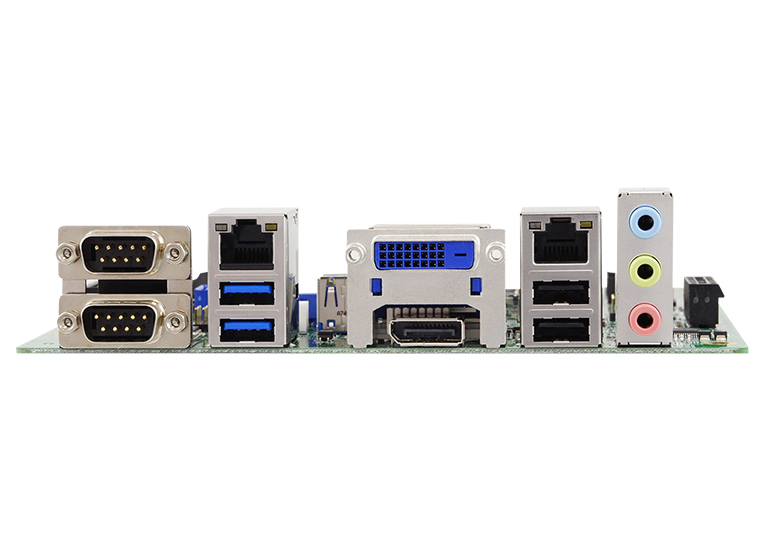

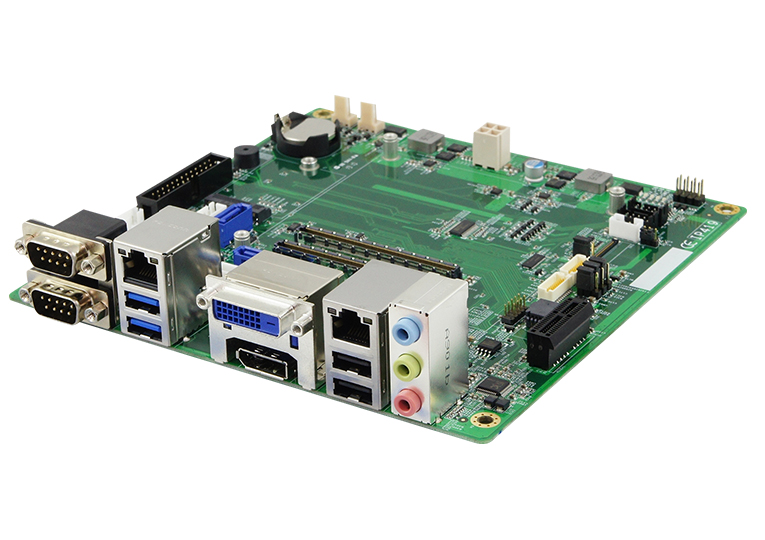

IP419 Mini-ITX COM Express Type-6 carrier board, supports LVDS or eDP
