| Form Factor | ATX |
| Module Interface | COM Express Type-6 |
| Expansions slots | 1x PCI-E(x16) slot [up to Gen.5] 2x PCI-E(x4) slot 2x PCI-E(x1) slot |
| Mini Type Slots | 1x M.2 (B3052) 1x M.2 (M2080) 1x M.2 (E2230) |
| Video Output | 3x DisplayPort 1x VGA 1x 24-bit dual-channel LVDS 1x eDP |
| Ethernet | Derived from COM Express CPU module |
| I/O Chip | Fintek F81964D-I |
| Serial Port | COM ports x2 via onboard box-headers (RS232 only) - 2x COM ports (from onboard Super I/O) - 2x COM ports (from CPU module, Tx/Rx only) |
| USB 2.0 | Derived from COM Express module 3x USB2.0 (1 for Type-A, 2x via box headers) |

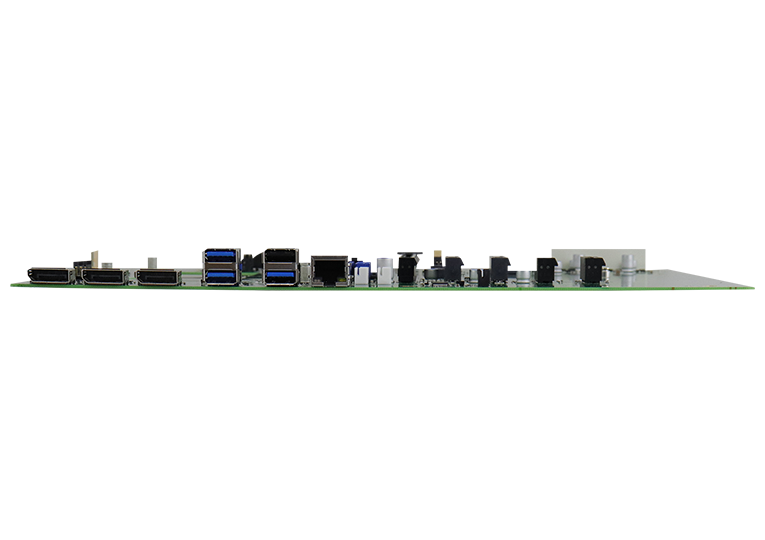

| USB 3.0/ 3.1 | 3x USB 3.2 Type-A connectors @edge I/O |
| Serial ATA | Derived from COM Express CPU module 4x SATA III |
| Audio | Built-in ALC888-S HD audio codec |
| Digital I/O | 4-in/4-out |
| Watchdog | 256 levels |
| KB/MS | Yes |
| Parallel | N/A |
| Dimensions (L X W) | 305mm x 244mm (12” x 9.6”) |
| Power | 20+4-pin connector for ATX (IP414) 2x 2-pin connector for DC power-in (IP414-DC only) |
| Operating Temperature | 0°C~60°C (32°F~140°F) |
| Storage Temperature | -20°C~80°C (-4°F~176°F) |
| Relative Humidity | 10% ~ 90% (non-condensing) |

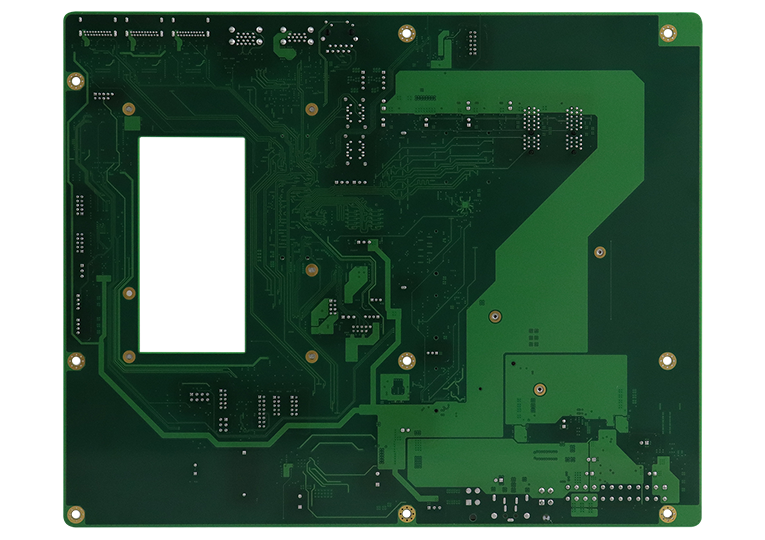

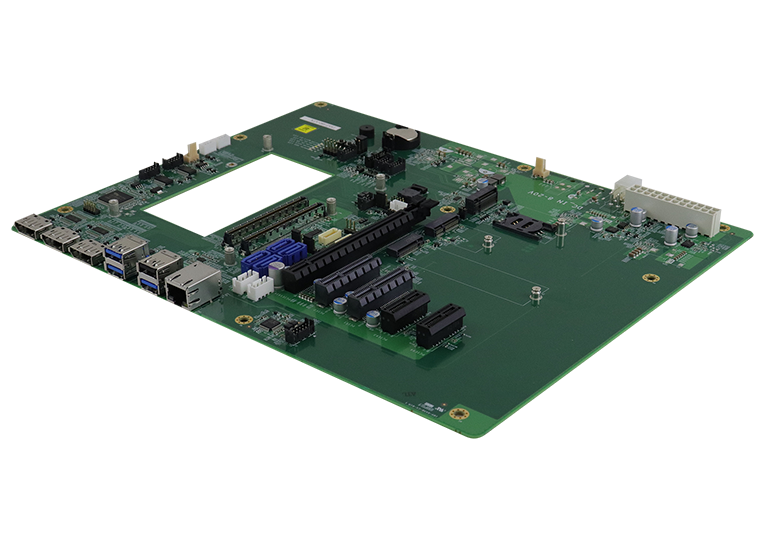

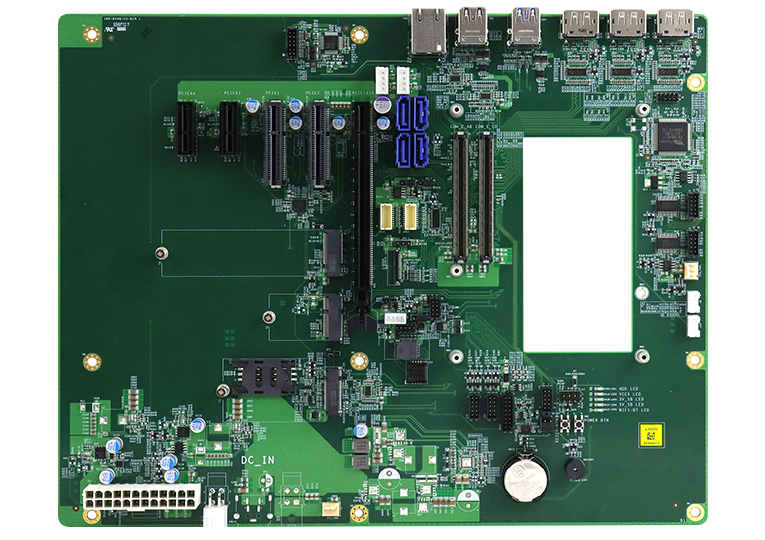

| IP414 | ATX COM Express Type-6 carrier board, supports ATX |
| IP414-DC | ATX COM Express Type-6 carrier board, supports DC-in (+8V ~ +20V) |
| DATASHEETS | IP414 |
| CATALOGS | Embedded Computing (Vol.24) |
| USER'S MANUALS | IP414 V1.0 |
